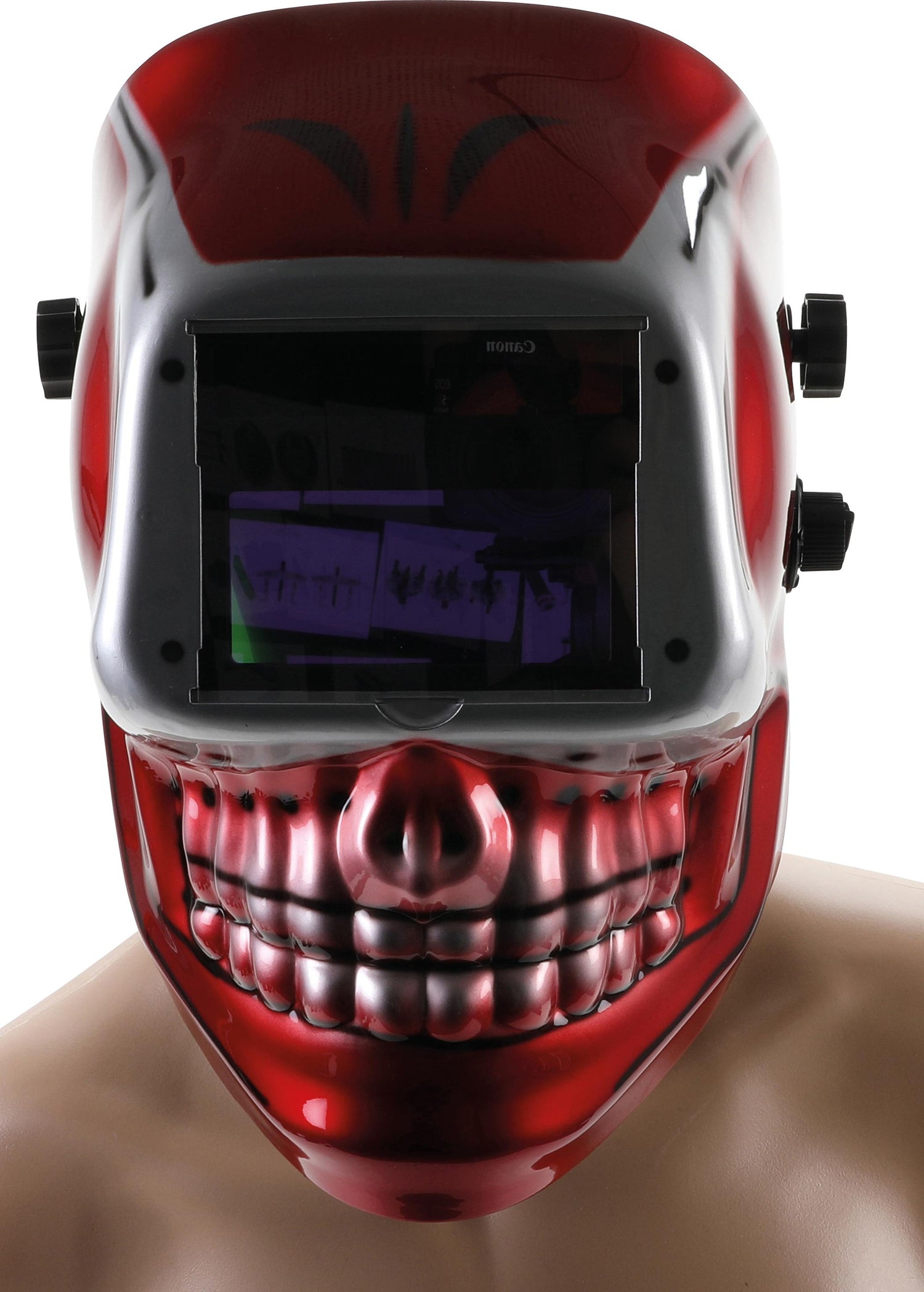

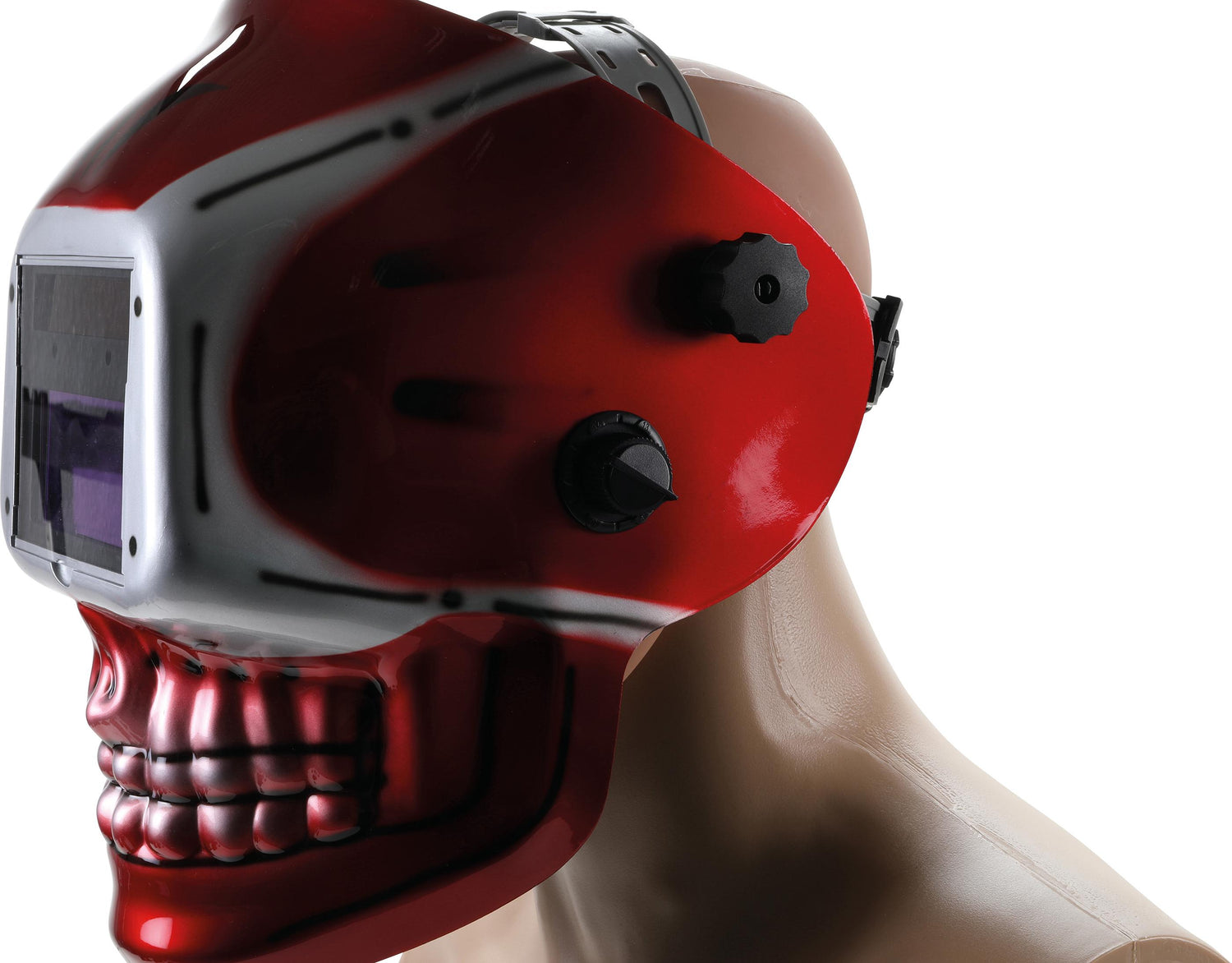

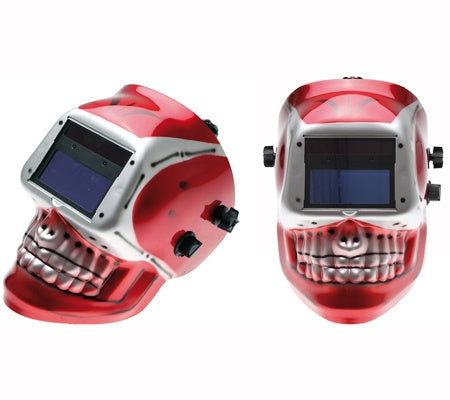

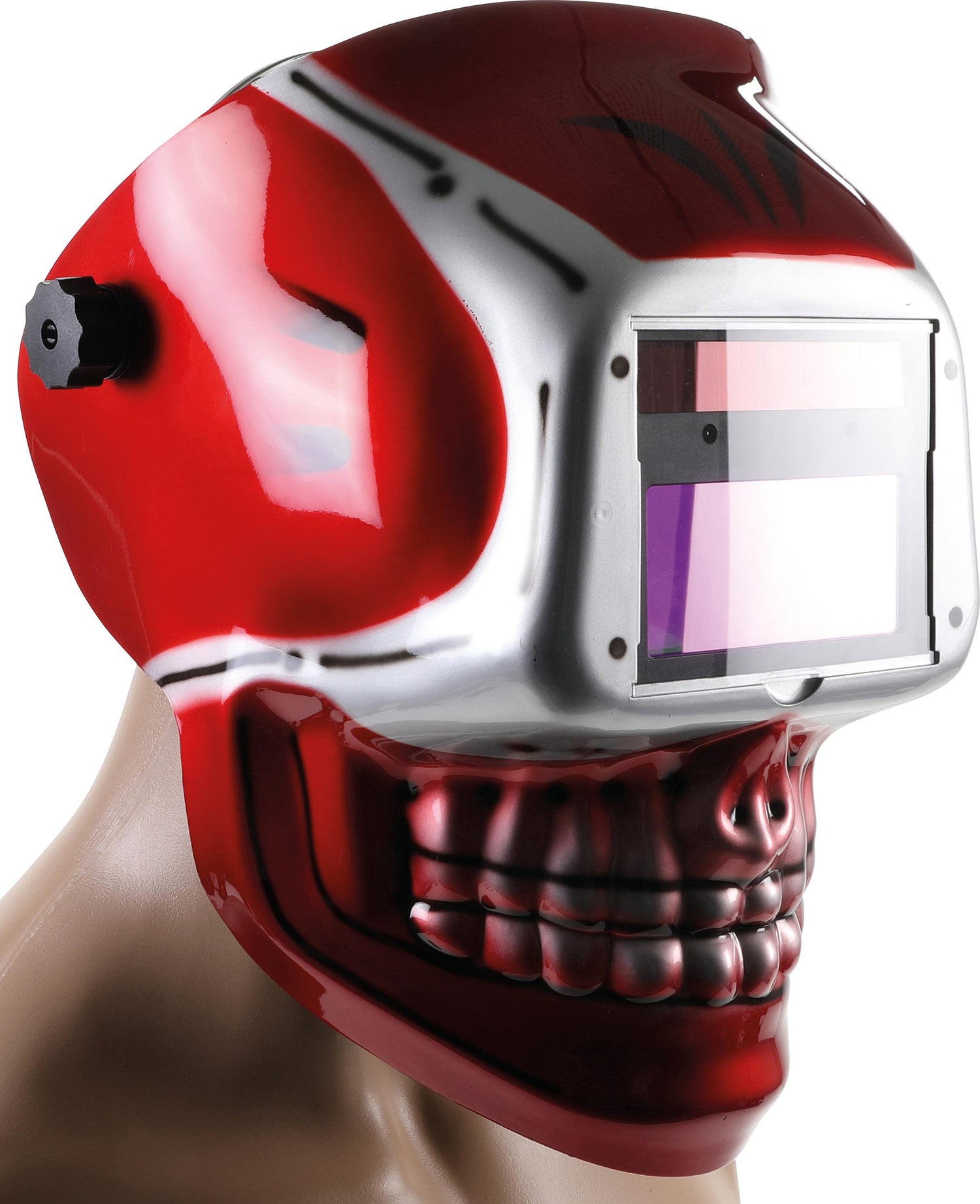

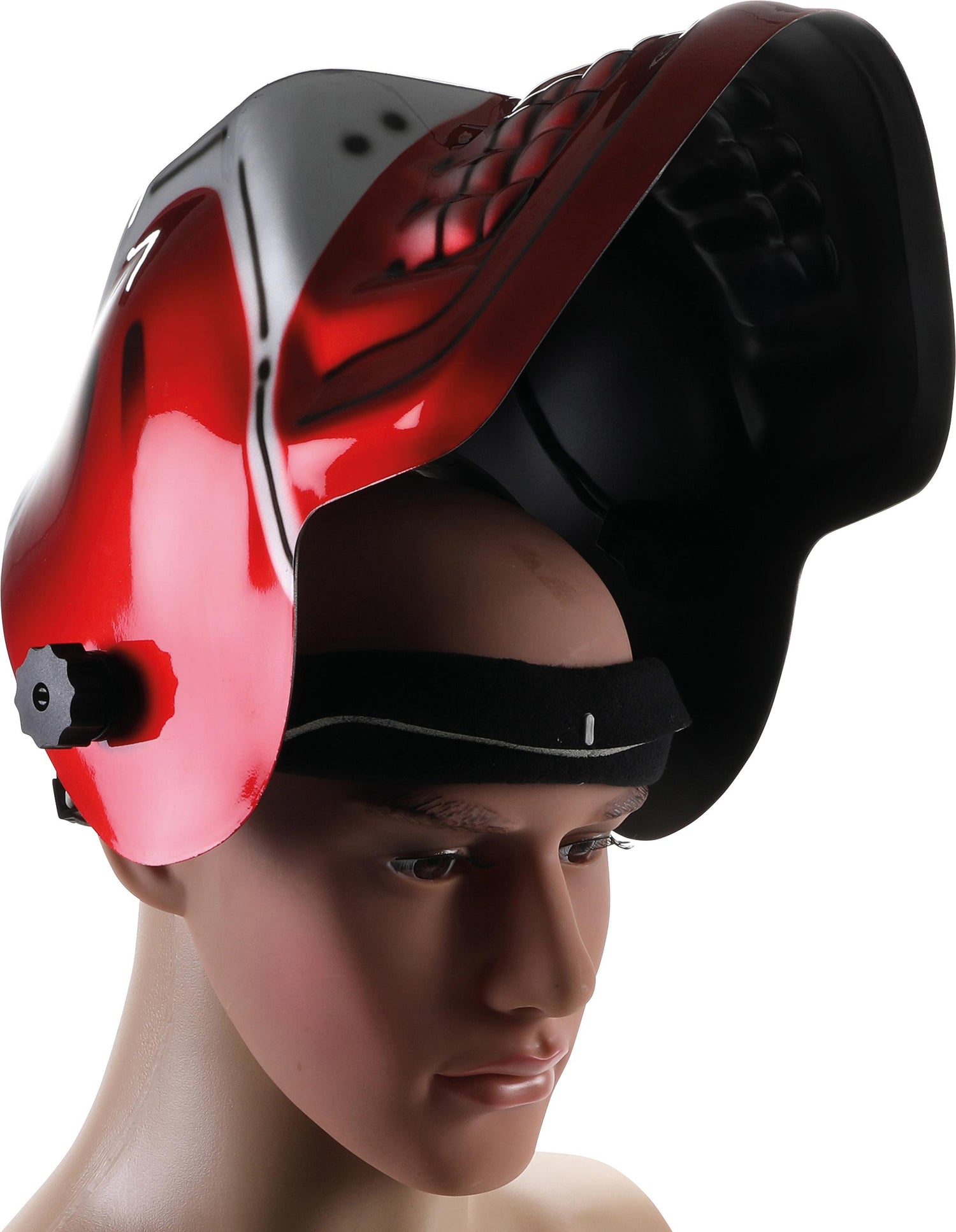

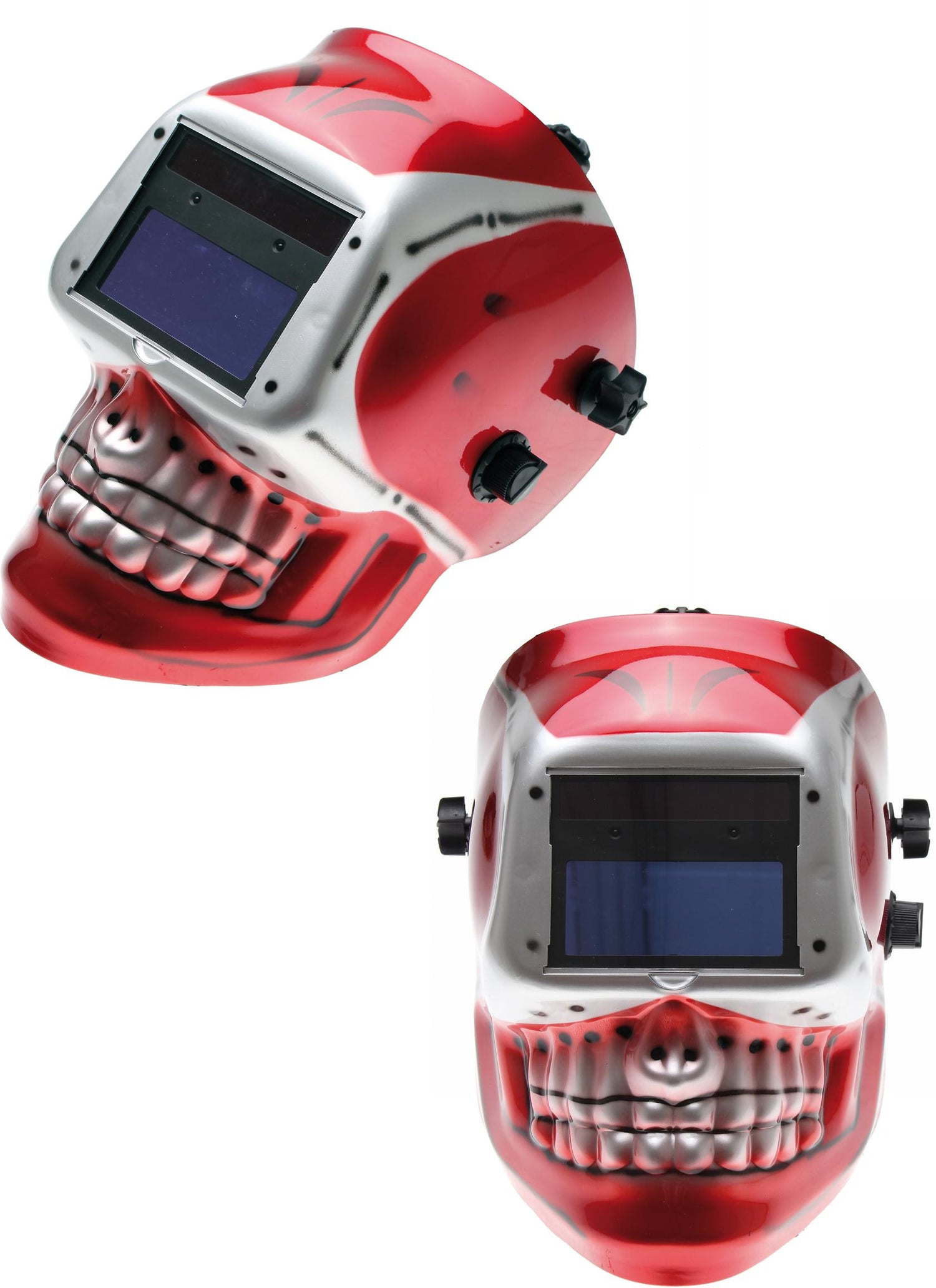

WELDING HELMET | "SKULL" | AUTO DARKENING (8858)

photoelectric liquid crystal light control
field of view: 92 x 42 mm
cassette size: 110 x 90 x 9 mm
switching time 1/25,000 sec.
time from dark to light 0.1 - 1.0 sec.
deactivated status: DIN 4
activated status: DIN 9 - 13
external regulator for variable protection stages
two internal regulators for variable sensitivity and delay
automatic on / off
power supply: battery CR2032
UV / IR protection DIN 16
arc sensor 2
low-amp TIG = 5 Amp
low battery indicator
ADF self-test
operating temperature: -5C to + 55C
storage temperature: -20C to + 70C
welding processes: MMA, MIG, MAG / C02, TIG, plasma welding and cutting
Technical data
Weight480 g
Gross weight870 g
