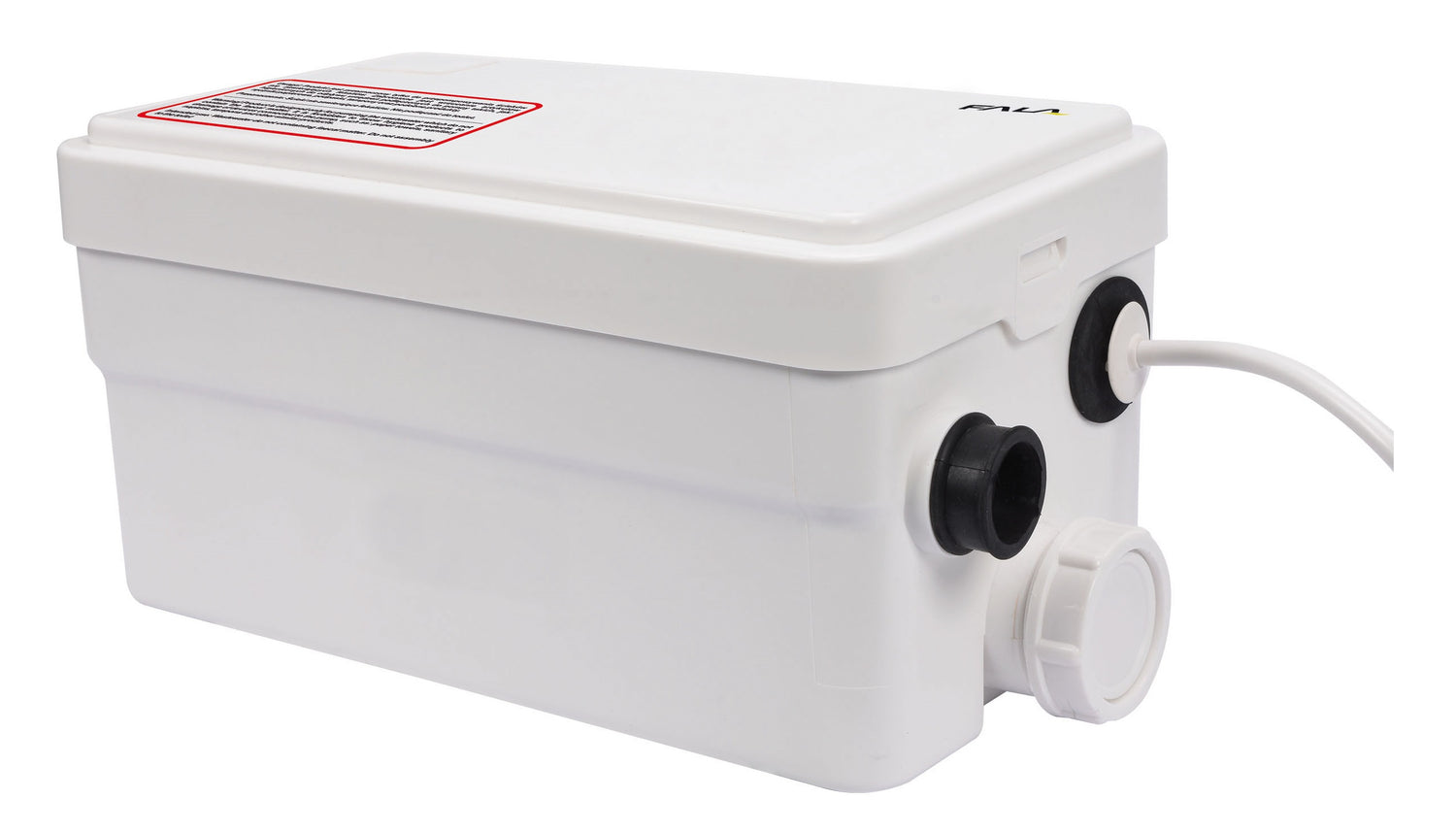

WASTE PUMP FOR SHOWER AND BASIN (75945)

An efficient, small sanitary pump equipped with a silent 250 watt motor.
Useful in households without the possibility of connecting sanitary equipment to a gravitational sanitary sewage system.
reliable membrane switch, which guarantees precise control of the device's operation
fully automatic pump operation

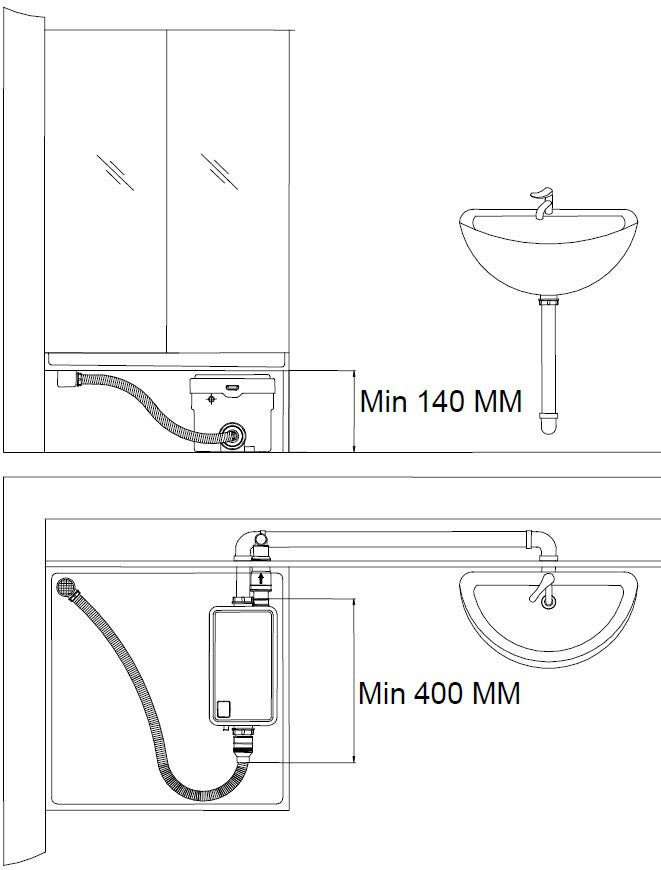

small dimensions make the pump fit under the bathtub, in a small cabinet under the sink, and even in the building of a high shower tray

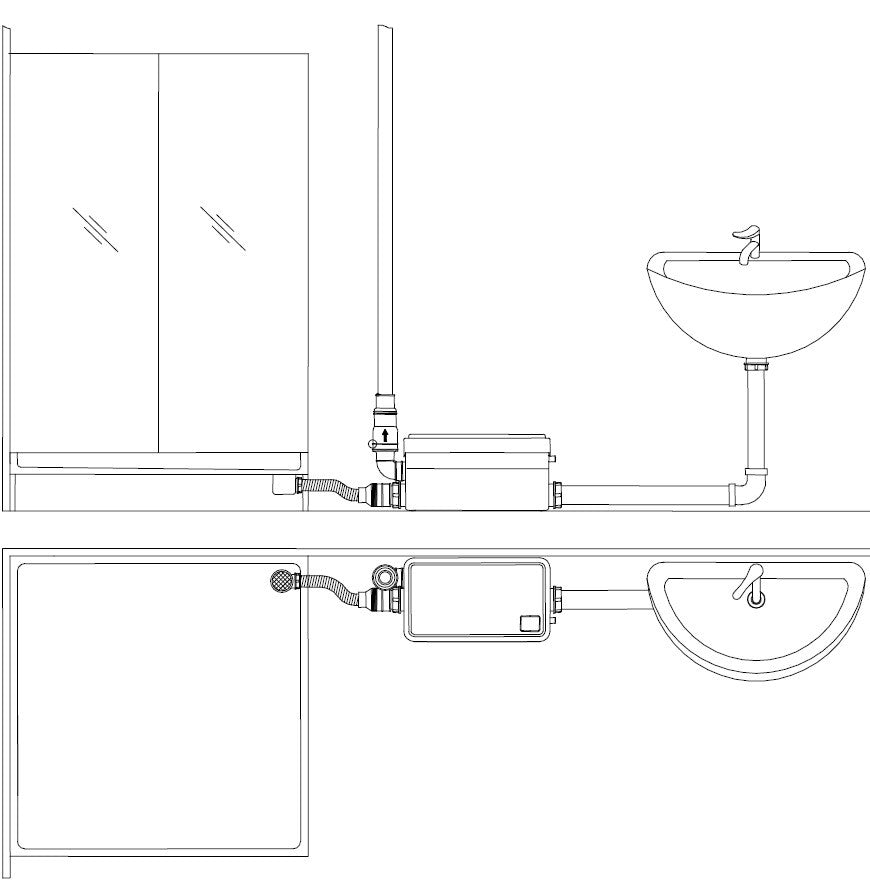

possibility to connect a washbasin, bathtub, shower or bidet on both sides of the pump.

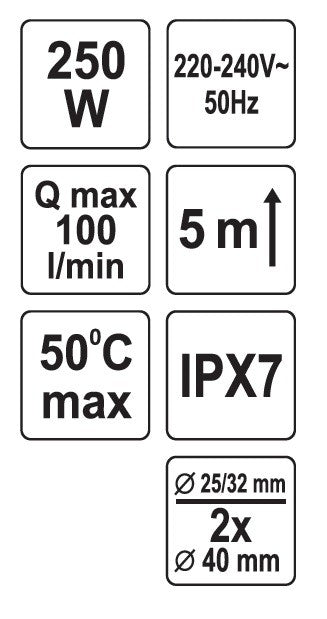

Technical parameters:
power: 250 W
rotational speed: 2800 RPM
max. flow: 100 l / min

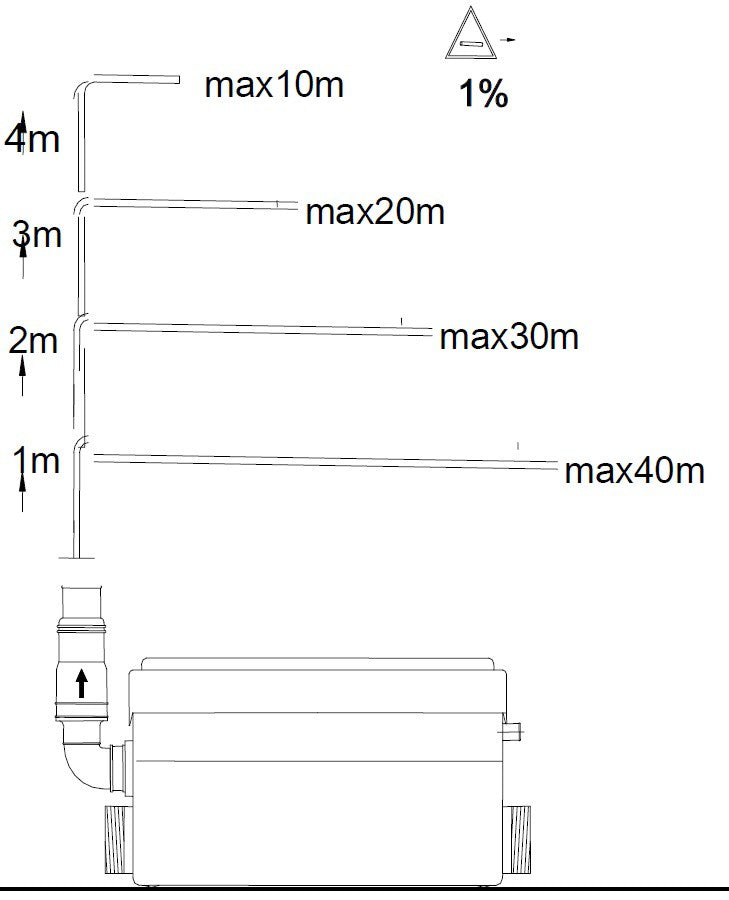

max. lifting height: 5 m
max. water temperature: 50oC
voltage: 230 V ~ 50 Hz
degree of protection: IPX7
power cord: 1.6 m
number of inputs: 2 (2 x 40 mm)

Purpose / Use
Rooms in the household without the technical possibility of connecting sanitary facilities to the gravitational sanitary sewer - basements, attics, wardrobes and other rooms processed for sanitary purposes.
Contents of the package
* pump
* 2 clamp clamps
* 2 caps with nuts and gaskets
* check valve
* 2 anchoring elements for the floor
* electric wire ended with a plug
* Warranty Card
* instruction
Technical data
Index number 75945
Brand wave
Maximum Lifting height [m] 5
Maximum efficiency [dm3 / h] 6000
Cable length [m] 1.6
Power [W] 250
