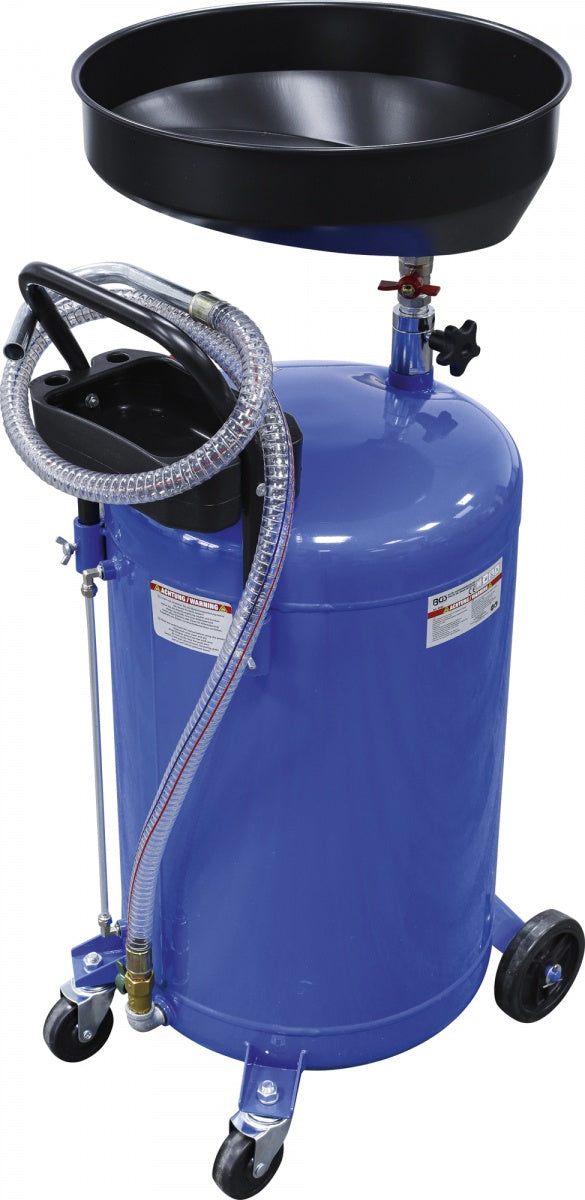

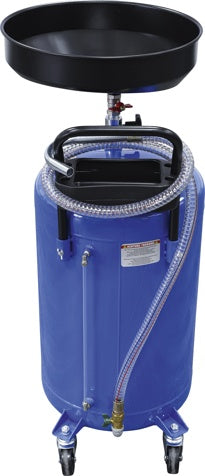

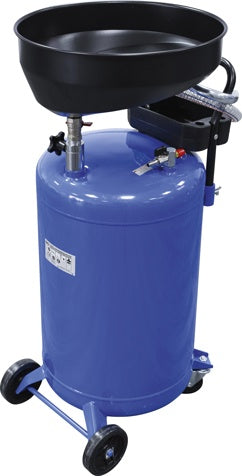

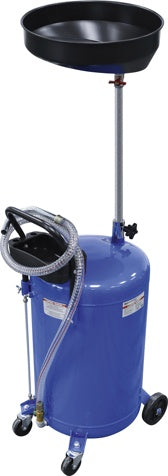

WASTE OIL DRAIN RECEIVER | 70 L (8546)

serves to collect engine, transmission, differential oil or antifreeze
pneumatic pressure emptying with safety valve
stopcock and clamping screw for pressure drainage
mobile and steerable container with extra-large plastic wheels
with moving handle
centrally mounted and height-adjustable round drip tray
transparent level indicator with measuring scale
clear fabric hose for emptying the container
collection tank: 380 mm
opening pressure (safety valve): approx. 0.6 bar (8 psi)
collection funnel diameter: max. 420 mm
drainage pipe diameter: 25 mm
drainage pipe length: 720 mm
Technical data
Length440 mm
Width520 mm
Height910 mm
Packaging suitable for wall hangingNo
Weight18 kg
Max. working pressure6,3 bar
Tank capacity70 l
Hose length150 cm
