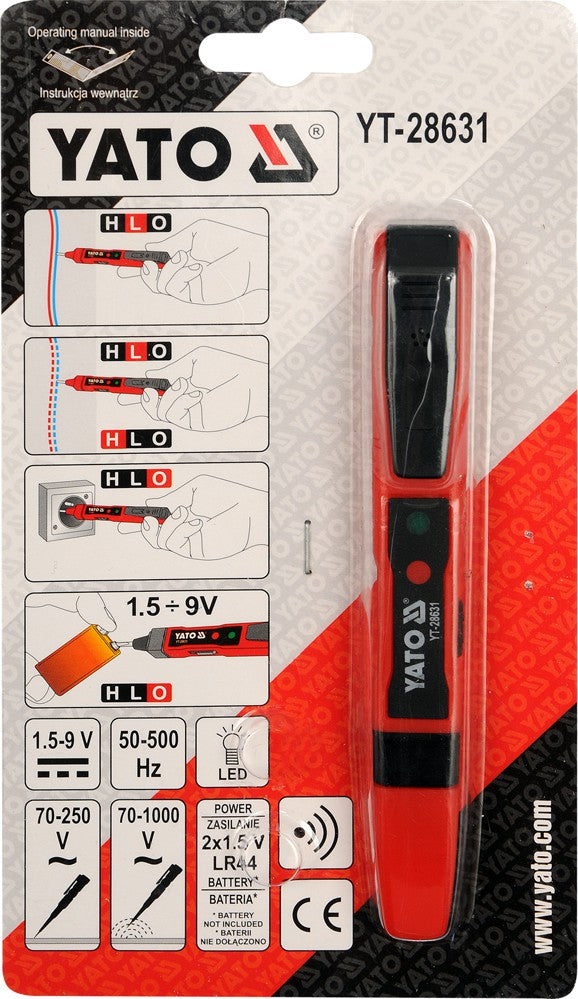

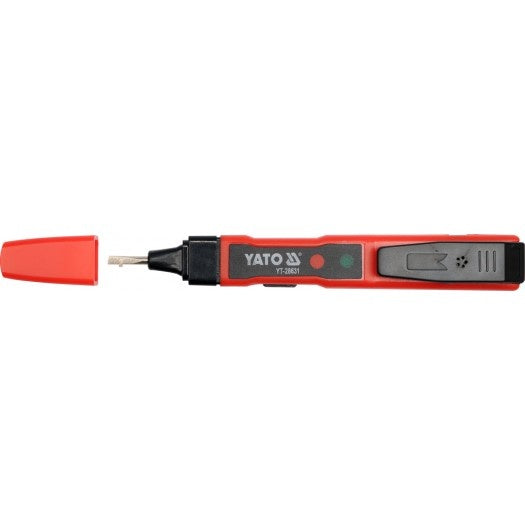

VOLTAGE TESTER (YT-28631)

Product number YT-28631
length (mm) 145
gross weight (g) 0.062
quantity per package IB / MC 6/120
range 1.5-9 V / 70-250 V / 70-1000 V
Frequency (Hz) 50-5001.5 V
battery type LR44 x 2 pcs / not included /
Voltage 230 V


AC VOLTAGE TEST-CONTACT 70 TO 250 VAC; AC VOLTAGE TEST-NON-CONTACT 70 TO 1000 VAC; DC VOLTAV TEST; LOOP CONTAST 1.5 TO 36VDC; DC VOLTAGE TEST; DIRECT 70 TO 250DBC; POLARITY CHECK 2 TO 36VDC; CONTINUITY CHECK 0 TO 100M OHM; HIGH-LOW SENSITIVITY SWITCH;
LED AND BUZZER INDICATION COMPACT; HANDY; ADJUSTABLE SENSE ARM; TOLERANCE AC/DC:ACC.DIN VDE 0680 TEIL 6/04.77; INPUT CURRENT: IS<0.75MA AT 250VAC; BATTERY TEST:SELF-TEXT; DETECTS NEGATIVE IONS; VOLTAGE MEAS:50-500HZ

Product description
Universal tester for detecting electrical voltage and interruptions in electrical circuits. It also allows basic transistors, diodes, resistors or capacitors to be checked. Operating range:
- alternating voltage range (AC) for contact method: 70-250V
- alternating voltage range (AC) for induction method: 70-1000V
- DC voltage range for contact method: 1.5-9V.
- continuity test of the contact method: 0-100
LED signal and beep. Power supply 2x1.5V LR44 batteries.
Destination / Application
Universal tester for detecting electrical voltage and interruptions in electrical circuits. It also allows basic transistors, diodes, resistors or capacitors to be checked.
Technical data
Index number YT-28631
EAN 5906083286315
Mark Yato
Unit SZT
Gross Weight (kg) 0.0620
Master Carton MC 120
Inner Box IB 6
Pal 2520
Frequency [Hz] 50-500
Voltage range [V] 70-250 / 70-1000
Dimension [mm] 140
