VIDEO BORESCOPE WITH TFT-DISPLAY | CAMERA HEAD Ø 8 MM (63216)

for the inspection of hard-to-reach places in vehicles, at home and other areas
also suitable for detecting and lifting falling down screws, nuts, etc. using accessories provided
adjustable lighting in camera head
screen size: TFT LCD 84 mm (3.31 inch)
contrast: 300
brightness: 220 cd/m2
power supply: 4x AA battery 1.5v
work time: max. 6 hours
consumption current: 238 mA
video output impedance: 75 ohm
video signal level: 0.9 - 1.3 Vp-p
imaging sensor: CMOS 2.82 mm (1/9 inch)
effective pixel: 640 x 480
video system: PAL / NTSC
horizontal viewing angle: 48 degrees
waterproof capacity: IP67 (lens and tube only)
tube length: 980 mm
camera diameter: 8 mm
dimensions of handle: 257 x 92 x 44 mm (excl. tube)
operating temperature: -10 C - 50 C (14 f - 122 f)
relative humidity: 15 - 85%
weight: approx. 407 g (incl. batteries)

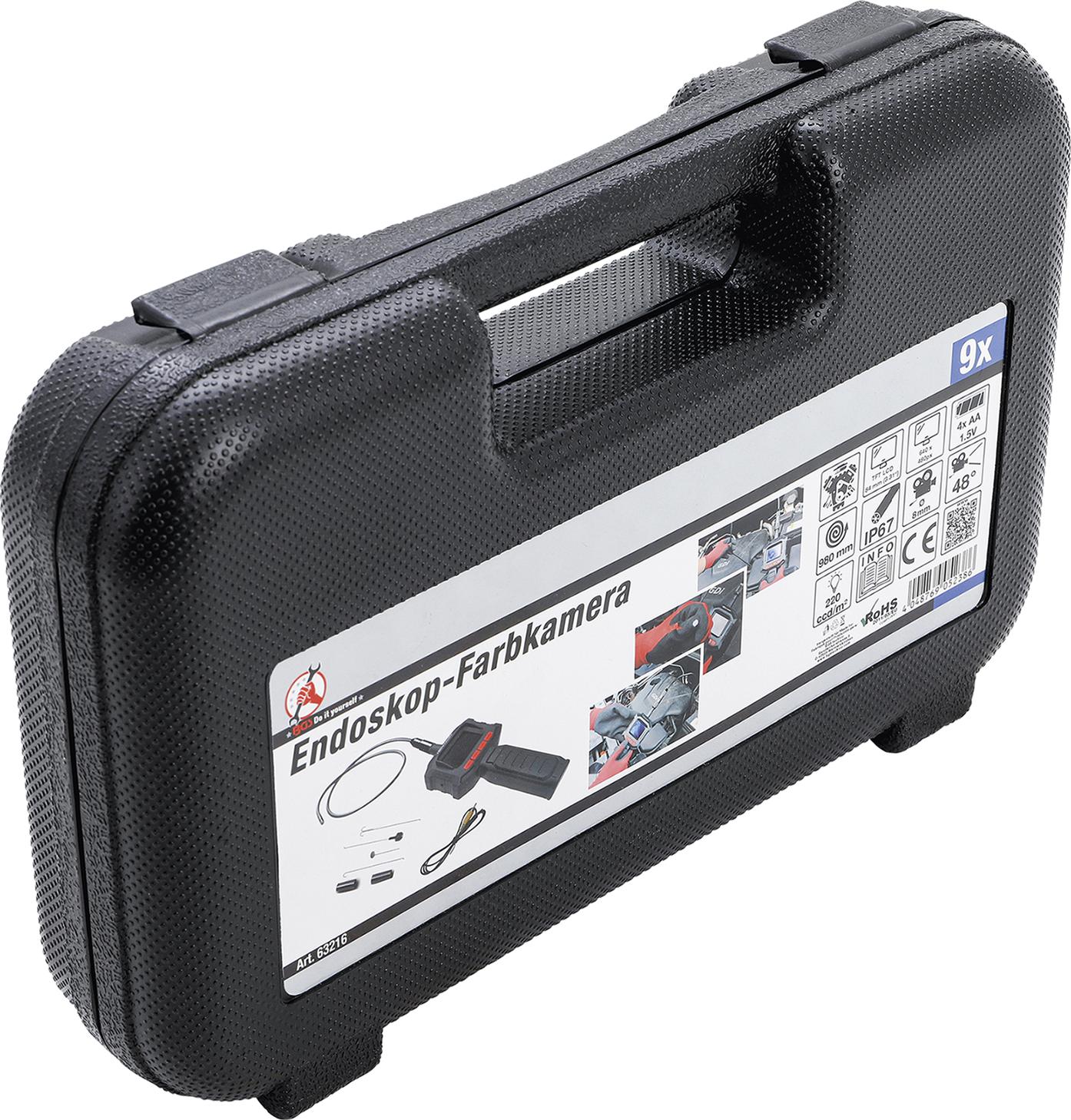

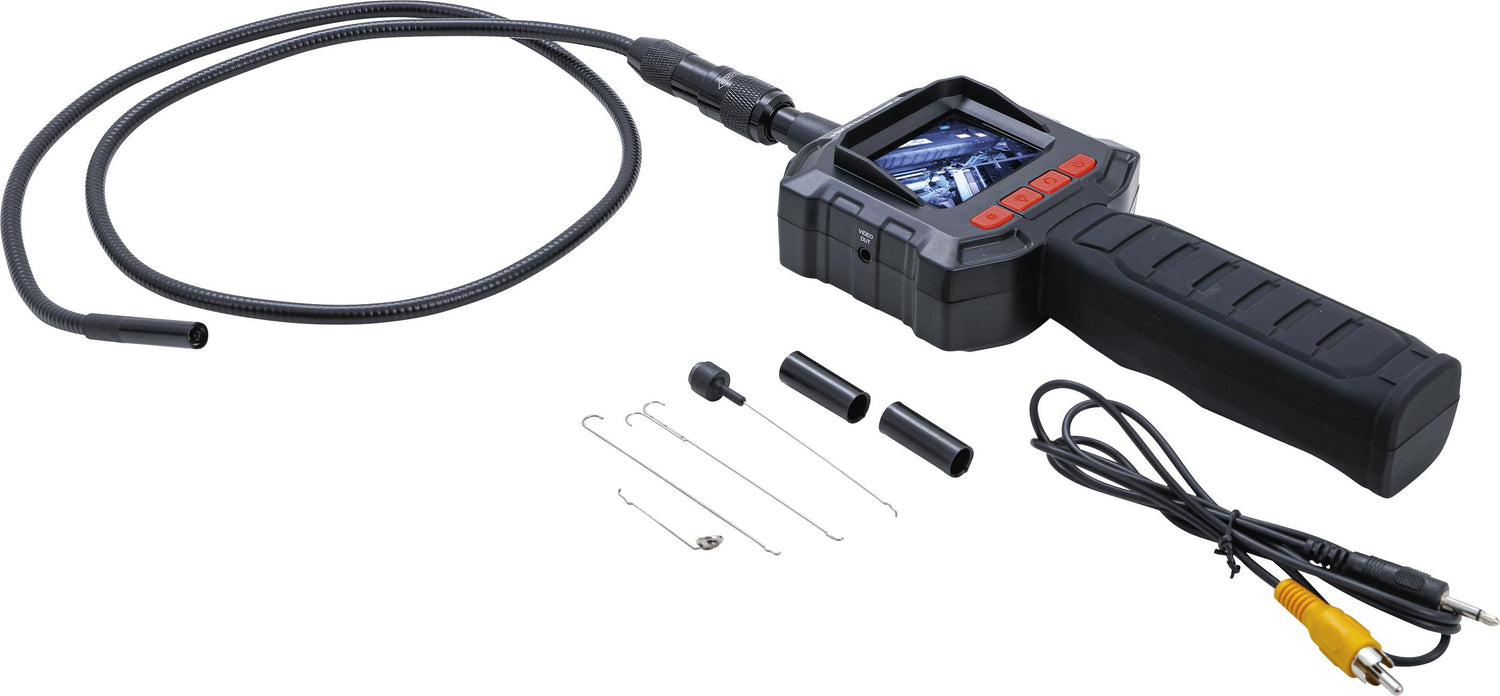

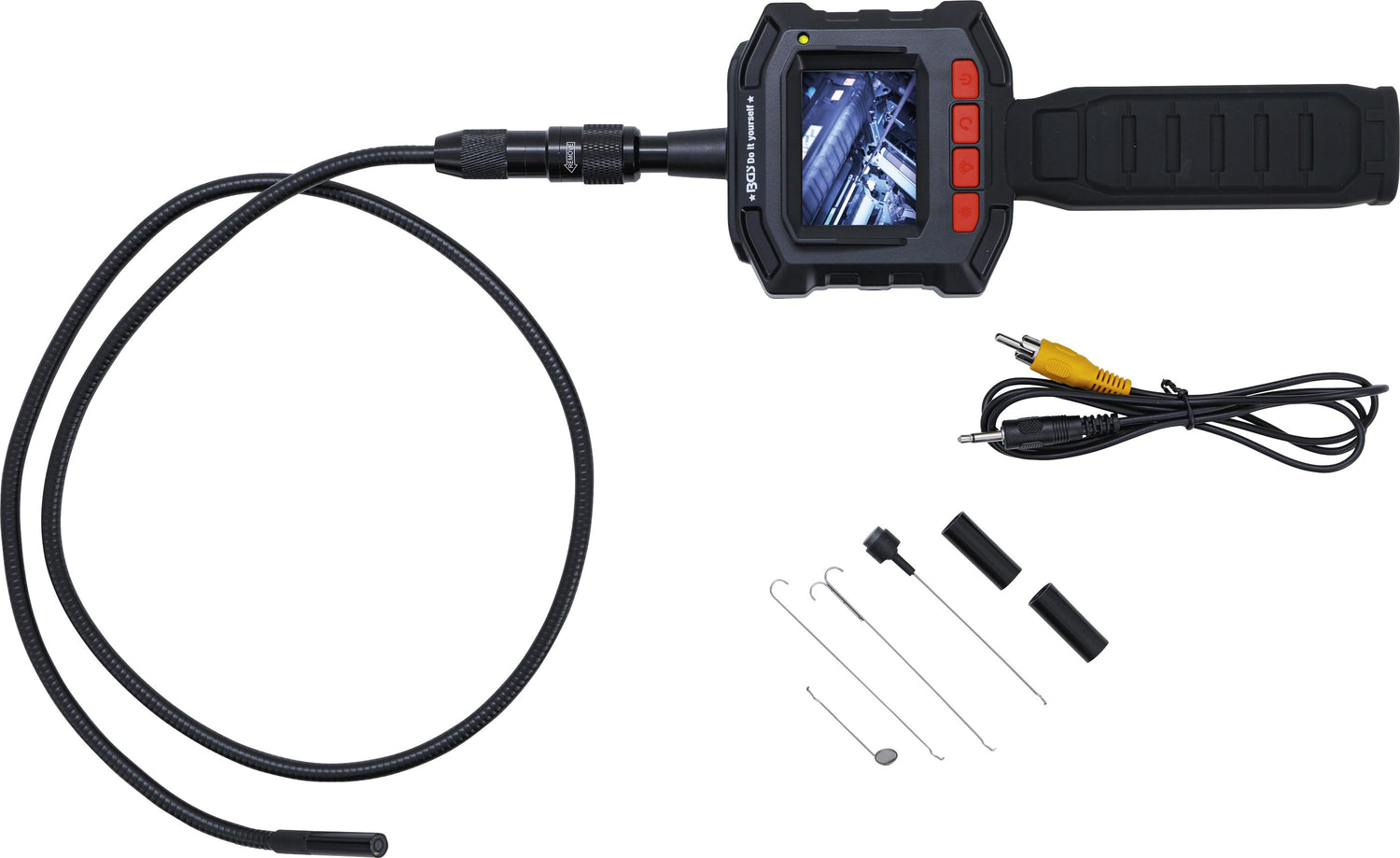

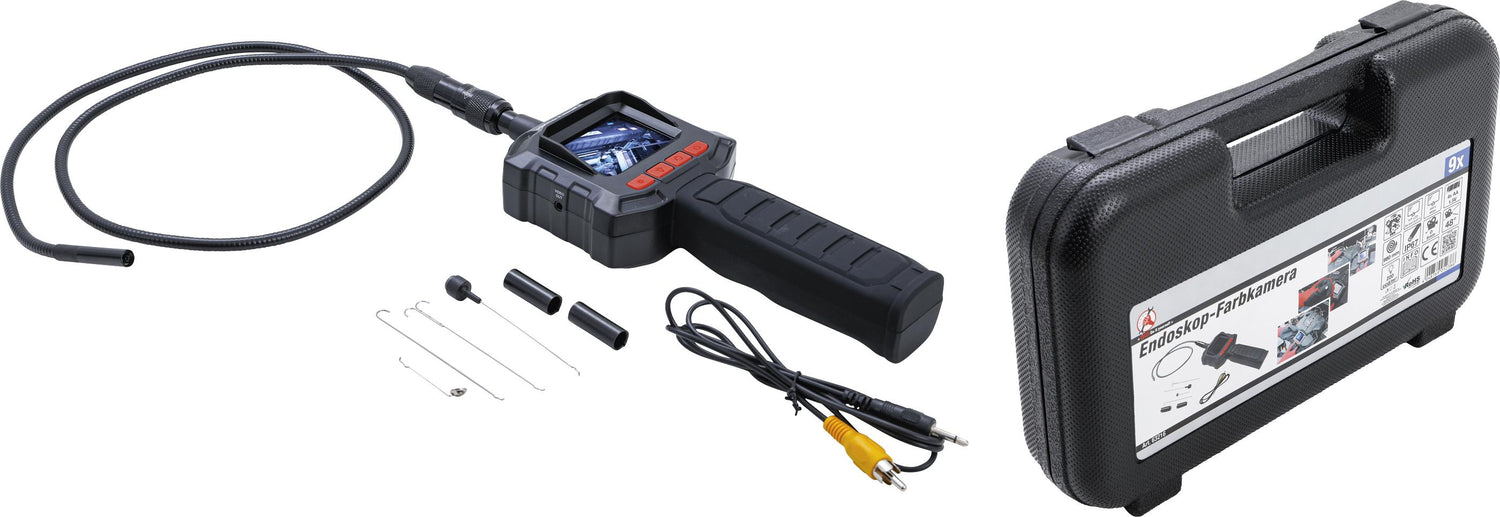

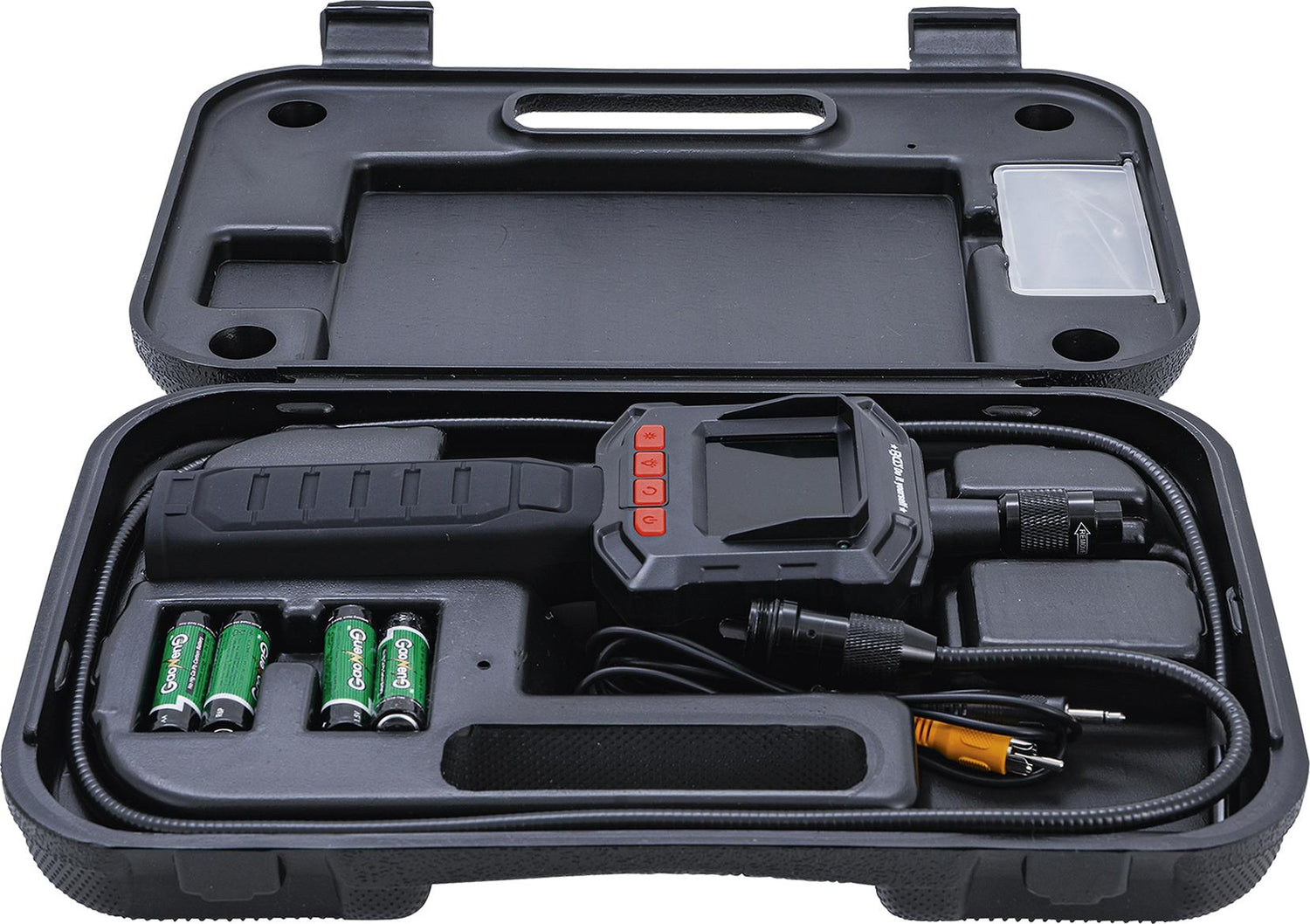

scope of delivery:

1 handle with LCD monitor
1 flexible tube
1 hook
1 double hook
1 magnet
1 mirror
2 fixing rings
1 video cable
4 AA batteries 1.5 volts
Technical data
CE StandardYes
Gross weight1000 g
Operating temperature-10 - 50 C
Weight inc. batteries407 g
