UNIVERSAL VALVE SPRING COMPRESSOR | FOR JAPANESE TRUCK ENGINES (74319)

for removal and installation of valve springs on Japanese truck engines
suitable for the following truck models:

Mitsubishi Fuso 3.5 t., Fuso over 15 t.
Hino 750
Isuzu 180
Isuzu 200
5 clamping bolts M16 x 2.0 x 240 mm for adaptation to internal threads M8 x 1.25, M10 x 1.25, M10 x 1.5, M12 x 1.75, M14 x 1.5

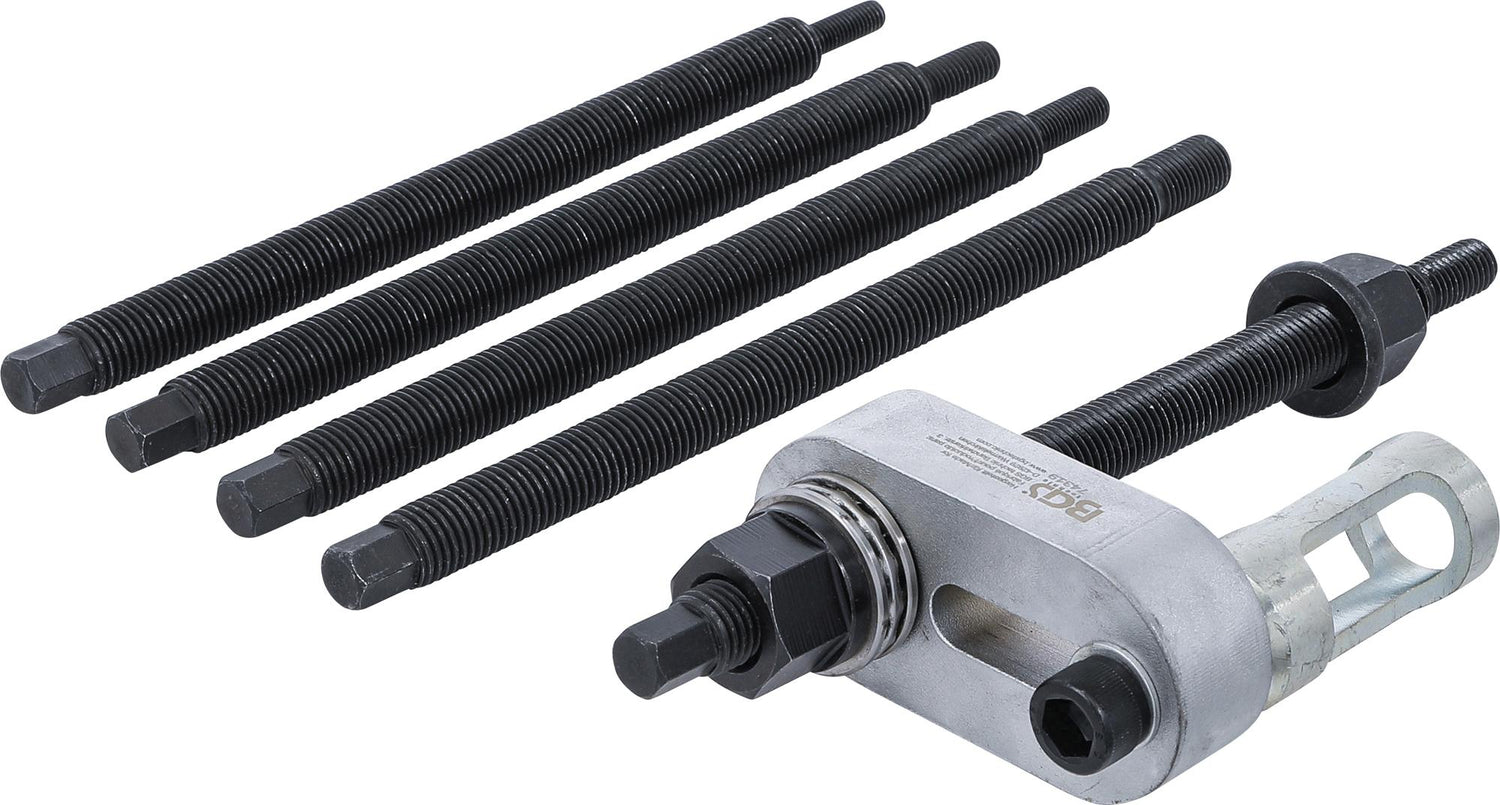

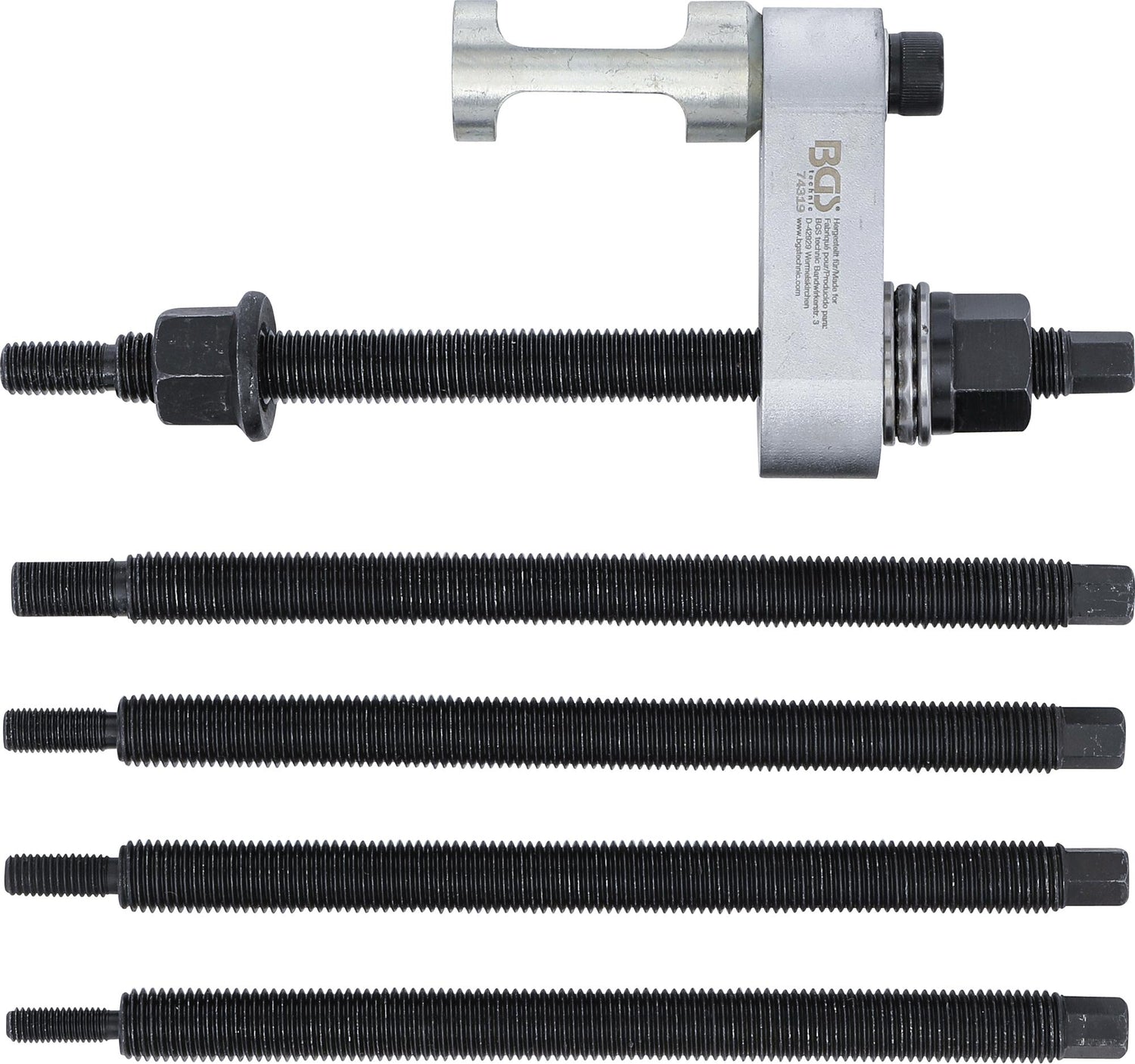

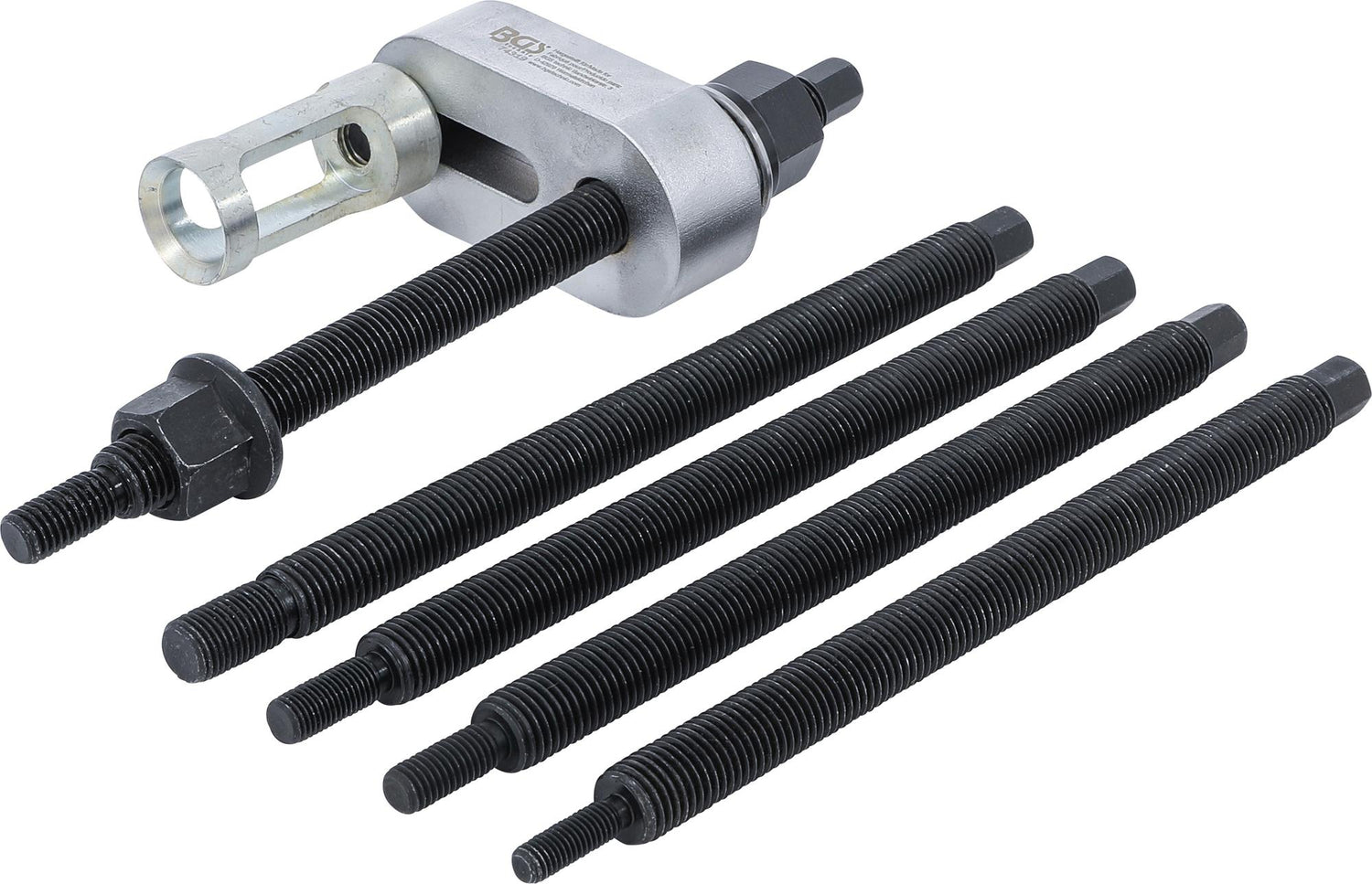

scope of delivery:

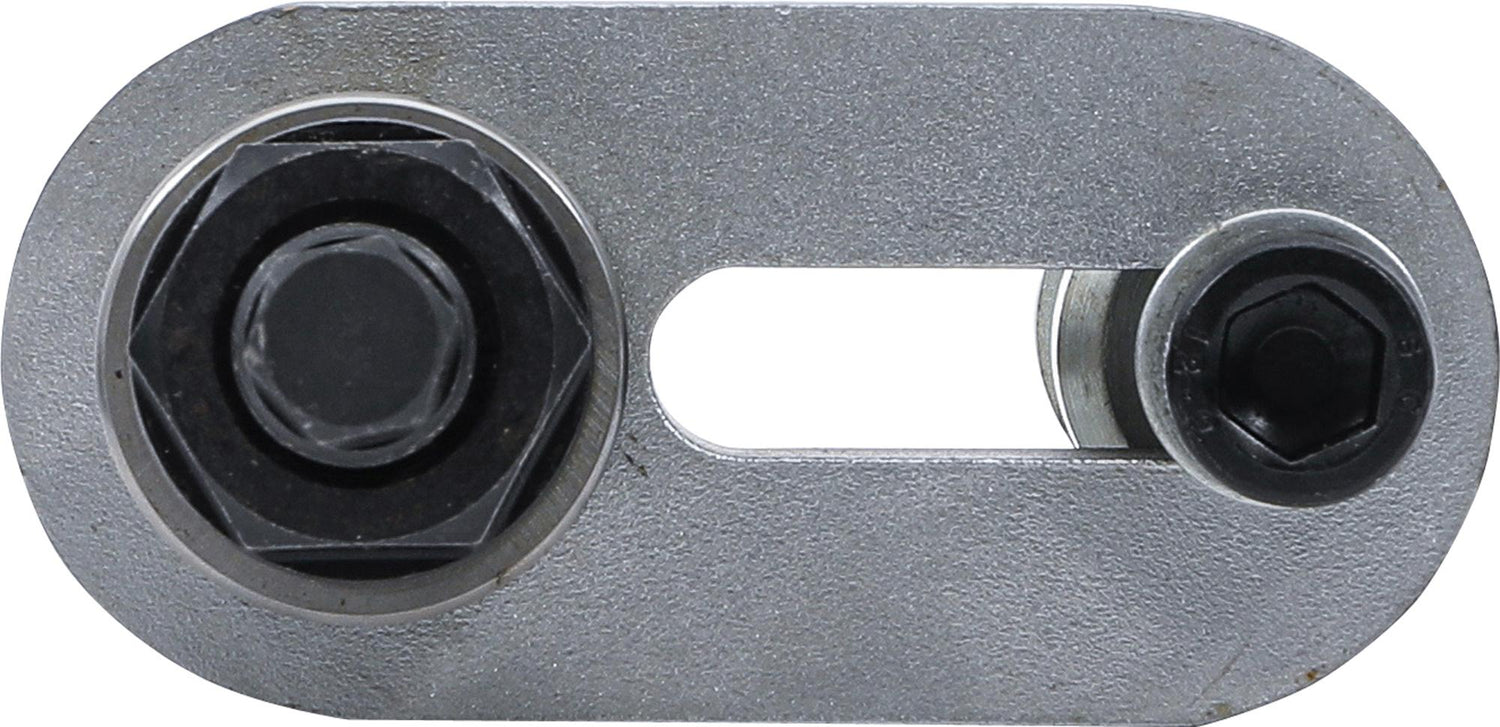

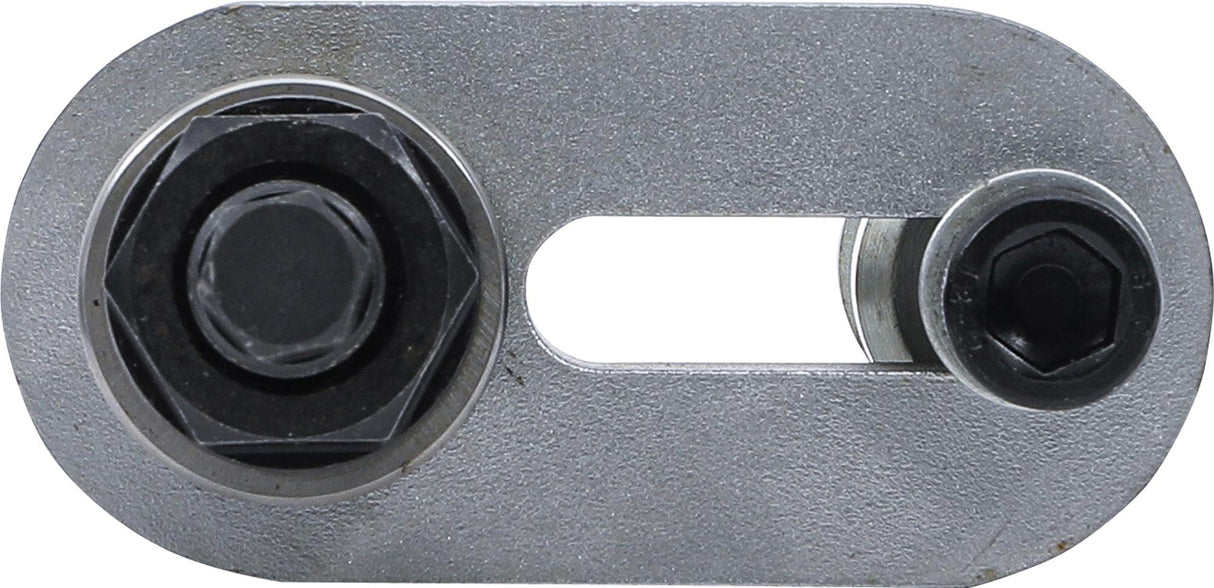

1 valve clamping bridge
1 pressure piece
1 clamping bolt M16 x 2.0 to M14 x 1.5, length 240 mm
1 clamping bolt M16 x 2.0 to M12 x 1.75, length 240 mm
1 clamping bolt M16 x 2.0 to M10 x 1.5, length 240 mm
1 clamping bolt M16 x 2.0 to M10 x 1.25, length 240 mm
1 clamping bolt M16 x 2.0 to M8 x 1.25, length 240 mm
1 clamping bolt nut M16 x 2.0
Technical data
Gross weight2590 g
