TRACTOR | 18.5 HP | DIESEL | 4 GEARS | ENGINE TYPE XY377-C (YT-85830)

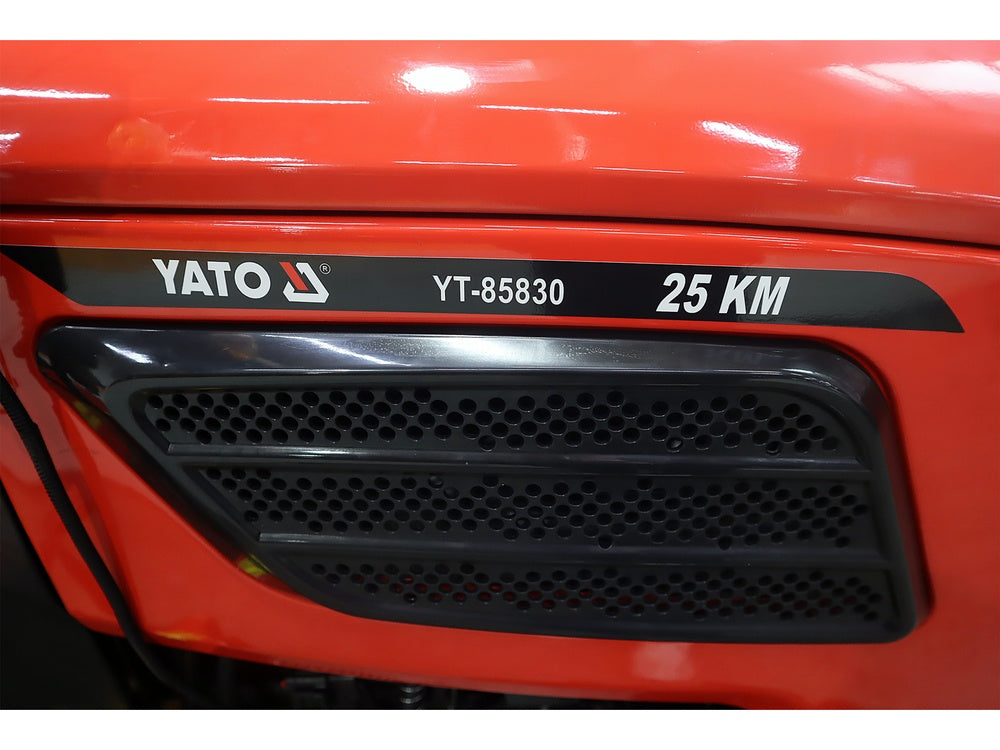

Tractor YATO 25 HP / 4x4 (YT-85830)

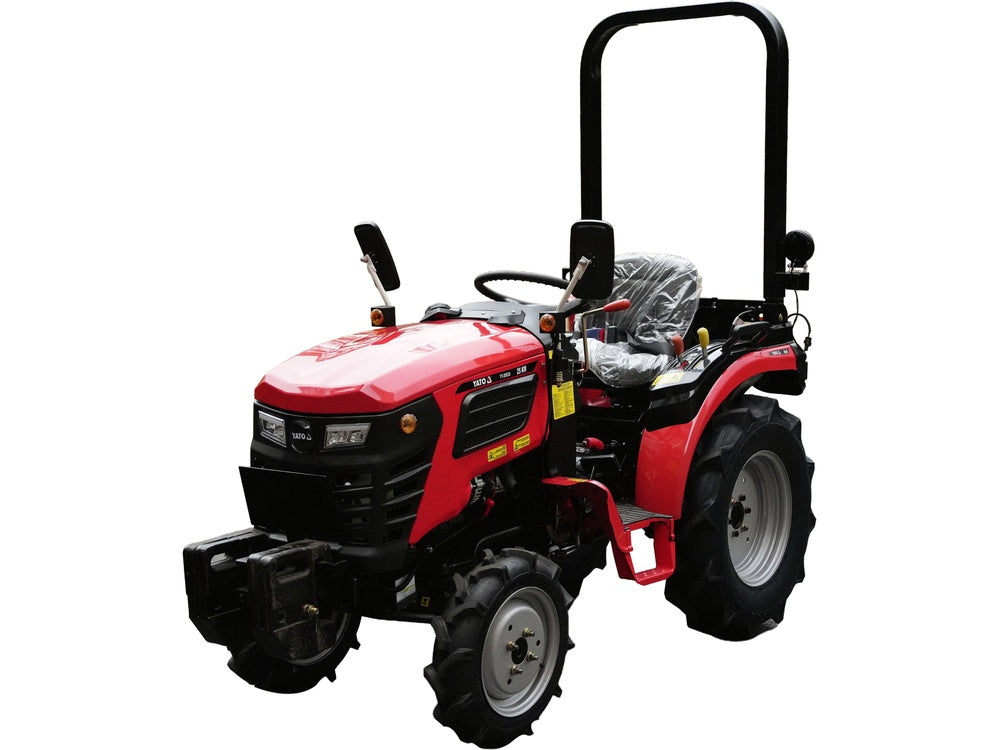

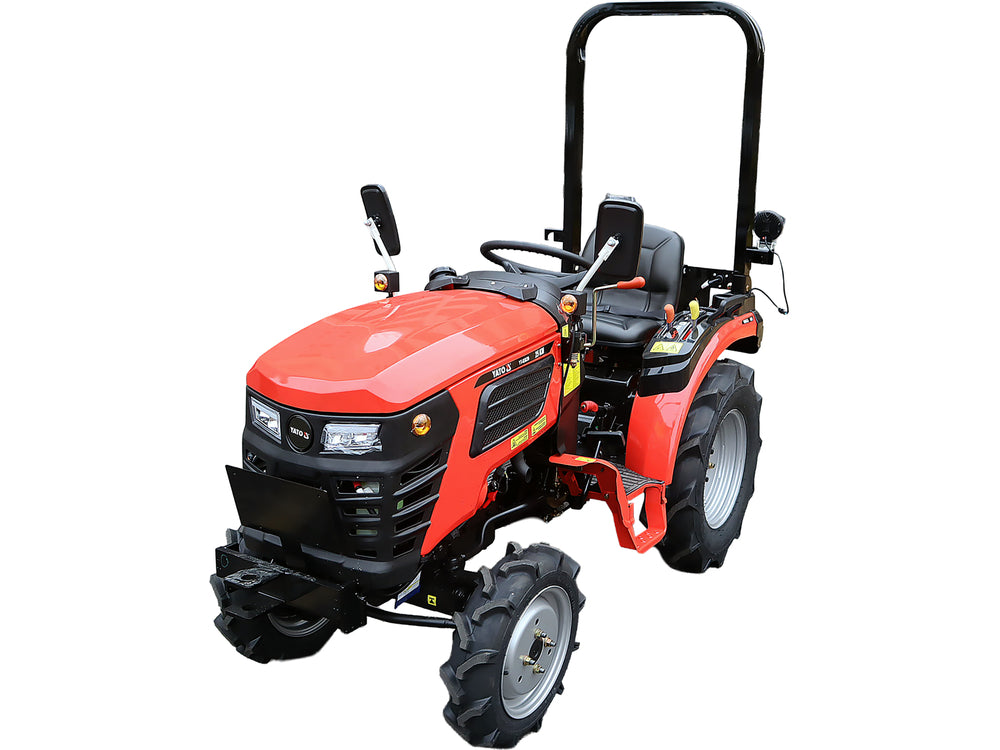

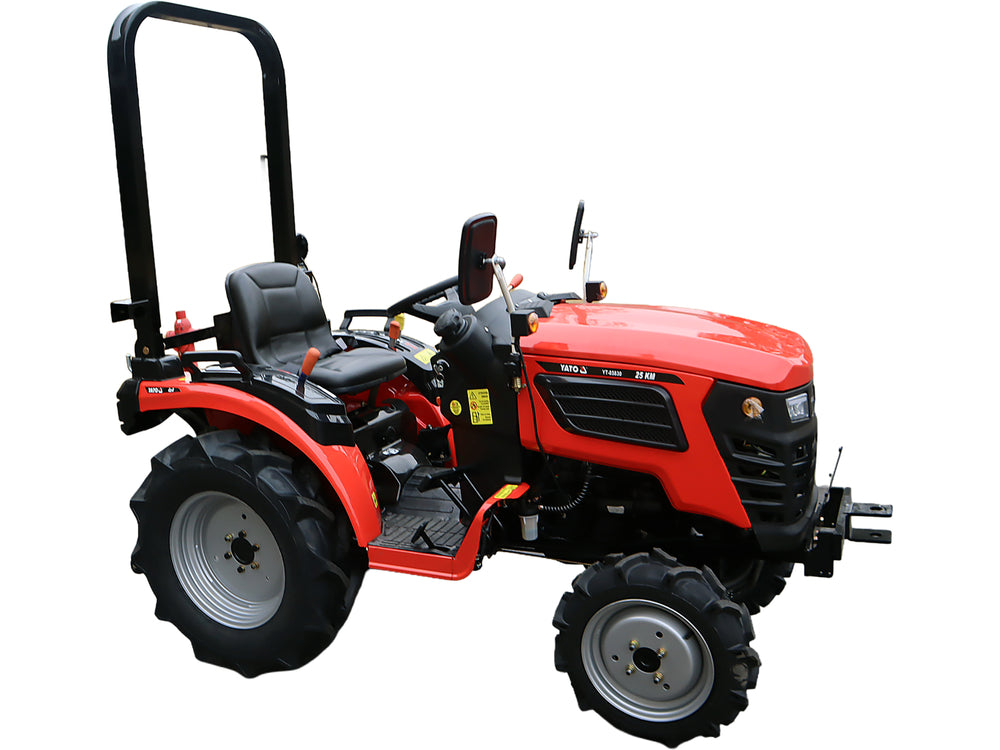

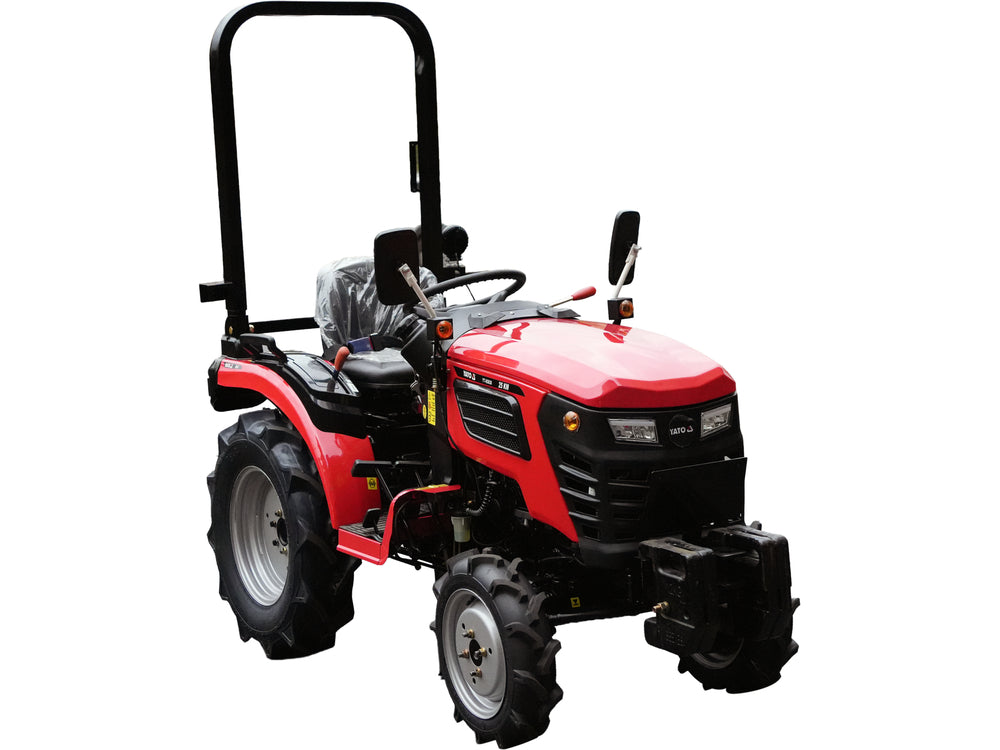

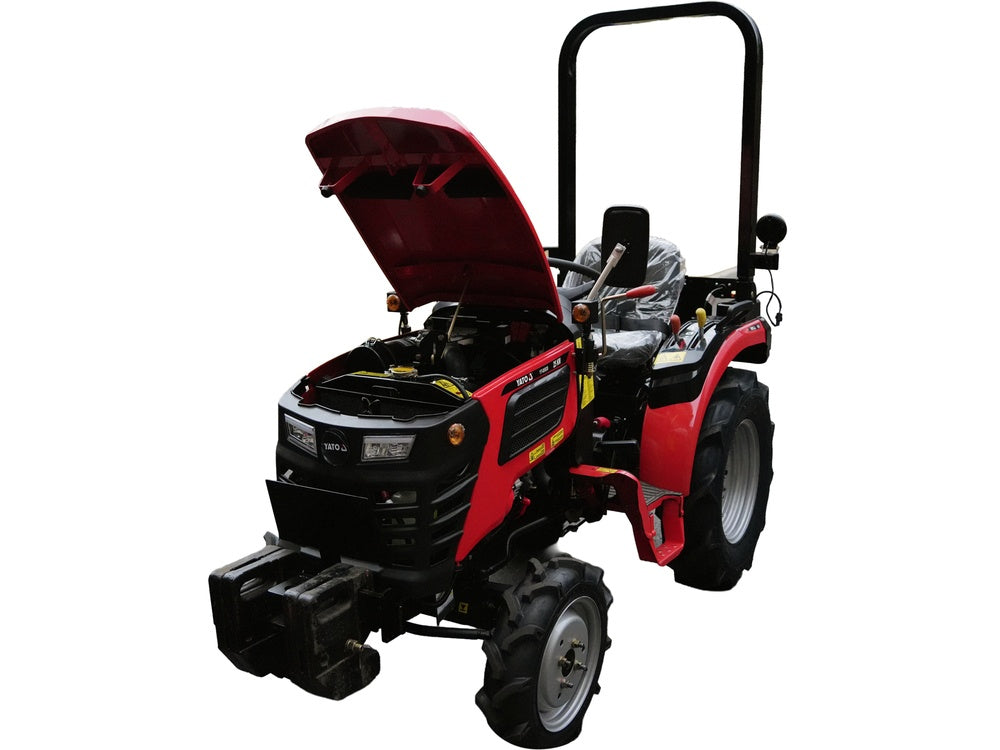

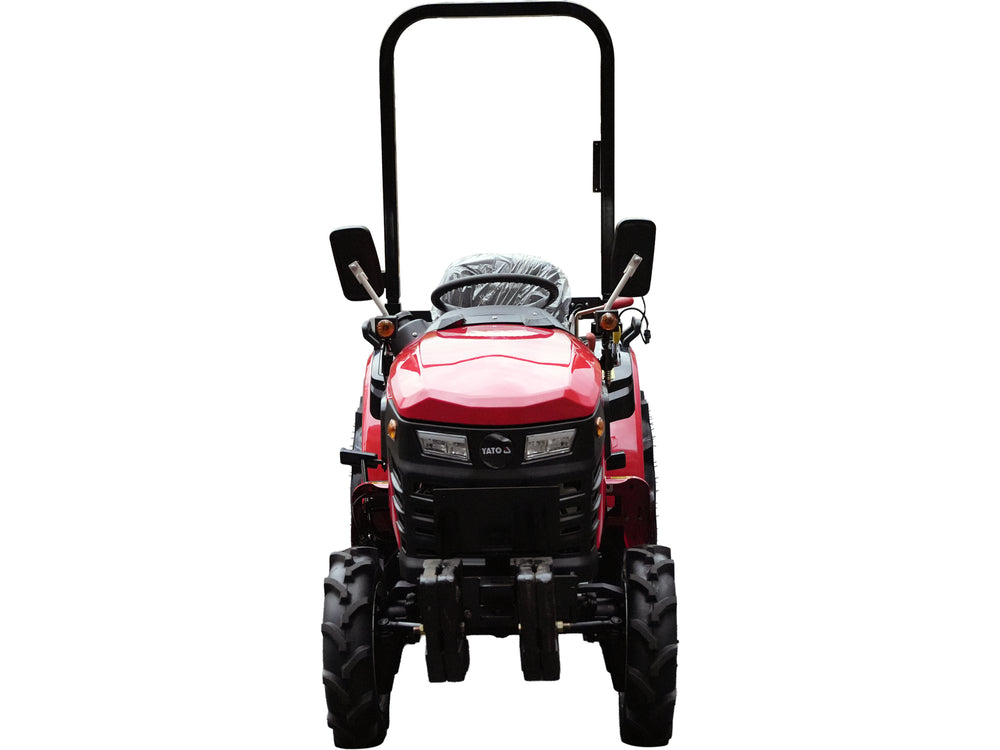

The YATO YT-85830 tractor is a versatile and compact agricultural machine, designed with precision for territory maintenance, farming, transportation, and work in confined spaces. The heart of this model is a reliable 3-cylinder diesel engine, the XY377-C, delivering 25 HP (18.5 kW) and meeting strict EURO V emission standards, which guarantees not only efficient but also economical and environmentally friendly operation. An important advantage is that the tractor has T2 road homologation, allowing it to be legally operated on public roads according to current requirements.

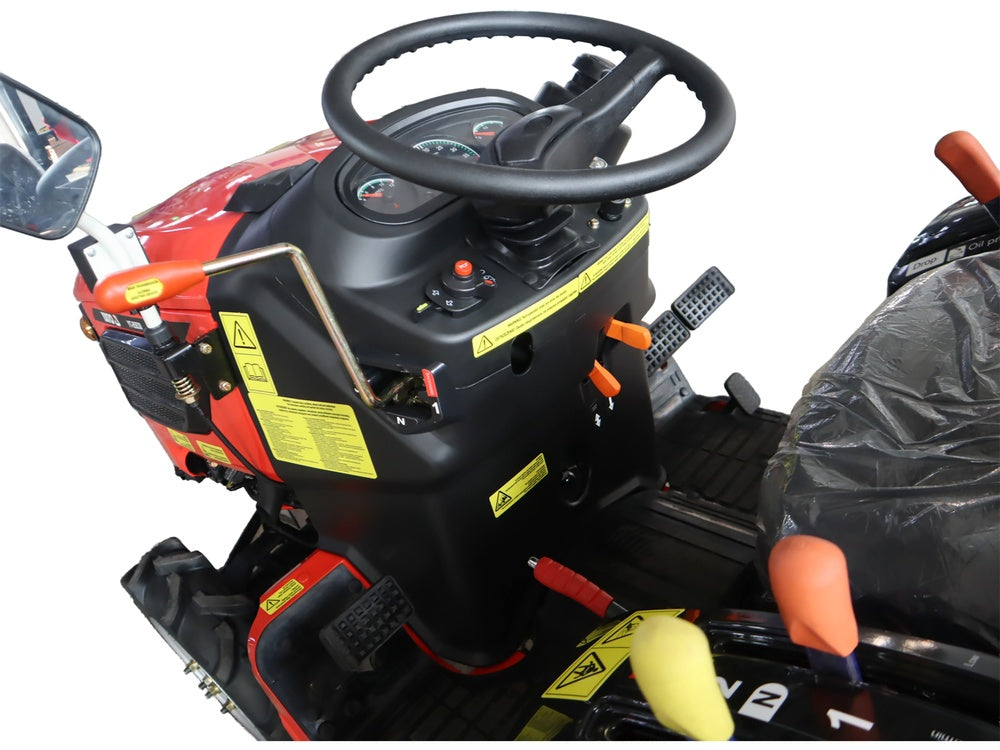

Its small dimensions, adjustable width, and exceptionally small turning radius ensure outstanding maneuverability in orchards, greenhouses, vineyards, and cultivated fields. The construction is based on simple and durable technical solutions, and the 4x4 (four-wheel drive) system allows for stable operation even on uneven or difficult terrain. Additional safety and comfort are provided by an integrated ROPS protective bar, an operator presence sensor on the seat, and an adjustable seat position.

Key Design Features

• Compact design, adapted for work in confined areas and greenhouses.

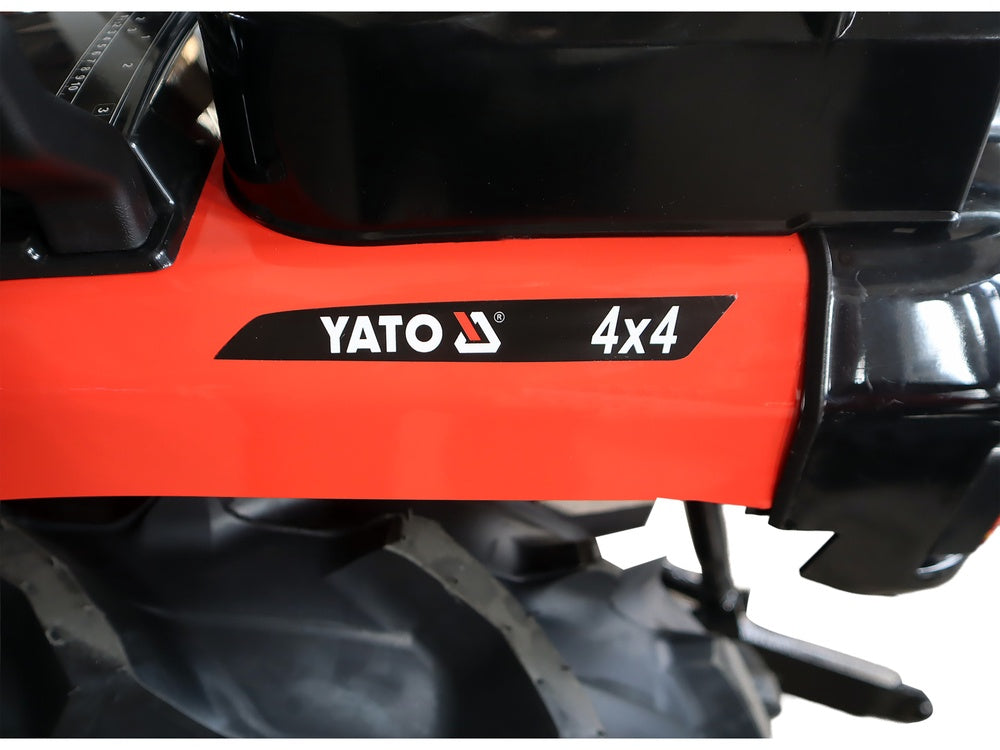

• 4x4 drive for stable operation in challenging conditions.
• T2 road homologation – enabling legal participation in public traffic.
• Flexible application: 6 forward gears, 2 reverse gears, and a two-speed power take-off (PTO).
• Adjustable wheel track for adaptation to different field conditions.
• Safety systems: ROPS bar and operator presence sensor.

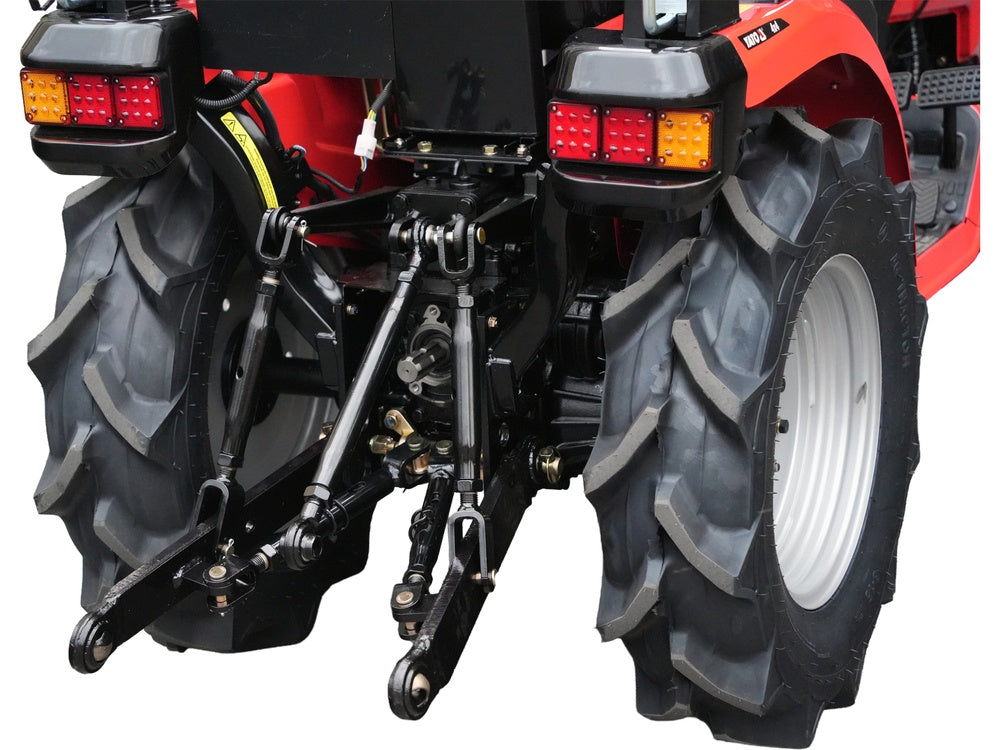

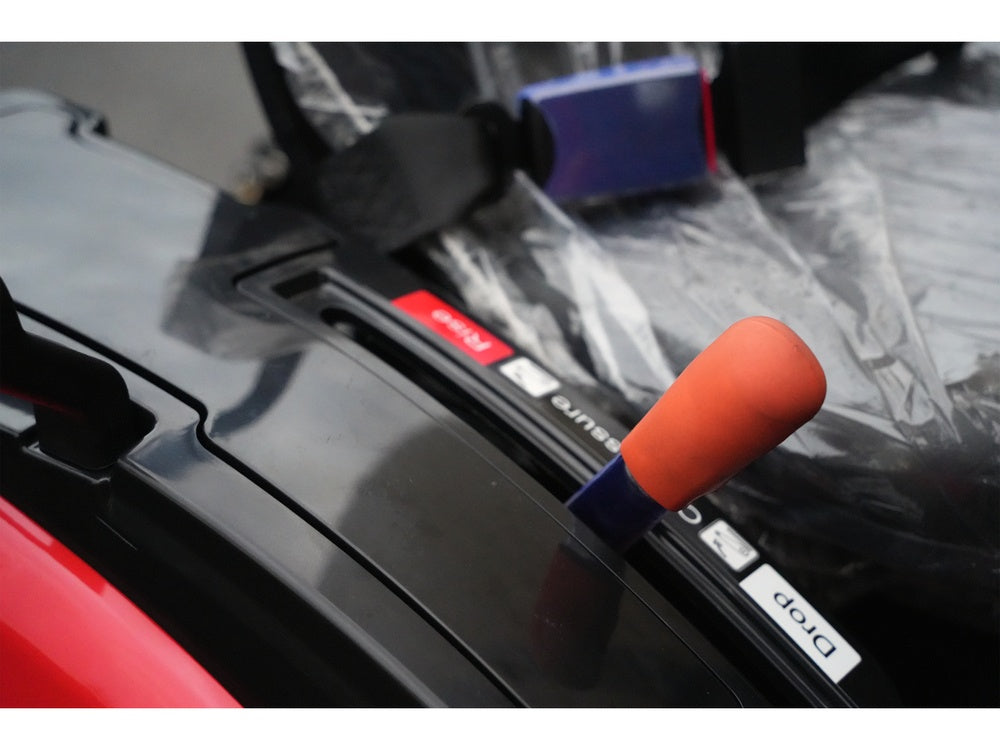

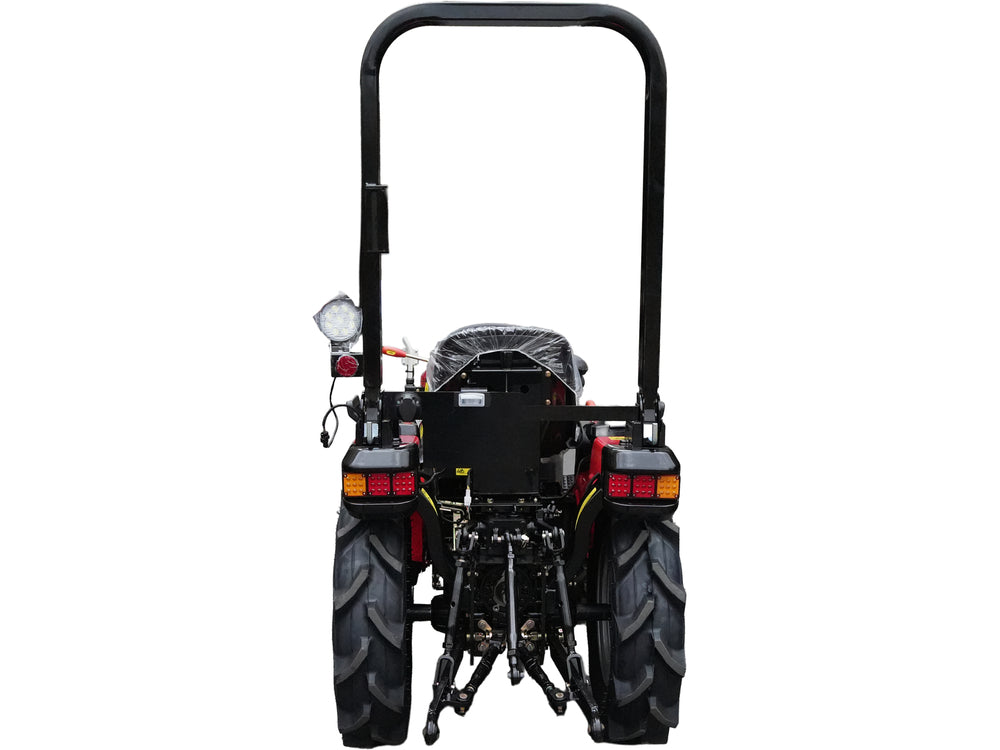

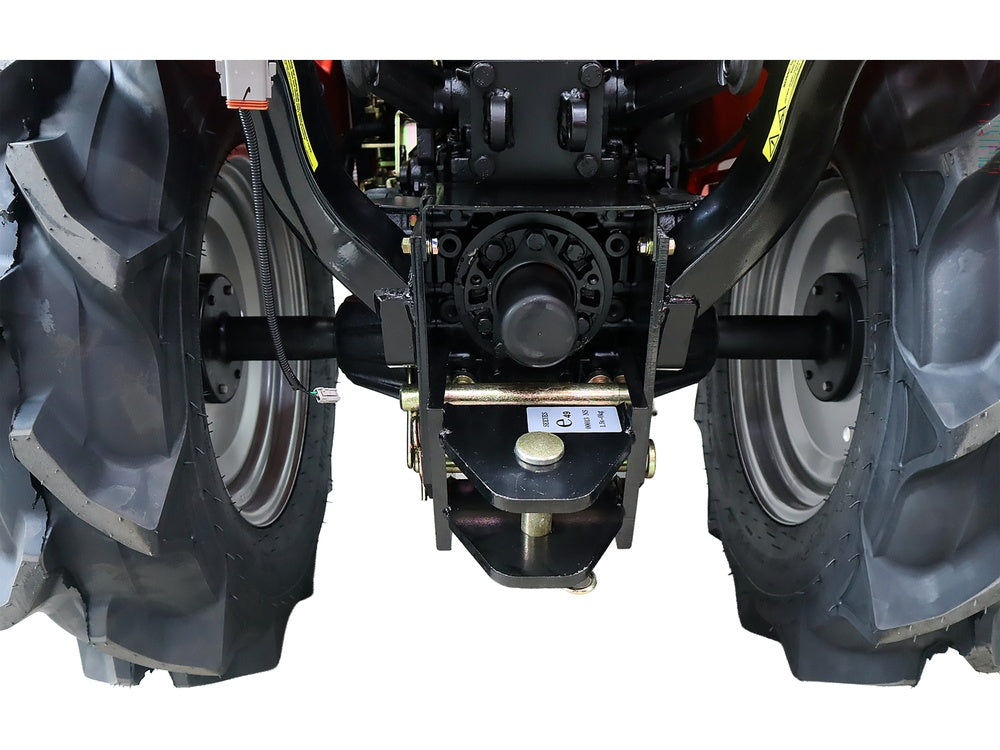

• Rear linkage and hitch for connecting various agricultural implements.

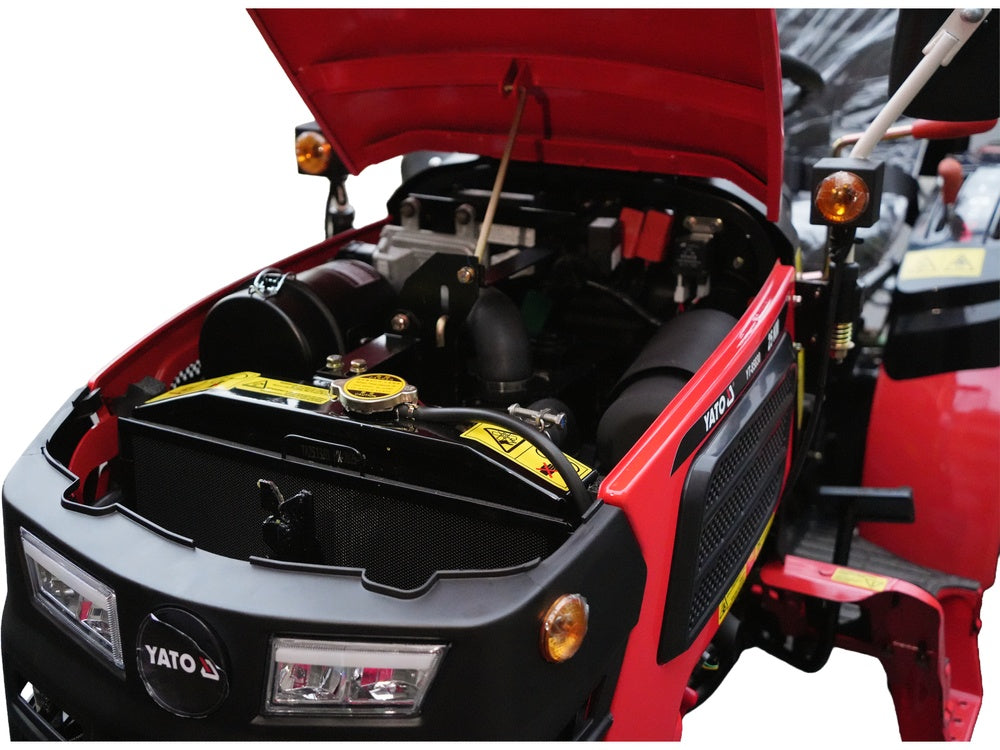

Engine and Power

• Model: XY377-C
• Type: Diesel, 3-cylinder
• Nominal power: 18.5 kW (25 HP)
• Displacement: 1132 cm³
• Rated speed: 3000 rpm.
• Emission standard: EURO V (complies with EU regulation 2016/1628)
• Engine weight: 99 kg

Drive System and Chassis

• Drive type: 4x4 (front and rear axles driven)
• Gearbox: 6 forward gears / 2 reverse gears
• Differential: 2 bevel gears with differential lock
• Clutch: Dry, single-disc
• Brakes: Wet, disc

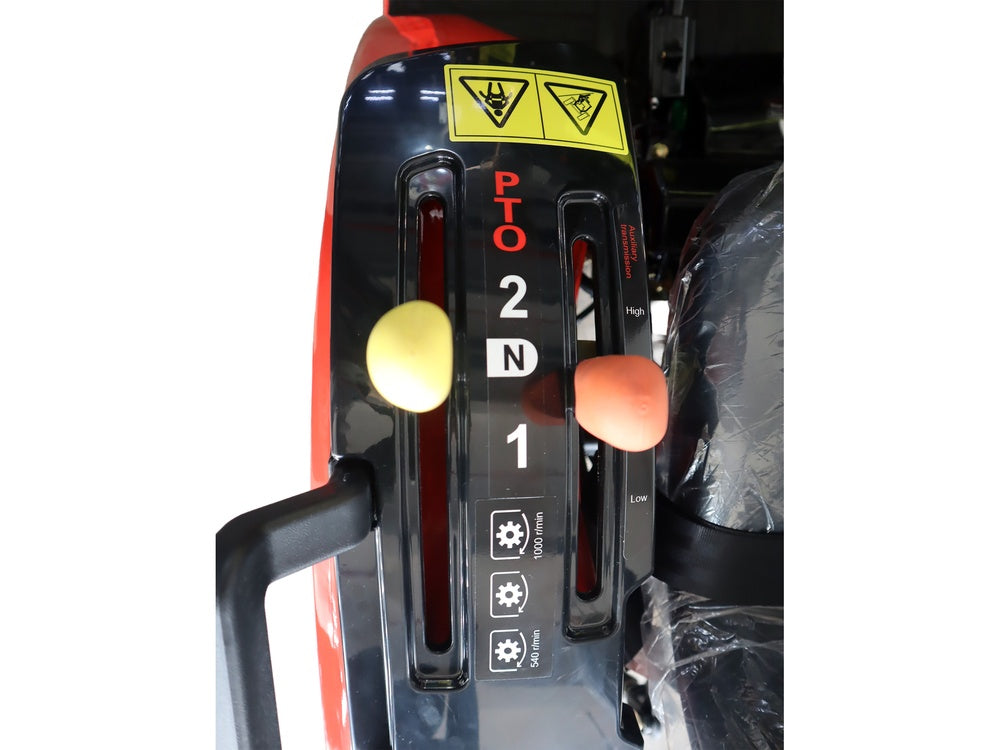

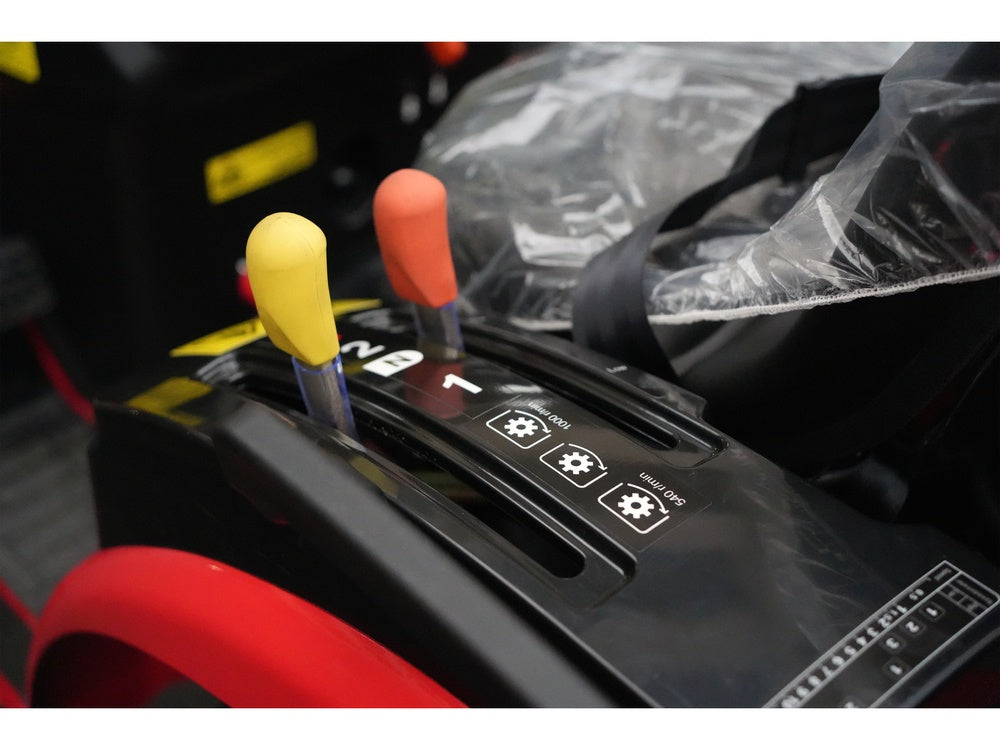

• Power take-off (PTO): 2 speeds (clockwise rotation), 635 / 1116 rpm.

Travel Speeds

• Low range: 1st gear: 0.74 km/h | 2nd gear: 1.51 km/h | 3rd gear: 2.65 km/h | Reverse: 1.48 km/h
• High range: 1st gear: 4.17 km/h | 2nd gear: 8.53 km/h | 3rd gear: 15.00 km/h | Reverse: 8.35 km/h

Dimensions and Working Geometry

• Overall length: approx. 2500 mm
• Overall width: 970–1200 mm (adjustable)
• Height: 1807 mm
• Wheelbase: 1270 mm
• Ground clearance: 285 mm
• Weight: 620 kg (without weights), 668 kg (with weights)

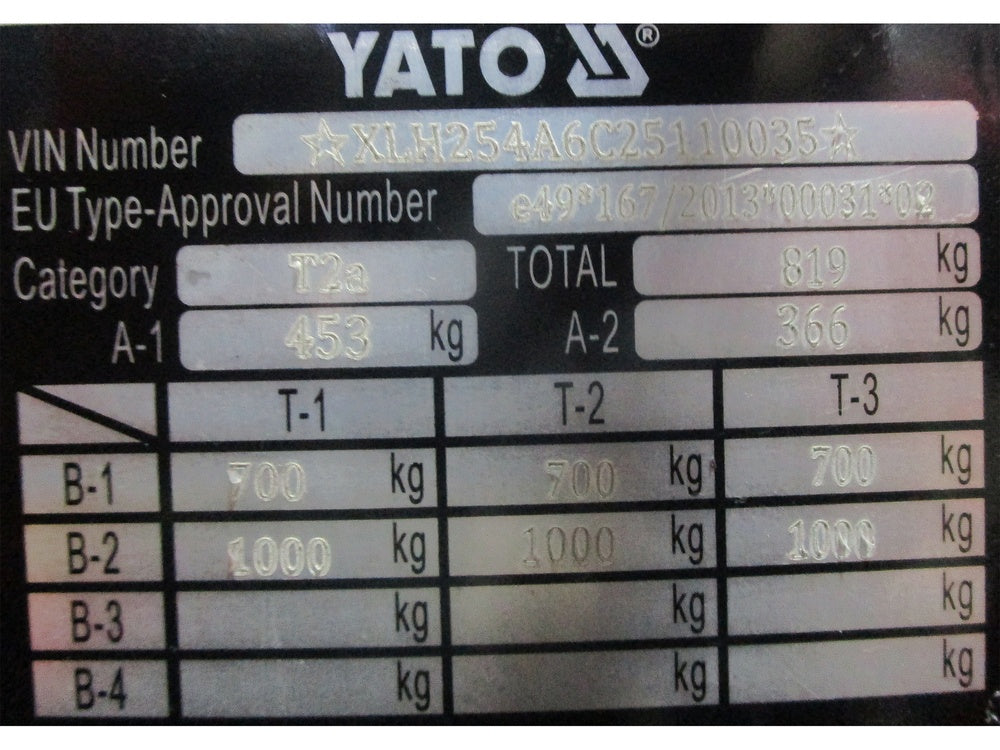

• Maximum permissible weight: 819–834 kg
• Front tires: 5.00-12 (with tube)
• Rear tires: 8.00-16 (tubeless)
• Front wheel track: 750 mm (standard) / 960–1200 mm (adjustable)
• Rear wheel track: 760 mm (standard) / 960–1200 mm (adjustable)
• Turning radius: 1700 mm (inner) / 2300 mm (outer)

Purpose and Application

• Soil cultivation and crop care in cultivated fields.
• Maneuverable work in orchards, greenhouses, and vineyards.
• Cargo transport tasks on the farm.
• Municipal maintenance and work in confined, narrow spaces.
