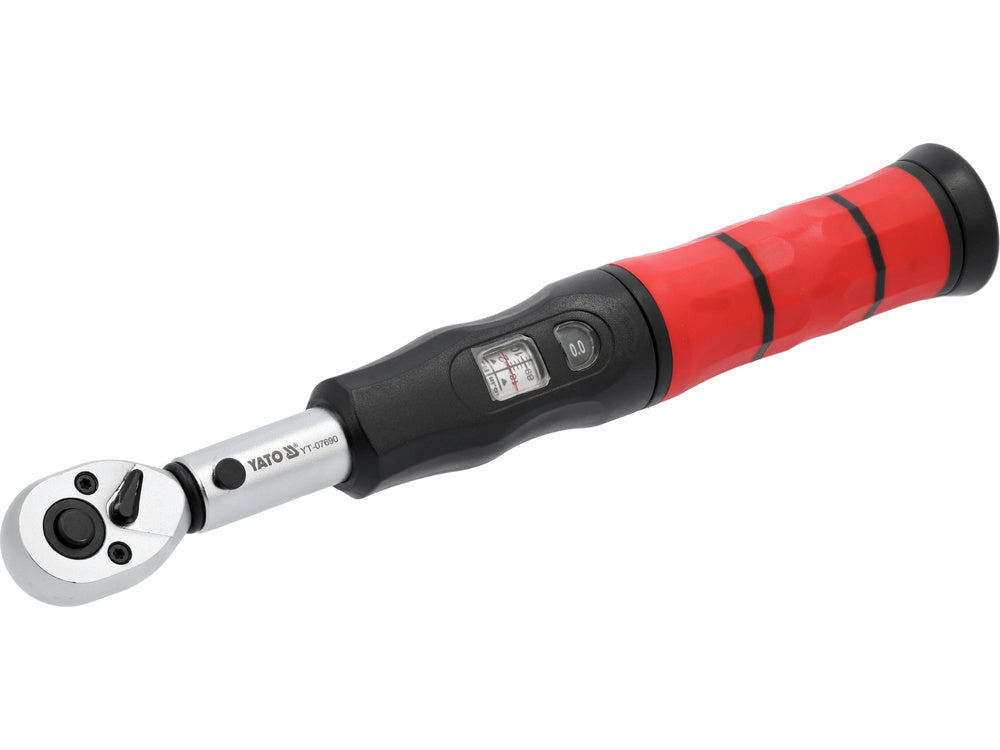

TORQUE WRENCH WINDOW TYPE (YT-07690)

YT-07690
1/4" TORQUE WRENCH WITH ADJUSTMENT WINDOW RANGE 2-26NM
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Type
with range viewing window
Tool holder size
1/4" (6.3 mm)
Torque
2-26 Nm<>Tolerance
CW 3, CCW 5 %
Calibration certificate
yes
Length
250 mm
Head material
CrMo SCM-440
Handle material
40Cr
Number of teeth
72
Direction of rotation switch
yes
Application
precise tightening of threaded connections
Symbol
YT-07690

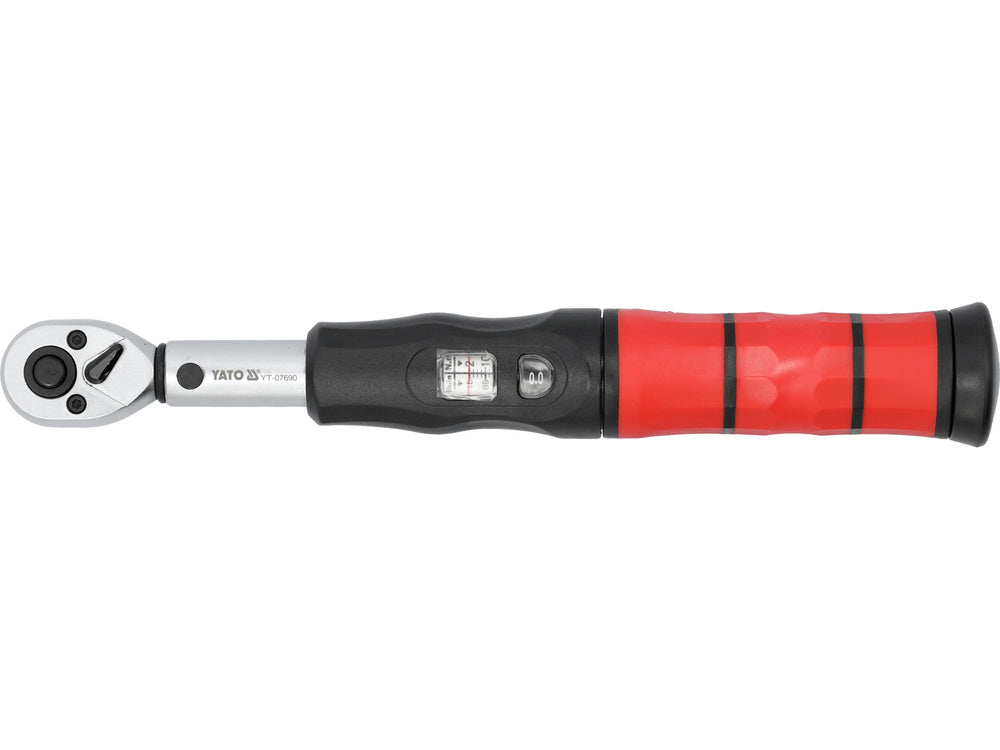

1/4" torque wrench with double range viewing window.

Working range: 2-26 Nm
Push-pull mechanism at the end of the handle locks the required torque

Special double window design with clear display

Accuracy: +/- 3% (CW +/- 3%, CCW +/- 5%)
Main metric and inch scale
Ratchet head made of high-alloy CrMo steel SCM-440
Ergonomic handle made of 40 Cr steel provides comfort during long-term work
Number of teeth: 72T
Reverse switch
Length: 250 mm

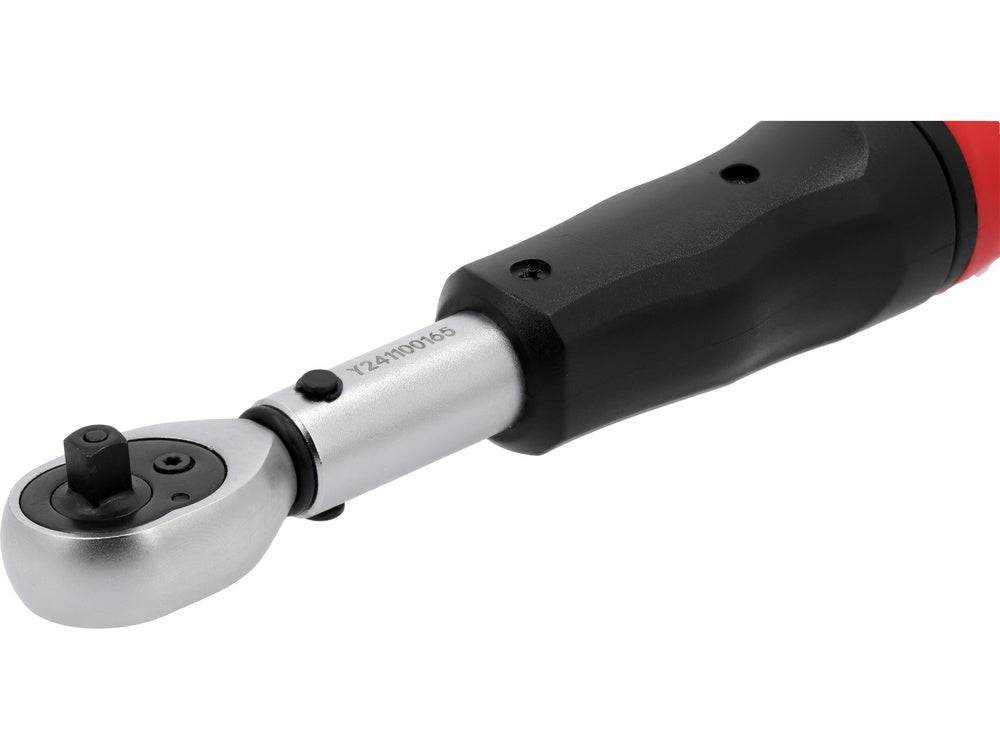

*Each wrench has a unique serial number, which makes it easy to track original data.
