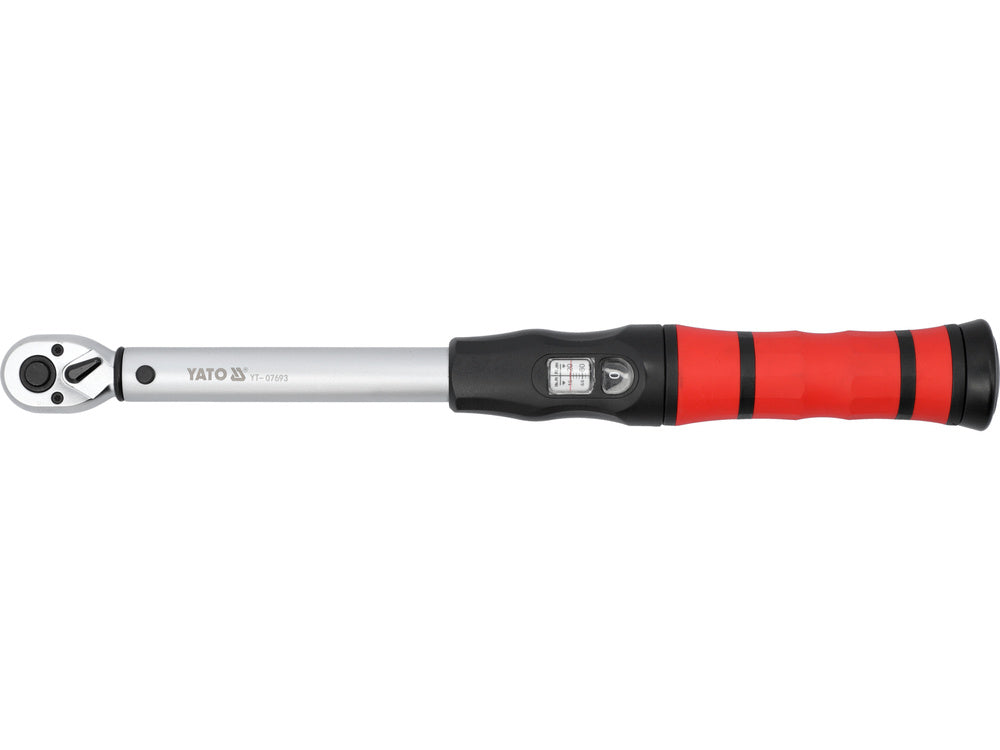

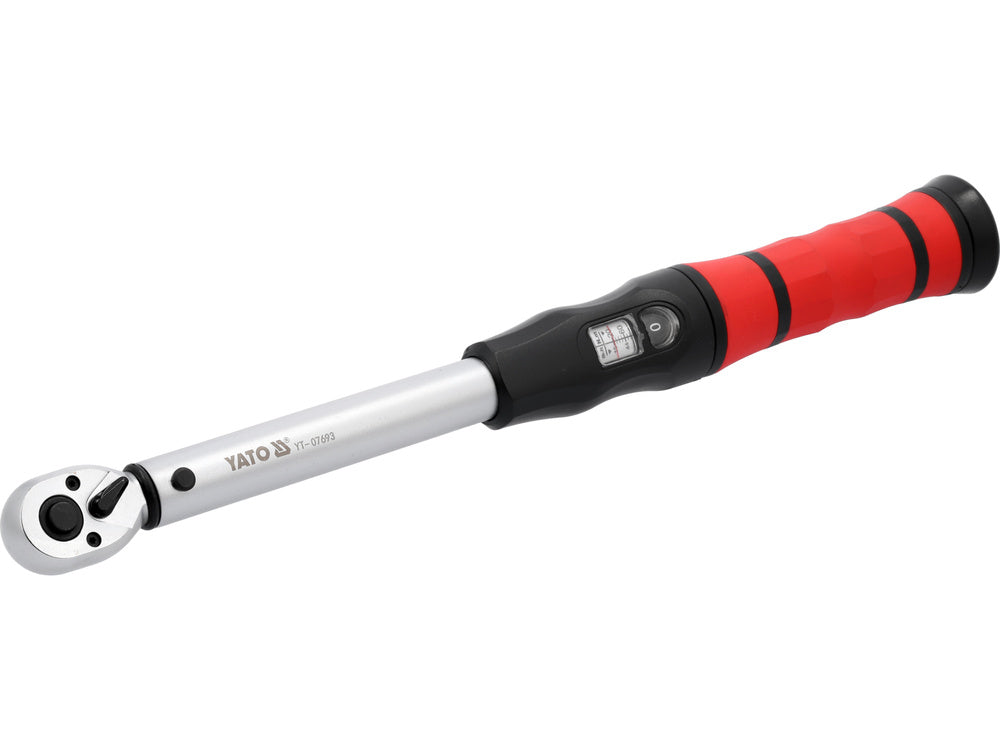

TORQUE WRENCH WINDOW TYPE 3/8" 20-120NM (YT-07693)

YT-07693
TORQUE WRENCH 3/8" WITH ADJUSTMENT WINDOW RANGE 20-120NM
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Type
with range viewing window
Tool holder size
3/8" (9.5 mm)
Torque
20-120 Nm
Tolerance
CW 3, CCW 5 %
Calibration certificate
yes
Length
425 mm
Head material
CrMo SCM-440
Handle material
40Cr
Number of teeth
72
Direction of rotation switch
yes
Application
precise tightening of threaded connections
Symbol
YT-07693

Torque wrench for precise tightening of threaded connections with a specified torque. Equipped with a double range viewing window.

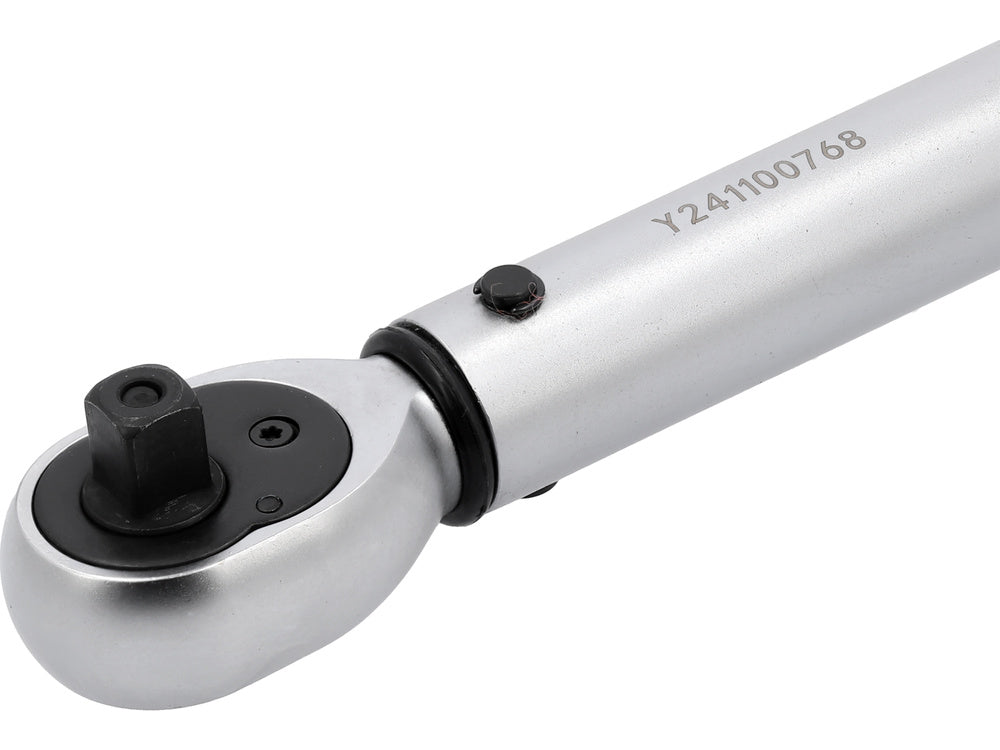

ratchet head made of high-alloy CrMo steel SCM-440
ergonomic handle made of 40 Cr steel provides comfort during long-term work
tool holder: 3/8" (9.5 mm)
torque: 20-120 Nm
length: 425 mm
accuracy: 3% (CW -/+3%, CCW -/+5%)
main metric and inch scale
72 teeth
push-pull mechanism at the end of the handle locks the required torque

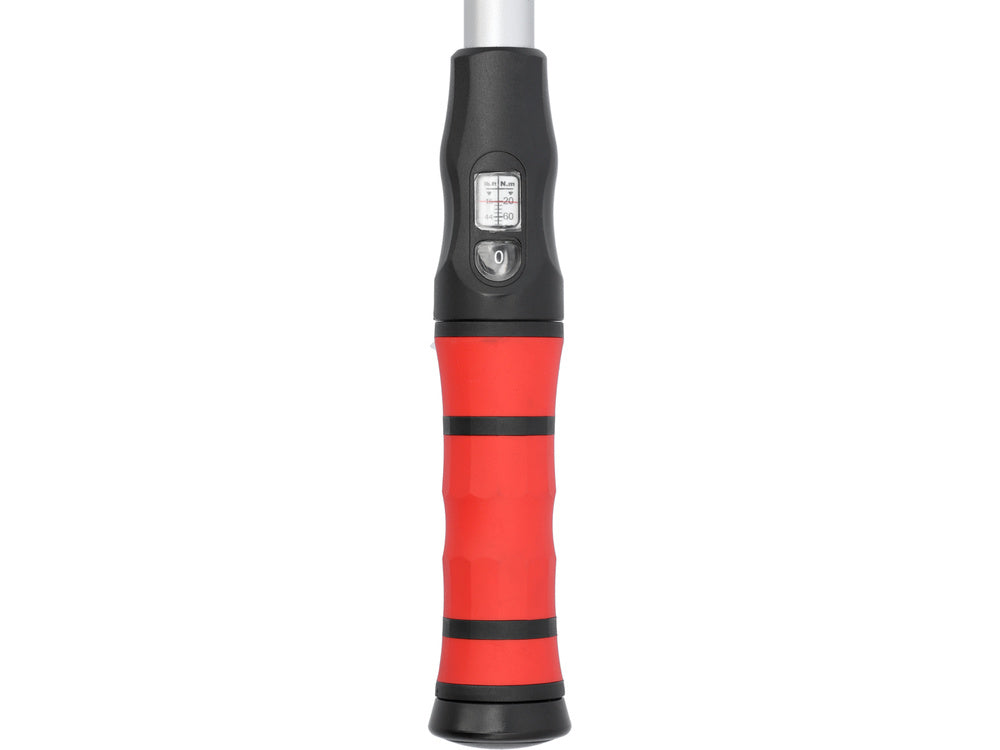

special design of the double window with a clear display
rotation direction switch
* Each wrench has a unique serial number, which makes it easy to track original data
