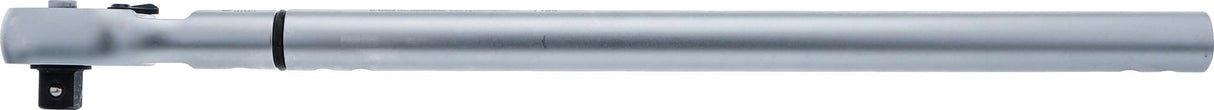

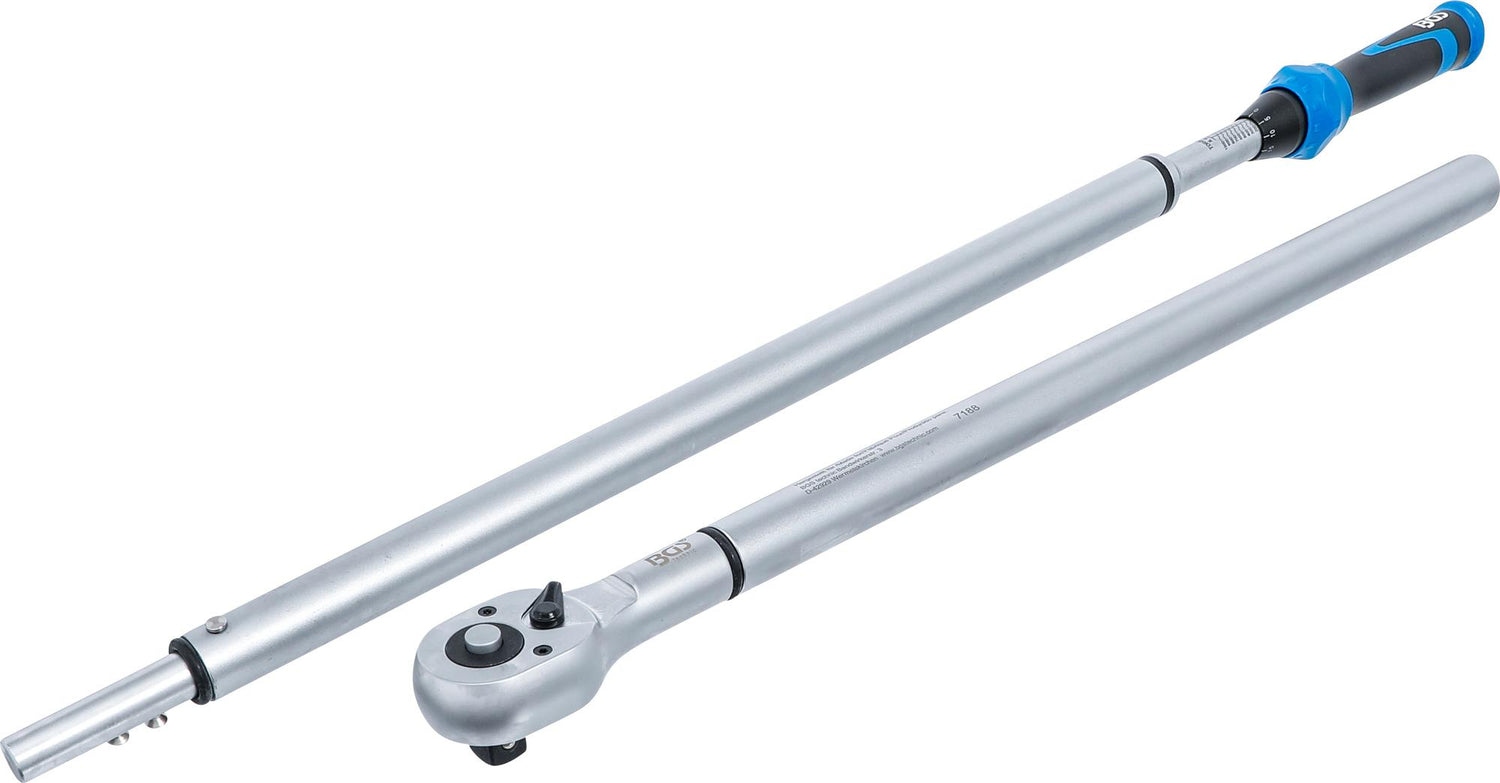

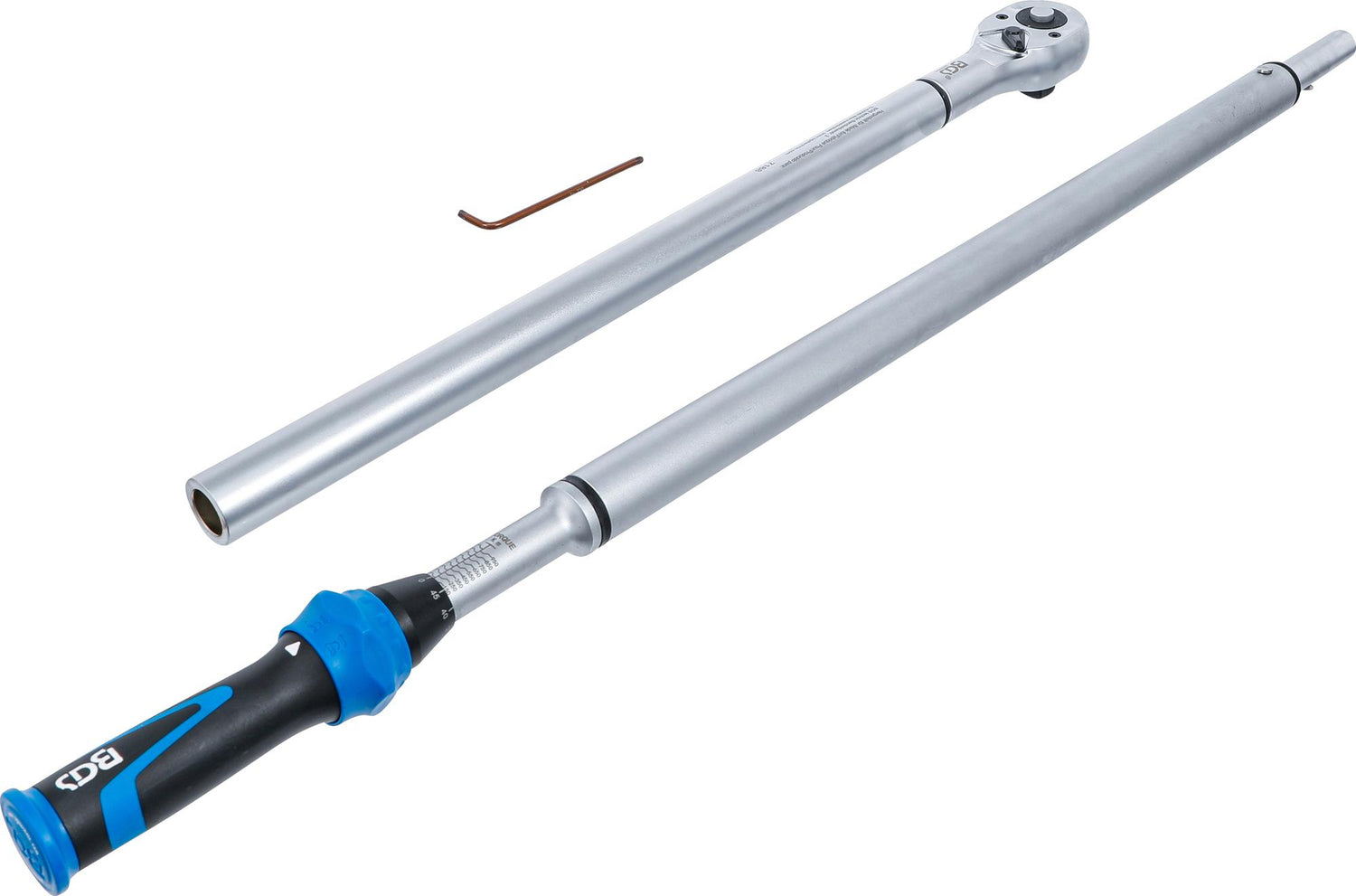

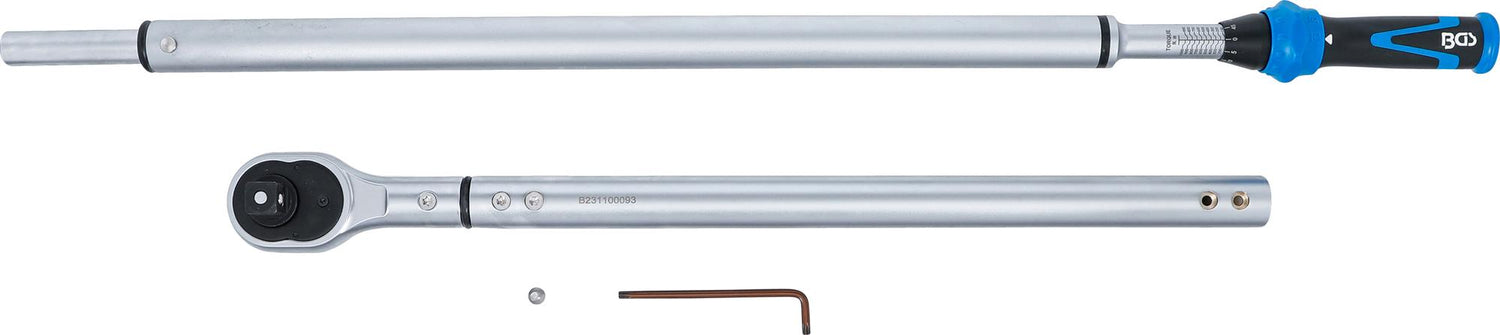

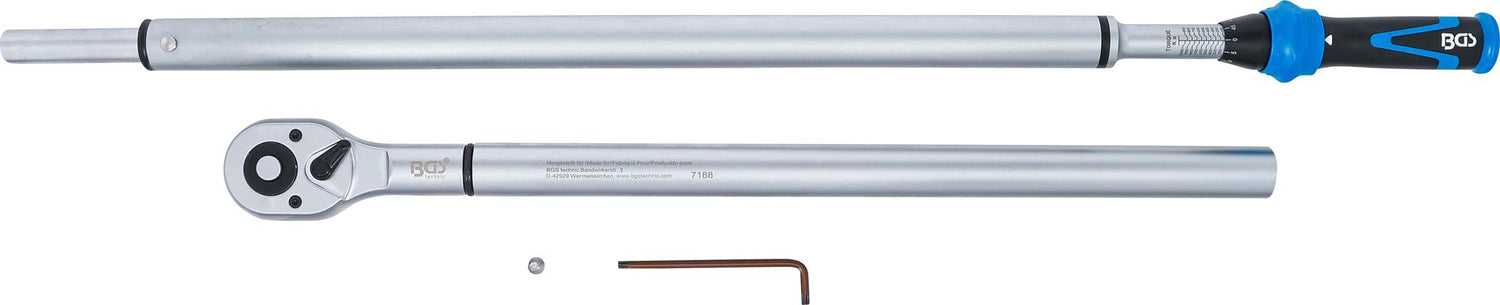

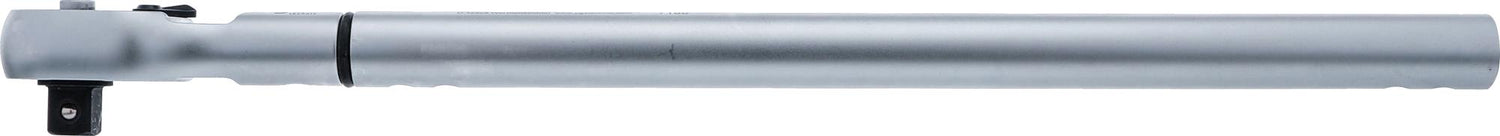

TORQUE WRENCH | 20 MM (3/4") | 150 - 1000 NM (7188)

suitable for tightening to torque for screwed connections with right-hand thread
integrated reversible ratchet with closed, narrow head shape
ratchet mechanism, reversible
robust coarse tooth, 48 teeth
easy locking and unlocking at the handle
lasered line scale with fine adjustment for the respective setting value
optimally designed plastic handle for easy setting of the desired torque value, as well as a secure grip of the tool handle
clearly audible release

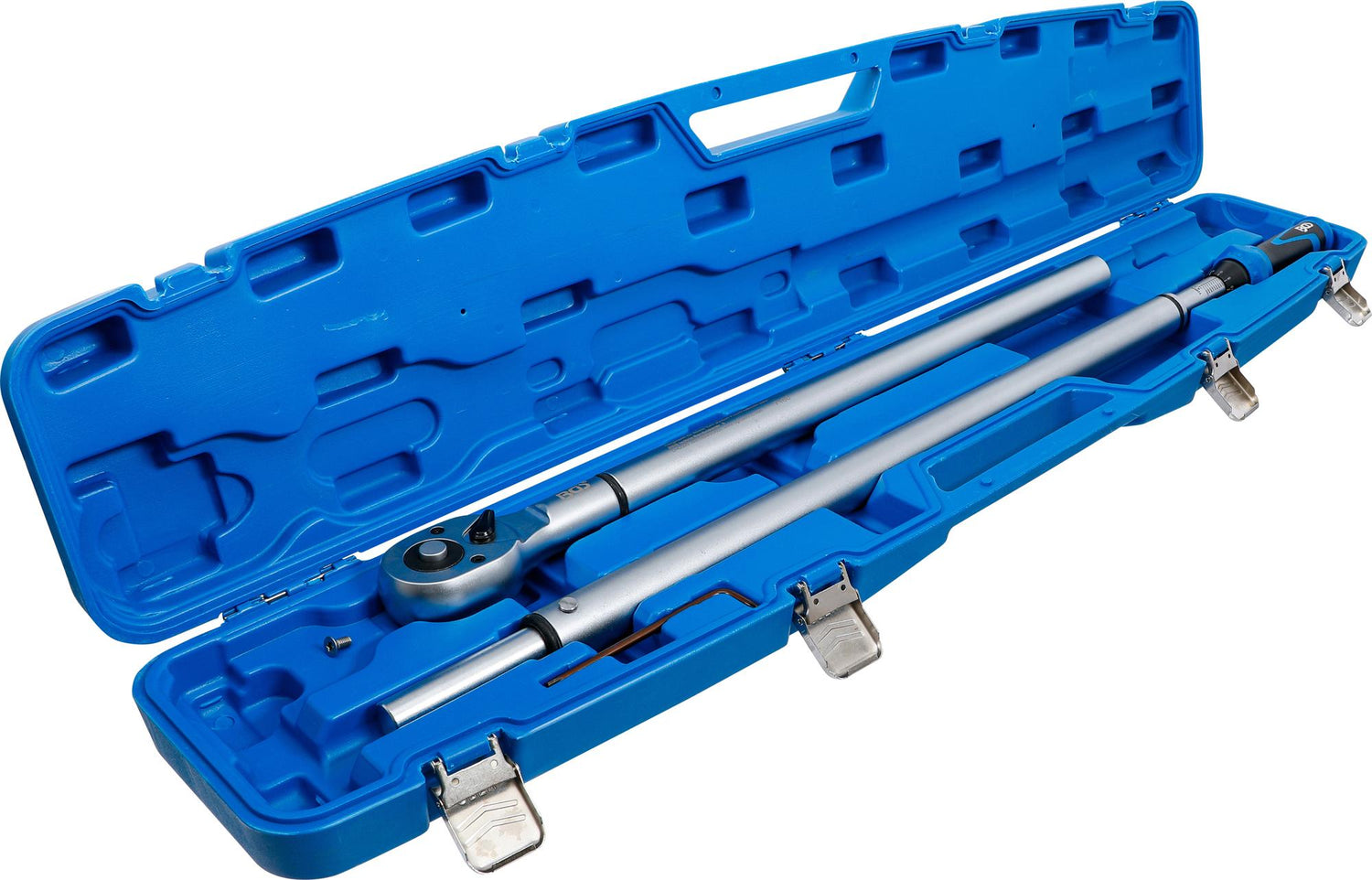

the tool is protected in the plastic compartment and stowed in the recess in a non-slip manner

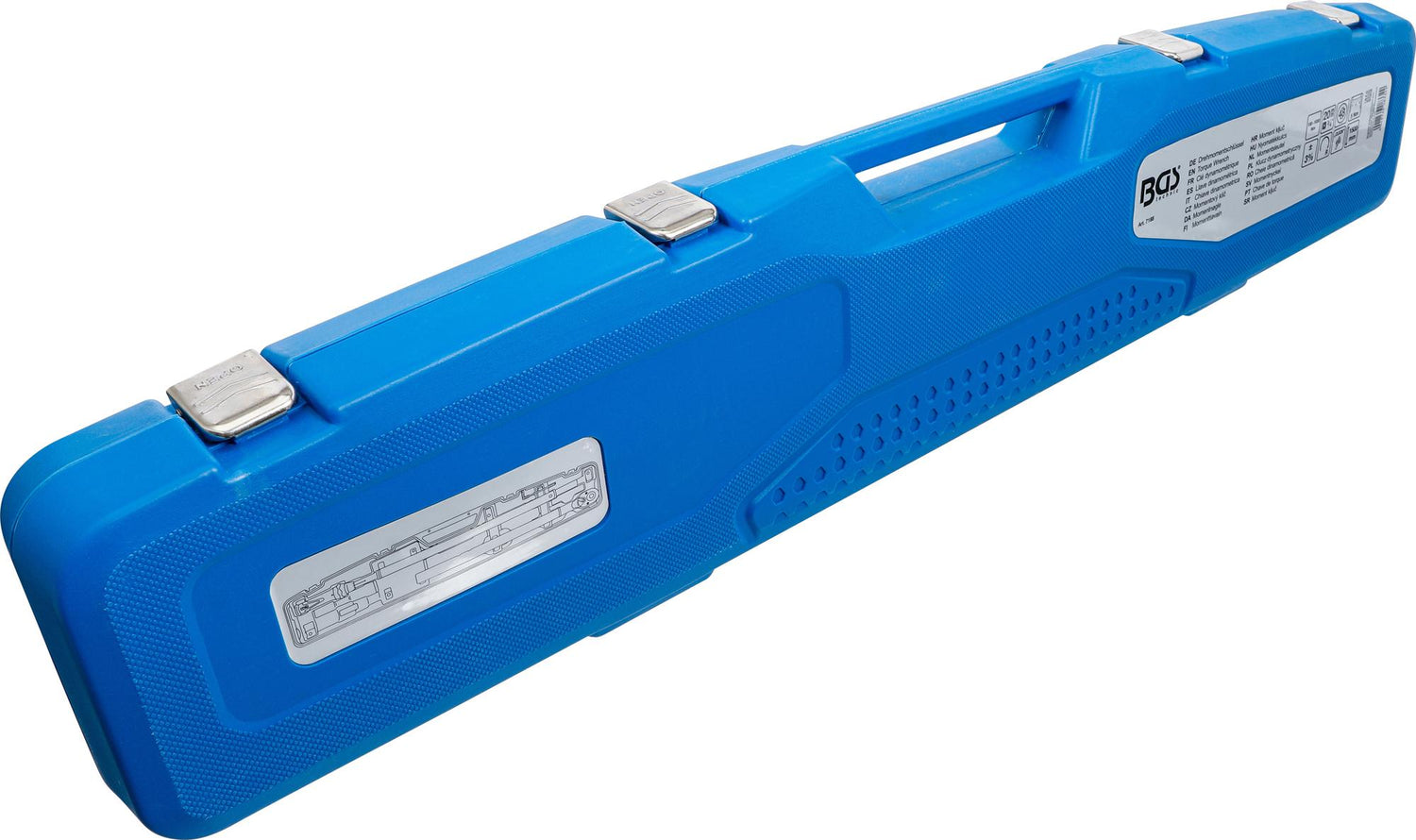

safe and tidy storage in blow mold case
incl. calibration certificate
fine scale: 5 Nm
trigger clockwise: yes
Technical data
Drive profile size, metric20 mm
Drive profile size, inch3/4 "
Output profileExternal square
Length1500 mm
Gross weight9340 g
Max. torque1000 Nm
Min. torque150 Nm
No. of teeth in ratchet head48
Release accuracy+/- 3 %
