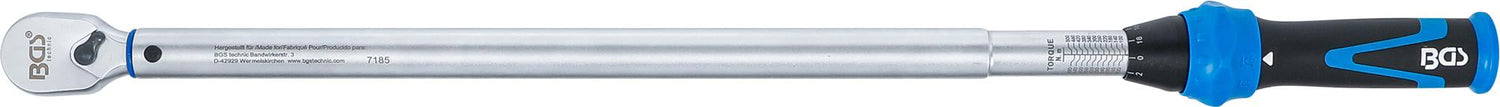

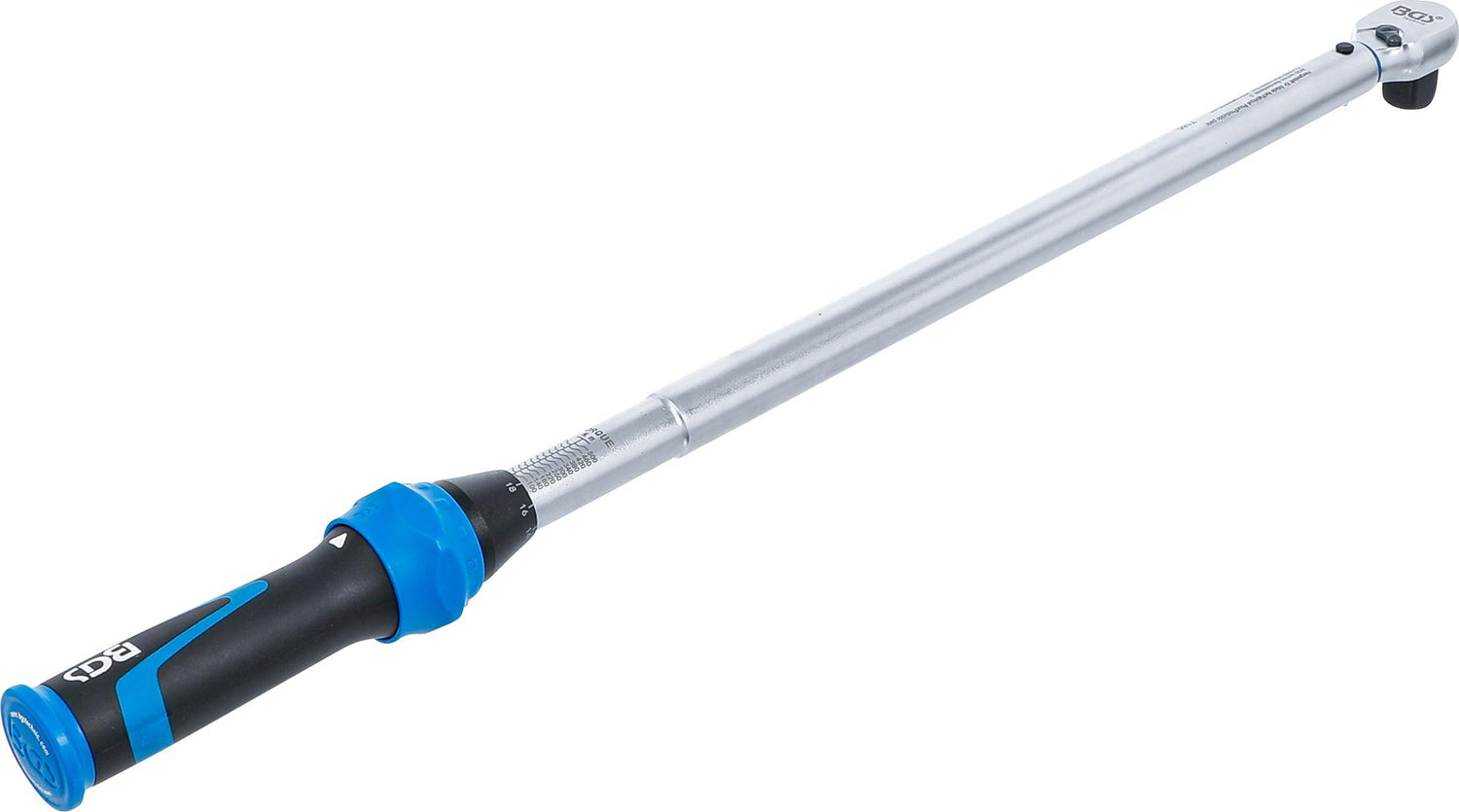

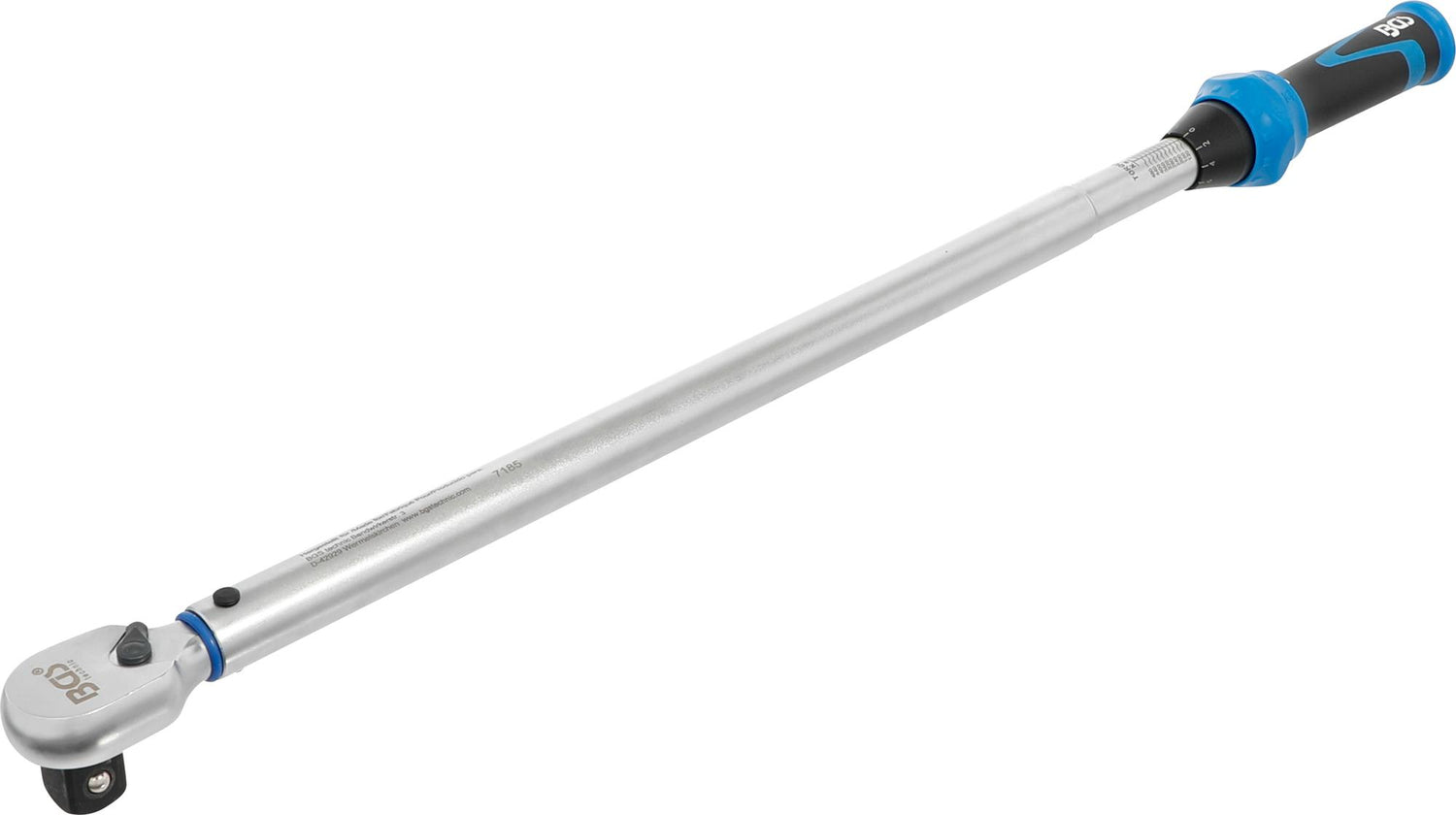

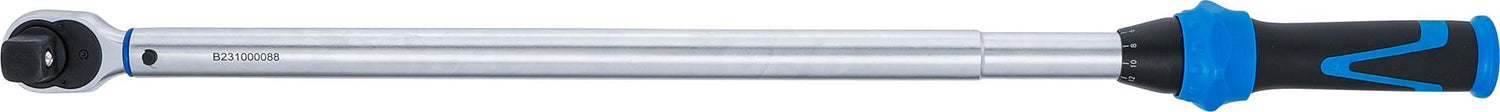

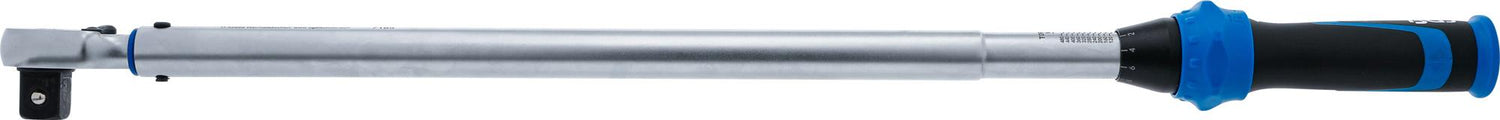

TORQUE WRENCH | 20 MM (3/4") | 100 - 500 NM (7185)

suitable for tightening to torque for screwed connections with right-hand thread
integrated reversible ratchet with closed, narrow head shape
ratchet mechanism, reversible
robust coarse tooth, 48 teeth
easy locking and unlocking at the handle
lasered line scale with fine adjustment for the respective setting value
optimally designed plastic handle for easy setting of the desired torque value, as well as a secure grip of the tool handle
clearly audible release

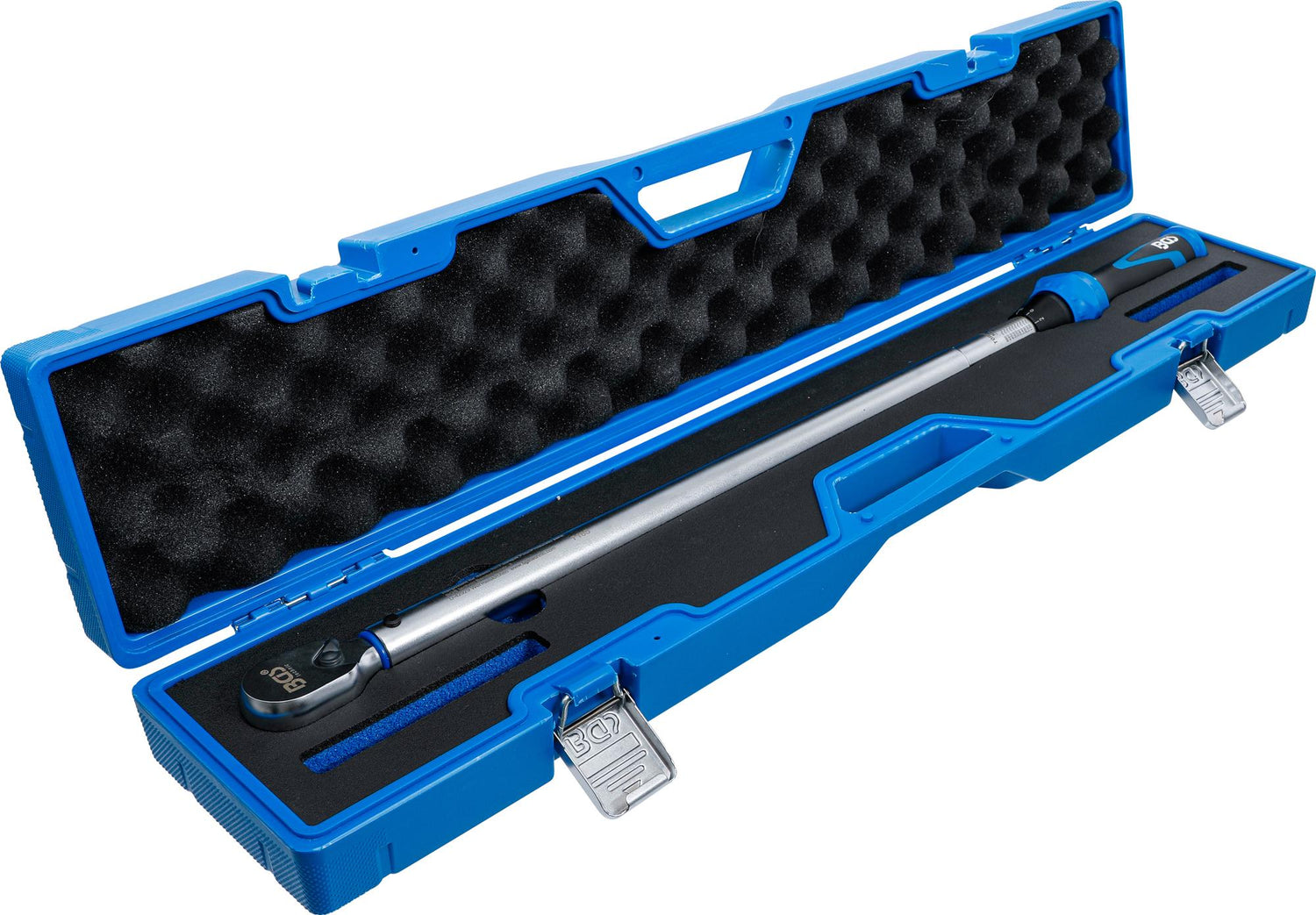

the tool is protected in the hard foam tray and stowed in the recess in a non-slip manner

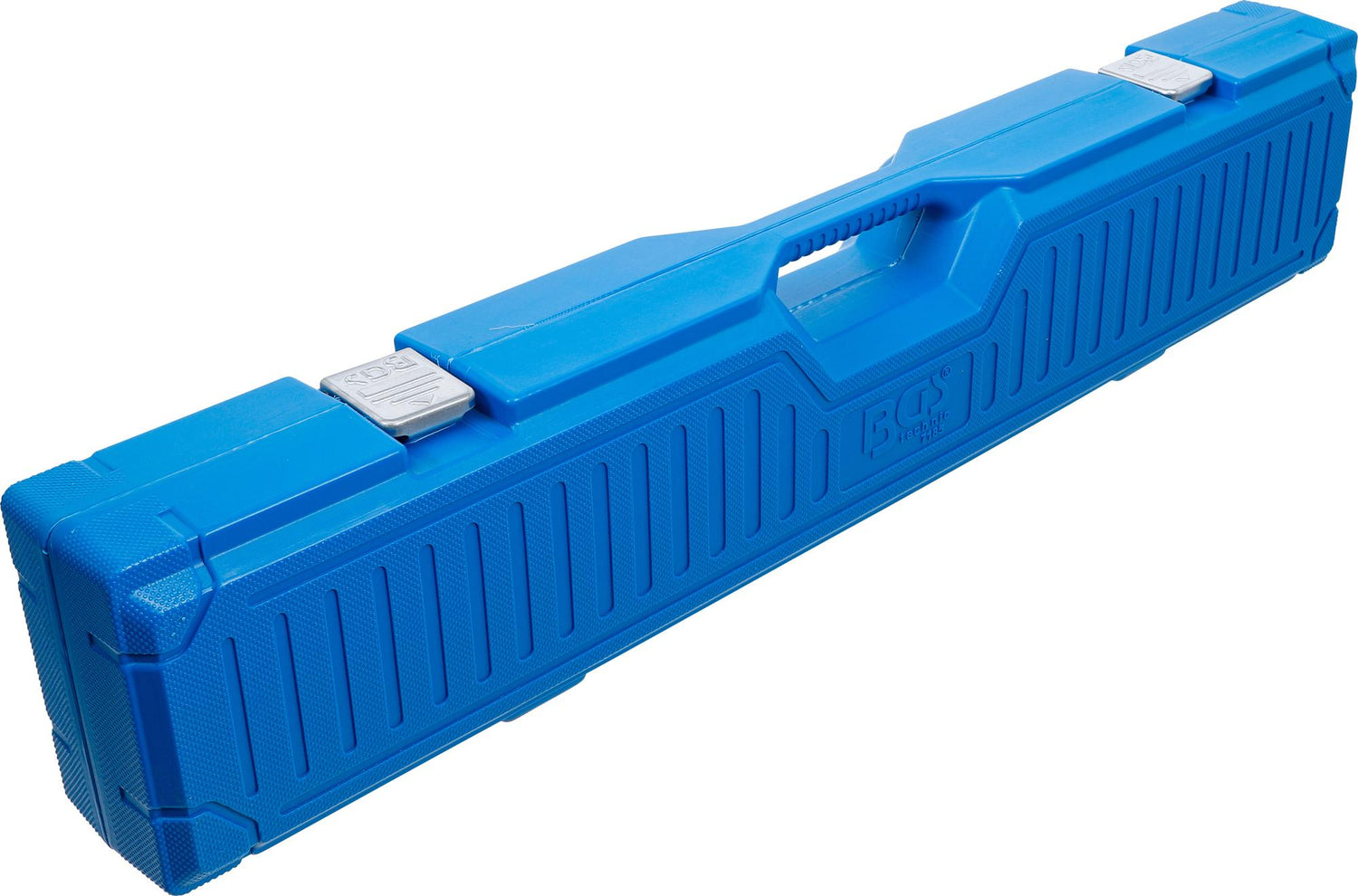

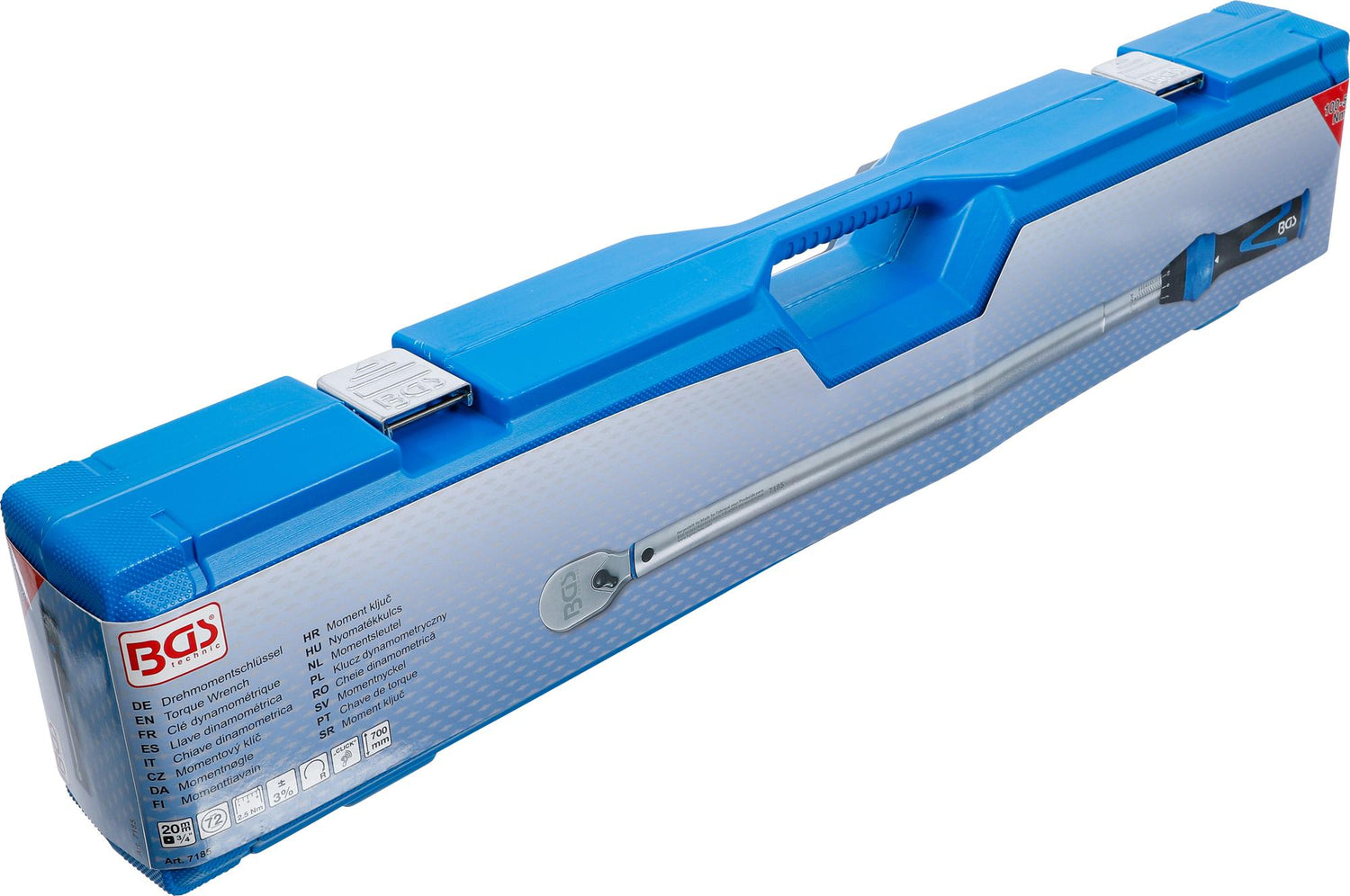

safe and tidy storage in blow mold case
incl. calibration certificate
fine scale: 2 Nm
trigger clockwise: yes
Technical data
Drive profile size, metric20 mm
Drive profile size, inch3/4 "
Output profileExternal square
Length700 mm
Gross weight3138 g
Max. torque500 Nm
Min. torque100 Nm
No. of teeth in ratchet head48
Release accuracy+/- 3 %
