TOOL TRAY 2/3: ENGINE TIMING TOOL SET | FOR BMW M40, M44, M50, M52, M54, M56 (9491)

Product description

This engine timing tool kit is designed for checking and adjusting the timing on a range of BMW petrol engines. It is suitable for use during timing belt or chain replacement, cylinder head repairs, or any service requiring precise alignment of the camshaft, crankshaft, and Vanos units. The kit covers a wide selection of BMW engines, including single and double Vanos systems, and is equipped to handle both early and later engine variants.

The tool set is compatible with multiple BMW engine codes such as M40B16, M42B18, M43B16, M43B18, M43TUB19OL, M43TUB19UL, M44B19, M50B20, M50B20TU, M50B25, M50B25TU, M52B20, M52B20TU, M52B25, M52B25TU, M52B28, M52B28TU, M54B22, M54B25, M54B30, and M56. It is suitable for use on engines installed in various BMW 3, 5, 7, and 8 series, as well as X3, X5, Z3, and Z4 models. The kit provides the necessary tools for locking the crankshaft and camshaft, aligning the Vanos units, tensioning the timing chain, and securing the tensioner during service.

Compatible vehicles

3 series (E30, E36, E46)

5 series (E34, E39, E60, E61)

7 series (E32, E38, E65, E66)

8 series (E31)

X3 (E83)

X5 (E53)

Z3, Z4 (E85)

Kit contents

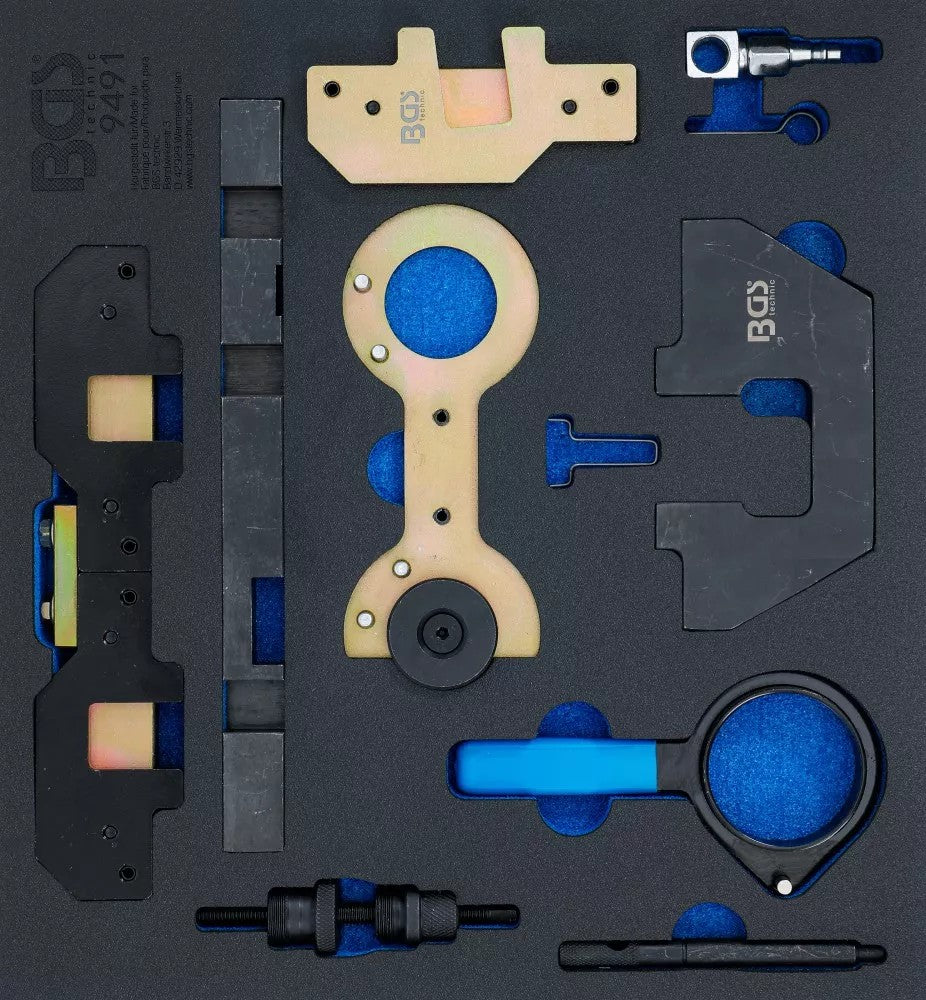

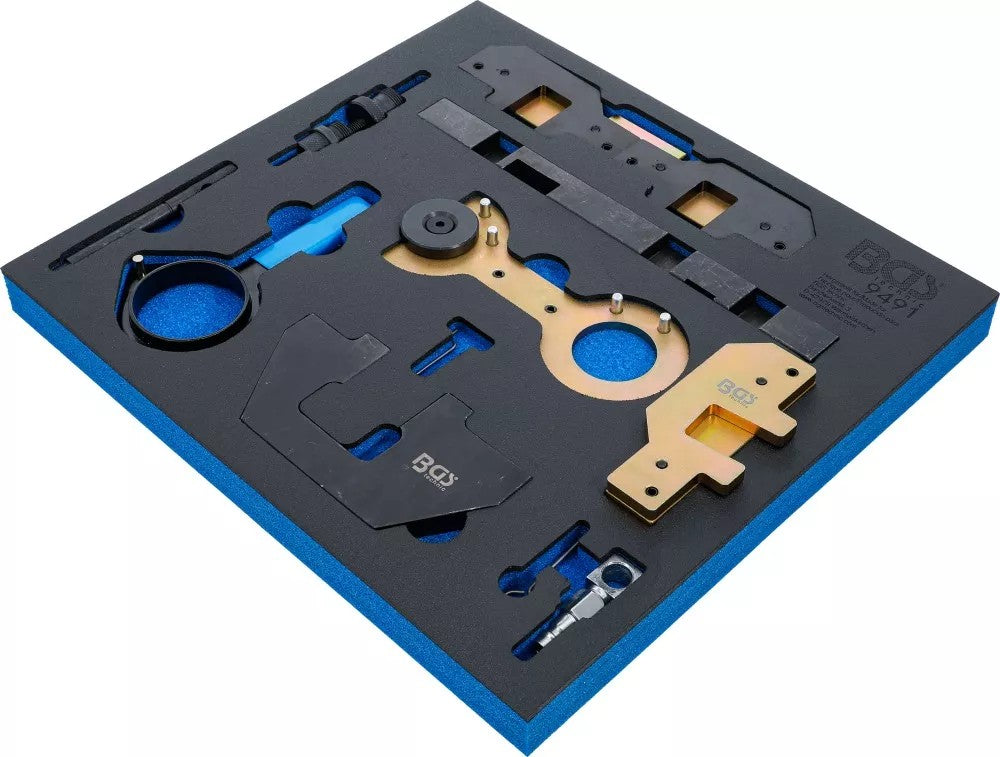

crankshaft locking bolt, to be used as OEM 112300

camshaft alignment tool, to be used as OEM 113190

camshaft alignment tool, to be used as OEM 113240

Vanos alignment tool, to be used as OEM 116180

double Vanos alignment tool, to be used as OEM 116150

chain pre-tensioner tool, to be used as OEM 114220

wrench for Vanos unit, to be used as OEM 115490

compressed air connector, to be used as OEM 113450

tensioner locking set, to be used as OEM 113290, consisting of:

locking clip, to be used as OEM 113291

locking pin, to be used as OEM 113292

Technical specifications

Gross weight: 6540 g

OEM reference table:

BMW: OEM1112300, OEM 113190, OEM 113240, OEM 116180, OEM 116150, OEM 114220, OEM 115490, OEM 113450, OEM 113290, OEM 113291, OEM 113292
