TOOL TRAY 2/3: ENGINE TIMING TOOL SET | FOR BMW AND MINI, 1.5 & 2.0L DIESEL (6775)

Product description

This engine timing tool kit is designed for checking and setting the timing on BMW and MINI vehicles equipped with 1.5 and 2.0-liter diesel engines. It is used during timing belt or chain replacement, engine repairs, or diagnostics where precise alignment of the camshaft, crankshaft, and other engine components is required. The kit covers a range of engine codes, including B37 D15A, B37 C15A, B47 D20A, B47 D20B, B47 C20A, and B47 C20B.

The kit is suitable for various BMW and MINI models produced between 2014 and 2017. It includes specialized tools such as camshaft and crankshaft locking devices, a flywheel adjusting pin, a high-pressure pump sprocket puller, and other components necessary for correct engine timing procedures.

Compatible vehicles

BMW 1 Series: 114d, 116d, 118d, 125d (2015-2017)

BMW 2 Series: 214d, 216d, 218d, 220d, 225d (2014-2017)

BMW 3 Series: 316d, 320d, 325d (2015-2017)

BMW 4 Series: 418d, 420d, 425d (2014-2017)

BMW 5 Series: 518d (2015-2017)

BMW X Series: X1, X3, X4, X5, Efficient Dynamics, xDrive, sDrive (2014-2017)

MINI: One D, Cooper D/SD (2014-2017)

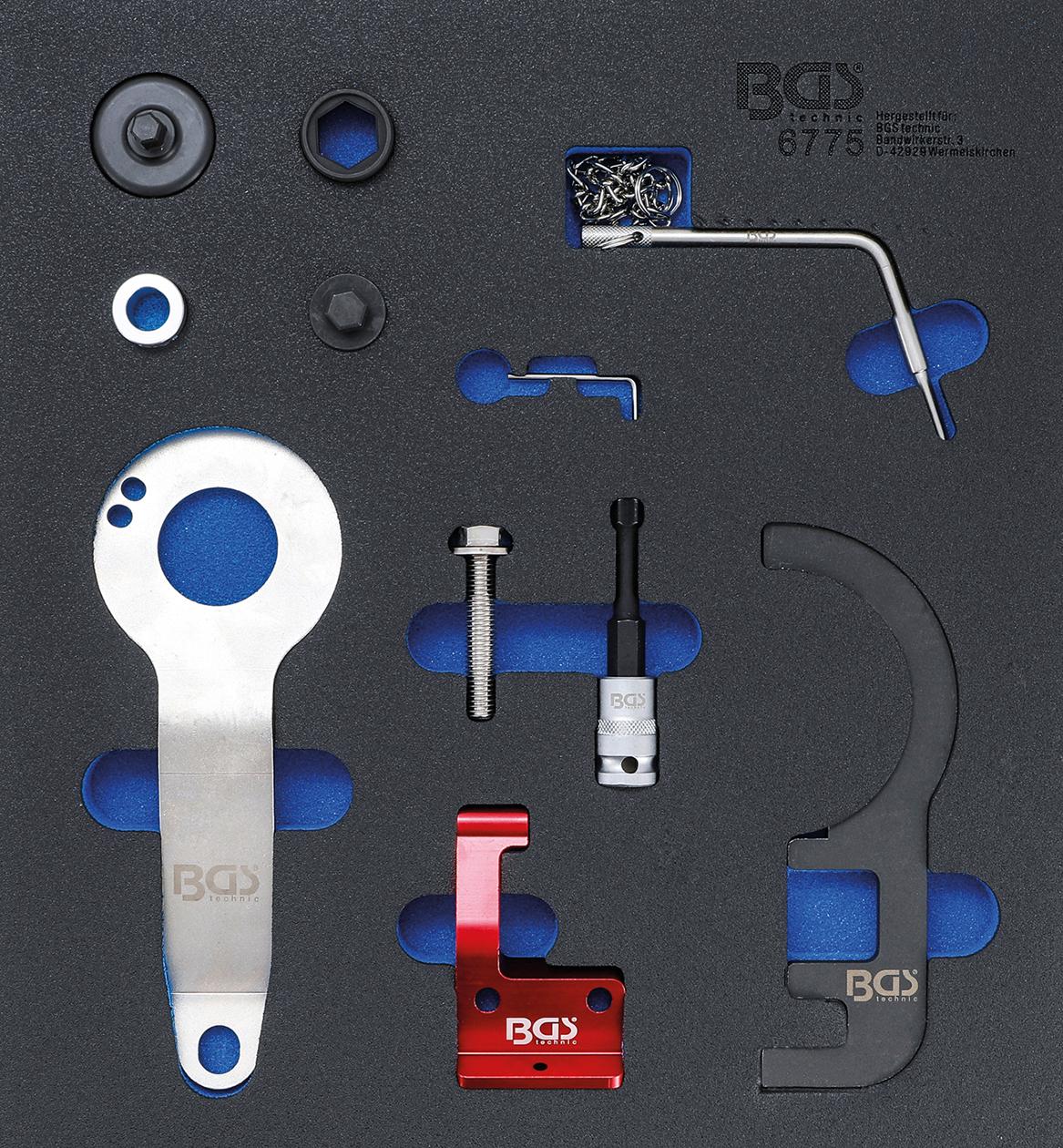

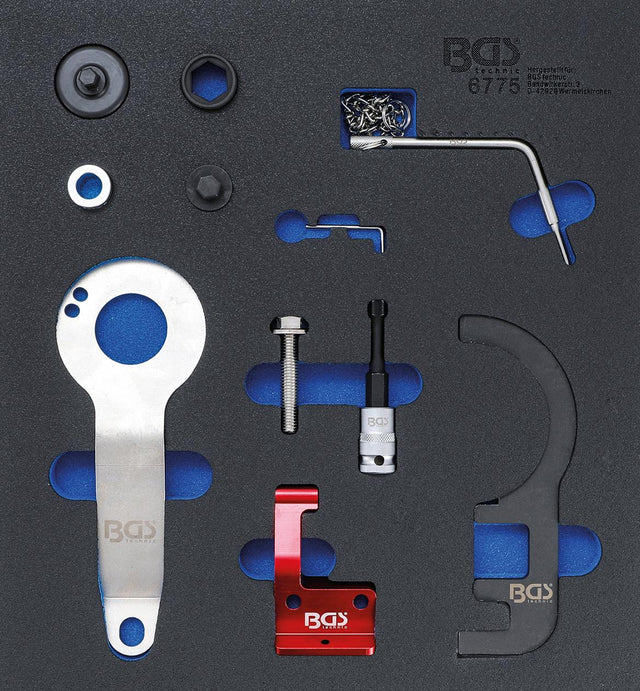

Kit contents

camshaft adjusting tool (OEM 11 8 760)

crankshaft locking tool (OEM 2 357 904)

flywheel adjusting pin (OEM 2 288 380)

adaptor plate for adjusting pin (OEM 2 365 488)

high pressure pump sprocket puller (OEM 11 8 740, 11 8 741, 11 8 742)

tensioner locking pin (OEM 11 4 120)

spacer with screw (OEM 11 9 265)

special bit socket (OEM 11 4 180)

Technical specifications

Gross weight: 2030 g

OEM reference table:

BMW: OEM 1114120, OEM 114180, OEM 118740, OEM 118741, OEM 118742, OEM 118760, OEM 119265, OEM 2288380, OEM 2357904, OEM 2365488

Mini: OEM 2114120, OEM 114180, OEM 118740, OEM 118741, OEM 118742, OEM 118760, OEM 119265, OEM 2288380, OEM 2357904, OEM 2365488
