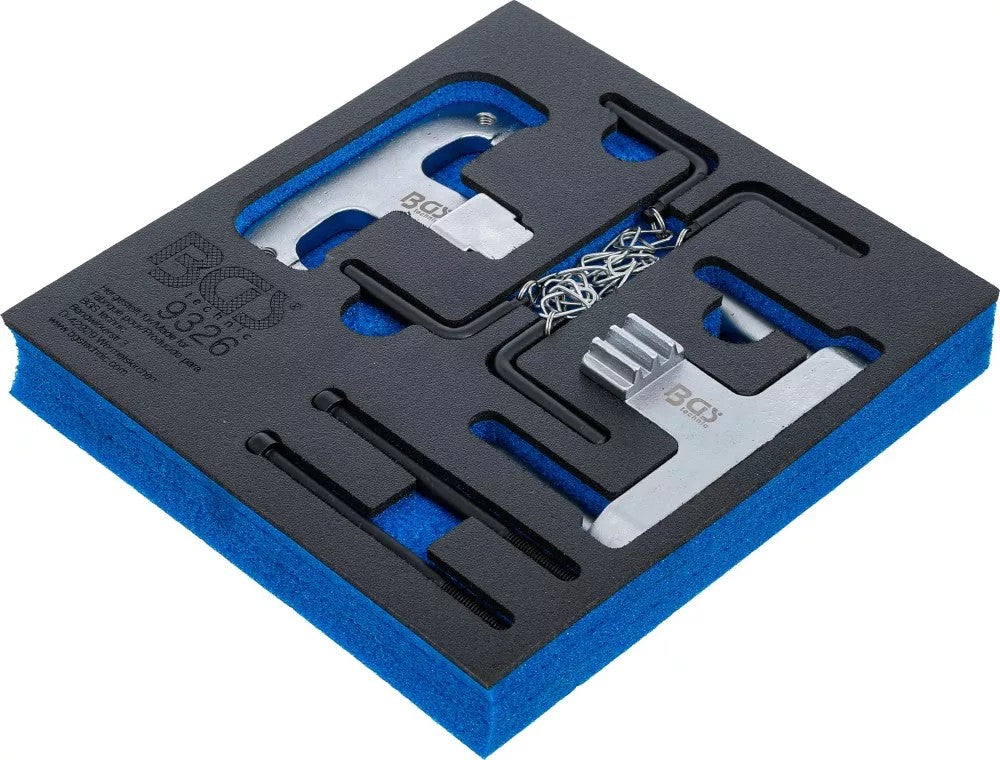

TOOL TRAY 1/6: ENGINE TIMING TOOL SET | FOR MERCEDES-BENZ / CHRYSLER (9326)

Product description

This engine timing tool kit is designed for adjusting the camshaft and locking the crankshaft (flywheel) on a wide range of Mercedes-Benz and Chrysler petrol and diesel engines. The kit is used during timing belt or chain replacement, engine repair, or other procedures requiring precise alignment of the camshaft and crankshaft. It covers both petrol engines (1.8 to 6.0 liters) with engine codes 102, 111, 104 (except AMG), 119, and 120, as well as diesel engines (2.0D to 4.0 CDi and 2.2 CRD to 3.5DT) with engine codes 601, 604, 605, 611, 646, 612, 602, 603, 606, 613, 647, 648, 628, and EDJ.

The kit includes specialized locking tools and pins that correspond to OEM specifications, ensuring compatibility with the listed engine codes. It is suitable for use on various Mercedes-Benz models such as 190, C, CLK, E, S, SL, SLK, G, M, Vito, Sprinter, Viano, as well as Chrysler PT Cruiser and Grand Cherokee models equipped with the specified engines.

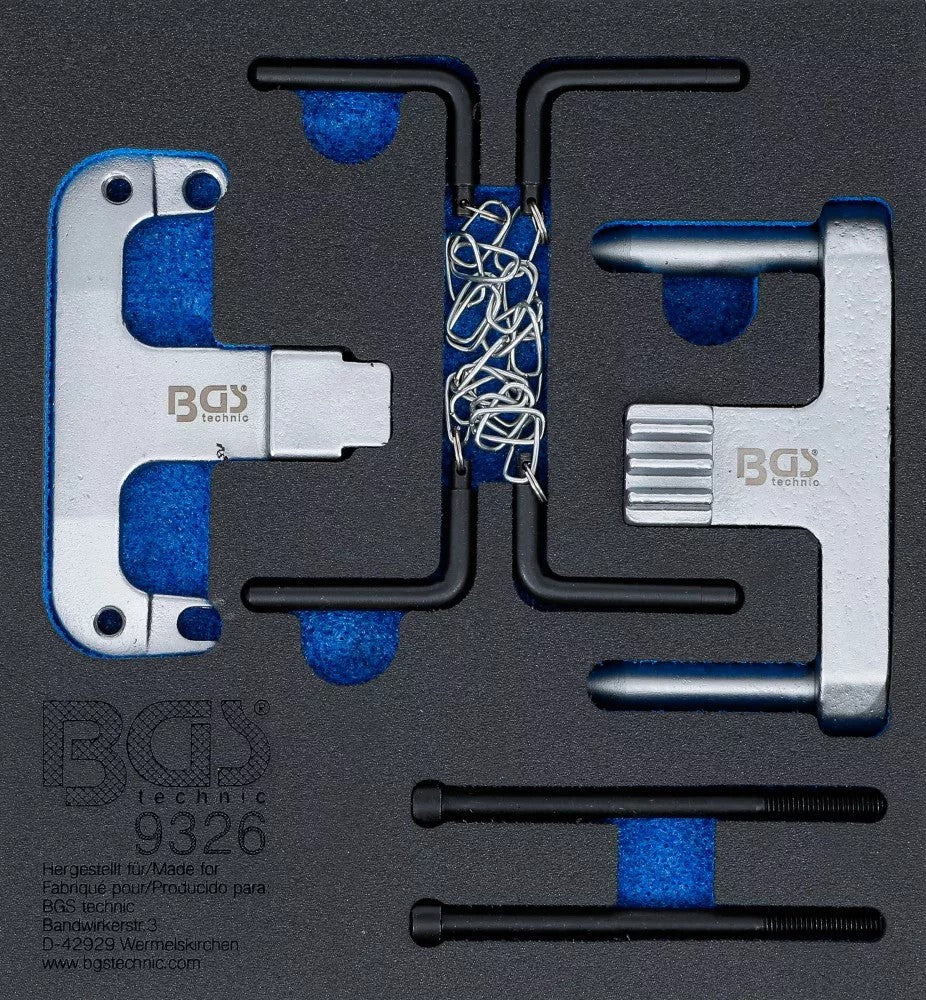

Kit contents

• Flywheel locking tool, including 2 x M6 x 90mm bolts (OEM 601589024000, 8933)
• Flywheel locking tool (OEM 112589034000)
• Camshaft locking pin set (OEM 602589004000, 8929)

Technical specifications

• Gross weight: 880 g

OEM reference table:

• Mercedes-Benz: OEM 1601589024000, 8933, 112589034000, 602589004000, 8929
