TOOL TRAY 1/6: BALANCE SHAFT ADJUSTING TOOL SET | FOR LAND ROVER, CITROEN, MITSUBISHI, PEUGEOT, FORD 2.2 DOHC DIESEL ENGINES (9606)

Product description

This tool set is designed for adjusting and locking the balancer shaft on a range of 2.2 DOHC diesel engines. It is used during engine timing procedures, maintenance, or repair tasks that require precise positioning of the balancer shaft to ensure correct engine operation. The kit is applicable to engines found in various models from Land Rover, Citroen, Mitsubishi, Peugeot, and Ford, covering a wide span of production years and engine variants.

The set includes dedicated tools for locking the balance shaft, setting its position, and managing backlash, each corresponding to specific OEM reference numbers. It is suitable for use on engines with codes such as 224DT, DW12CTED4, DW12BTED4, 4HX, 4HP, 4HW, 4HK, 4HN, KNBB, KNBA, KNWA, and Q4BA, among others. This makes it a targeted solution for workshops servicing these engine types during timing belt changes, engine rebuilds, or related procedures.

Compatible vehicles

Land Rover (2009-2015)

• Discovery, Discovery Sport, Freelander 2, eD4, TD4, TD4e
• Engine codes: 224DT, DW12CTED4/224DT, DW12BTED4/224DT

Citroen (2000-2015)

• C5, C5 II, C5 III, C6, C8, C-Crosse HDi
• Engine codes: 4HX (DW12CTED4), 4HP (DW12BTED4), 4HX (DW12TED4), 4HW (DW12TED4/L4)

Mitsubishi (2007-2013)

• Outlander DI-D, DI-DC
• Engine codes: 4HK, 4HN

Peugeot (2000-2015)

• 4007, 407, 607, 807, 406, 508, 607, HDi, GT Hdi
• Engine codes: DW12MTED4 (4HK), DW12MTED4 (4HN), DW12BTED4 (4HP), DW12BTED4 (4HR), DW12BTED4 (4HT), DW12TED4/L4 (4HW), DW12BTED4 (4HS), DW12ATED (4HZ), DW12ATED4 (4HX), DW12ATED (4HZ), DW12CTED4 (4HL)

Ford (2008-2015)

• Galaxy, Mondeo, S-Max, TDCI, TCI
• Engine codes: KNBB, KNBA, KNWA, Q4BA

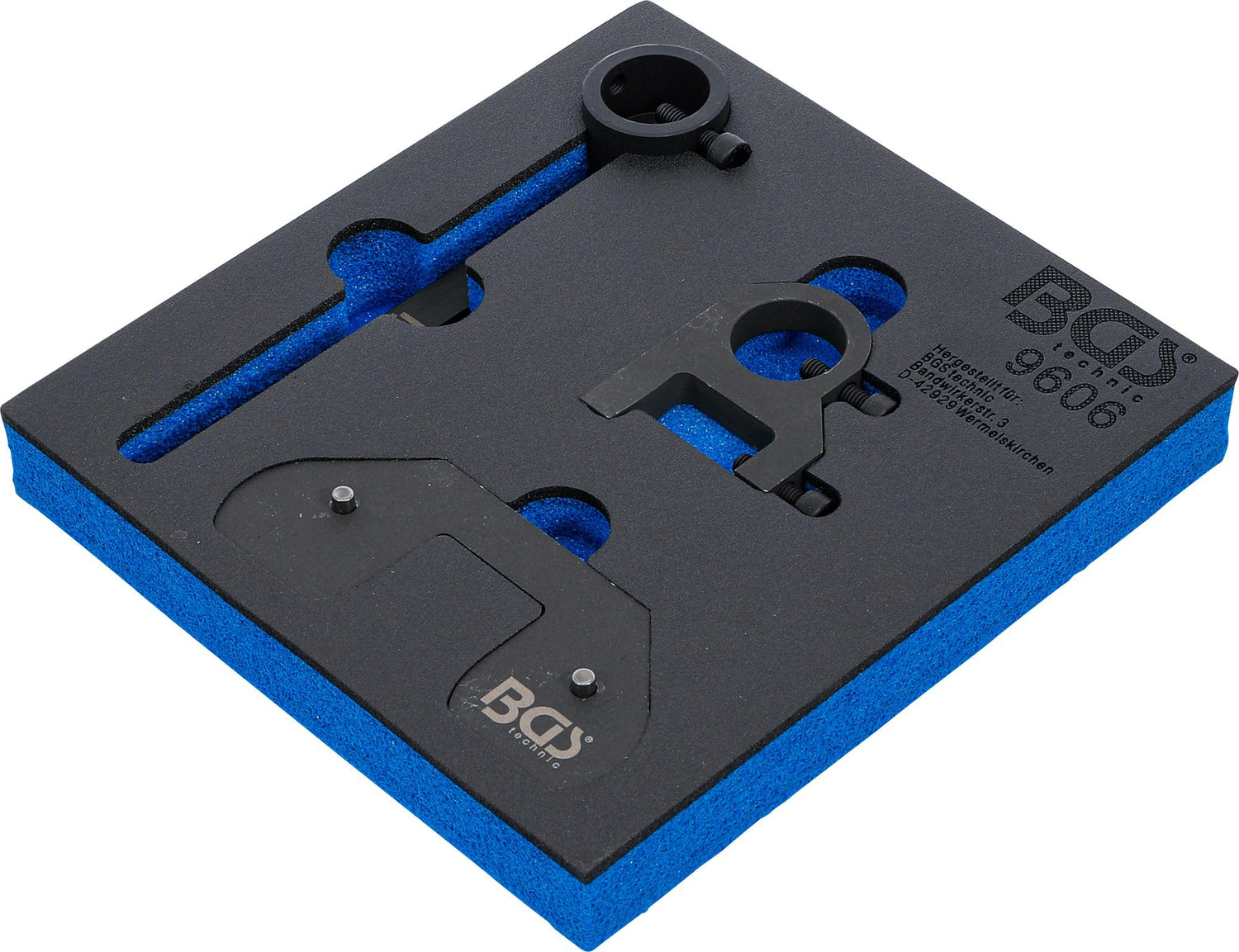

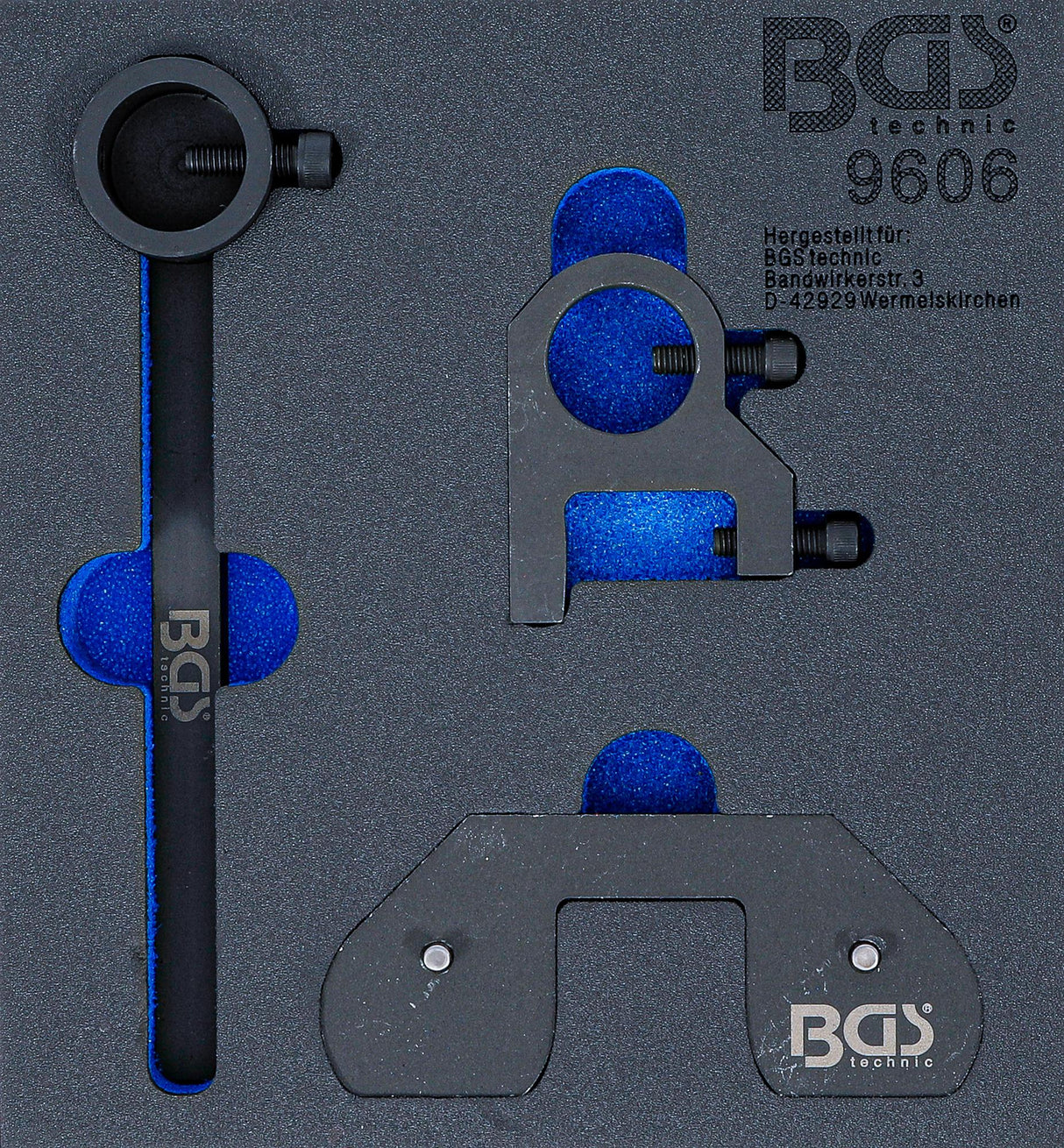

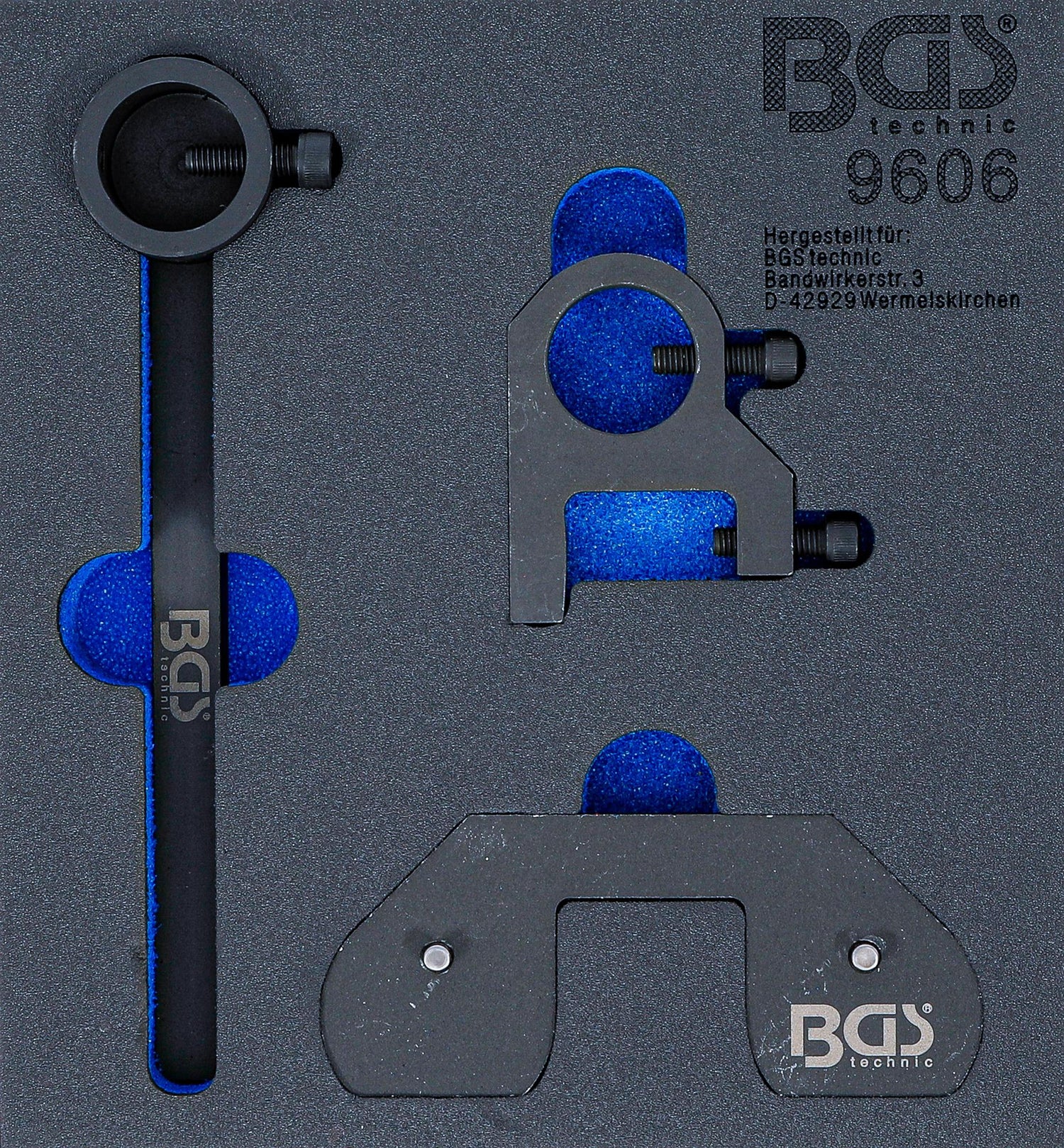

Kit contents

• Balance shaft locking tool (OEM 303-1329)
• Backlash lever (OEM 303-1330)
• Balance shaft setting tool (OEM 303-1328, 0190D)

Technical specifications

• Gross weight: 800 g

OEM reference table:

• Citroen: OEM 10190D, 303-1328, 303-1329, 303-1330
• Peugeot: OEM 50190D, 303-1328, 303-1329, 303-1330
• Ford: OEM 20190D, 303-1328, 303-1329, 303-1330
• Land Rover: OEM 30190D, 303-1328, 303-1329, 303-1330
• Mitsubishi: OEM 40190D, 303-1328, 303-1329, 303-1330
