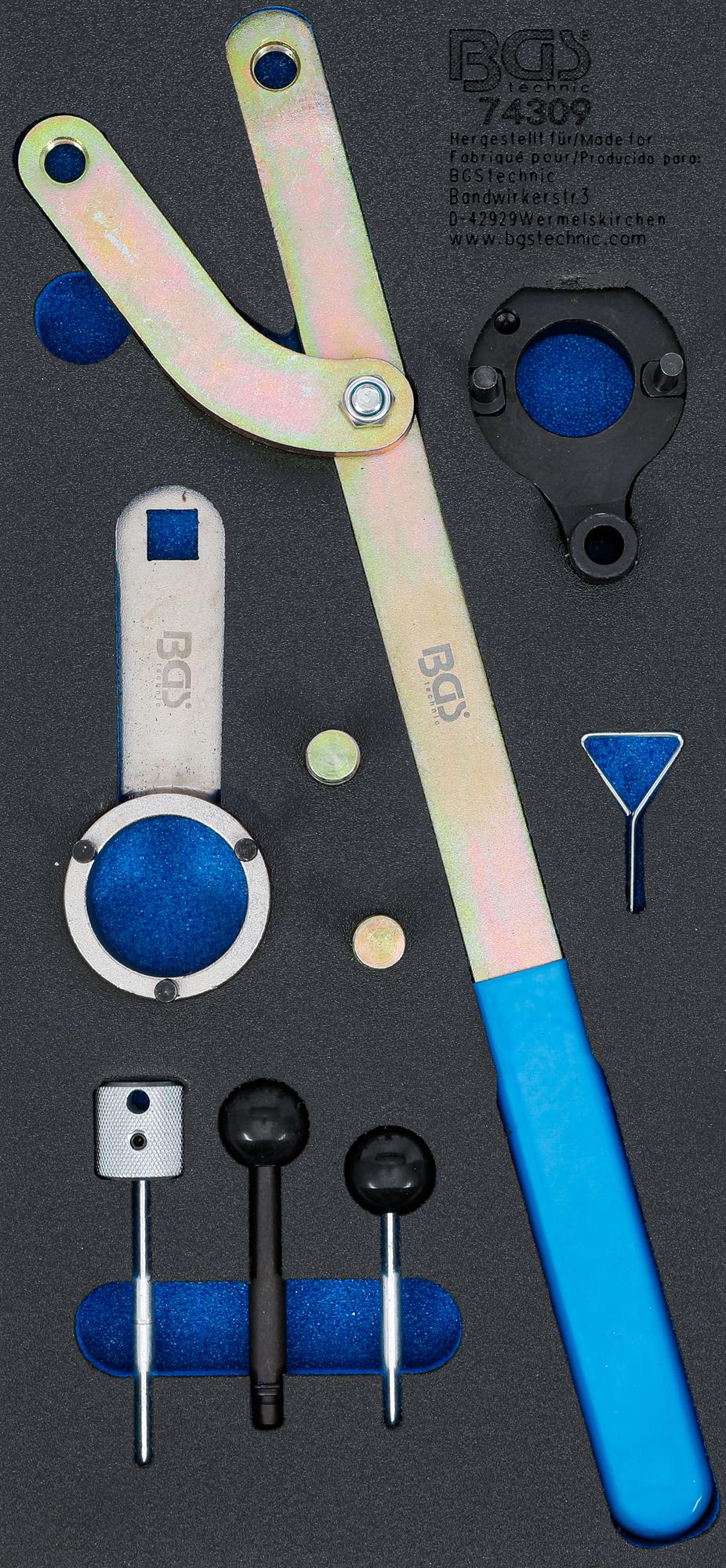

TOOL TRAY 1/3: ENGINE TIMING TOOL SET | FOR VAG 2.0 TDI COMMON RAIL (74309)

Product description

This engine timing tool set is designed for checking and setting the timing on VAG 2.0 TDI Common Rail engines. It is used during timing belt replacement, engine rebuilds, or any maintenance that requires precise alignment of the crankshaft, camshaft, and high-pressure pump. The kit includes all necessary locking and holding tools to ensure accurate timing procedures on these engines.

The set is specifically intended for use on select Audi and Volkswagen models equipped with 2.0L TDI engines, particularly those with engine codes CRUA and CVCA from the 2015 model year. By using the included OEM-referenced tools, technicians can perform timing work in accordance with manufacturer specifications.

Compatible vehicles

• Audi A3 2.0L TDI (8V), engine code CRUA, (2015)
• VW Beetle 2.0L TDI, engine code CVCA (2015)
• VW Golf 2.0L TDI, engine code CRUA (2015)
• VW Jetta 2.0L TDI (EA288), engine code CVCA (2015)
• VW Passat 2.0L TDI (NMS Chassis), engine code CVCA (2015)

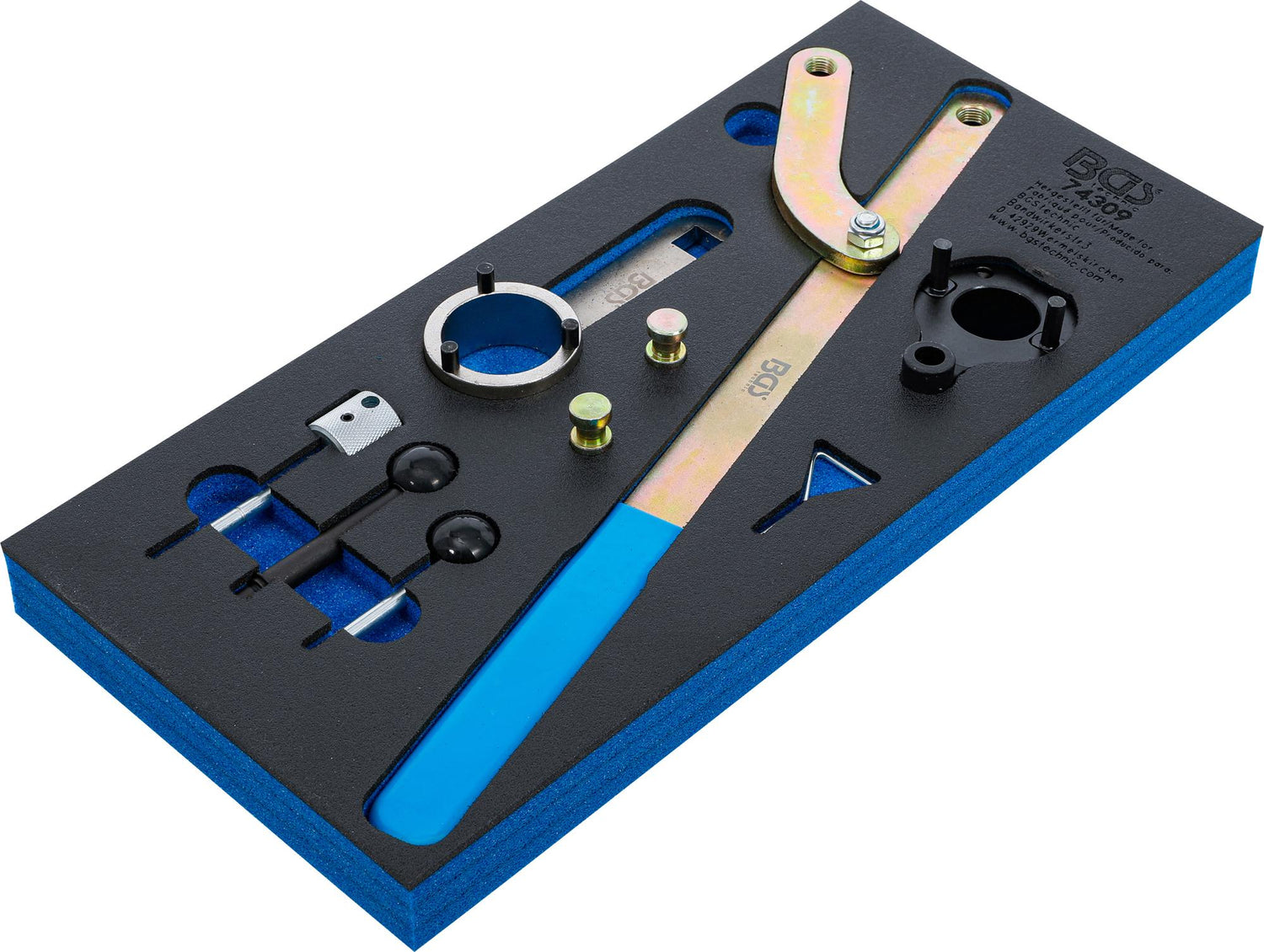

Kit contents

• Crankshaft locking tool (OEM T10490)
• Tooth belt tensioner locking pin (OEM T10115)
• Camshaft counterholder (OEM T10172)
• High pressure pump counterholder (OEM T10051)
• Camshaft locking pin (OEM 3359)
• High pressure pump locking pin (OEM T10492)

Technical specifications

• Gross weight: 1904 g

OEM reference table:

• Audi: OEM 13359, T10051, T10115, T10172, T10490, T10492
• Volkswagen: OEM 23359, T10051, T10115, T10172, T10490, T10492
