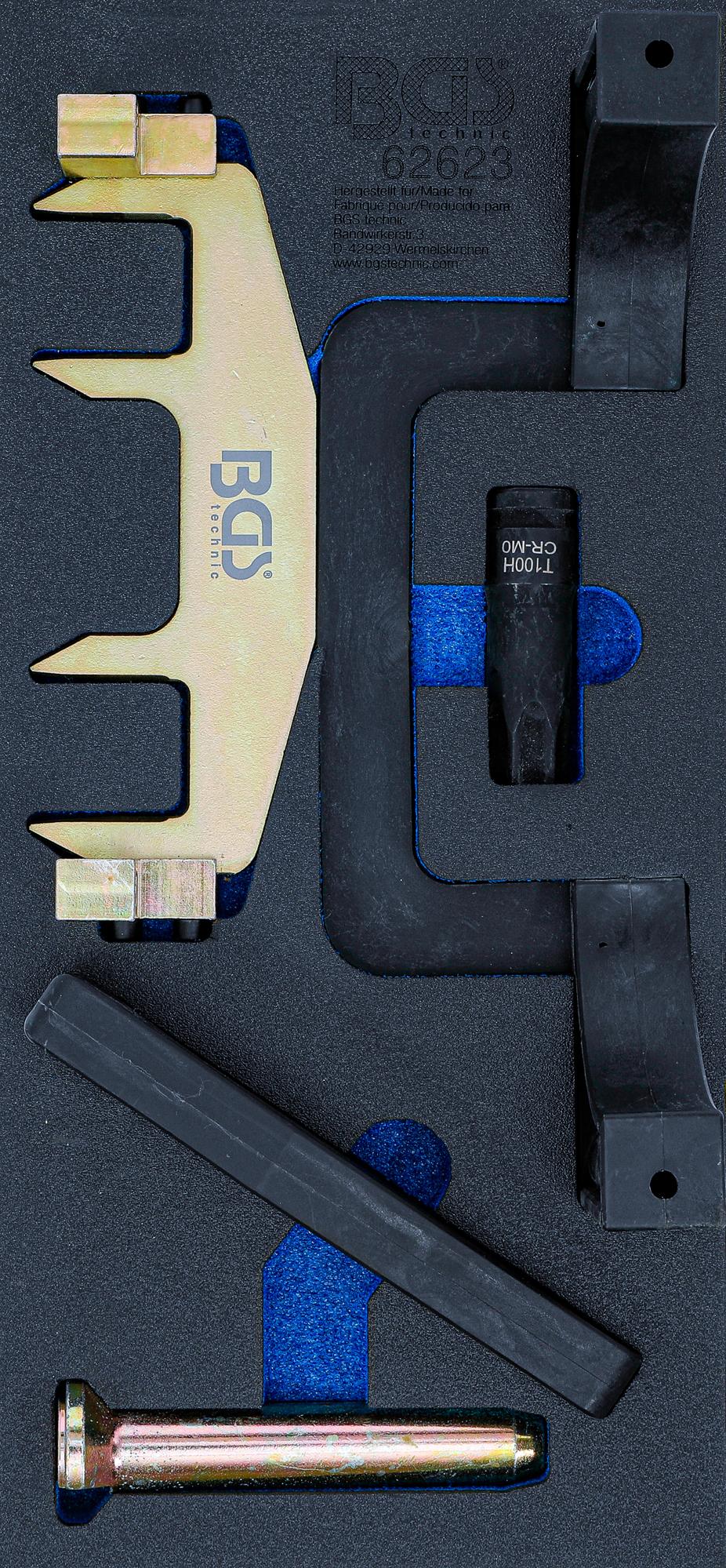

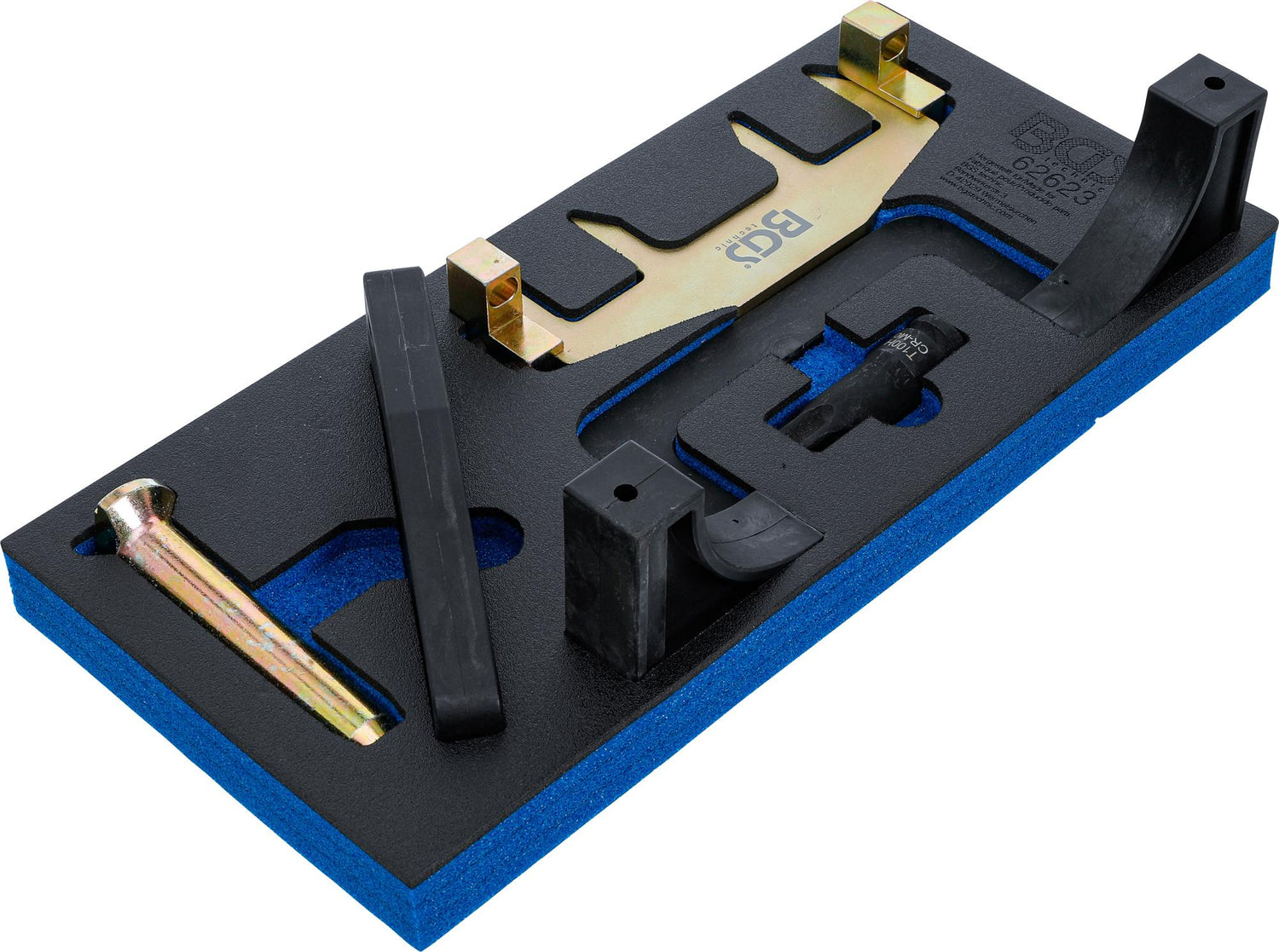

TOOL TRAY 1/3: ENGINE TIMING TOOL SET | FOR MERCEDES-BENZ M271 (62623)

Product description

This engine timing tool kit is designed for use during timing chain replacement procedures on select Mercedes-Benz engines. The kit provides the necessary tools to hold the timing chain, lock the camshaft, and position components accurately, ensuring correct alignment during disassembly and reassembly. It is specifically intended for use with Mercedes-Benz engines carrying the codes M271 E18ML (from 2002 onward), DE18ML (2003–2005), E16ML (from 2008 onward), and DE18LA (from 2009 onward).

The kit is applicable to a range of Mercedes-Benz models equipped with these engines, including various versions of the CLK, C-Class, E-Class, SLK, and CLC. It is used whenever the timing chain is being replaced, helping to maintain precise engine timing and prevent misalignment.

Compatible vehicles

• CLK 200K (W209)
• C 180K, C 200K, C 230K (W203)
• C Sportcoupe C 160K, C 180K, C 200K, C 230K
• E 200K (W211)
• SLK 200K (R171)
• C 180K (W204)
• CLC 180K, CLC 200K
• C 180 CGI, C 200 CGI, C 250 CGI (W204)
• E 200 CGI, E 250 CGI (W212, C207)

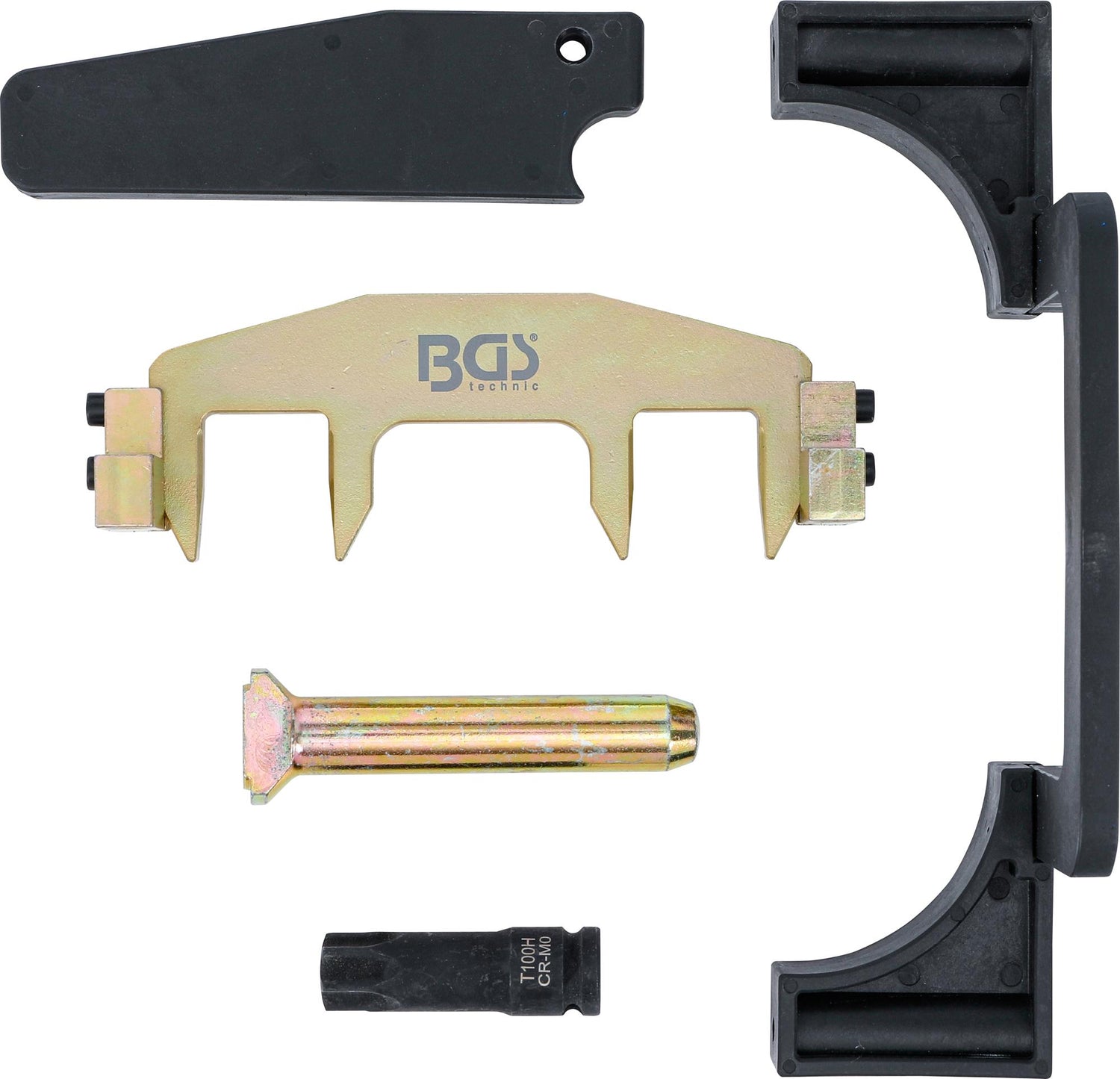

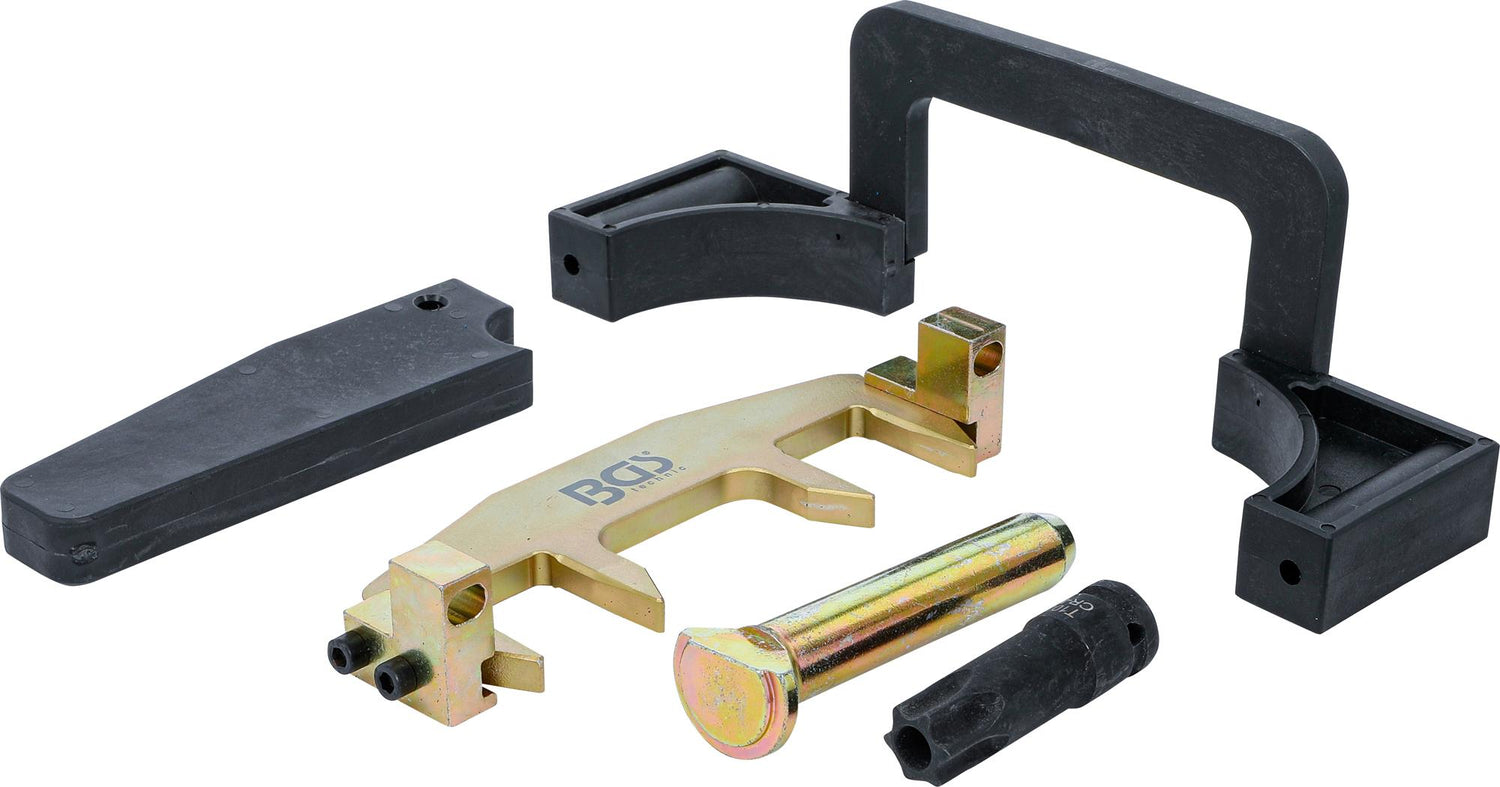

Kit contents

• Holding device for timing chain (OEM 271589014000)
• Camshaft locking tool (OEM 271589006100)
• Locating pin (OEM 271589001500)
• Timing chain tool (OEM 271589003100)

Technical specifications

• Gross weight: 2250 g

OEM reference table:

• Mercedes-Benz: OEM1271589014000, 271589006100, 271589001500, 271589003100
