TOOL TRAY 1/3: ENGINE TIMING TOOL SET | FOR MERCEDES-BENZ M112 + M113 (9215)

Product description

This engine timing tool kit is designed for use on Mercedes-Benz vehicles equipped with M112 and M113 engines. It is used during timing chain service or when adjusting engine timing, providing secure locking of the left and right side camshafts in their correct adjustment positions. The kit ensures that the camshafts remain stationary, preventing any unwanted movement while performing timing-related maintenance or repairs.

The kit is applicable to a wide range of Mercedes-Benz models from the late 1990s to the late 2000s, as well as the Chrysler Crossfire (SRT-6). It is suitable for both V6 and V8 engines in the M112 and M113 families, covering sedans, coupes, convertibles, SUVs, and vans. This makes it a versatile tool for workshops servicing multiple Mercedes-Benz platforms.

Compatible vehicles

C-class

• 240/280 (202) (1997-)
• 240/320 (203) (2000-)

CL

• 500 (215) (1999-2006)

CLK

• 320/430 (208) (1997-2003)
• 240/320/500/55AMG (209) (2002-2006)

CLS

• 500/55AMG (219) (2004-2006)

E-class

• 240/280/320/430 (210) (1997-2002)
• 240/320/500/E55AMG (211) (2003-2006)

M-class

• ML320/350/430/500/55AMG (163) (1997-2005)
• 500 (164) (2005-2007)

S-class

• 280/320/350/430/500 (220) (1998-2005)

SL

• 280/320/500 (129) (1998-2002)
• 350/500/55AMG (230) (2001-2008)

SLK

• 320K (170) (2000-2004)
• 55AMG (171) (2004-2010)

R-class

• 500 (2006-2007)

Viano

• 3.0/3.2/3.5 (2003-2008)

Vito

• 123 (639) (2004-2008)

Chrysler

• Crossfire (SRT-6) (2003-2007)

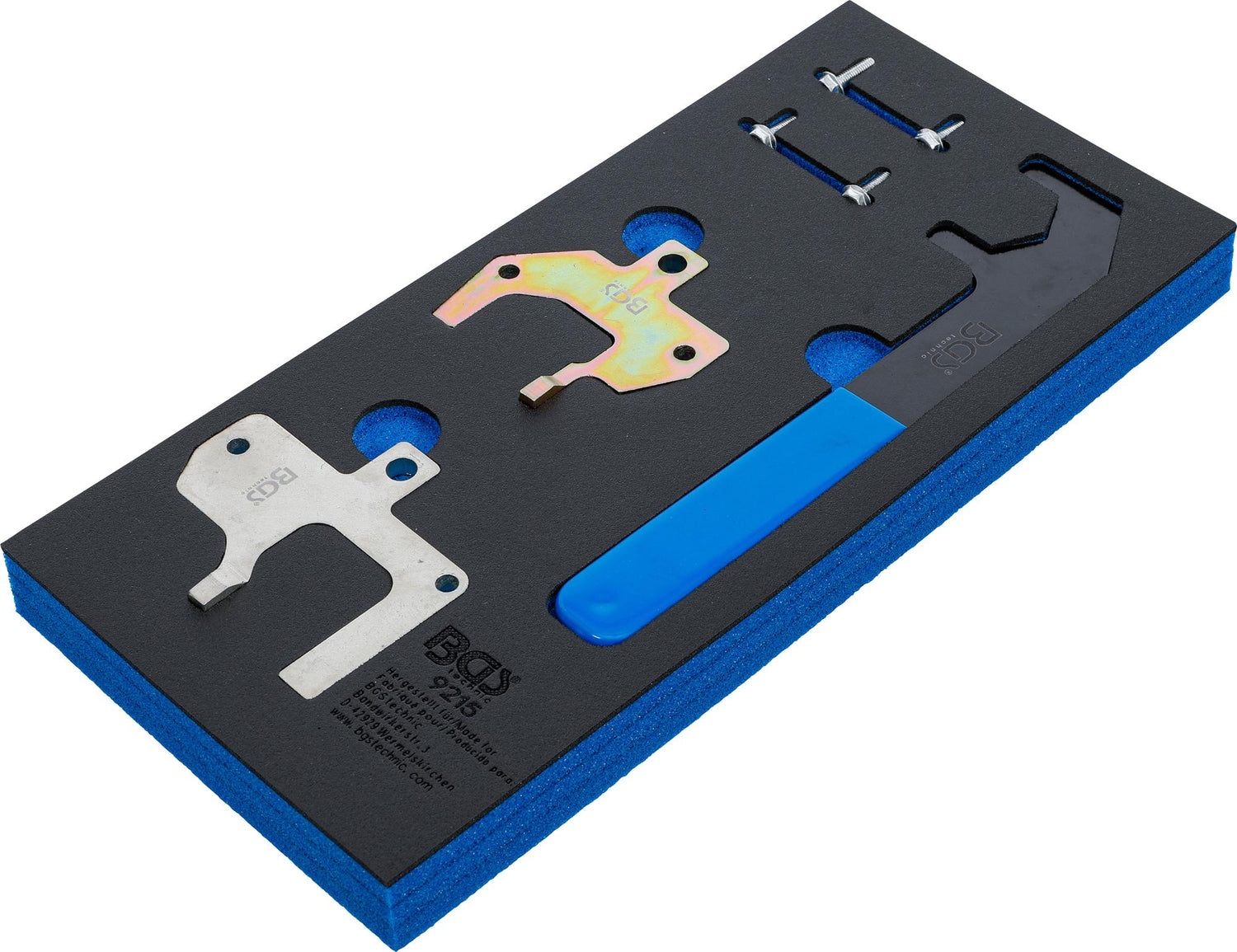

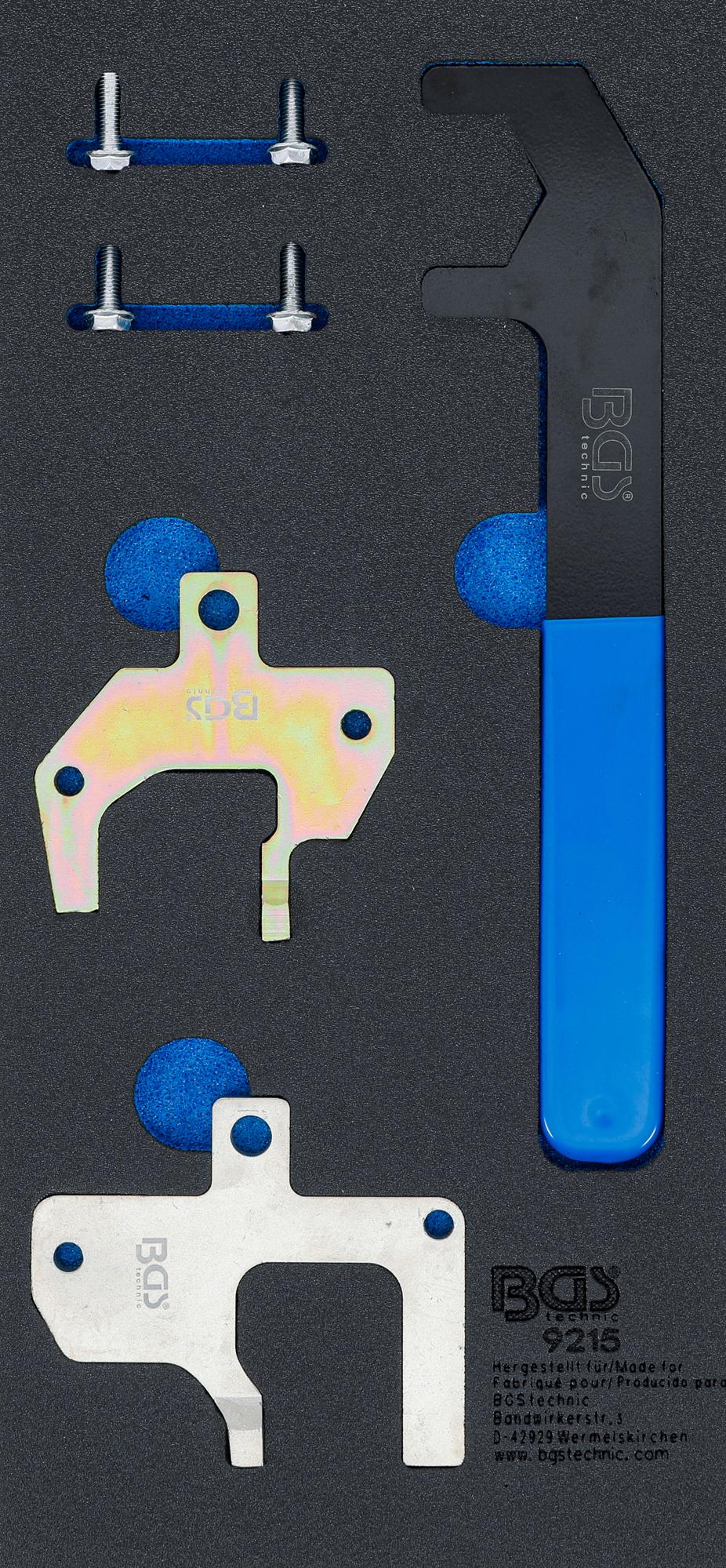

Kit contents

• Camshaft locking tool (right-side), to be used as OEM 112589003200
• Camshaft locking tool (left-side), to be used as OEM 112589013200
• Camshaft rotation key, to be used as OEM 112589000100

Technical specifications

• Gross weight: 1090 g

OEM reference table:

• Mercedes-Benz: OEM1112589003200 | 112589013200 | 112589000100
