TOOL TRAY 1/3: ENGINE TIMING TOOL SET | FOR LAND ROVER, JAGUAR V8 (9006)

Product description

This engine timing tool kit is designed for adjusting and checking the timing on a range of Jaguar and Land Rover V8 engines. It is used during procedures such as working on the valve drive or renewing the cylinder head gasket, where precise alignment of the engine's timing components is required. The kit covers a variety of V8 engines with displacements of 3.2, 3.5, 4.0, 4.2, and 4.4 liters.

The tools in this set are compatible with several Jaguar models, including the XJ8, XJR, S-Type, XF, XK8, and XKR, as well as Land Rover and Range Rover vehicles from 1997 to 2009, equipped with the specified V8 engines. The kit includes all necessary locking pins, camshaft setting plates, and other specialized tools to ensure accurate timing during engine maintenance.

Compatible vehicles

Jaguar:

• XJ8 (1997-2009), engine AJ26 AC, BC, LC, 1B, 5G, SB
• XJR (1997-2009), engine AJ27 KB, CC, MA, 2B, 9G, TB
• S-Type (1999-2008), engine AJ28 KC, CE, MB, 3B, HB, PC
• XF (2008-2009), engine AJ34 3.5, DC, NB, 1G, HG
• XK8 (1997-2009), engine RB, EC, NC
• XKR (1998-2009), engine GB, PA

Land Rover:

• Range Rover (new) (2006-2009), 4.2L engine (428 HP)
• Range Rover (2005-2009), 4.2L engine (428 HP)
• Discovery III (2005-2009)

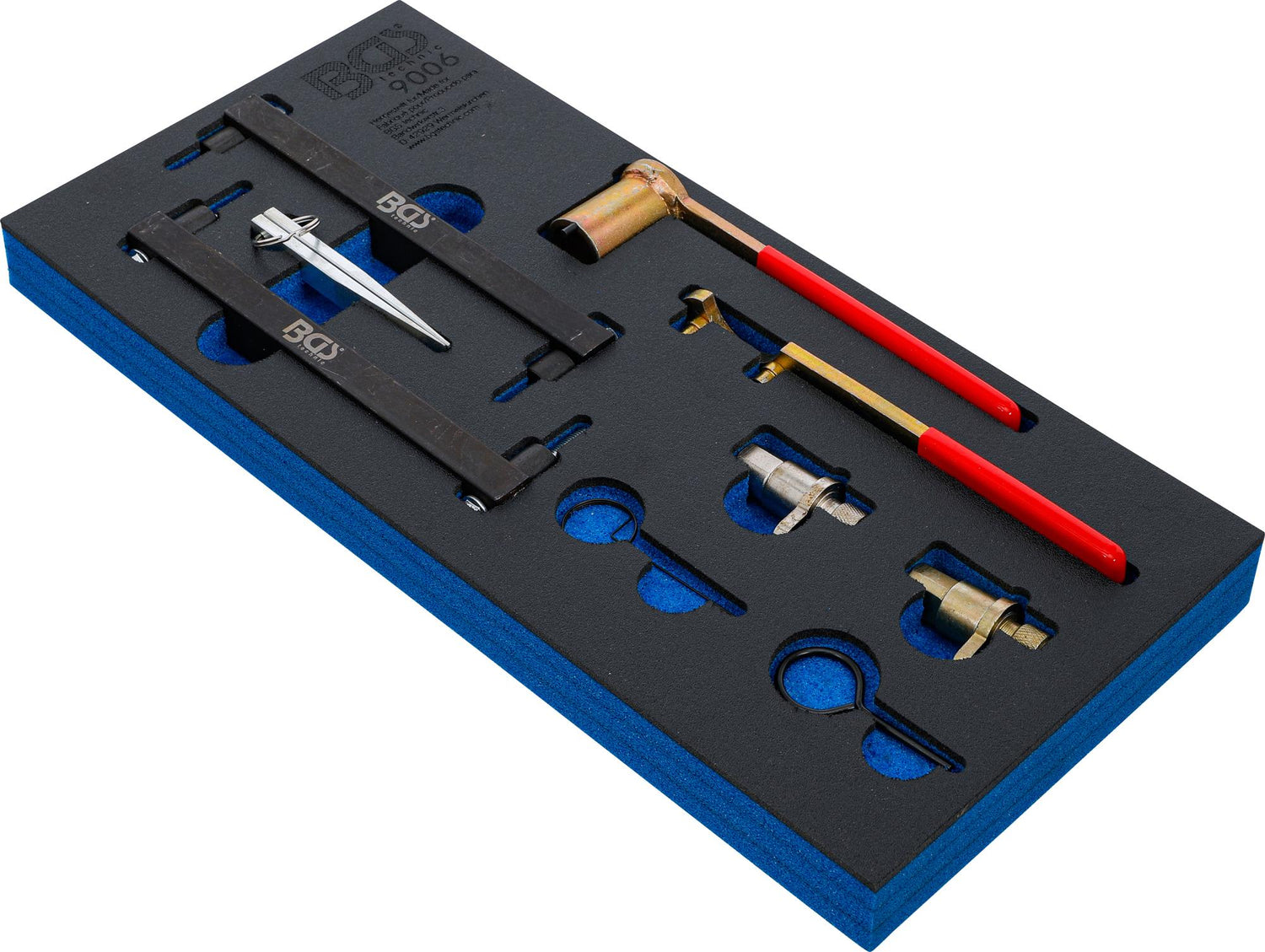

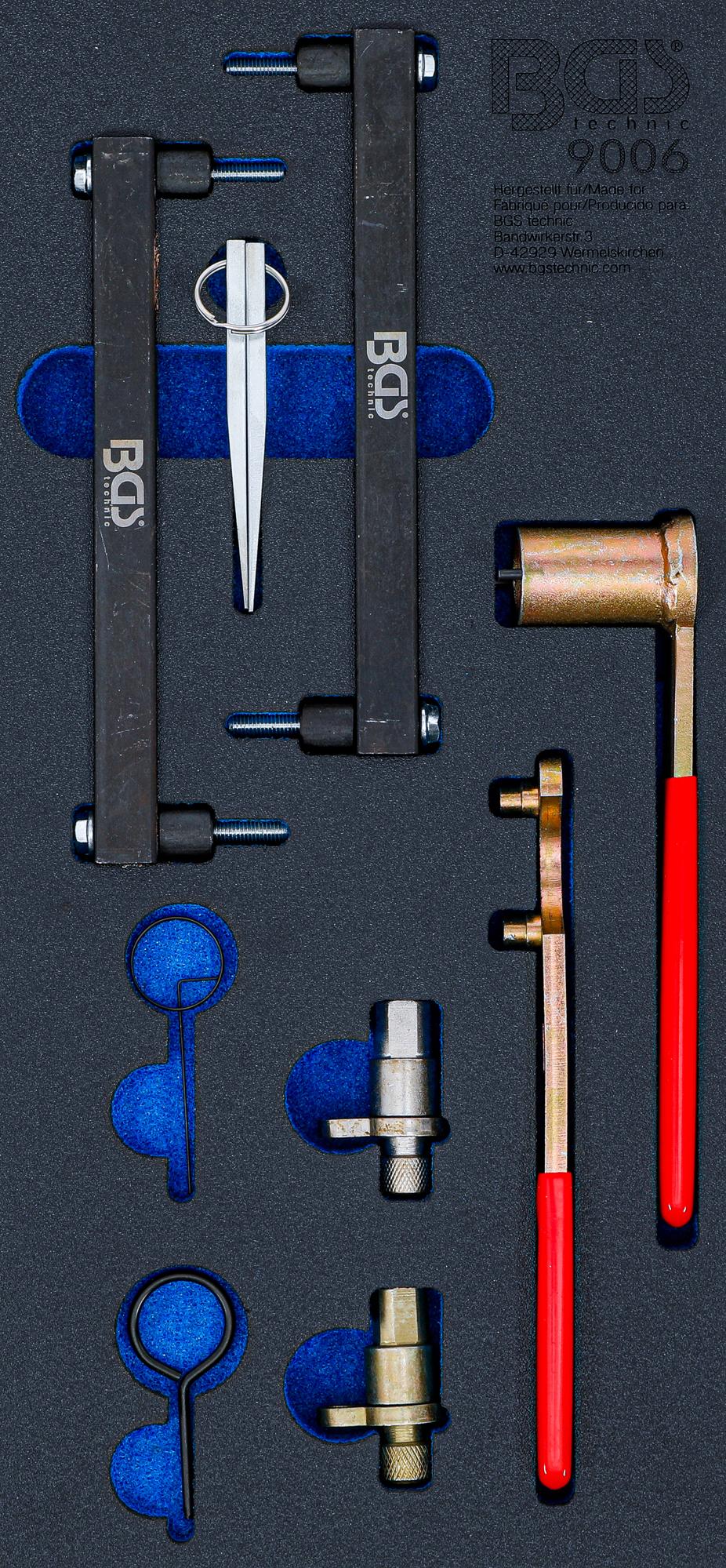

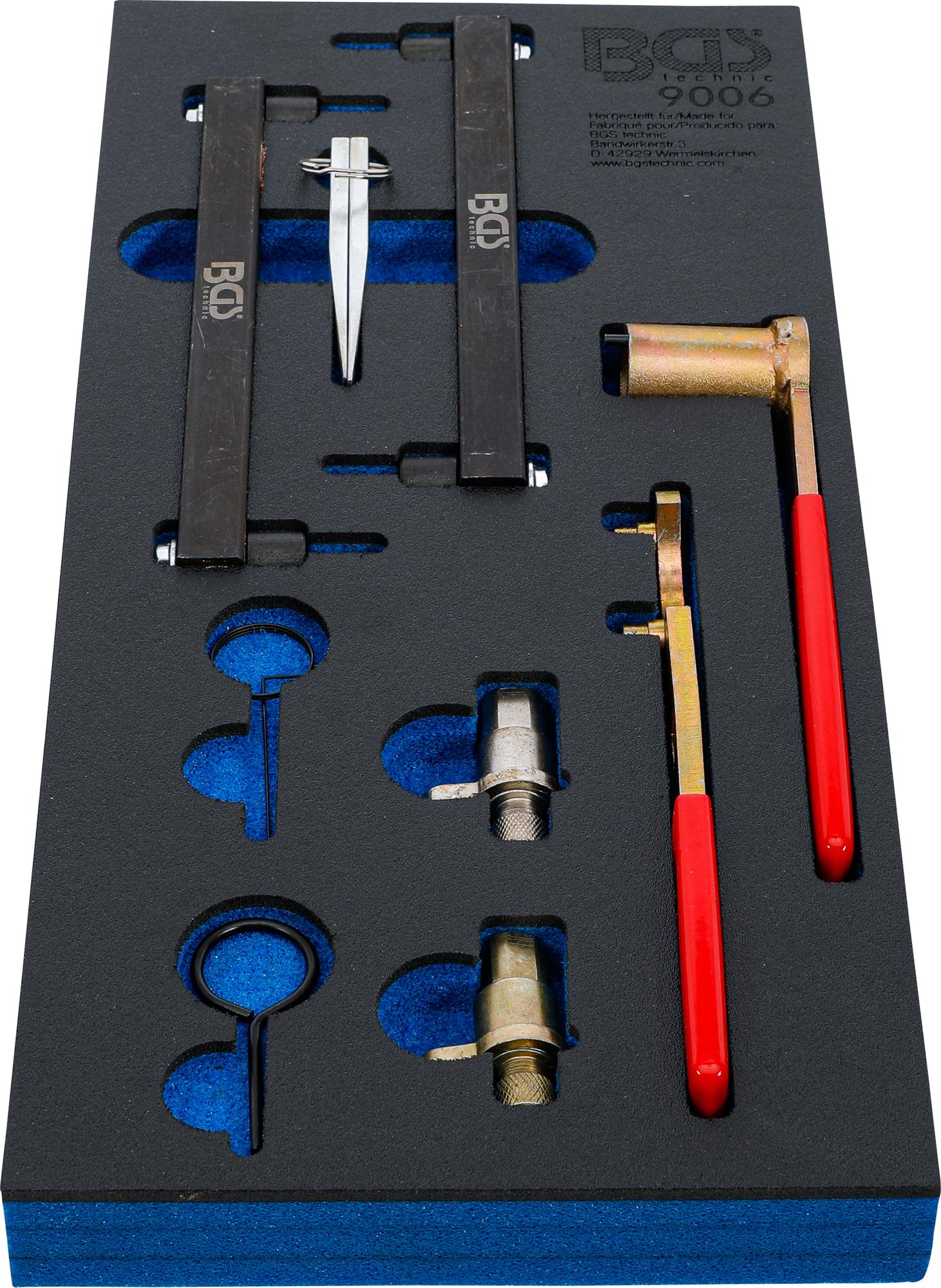

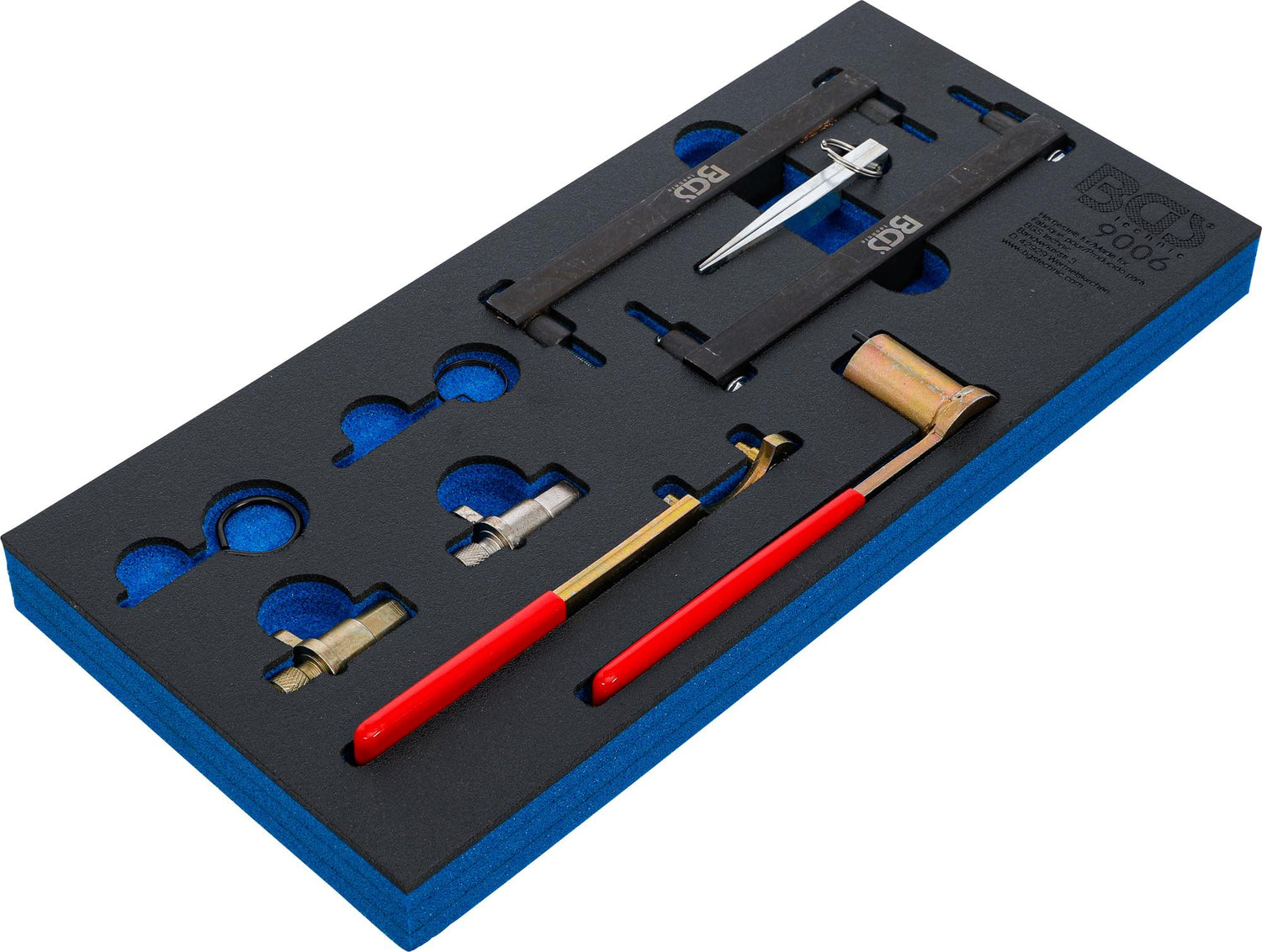

Kit contents

• Flywheel locking pin (silver), to be used as OEM 303-531
• Flywheel locking pin (gold), to be used as OEM 303-645
• 2 camshaft setting plates, to be used as OEM 303-530
• Camshaft gear holding tool, to be used as OEM 303-532
• 2 tensioner wedges, to be used as 303-533
• Primary tensioner locking pin, to be used as OEM T40011
• Setting tool for VVT unit, to be used as OEM 303-654
• Tensioner depress pin

Technical specifications

• Gross weight: 2050 g

OEM reference table:

• Jaguar: OEM 303-531, 303-645, 303-530, 303-532, 303-533, 303-654
• Land Rover: OEM 303-531, 303-645, 303-530, 303-532, 303-533, 303-654
• Audi: OEM T40011
• Seat: OEM T40011
• Skoda: OEM T40011
• Volkswagen: OEM T40011
