TOOL TRAY 1/3: ENGINE TIMING TOOL SET | FOR LAND ROVER 3.6 TD V8 (9694)

Product description

This engine timing tool kit is designed for adjusting the timing when replacing the timing chain and cylinder head gasket on specific Land Rover 3.6 TD V8 engines. The kit provides the necessary tools to lock and align the camshaft, crankshaft, and flywheel during engine maintenance, ensuring accurate timing setup during reassembly. It is intended for use during major engine service procedures where precise timing alignment is required.

The kit is suitable for Land Rover vehicles equipped with the 3.6 TD V8 engine, specifically those with engine codes 368DT and 369DT. It covers both camshaft and crankshaft positioning, as well as flywheel locking, making it applicable for timing chain and cylinder head gasket replacement tasks.

Compatible vehicles

• Range Rover (L332) 3.6 TD V8 (2006-2011), engine code: 368DT
• Rover Sport L320 3.6 TD V8 (2006-2011), engine code: 369DT

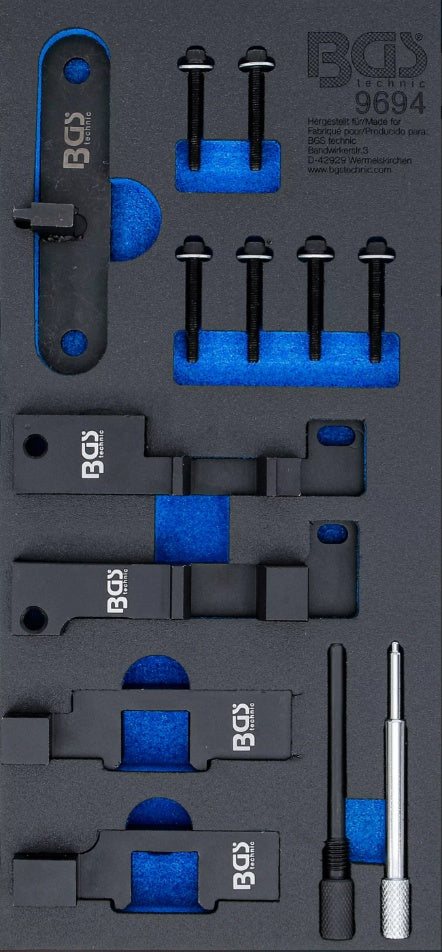

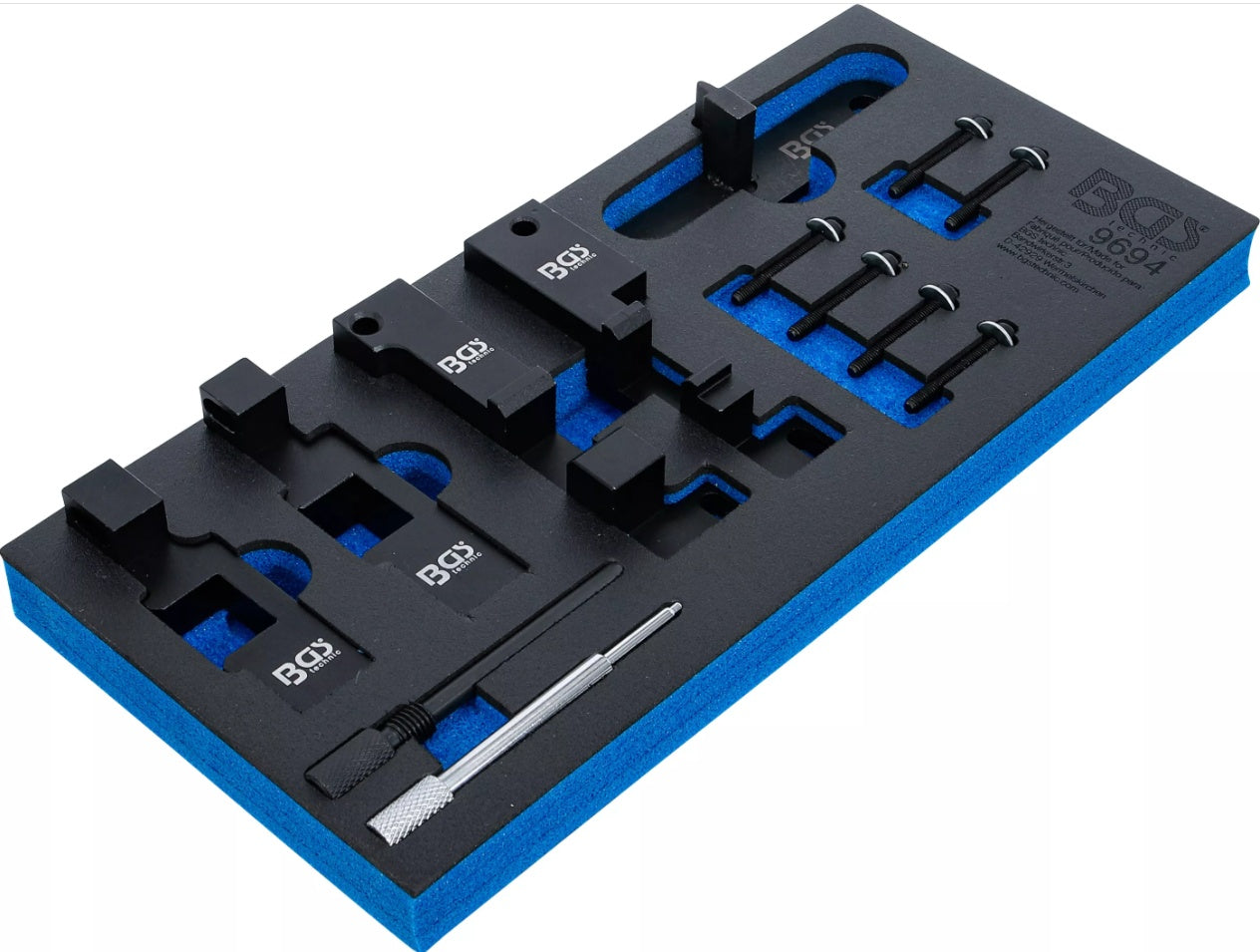

Kit contents

• Camshaft alignment tools (2x) with fixing screws (OEM 303-1236)
• Flywheel locking tool (OEM 303-1243)
• Crankshaft timing pin (OEM 303-1238)
• Camshaft rotating pin (OEM 303-1239)

Technical specifications

• Gross weight: 1550 g

OEM reference numbers:

• Land Rover: 303-1236, 303-1238, 303-1239, 303-1243
