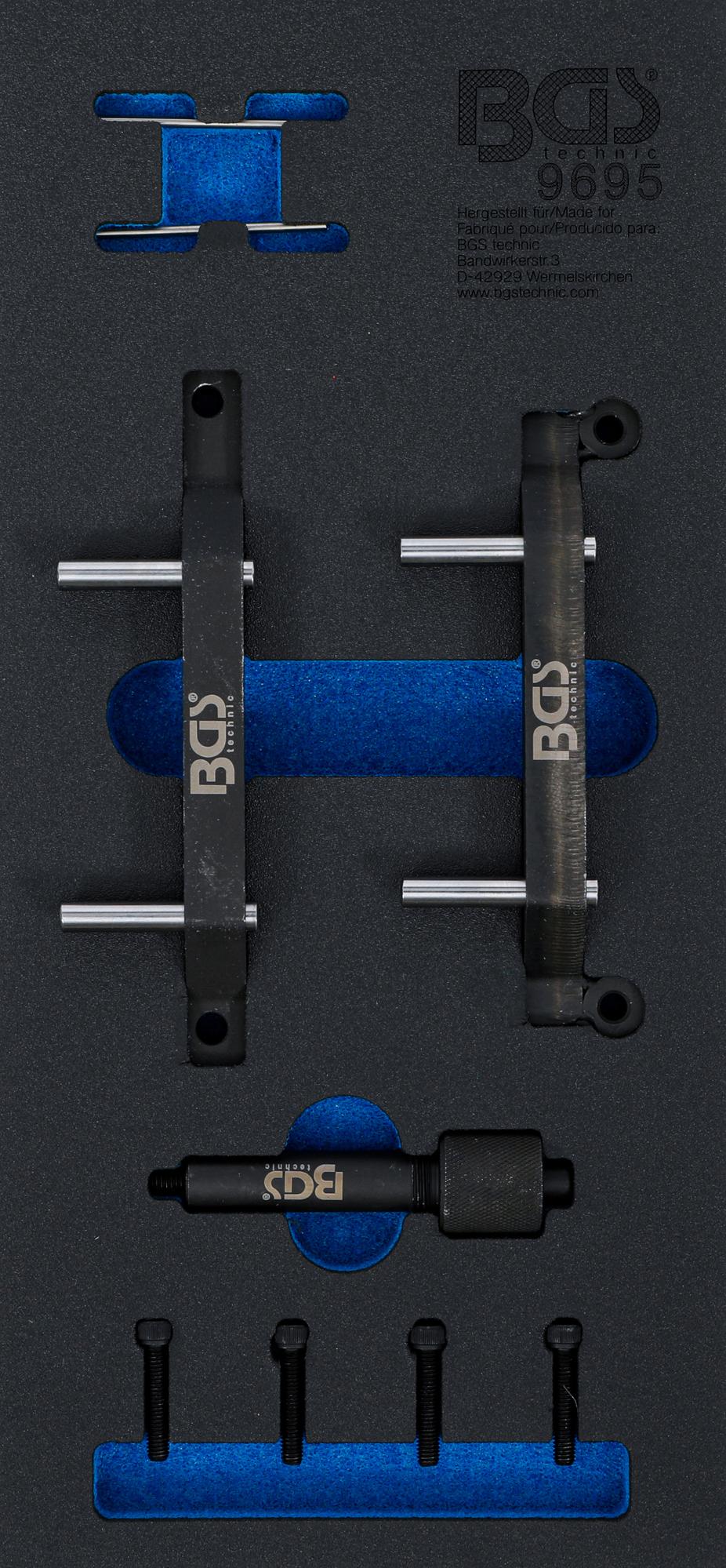

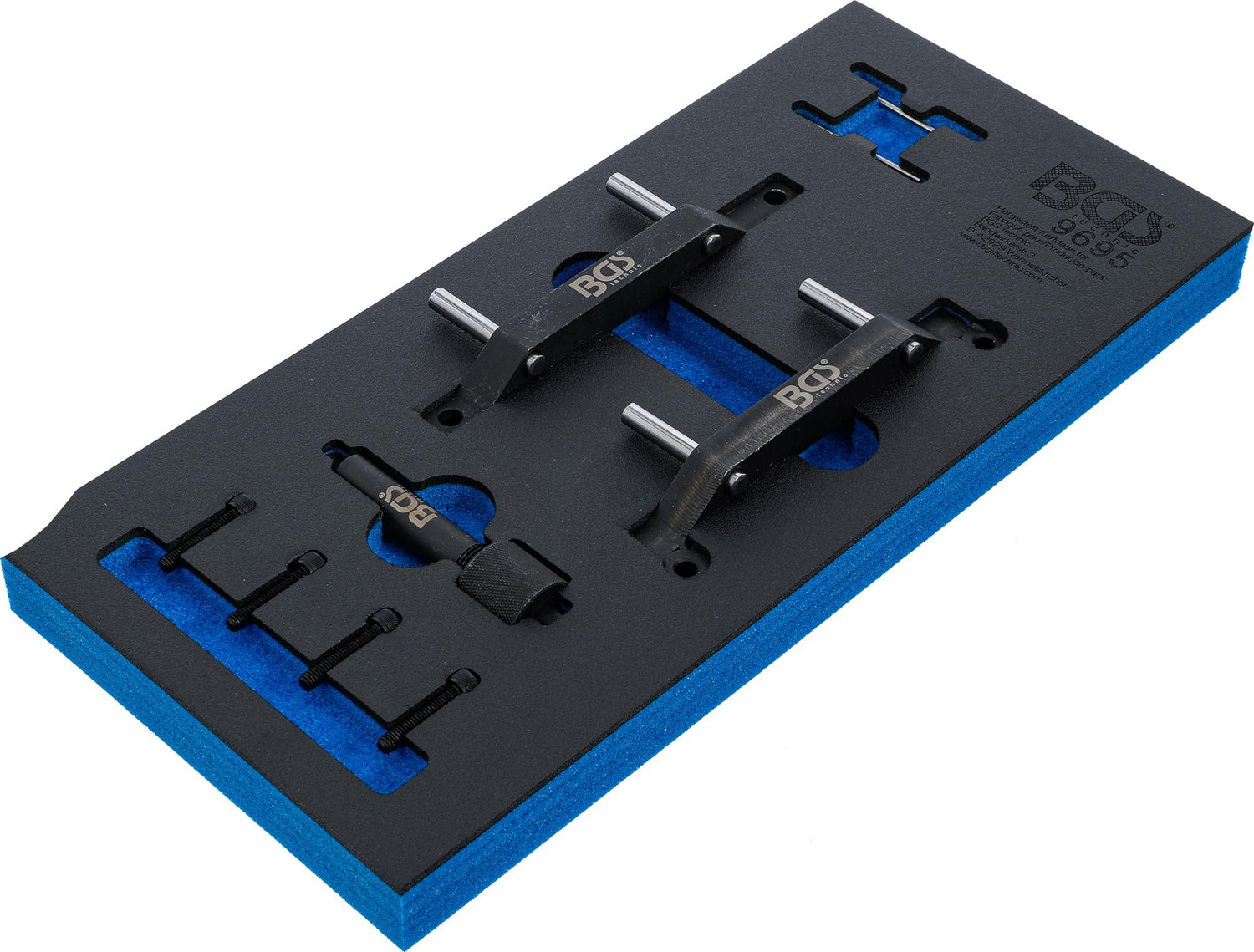

TOOL TRAY 1/3: ENGINE TIMING TOOL SET | FOR JEEP 3.0 V6 DIESEL (9695)

Product description

This engine timing tool kit is designed for precise adjustment of engine timing during timing chain or cylinder head gasket replacement procedures. It is specifically engineered to lock the camshafts and crankshaft in the correct position, ensuring accurate timing alignment on select Jeep 3.0 V6 diesel engines. The kit is used during major engine service tasks where maintaining or restoring correct timing is critical to engine performance and longevity.

The tool set is compatible with Jeep Grand Cherokee models equipped with the 3.0 V6 CRD and 3.0 Multijet diesel engines, covering production years 2011 to 2015. It serves engines with the EXF VM23D and EXF VM44D codes, providing the necessary fixtures to safely secure engine components during disassembly and reassembly.

Compatible vehicles

• Jeep Grand Cherokee 3.0 V6 CRD (2011-2015), engine code: EXF VM23D
• Jeep Grand Cherokee 3.0 Multijet (2011-2015), engine code: EXF VM44D

Kit contents

• Camshaft locking tool for right cylinder head (OEM VM10338-1)
• Camshaft locking tool for left cylinder head (OEM VM10338-2)
• Tensioner locking pin (OEM VM1039a)
• Crankshaft timing pin (OEM VM10339)

Technical specifications

• Length: 408 mm
• Width: 189 mm
• Height: 32 mm
• Gross weight: 1270 g

OEM reference numbers

• Jeep: 1VM1039, VM1039a
