TOOL TRAY 1/3: ENGINE TIMING TOOL SET | FOR FORD 2.5, VOLVO 1.6 - 2.5 & 2.4D (9738)

Product description

This engine timing tool kit is designed for setting the camshaft and crankshaft timing during cylinder head gasket replacement. It is specifically tailored for use on a range of Ford and Volvo engines, covering both petrol and diesel variants. The kit enables precise alignment of engine components to manufacturer specifications, which is critical when reassembling the engine after head gasket service.

The tool set is compatible with Ford 2.5 Turbo engines (Euro 4) and a wide selection of Volvo engines, including 1.6, 1.8, 1.9T, 2.0, 2.0T, 2.3, 2.3T, 2.4, 2.4T, 2.5R, and 2.4D engine codes. It is suitable for use on various models from both manufacturers, as indicated by the supported engine codes and model years.

Compatible vehicles

Ford

• Focus 2.5 RS / ST (2005-)
• Mondeo 2.5 (2005-)
• S-Max 2.5 (2005-)
• Galaxy 2.5 ST (2005-)

Engine codes: 2.5 Turbo (Euro 4), HUBA, HUWA, HYDA, JZDA

Volvo

• C30 (2006-2010)
• C70 (1998-2010)
• S40 (1996-2010)
• S60 (2000-2009)
• S70 (1997-2007)
• S80 (1998-2006)
• V40 (1996-2010)
• V50 (2004-2010)
• V70 (1997-2007)
• XC70 (2002-2007)
• XC90 (2002-2010)

Engine codes: 1.6 (B4164S), 1.8 (B4184S), 1.9T (B4194T), 2.0 (B4204S / B4204T), 2.0T (B5204T3 / B5204T4 / B5204T5), 2.3 (B5234FS), 2.3T (B5234T3 / B5234T7 / B5234T9), 2.4 (B5244S / B5244S2 / B5244S4 / B5244S5 / B5244S7), 2.4T (B5244T / B5244T3 / B5244T4 / B5244T5 / B5244T7), 2.5R (B5254FS), 2.4D (D5244T9 / D5244T8 / D5244T13)

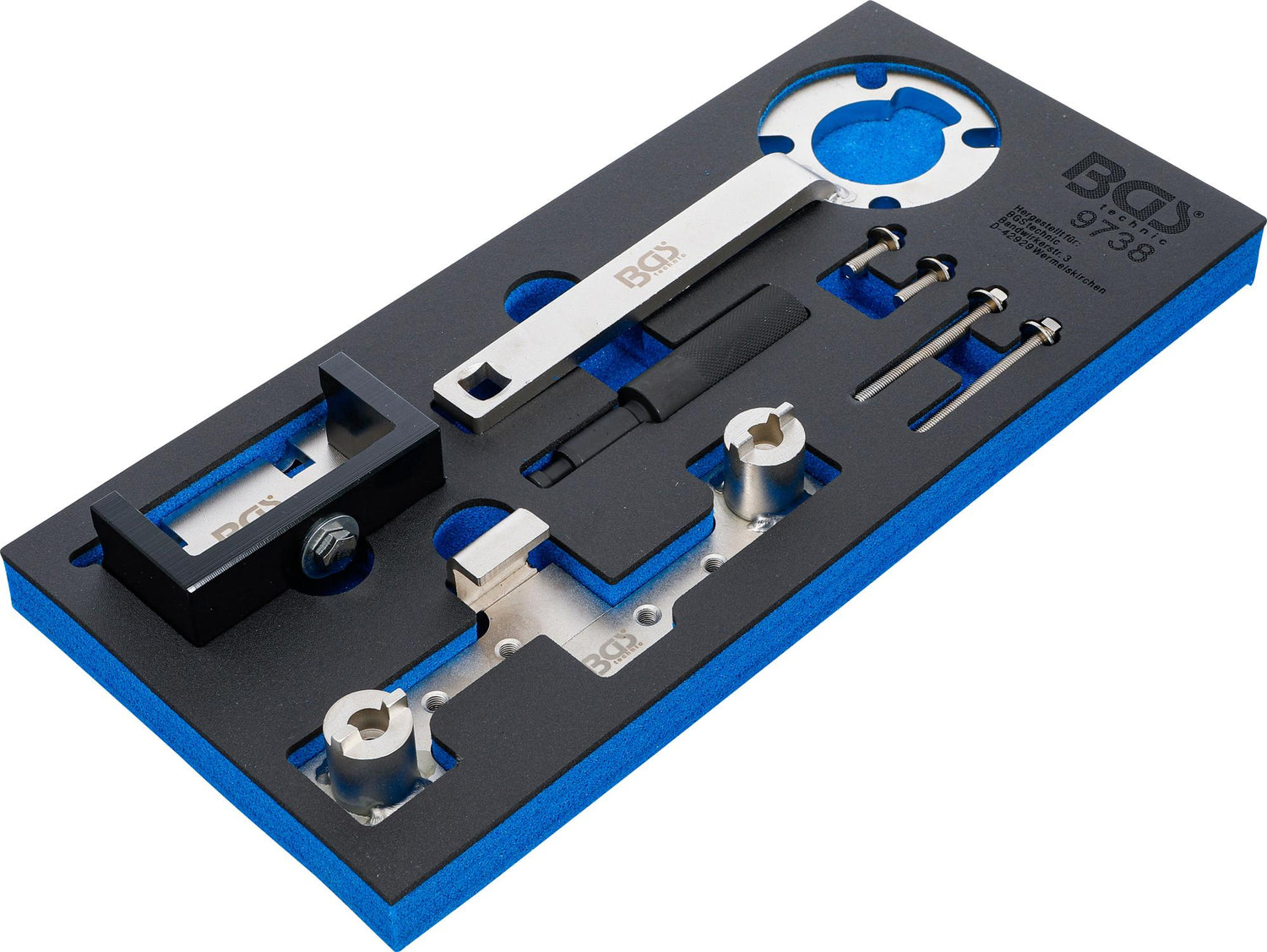

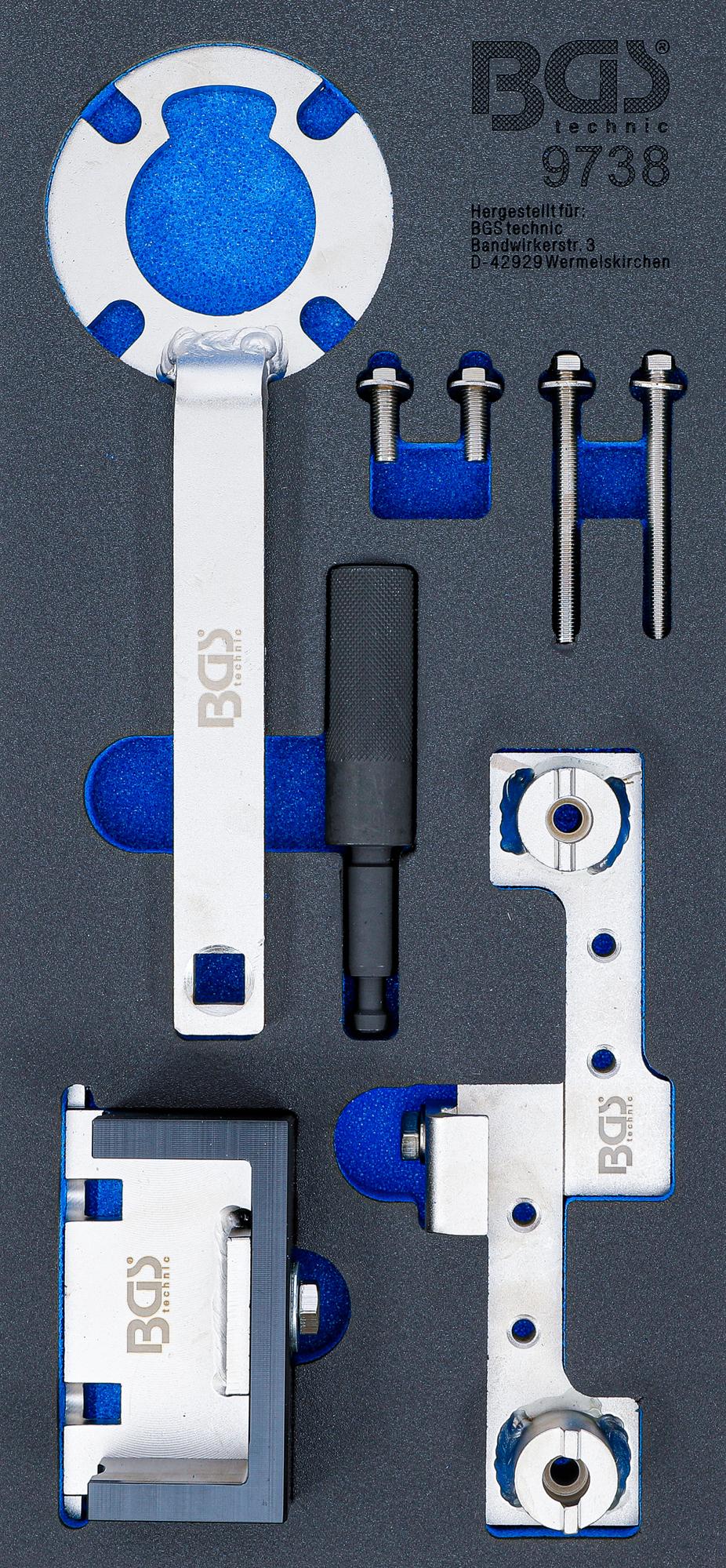

Kit contents

• Crankshaft pulley holding tool (OEM 999 5433 / 303-1179)
• Camshaft alignment tool (OEM 303-1178)
• Crankshaft alignment tool (OEM 303-1182)
• Camshaft holder (OEM 303-1183)

Technical specifications

• Length: 408 mm
• Width: 189 mm
• Height: 32 mm
• Gross weight: 2570 g

OEM reference table:

• Ford: OEM 303-1178, 303-1179, 303-1182, 303-1183
• Volvo: OEM 999 5433
