TOOL TRAY 1/3: ENGINE TIMING TOOL SET | FOR FORD 1.0, 3-CYLINDER ECOBOOST (9072)

Product description

This engine timing tool kit is designed for checking and adjusting the timing on Ford 1.0L 3-cylinder Ecoboost engines. It is used during timing belt or chain replacement, camshaft or crankshaft repairs, and other engine maintenance tasks that require precise alignment of engine components. The kit provides the necessary tools to lock and position the camshaft, crankshaft, flywheel, and idler components during service procedures.

The kit is suitable for Ford engines with power outputs of 74 kW, 88 kW, 92 kW, and 103 kW, and is compatible with engine codes including M1DD, M1JA, M1JC, M1JE, M1JHM1JJ, M1DA, M2DA, M2DB, M2DC, SFDBSFJA, SFJB, SFJC, and SFJD. These engines are commonly found in models such as the Fiesta, Focus, B-MAX, and EcoSport.

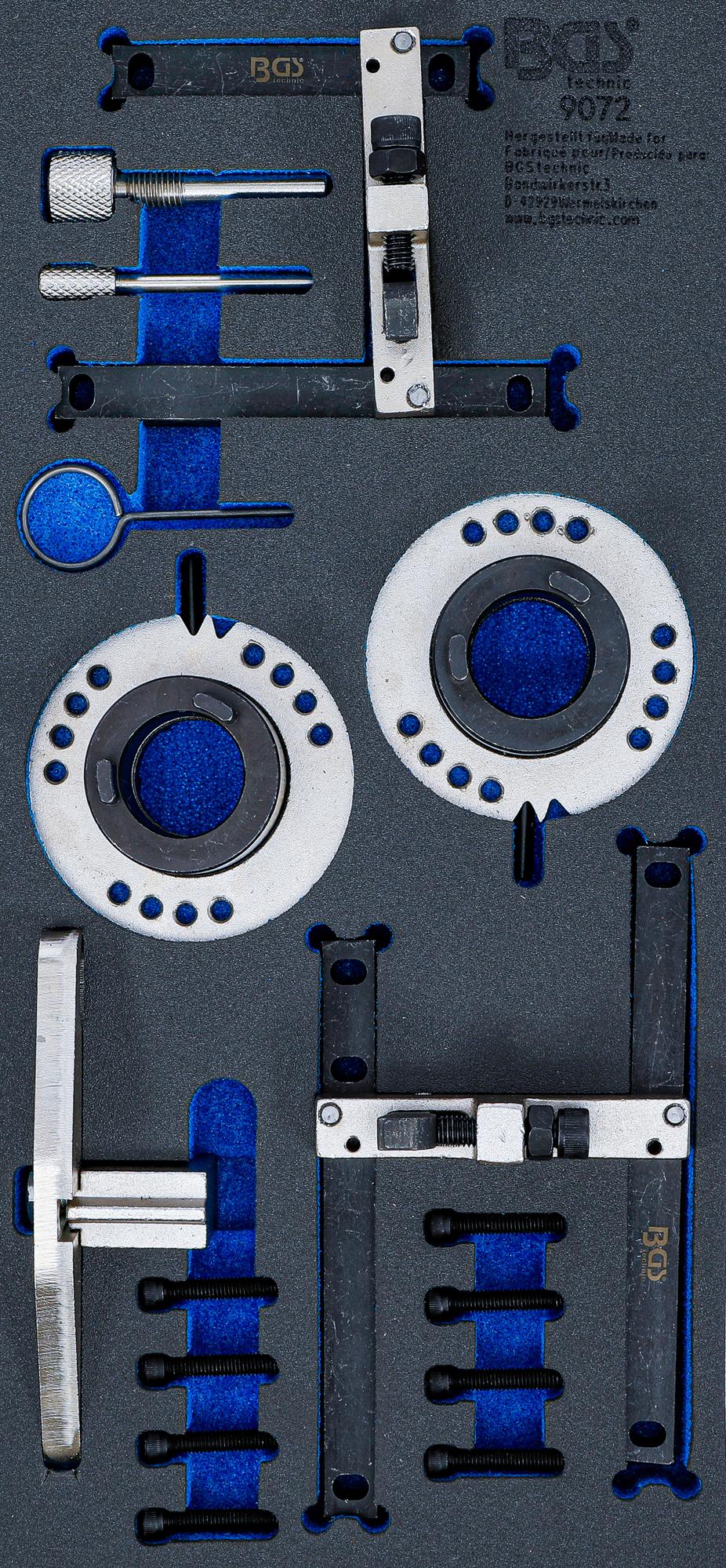

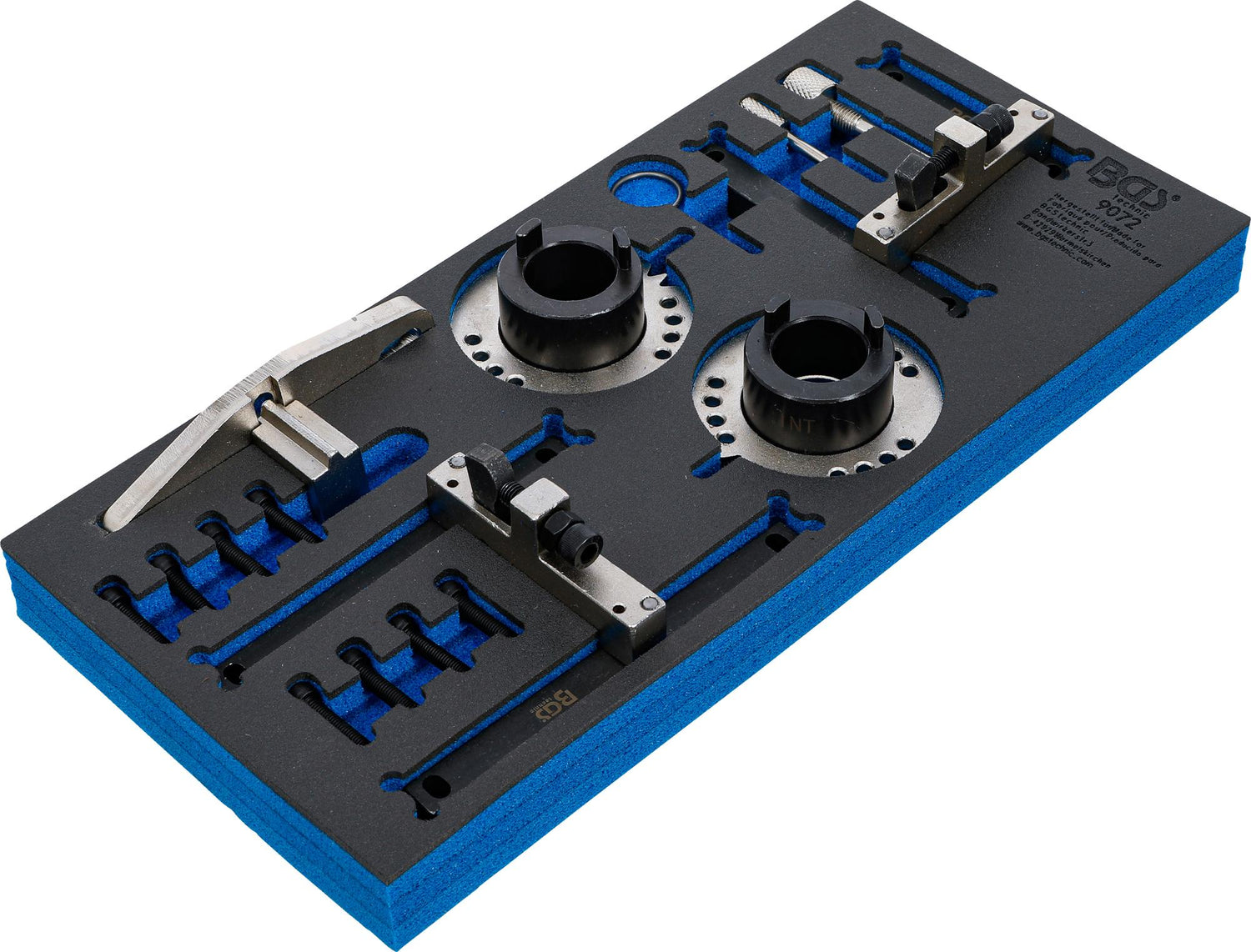

Kit contents

• Camshaft fixing tool (OEM 303-1605) x 2
• Camshaft adjuster setting tool (OEM 303-1606) x 2
• Crankshaft locking pin (OEM 303-1604)
• Flywheel locking tool (OEM 303-1602, 303-393A, 21-168)
• Idler fixing pin (OEM 303-1054)

Technical specifications

• Gross weight: 3760 g

OEM reference table:

• Ford: 303-1605, 303-1606, 303-1604, 303-1602, 303-1054, 303-393A, 21-168
