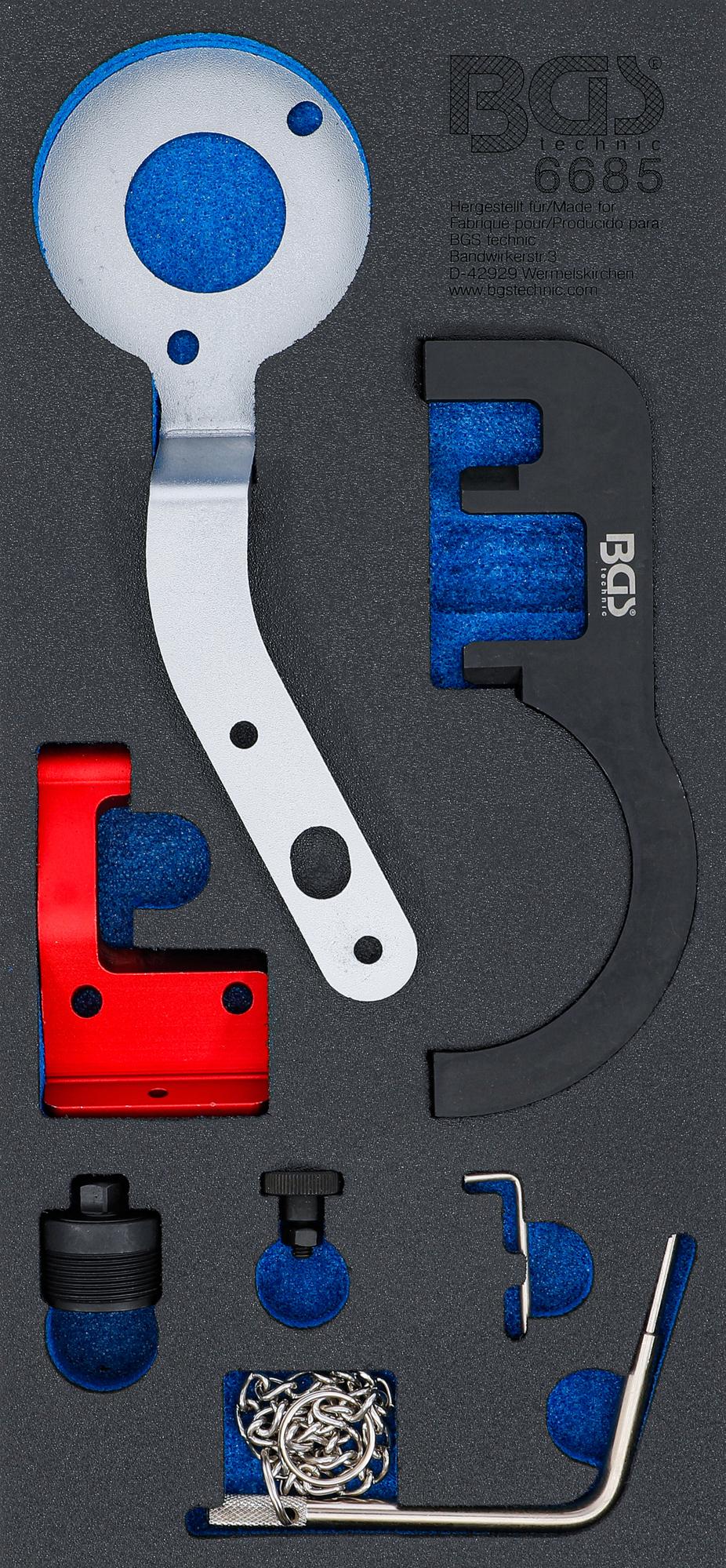

TOOL TRAY 1/3: ENGINE TIMING TOOL SET | FOR BMW, MINI 1.5, 2.0 DIESEL (6685)

Product description

This engine timing tool kit is designed for checking and adjusting the timing on BMW and MINI 1.5 and 2.0 diesel engines. It is used during timing belt or chain replacement, engine repairs, or diagnostics where precise alignment of the camshaft and crankshaft is required. The kit includes specialized tools for locking and aligning key engine components, ensuring accurate timing during maintenance procedures.

The kit is compatible with a wide range of BMW and MINI models equipped with B37 and B47 diesel engines. It covers both older and newer chassis codes and is suitable for use on engines with codes B37 D15A, B37 C15A, B47 D20A, B47 D20B, B47 C20A, and B47 C20B.

Compatible vehicles

BMW:

• 114d / 116d / 118d / 125d (F20/21) 2015-2017
• 214d / 216d / 218d / 220d / 225d (F22 / 23 / 45 / 46), 2014-2017
• 316d / 318d / 320d / 325d (F30 / 31 / 34), 2015-2017
• 420d / 425d / 418d (F32 / 33 / 36), 2015-2017
• 518d / 520d (F10 / 11), 2014-2017
• 520d / 525d (G30 / 31 / F90) 2016-
• 620d GT (G32GT) 2018-
• 725d / 725Ld (G11/12) 2016-
• X1 16d / 18d / 20d / 25d (F48), 2015-2017
• X2 18d / 18dX / 20dX / 25dX (F39) 2018-
• X3 18d / 20dX (F25), 2014-2017
• X3 20dX / 25dX (G01) 2017-
• X4 20dX (F26) 2014-2017
• X4 20dX / 25dX (G02) 2018-
• X5 25d (F15) 2015-

MINI:

• Cooper D 1.5 (F55 / 56 / 57) 2014
• One D 1.5 (F55 / 56) 2014-
• One D 1.5 (F54) 2015-
• Cooper D 2.0 (F64 / 61) 2015-
• Cooper SD 2.0 (F55 / 56 / 57) 2013-
• Cooper SD 2.0 (F54 / 60) 2015-

Kit contents

• Camshaft alignment tool (OEM 11 8 760)
• Crankshaft holding tool (OEM 2 357 904)
• Flywheel timing pin (OEM 2 288 380)
• Drive plate timing pin adaptor (OEM 2 365 488)
• Fuel pump sprocket removal tool (OEM 11 8 030)
• Tensioner locking pin (OEM 11 4 120)

Technical specifications

• Length: 408 mm
• Width: 189 mm
• Height: 32 mm
• Gross weight: 1136 g

OEM reference table:

• BMW: OEM111 4 120, OEM 11 8 030, OEM 11 8 760, OEM 2 288 380, OEM 2 357 904, OEM 2 365 488
• MINI: OEM211 4 120, OEM 11 8 030, OEM 11 8 760, OEM 2 288 380, OEM 2 357 904, OEM 2 365 488
