TOOL TRAY 1/3: ENGINE TIMING TOOL SET | FOR BMW, LAND ROVER V8 (9071)

Product description

This engine timing tool kit is designed for adjusting and checking the timing on BMW and Land Rover V8 engines. It is used during procedures such as working on the valve drive or renewing the cylinder head gasket, where precise alignment of camshafts and crankshaft is required. The kit provides the necessary tools to lock the camshafts and align the crankshaft, ensuring correct timing during engine maintenance or repair.

The kit is compatible with a range of BMW V8 models produced between 1993 and 2003, as well as Rover Range Rover vehicles equipped with M60, M62, and M62TU V8 engines. It includes dedicated locking tools for both inlet and exhaust camshafts for cylinders 1-4 and 5-8, along with a crankshaft alignment pin and timing chain pre-tensioner.

Compatible vehicles

• BMW 530i (1994 - 1995)
• BMW 540i (1997 - 2003)
• BMW 740i (1993 - 1995)
• BMW 740iL (1993 - 2001)
• BMW 840Ci (1995 - 1996)
• BMW X5 (2000 - 2003)
• Rover Range Rover with M60, M62 and M62TU V8 engines

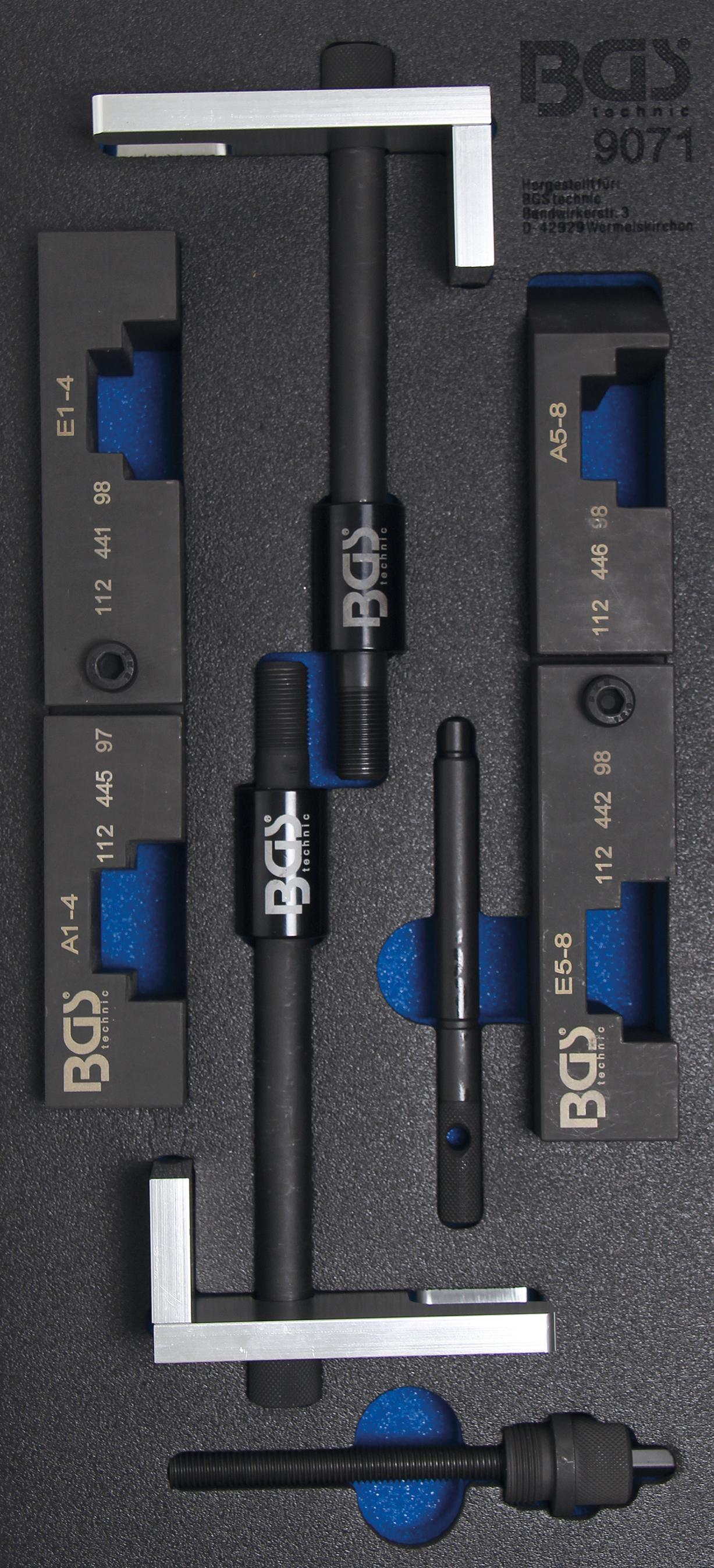

Kit contents

• Exhaust camshaft locking tool (cyl. 1-4) (OEM BMW 112445 | Rover LRT 12-223/2)
• Inlet camshaft locking tool (cyl. 1-4) (OEM BMW 112441 | Rover LRT 12-223/1)
• Inlet camshaft locking tool (cyl. 5-8) (OEM BMW 112442 | Rover LRT 12-223/3)
• Exhaust camshaft locking tool (cyl. 5-8) (OEM BMW 112446 | Rover LRT 12-223/4)
• Fixing tools for camshaft locking tools (A-D)
• Crankshaft alignment pin (OEM 112300)
• Timing chain pre-tensioner (OEM 113390)

Technical specifications

• Gross weight: 4830 g

OEM reference numbers:

• BMW: OEM 111 2 445, OEM 11 2 441, OEM 11 2 442, OEM 11 2 446, OEM 11 2 300, OEM 11 3 390
• Land Rover: OEM LRT 12-223/2, OEM LRT 12-223/1, OEM LRT 12-223/3, OEM LRT 12-223/4
