TOOL TRAY 1/3: ENGINE TIMING TOOL SET | FOR ALFA ROMEO / LANCIA 1.75 (6774)

Product description

This engine timing tool kit is designed for checking and setting the timing on specific Alfa Romeo and Lancia 1.75L engines. It is used during timing belt or chain replacement, engine rebuilds, or other maintenance tasks that require precise alignment of the camshaft, crankshaft, and flywheel. The kit includes dedicated locking tools that match the OEM specifications for these engine types, ensuring accurate positioning during service.

The kit is suitable for Alfa Romeo Giulietta, 159, Spider, Brera 1.75L TBi, and Lancia Delta 1.75L DI Turbo Jet models with engine codes 940A1.000 and 939B1.000. Each tool in the set corresponds to specific OEM reference numbers, making it compatible with the original equipment used by the manufacturer.

Compatible vehicles

• Alfa Romeo Giulietta 1.75L TBi (engine code: 940A1.000)
• Alfa Romeo 159 1.75L TBi (engine code: 939B1.000)
• Alfa Romeo Spider 1.75L TBi (engine code: 939B1.000)
• Alfa Romeo Brera 1.75L TBi (engine code: 939B1.000)
• Lancia Delta 1.75L DI Turbo Jet (engine code: 940A1.000)

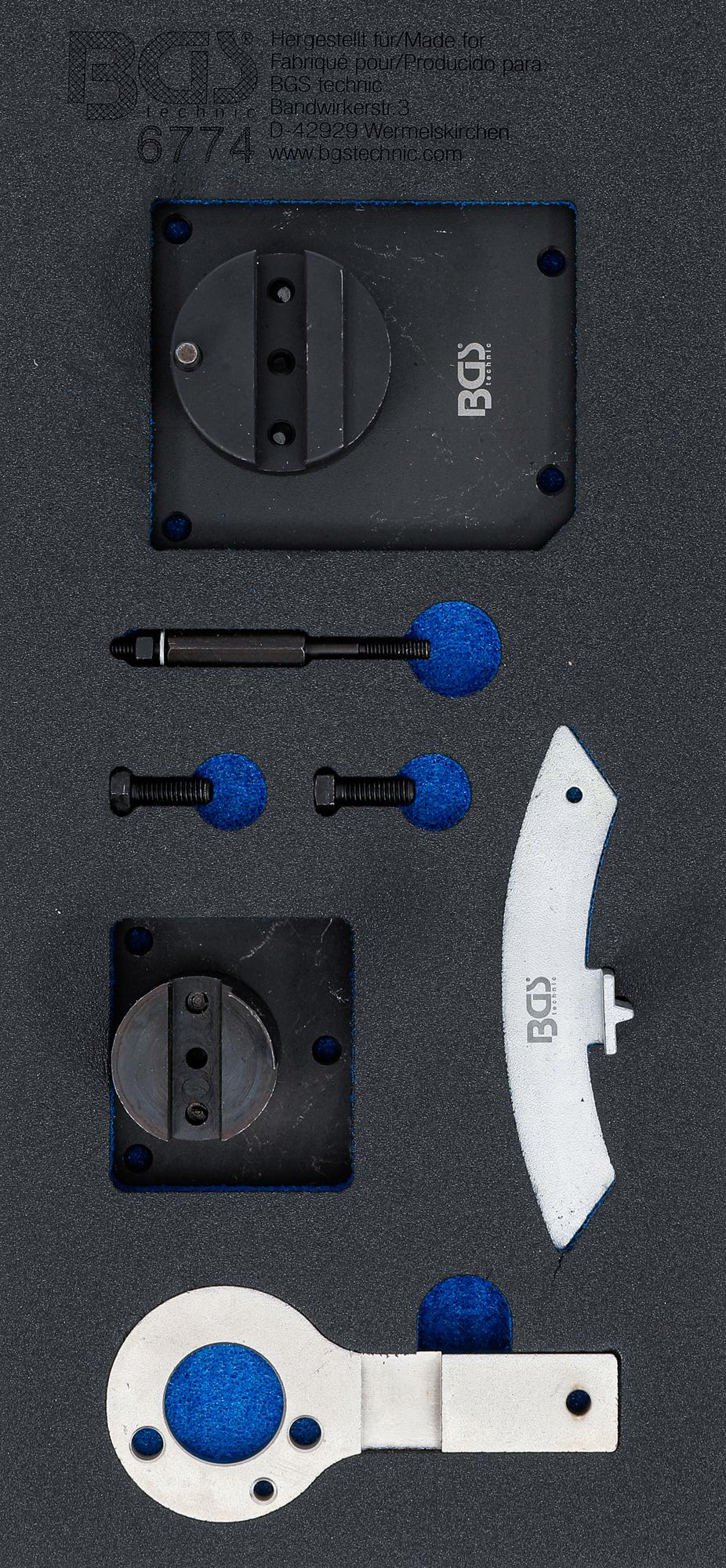

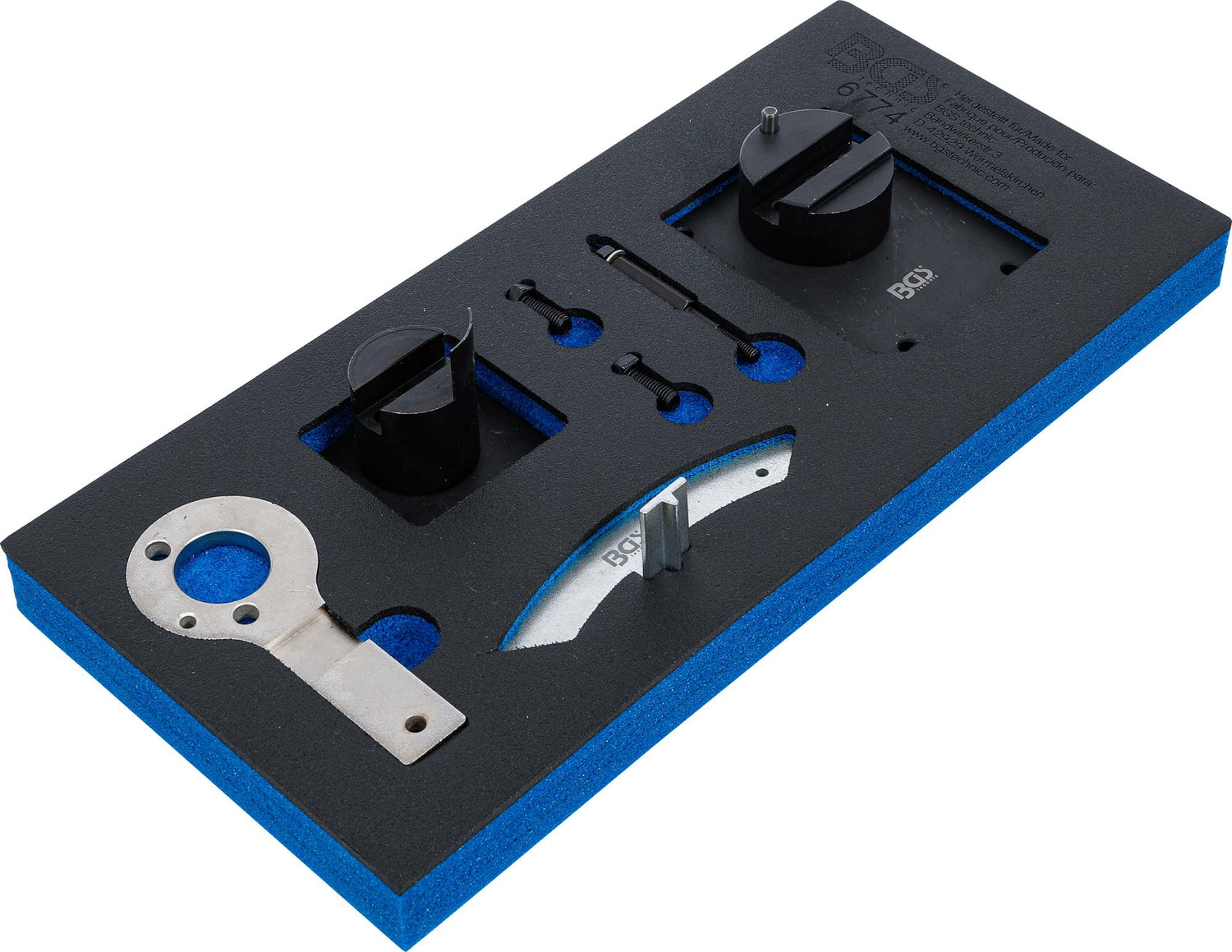

Kit contents

• Camshaft locking tool (OEM 2000033500)
• Crankshaft locking tool (OEM 2000003000, EN-46788, 1860771000, 1860905000, 1860905010, 2192543000)
• Flywheel locking tool (OEM 2000033600, 1820630000, 1820007000, 1820228000, 1820240000, 1860898000, 1820240000)

Technical specifications

• Length: 408 mm
• Width: 189 mm
• Height: 32 mm
• Gross weight: 2146 g

OEM reference table:

• Alfa Romeo: OEM 11820007000, 1820228000, 1820240000, 1820630000, 1860771000, 1860898000, 1860905000, 1860905010, 2000003000, 2000033500, 2000033600, 2192543000, EN-46788
• Lancia: OEM 21820007000, 1820228000, 1820240000, 1820630000, 1860771000, 1860898000, 1860905000, 1860905010, 2000003000, 2000033500, 2000033600, 2192543000, EN-46788
