TOOL DRILL GUIDE (YT-44130)

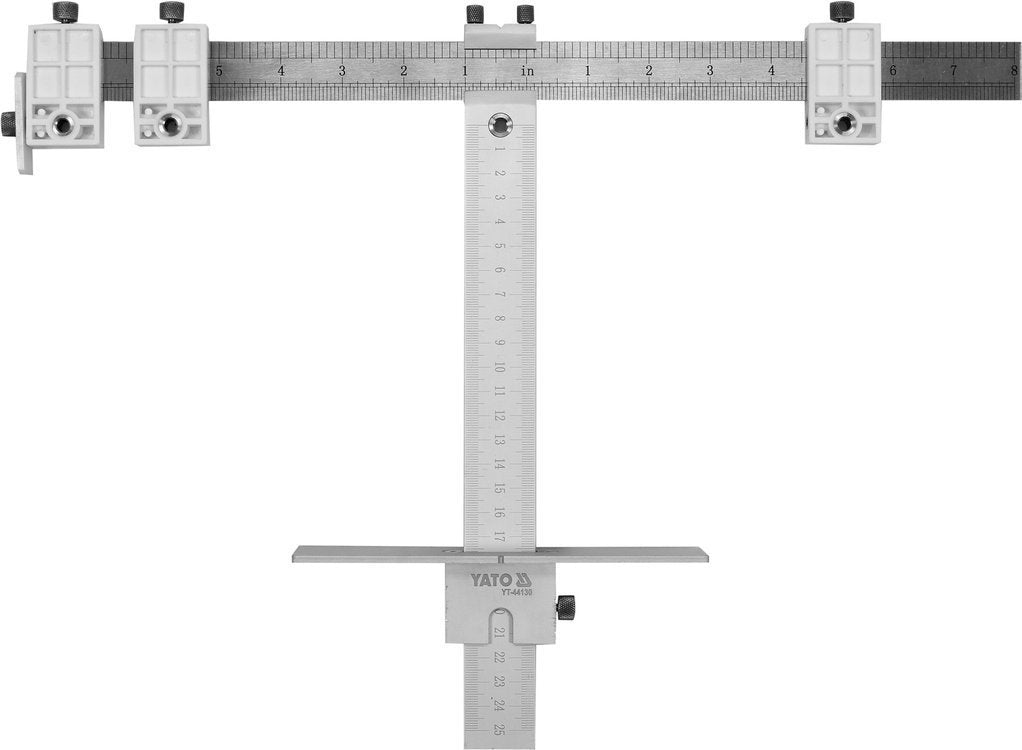

Template, guide for determining drilling points. The main arm is made of aluminum, has a permanent millimeter scale up to 250 mm and a movable, screw-locked parallel stop. In the upper part a movable steel strip is mounted, on which three sliding markers are used to determine the exact drilling points.
Purpose / application
The template is designed for precise marking of points where holes will be drilled. At the same time, we can mark four holes at different distances from each other and, by locking the settings, maintain the repeatability of the selection, i.e., mark the same configuration, e.g., on a different material.
The template facilitates routing on various materials, e.g., wood, metal, plastics, etc.
Usage

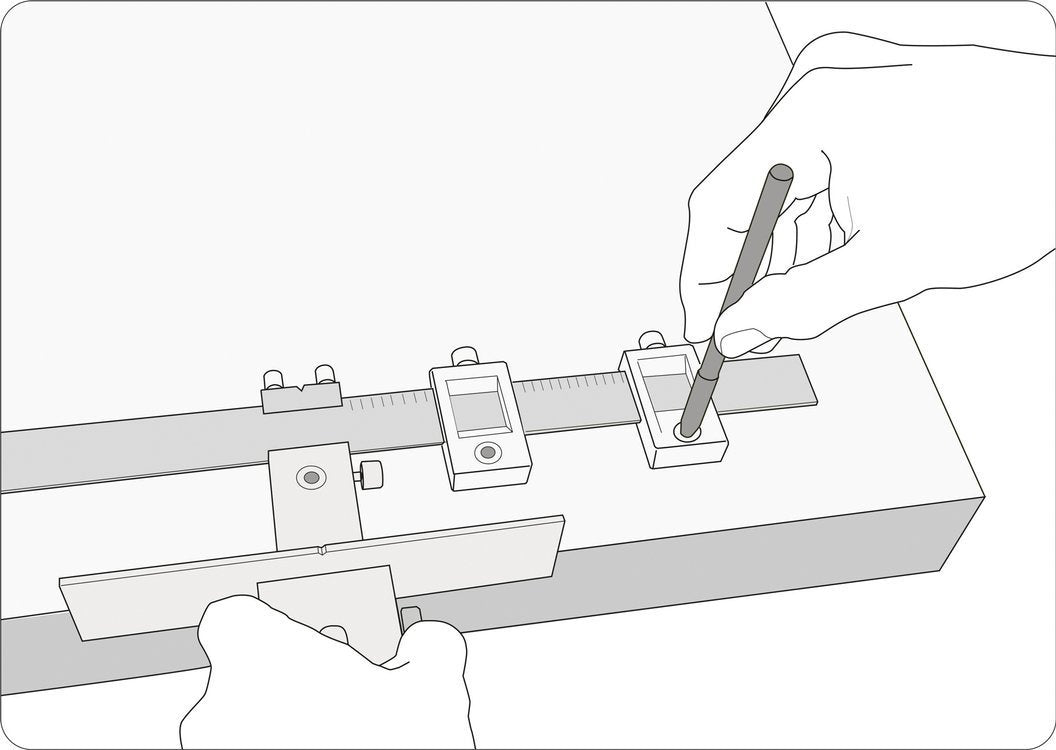

Adjust the distance between the markers as required and lock them with the locking screws. Then set the parallel bar to determine the distance from the edge of the workpiece. Using a marker, pencil or center punch, mark the drilling places on the material.
