THREAD REPAIR SET M5-M12 131PCS (YT-1763)

Professional thread repair kit M5-M12. Drills and taps are made of high-speed steel HSS 4341. Single-stage taps thread into a helical insert made of hard stainless steel. The insertion tool is provided with a guide wheel and a punch which breaks the protruding end of the insert. Set for 5 types of threads: M5 x 0.8 x 6.7 mm, M6 x 1.0 x 10.8 mm, M8 x 1.25 x 10.8 mm, M10 x 1.5 x 13.5 mm, M12 x 1.75 x 16.3 mm.
Destination / Application
Professional thread repair kit M5-M12. Drills and taps are made of high-speed steel HSS 4341. Single-stage taps thread into a helical insert made of hard stainless steel. The insertion tool is provided with a guide wheel and a punch which breaks the protruding end of the insert.

Set for 5 types of threads:
M5 x 0.8 x 6.7 mm,
M6 x 1.0 x 10.8 mm,
M8 x 1.25 x 10.8 mm,
M10 x 1.5 x 13.5 mm,
M12 x 1.75 x 16.3 mm.
How to use
- Determine the size of the damaged thread and then select the repair kit of the same size.
- Remove the damaged thread with a drill bit from the set.
- Then tap a new thread with the supplied tap. The tap must be seated
In the tap wrench. The tap wrench is not included.
- Place the insert on the Spiral Insert Tool so that the transverse part of the insert is in the
Slot of the tool. Then secure the insert with a ring so it does not stretch
During screwing. Secure the ring with a screw.
- Screw the insert completely into the previously threaded hole. Pull out the tool. Using a pin
Break the transverse part of the insert.
- Screw the screw into the repaired thread.

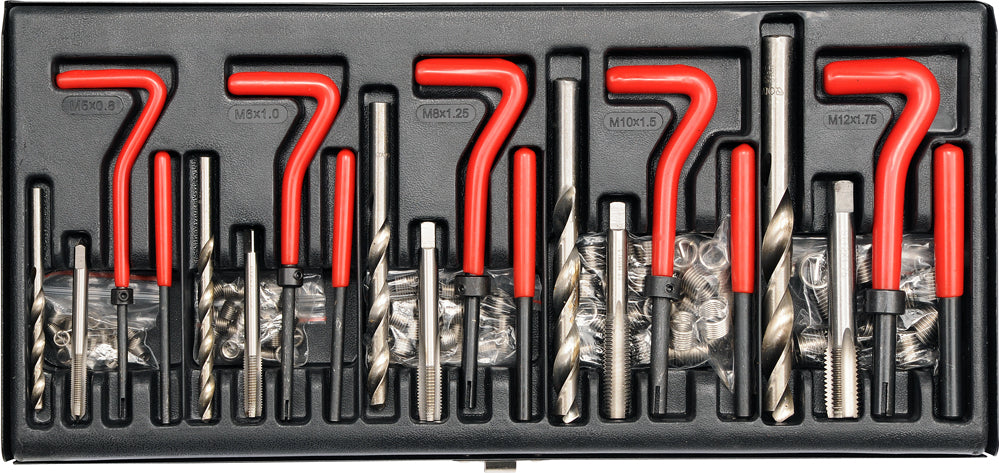

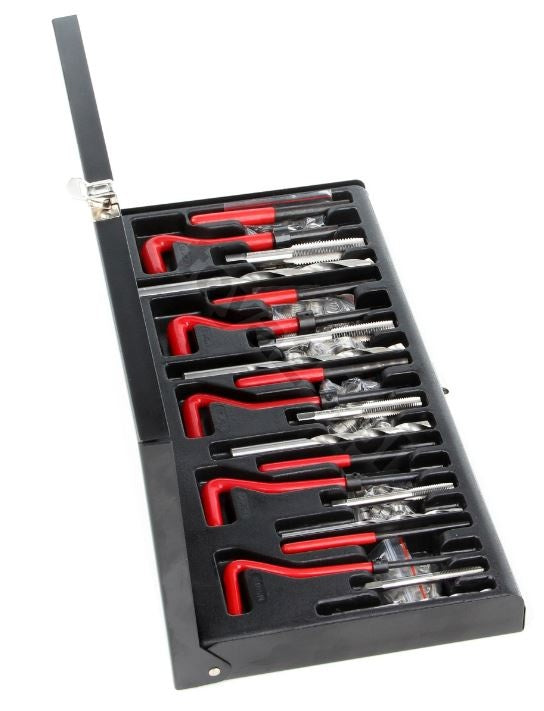

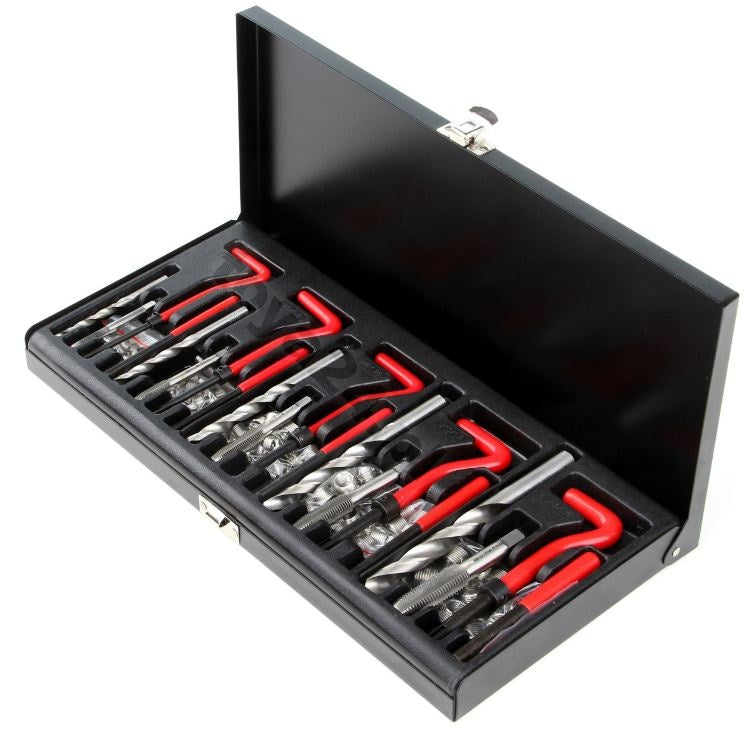

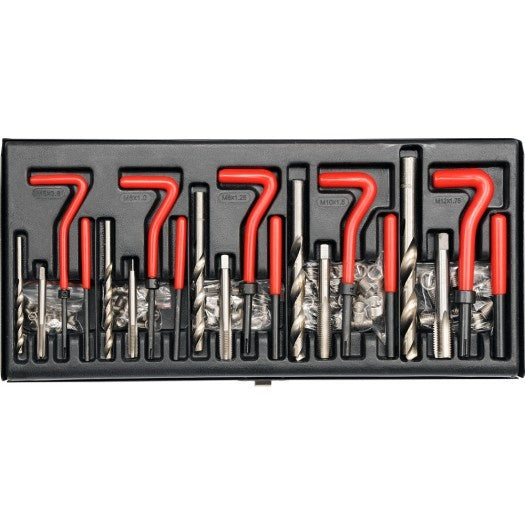

Contents of the package
- drills for drilling out damaged thread: 5 pcs.
Single-threaded taps for threading a new insert: 5 pcs.
- spiral inserts: 5 packs
- tools for screwing in spiral inserts: 5 pcs.
- punches: 5 pcs.
- Allen key: 1 pc.

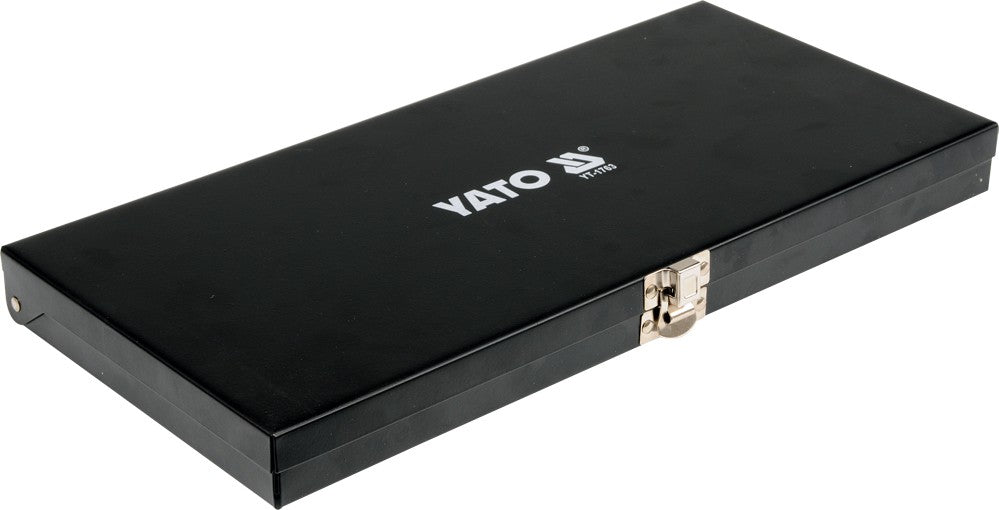

- case
Technical data
Index number YT-1763
EAN 5906083917639
Brand Yato
unit KPL
Gross Weight (kg) 2.2500
Master Carton MC 10
Inner Box IB 5
Pal 200
Size M5-M12
