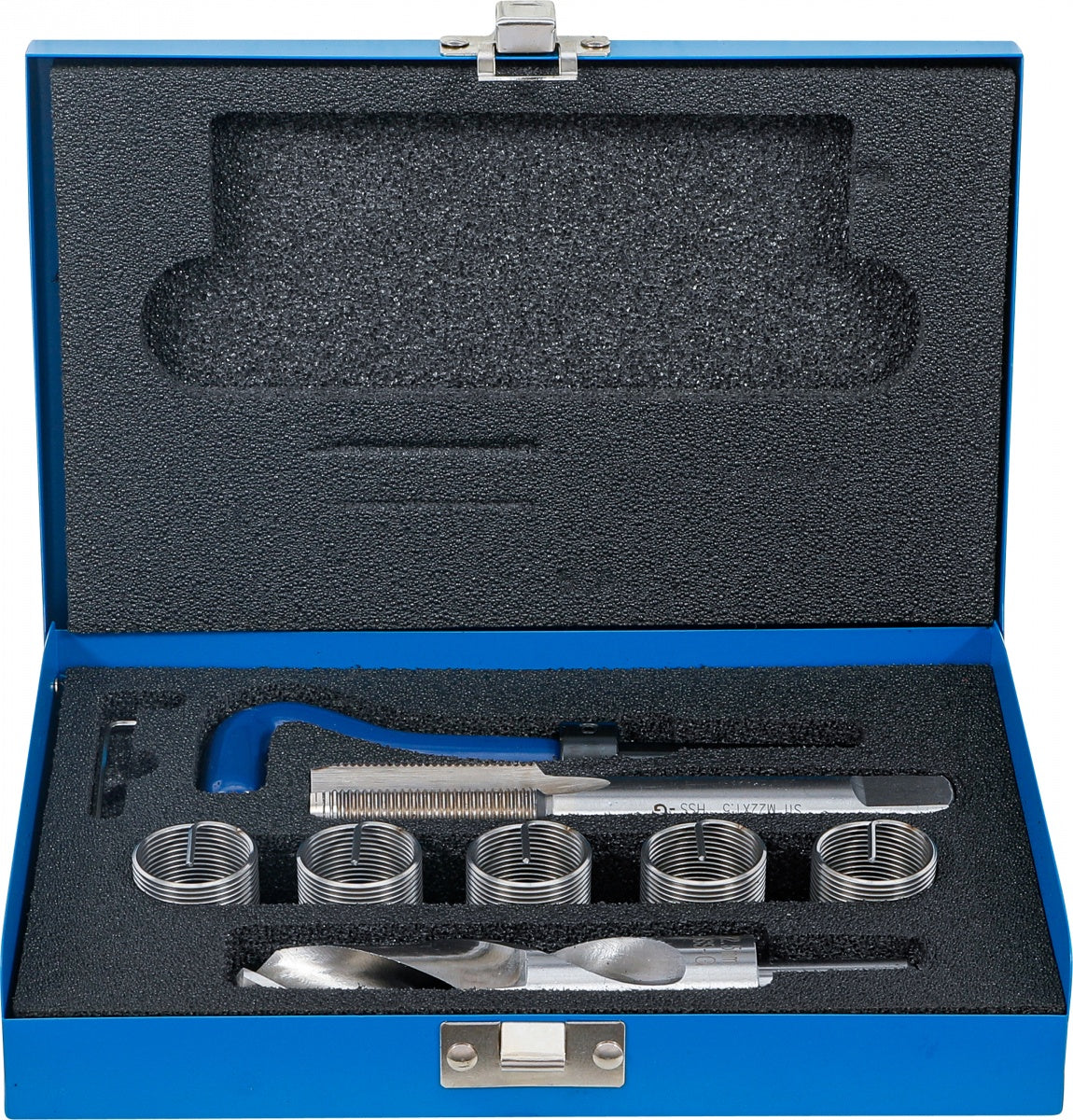

THREAD REPAIR KIT | M22 X 1.5 | 9 PCS. (99439)

Technical data
More downloads
for thread repair of damaged or worn-out threads
for new high stable and long-lasting internal threads
perfect for maintenance and installation
the repair is carried out in just a few steps
drill out the damaged thread with the twist drill
use the special tap to cut the internal thread into the drilled hole
to install, place the thread insert on the installation tool and screw in the thread insert with light pressure
the use of cutting oil is recommended
for thread/incline: M22 x 1.5

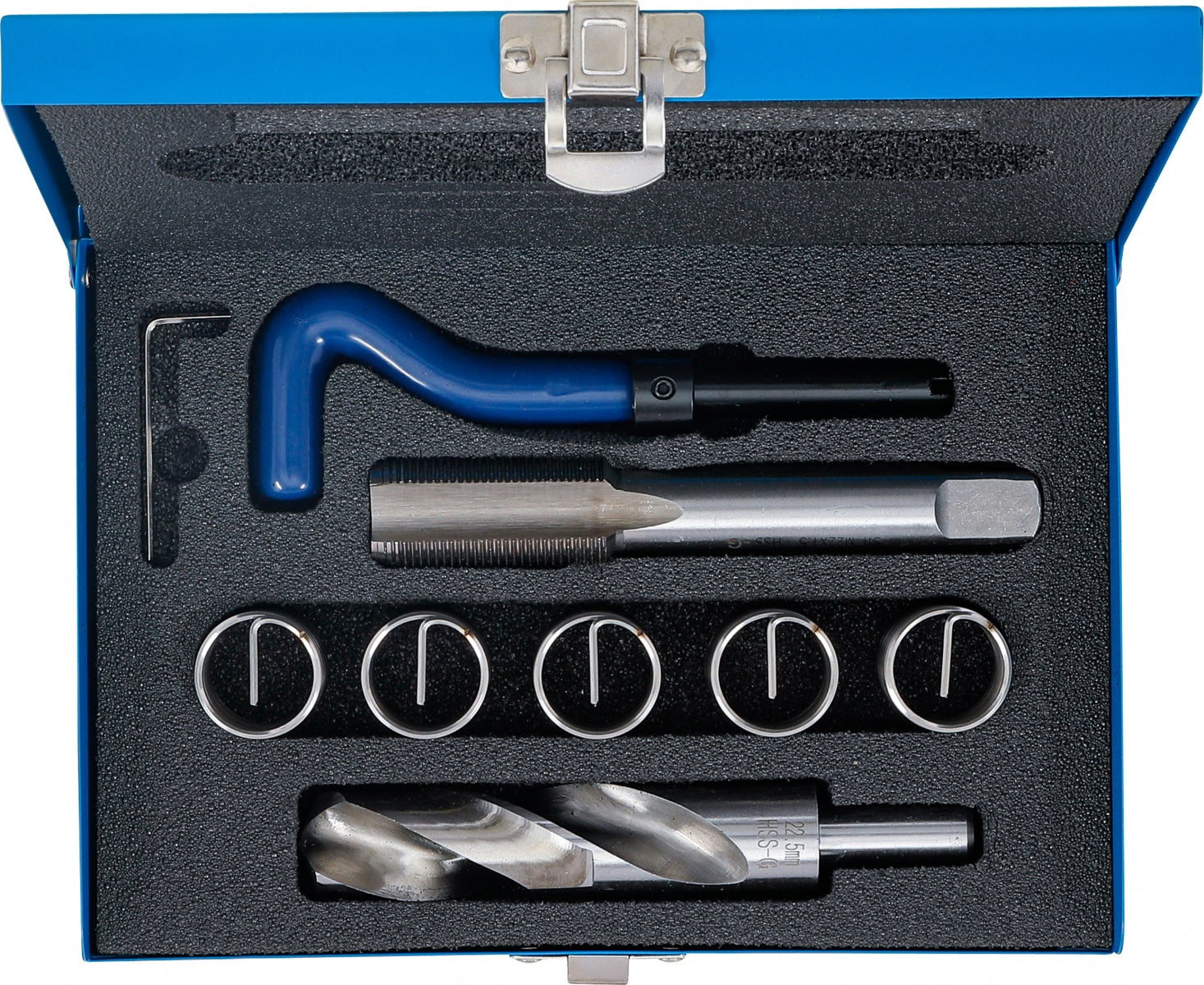

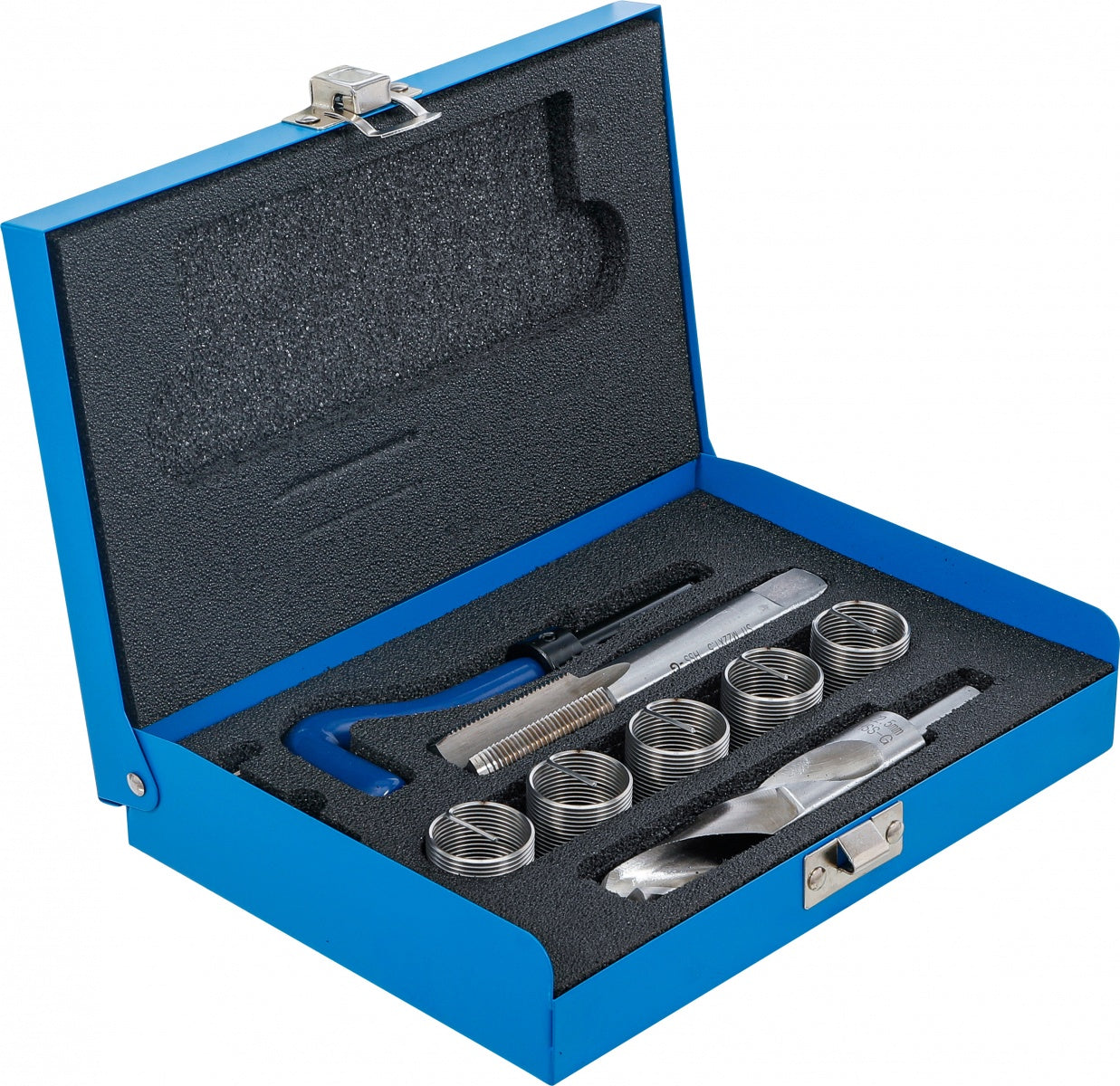

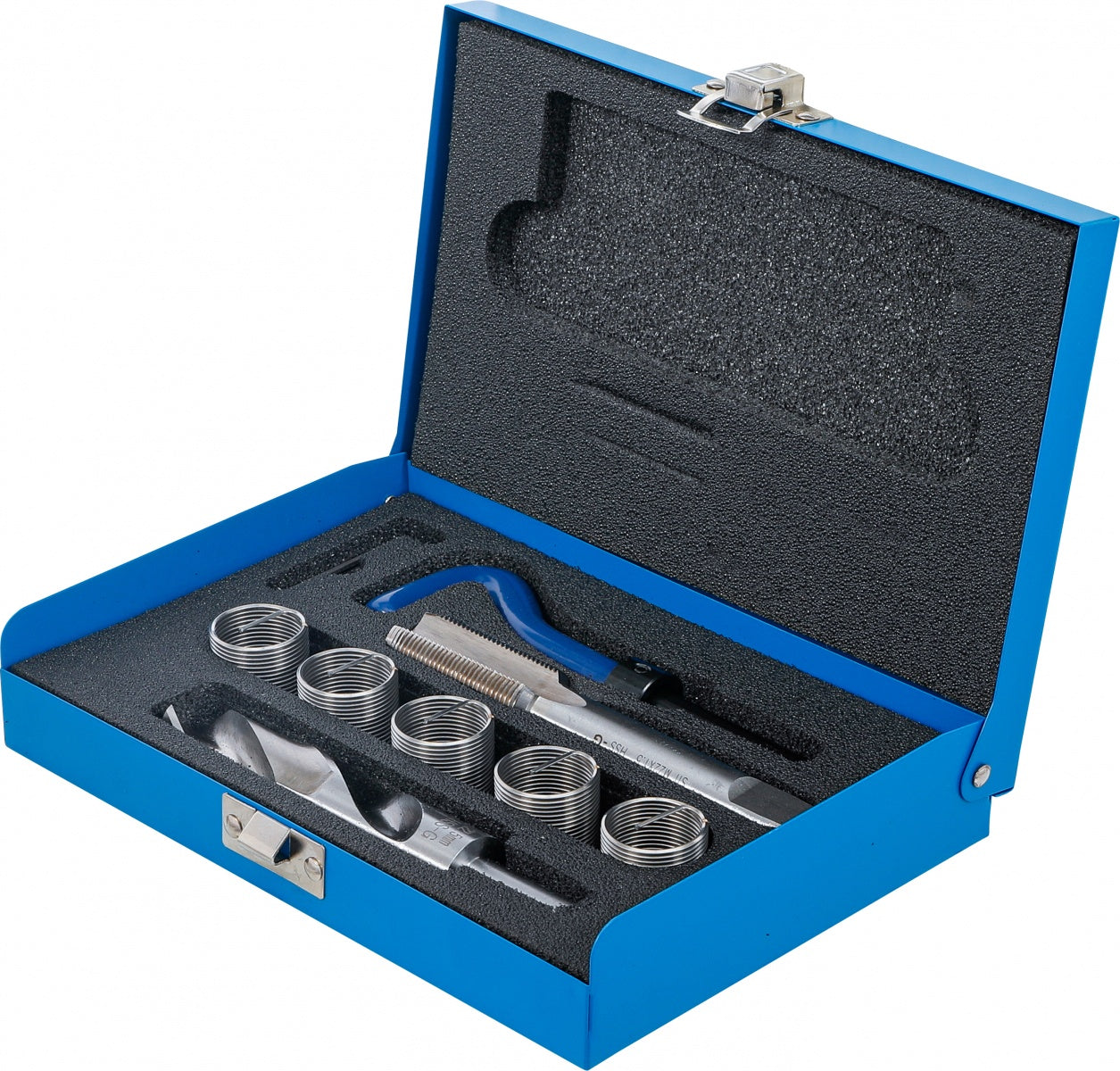

scope of delivery:

1 HSS twist drill | core hole size | 22.5 mm
1 STI short machine tap | HSS-G | M22 x 1.5
1 inserting tool with locking ring
5 thread inserts | M22 x 1.5
