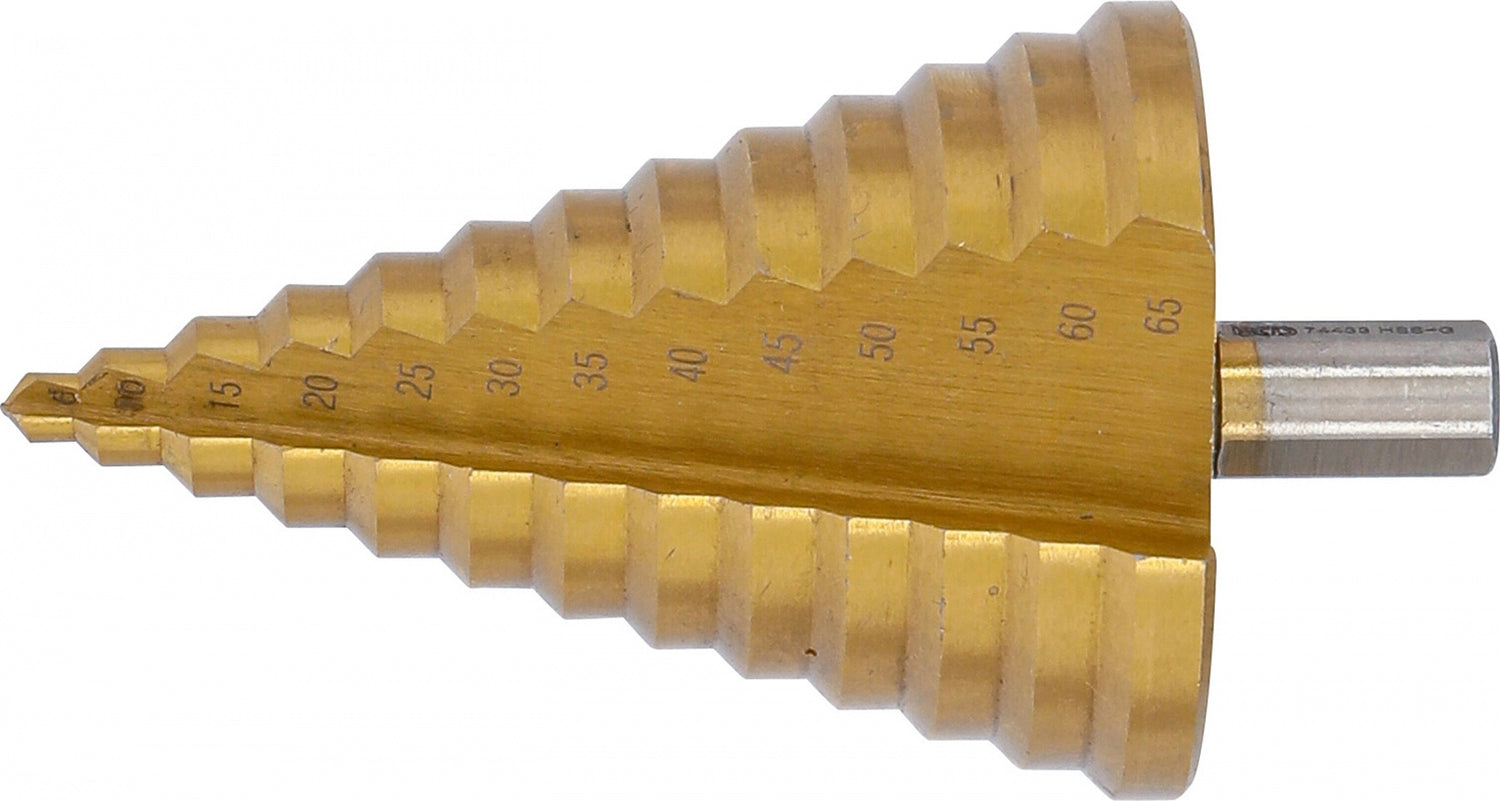

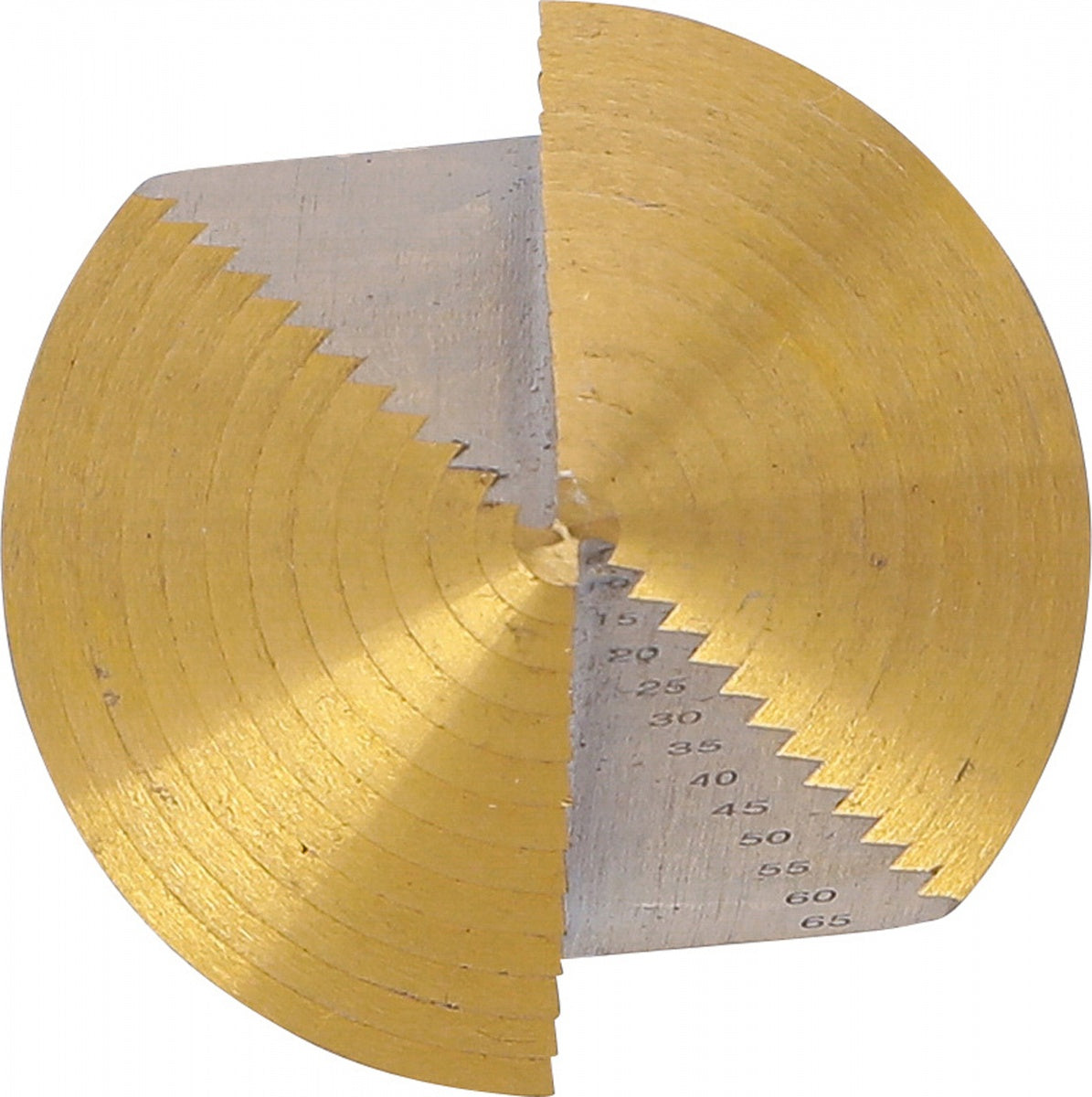

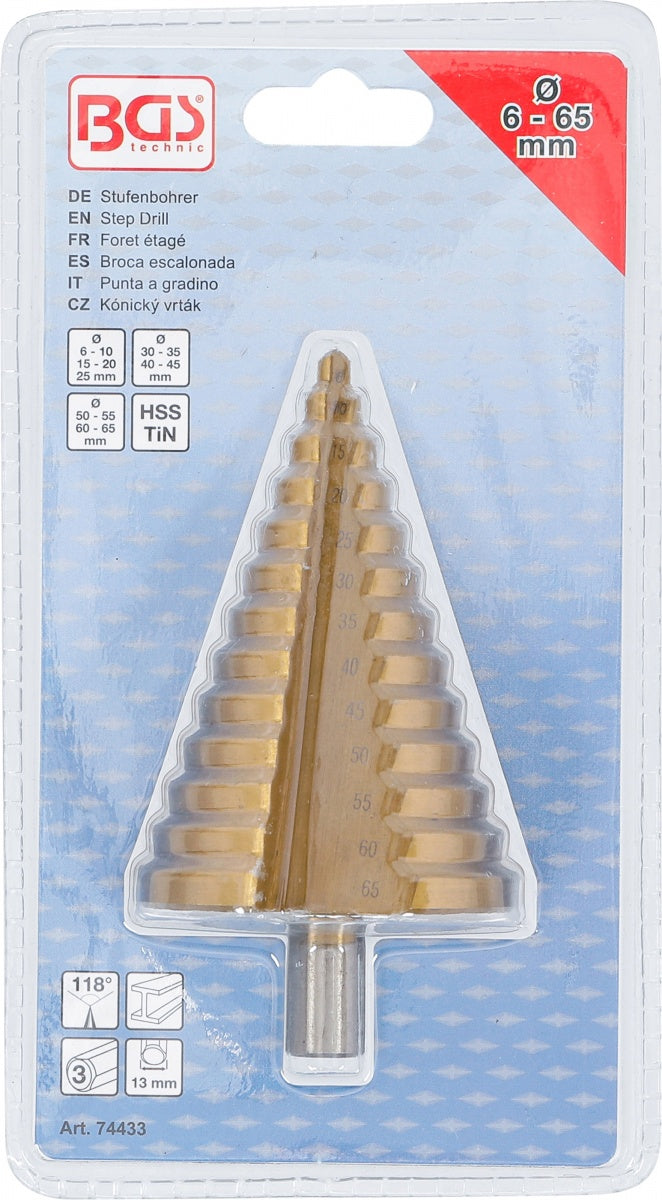

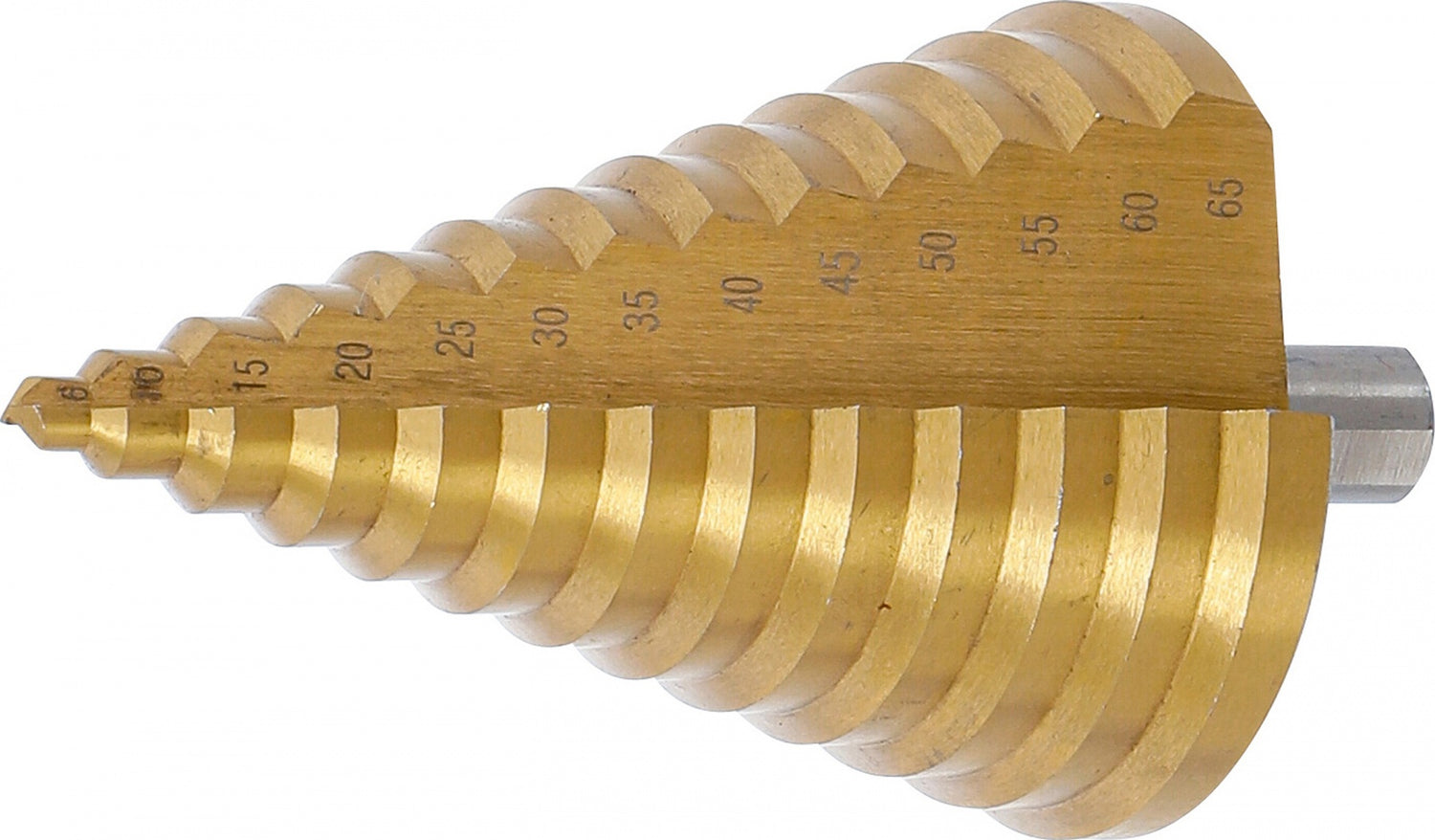

STEP DRILL | TITANIUM-NITRIDED | Ø 6 - 65 MM (74433)

Technical data
suitable for thin material made of non-ferrous metal, plastic as well as sheet steel
circular, burr-free drilling and reaming of sheet metal, pipes and profiles in materials up to 5 mm thickness
deburring up to 2.5 mm material thickness
sheets are centered, drilled, reamed and deburred in a single operation
absolutely smooth running
high cutting performance
tip with fully ground cross-cut
right-hand cutting
with triangular shank (13 mm) for reliable power transmission
drilling steps: 6, 10, 15, 20, 25, 30, 35, 40, 45, 50, 55, 60, 65 mm
split point: 118
