STEP DRILL | TITANIUM-NITRIDED | Ø 6 - 38 MM (74431B)

Technical data
suitable for thin materials made of non-ferrous metal, plastic, and sheet steel
circular, burr-free drilling and reaming of sheet metal, pipes, and profiles in materials up to 5 mm thickness
deburring up to 2.5 mm material thickness
sheets are centered, drilled, reamed, and deburred in a single operation
absolutely smooth running
high cutting performance
tip with fully ground cross cut
right-hand cutting
with triangular shank (10 mm) for reliable power transmission

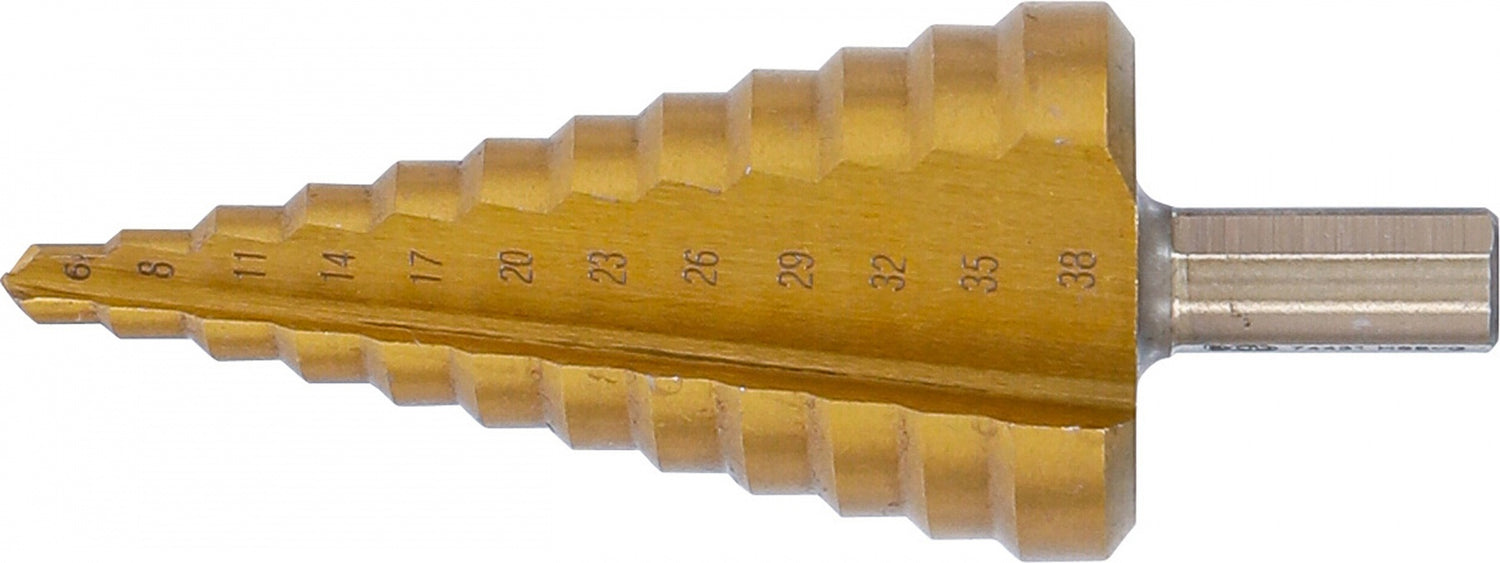

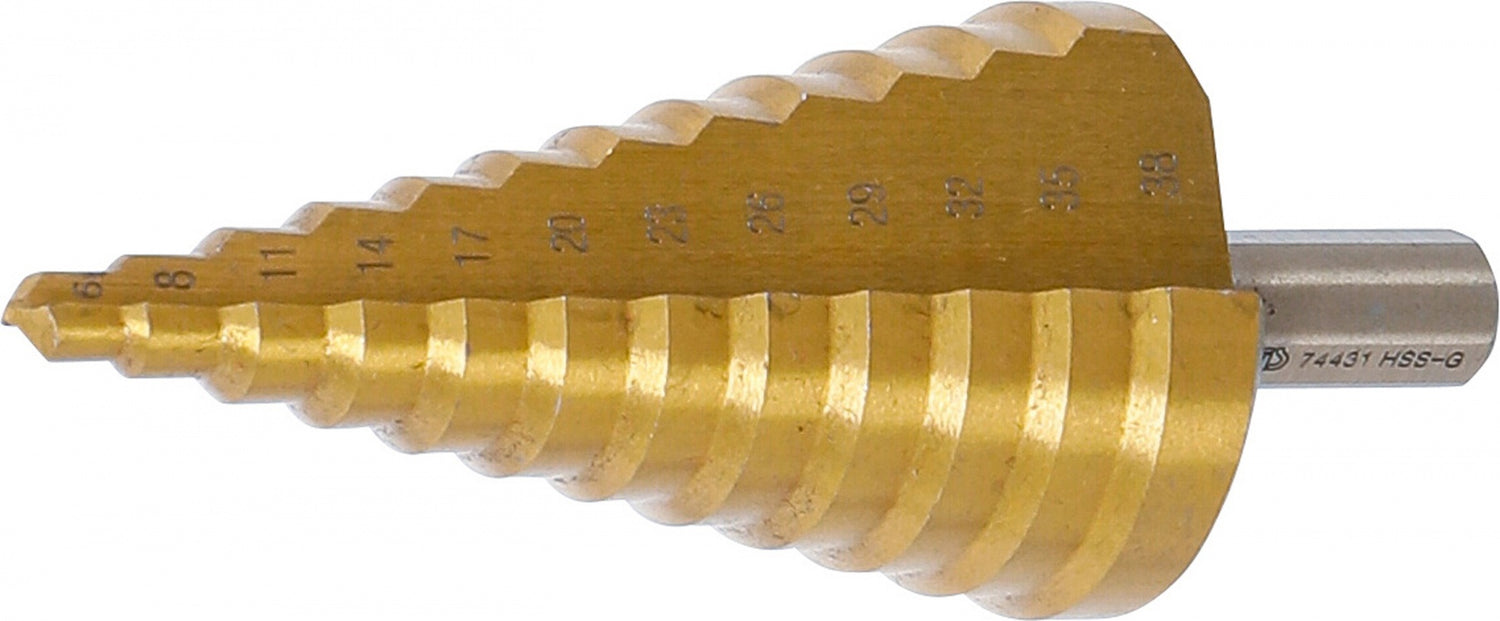

drilling steps: 6, 8, 11, 14, 17, 20, 23, 26, 29, 32, 35, 38 mm
split point: 118
