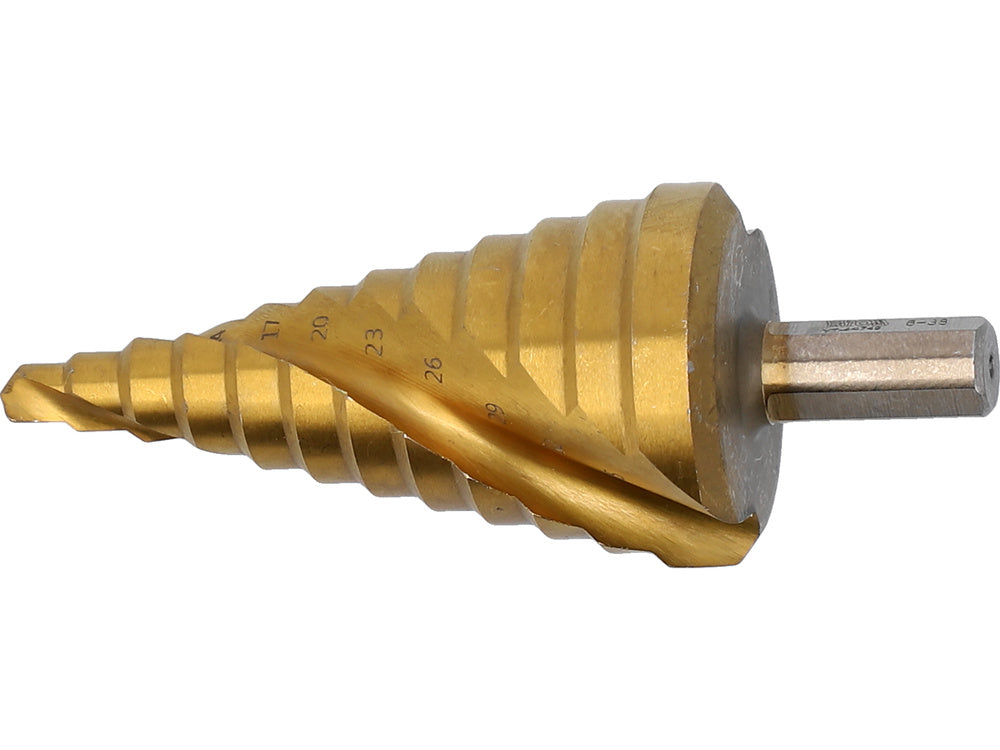

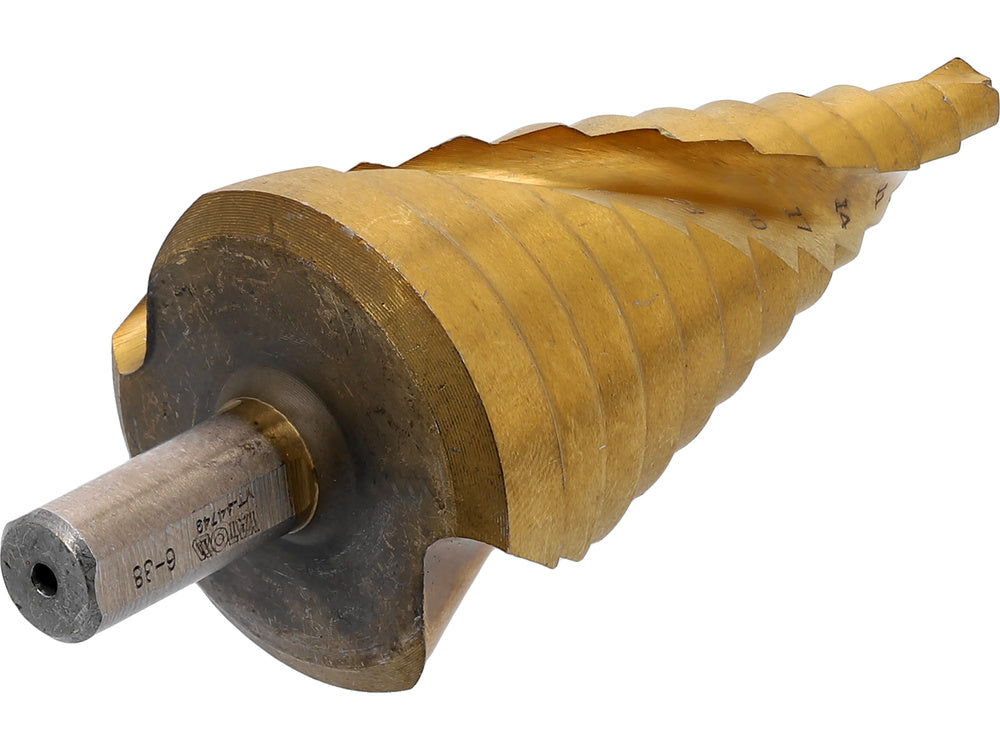

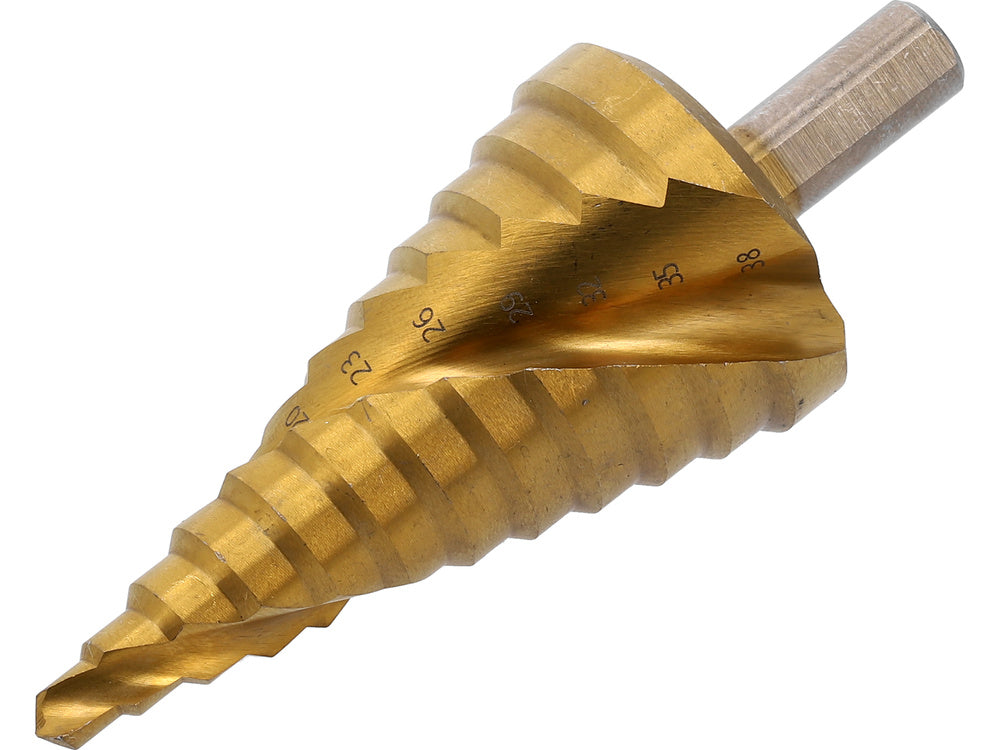

STEP DRILL 6-38MM (YT-44749)

YT-44749
STEP SPIRAL DRILL 6-38MM
Brand
Yato
Entity responsible for this product in the EU
TOYA S.A.More
Diameter
6, 8, 11, 14, 17, 20, 23, 26, 29, 32, 35, 38 mm
Length
100 mm
Working length
75 mm
Number of steps
12
Max. cutting thickness
4 mm
Tool holder type
triangle
Material
HSS 4341
Surface finish
titanium nitride coated
Application
high-grade stainless steel, structural steel, cold-rolled steel, non-ferrous metals, steel sheets, plastic
Symbol
YT-44749

Spiral step drills designed for drilling high-grade stainless steel, structural and cold-rolled steel, non-ferrous metals, steel sheets, plastics.

made of HSS 4341 high-speed steel, coated with titanium nitride, which increases the service life of the drills
the edges of the drilled hole remain clean and burr-free
self-centering on rounded and slippery surfaces
fast heat dissipation when drilling in hard materials
2 spiral chip flutes efficiently remove waste
triangle tool holder ensures excellent fixation in the drill
max. cutting thickness: 4 mm

Warnings regarding use:

Caution! Use personal protective equipment during work.
