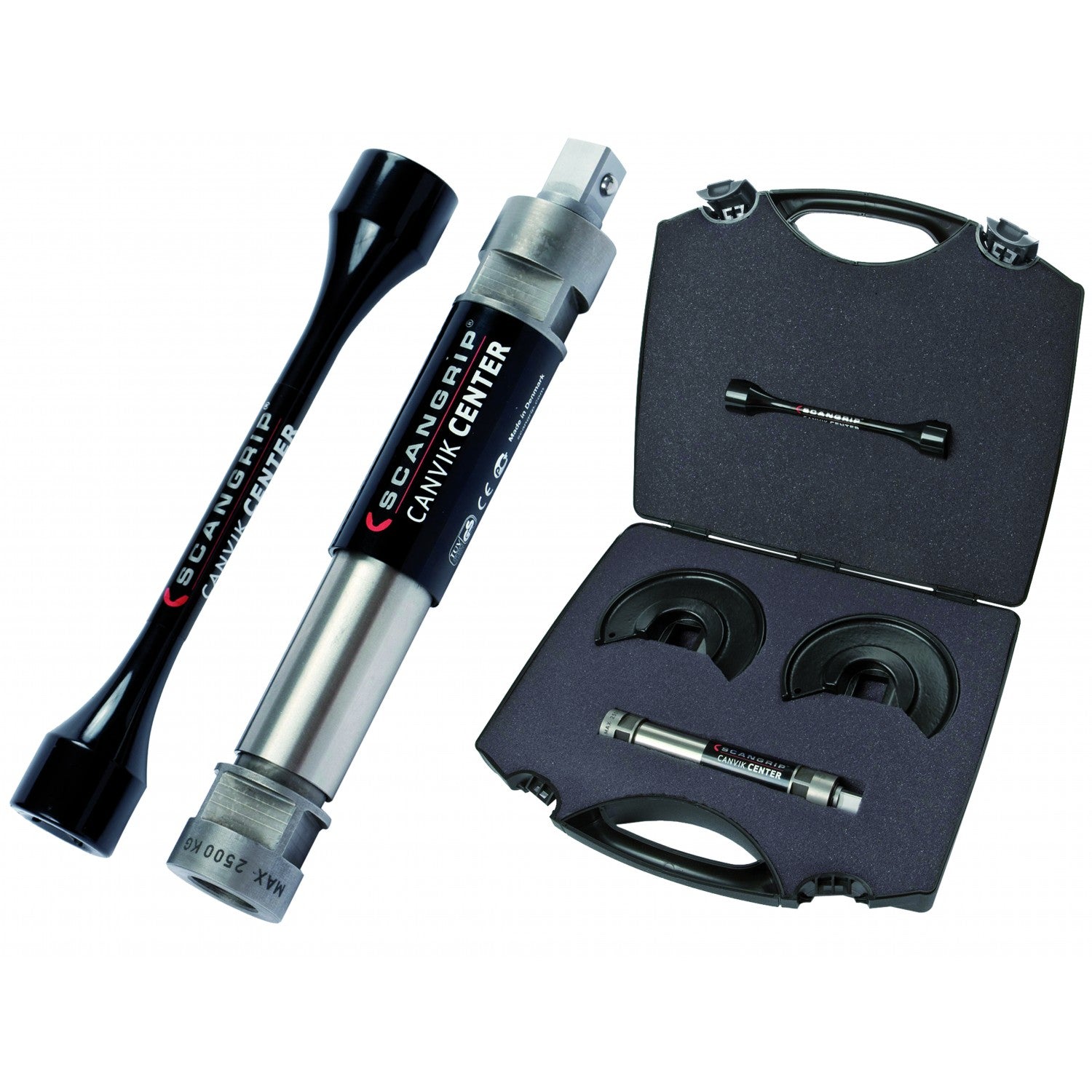

SPRING COMPRESSOR SET | 1500 KG (985)

professional spring compressor for daily workshop use
for springs with a diameter of 90 to 140 mm
especially suitable for vehicles with small hole in the spring control arm, down to 30 mm e.g. VW Touran, Citroen C3, Skoda Octavia, Peugeot 107
suitable for double wishbone / multi-link suspension systems
good fit of the spring due to angled jaws, which increases the safety and functionality
special socket prevents overloading of the spring compressor
maximum load: 15000 Nm
minimum distance: 96 mm
maximum distance: 220 mm
maximum spring travel: 124 mm

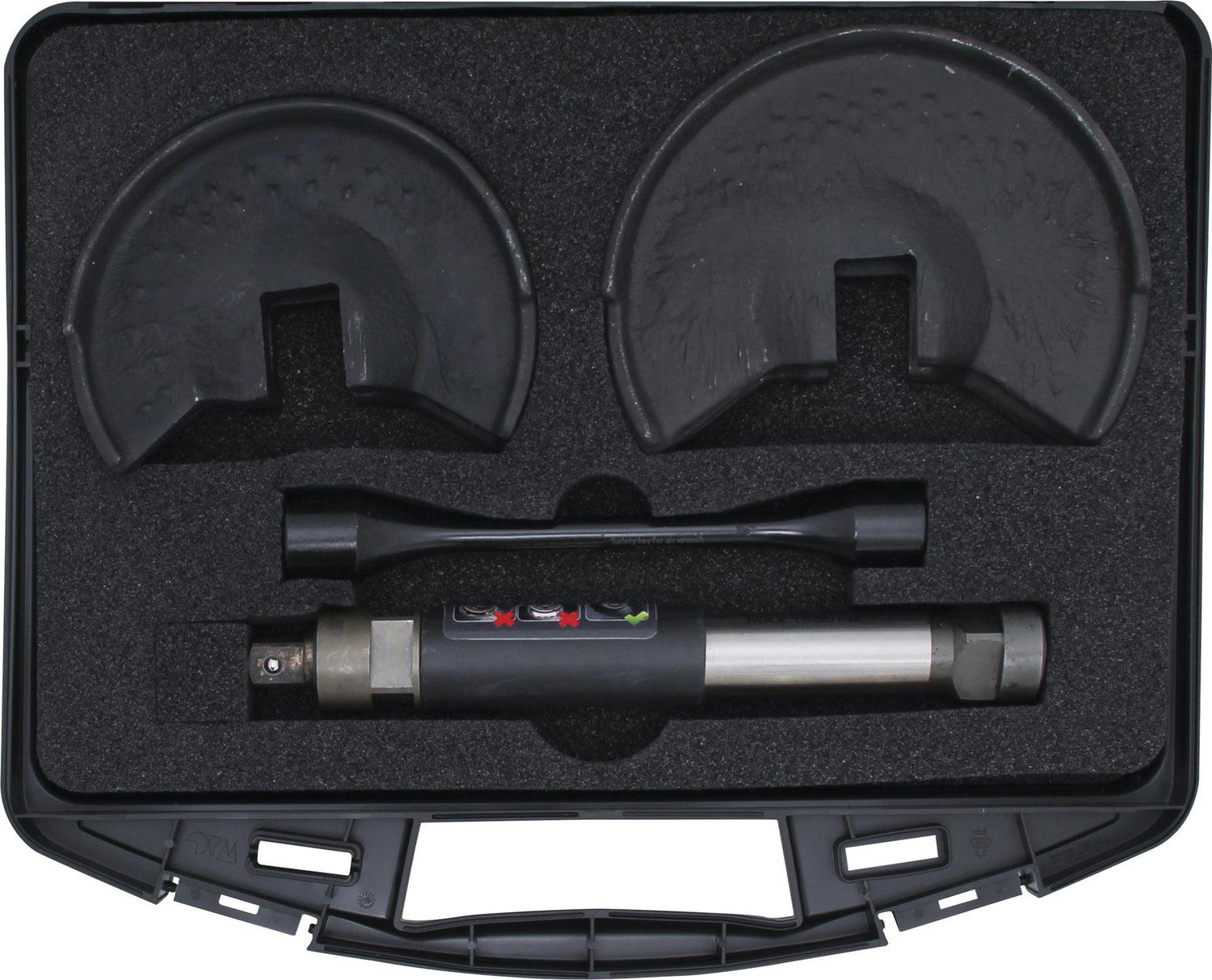

scope of delivery:

2 tensioning jaws 90 to 120 mm
2 tensioning jaws 120 to 140 mm
special spindle for limited spaces 30 mm
special socket for torque limit
Technical data
Gross weight4280 g
