SOLDERING CONNECTOR ASSORTMENT | WITH SHRINK TUBE | 36 PCS. (85221)

for use in the automotive, railroad, watercraft, aerospace, electric power and electronics industries
transparent heat shrinkable tubing with color and soldering tin ring
simultaneous soldering and shrinking by heating

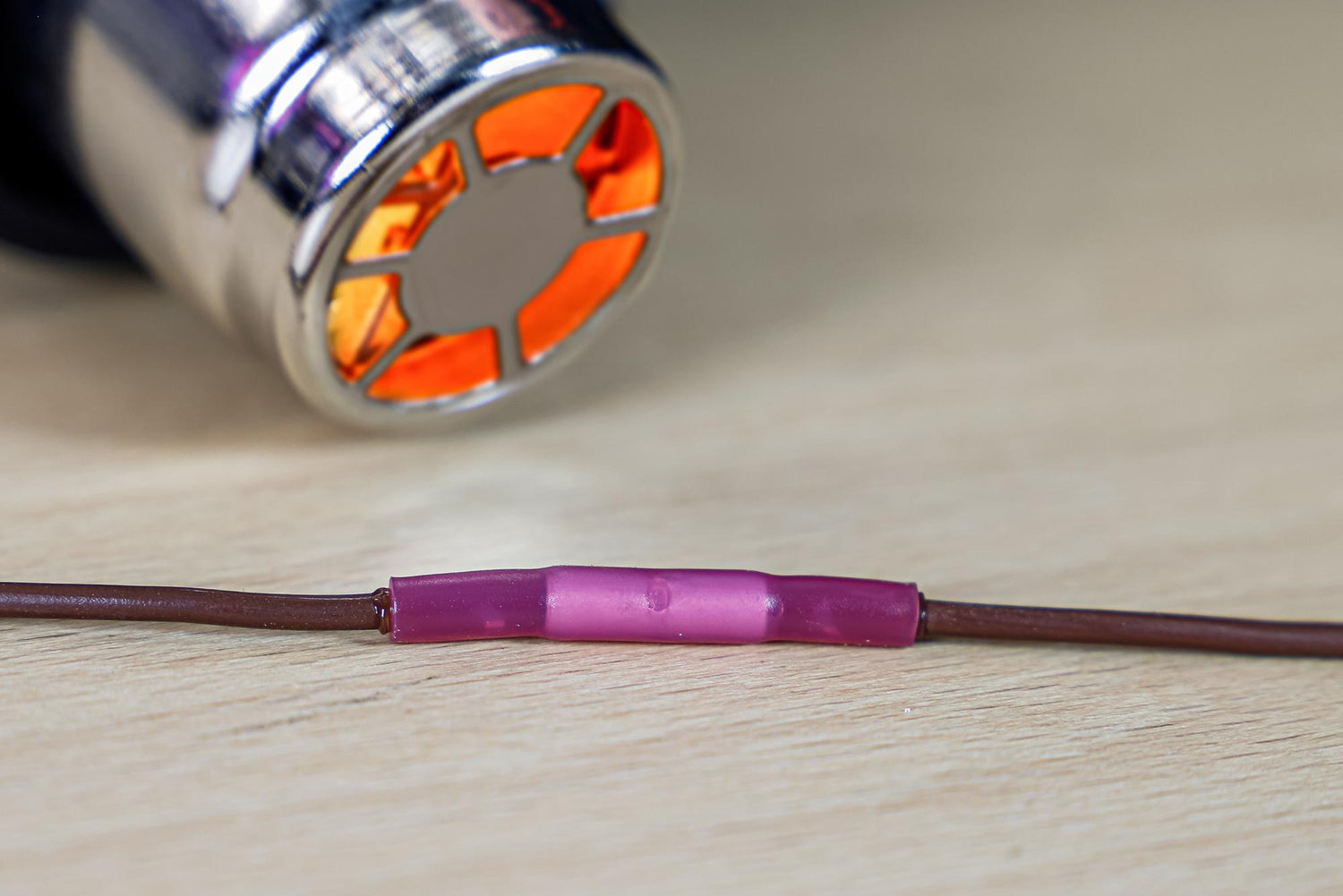

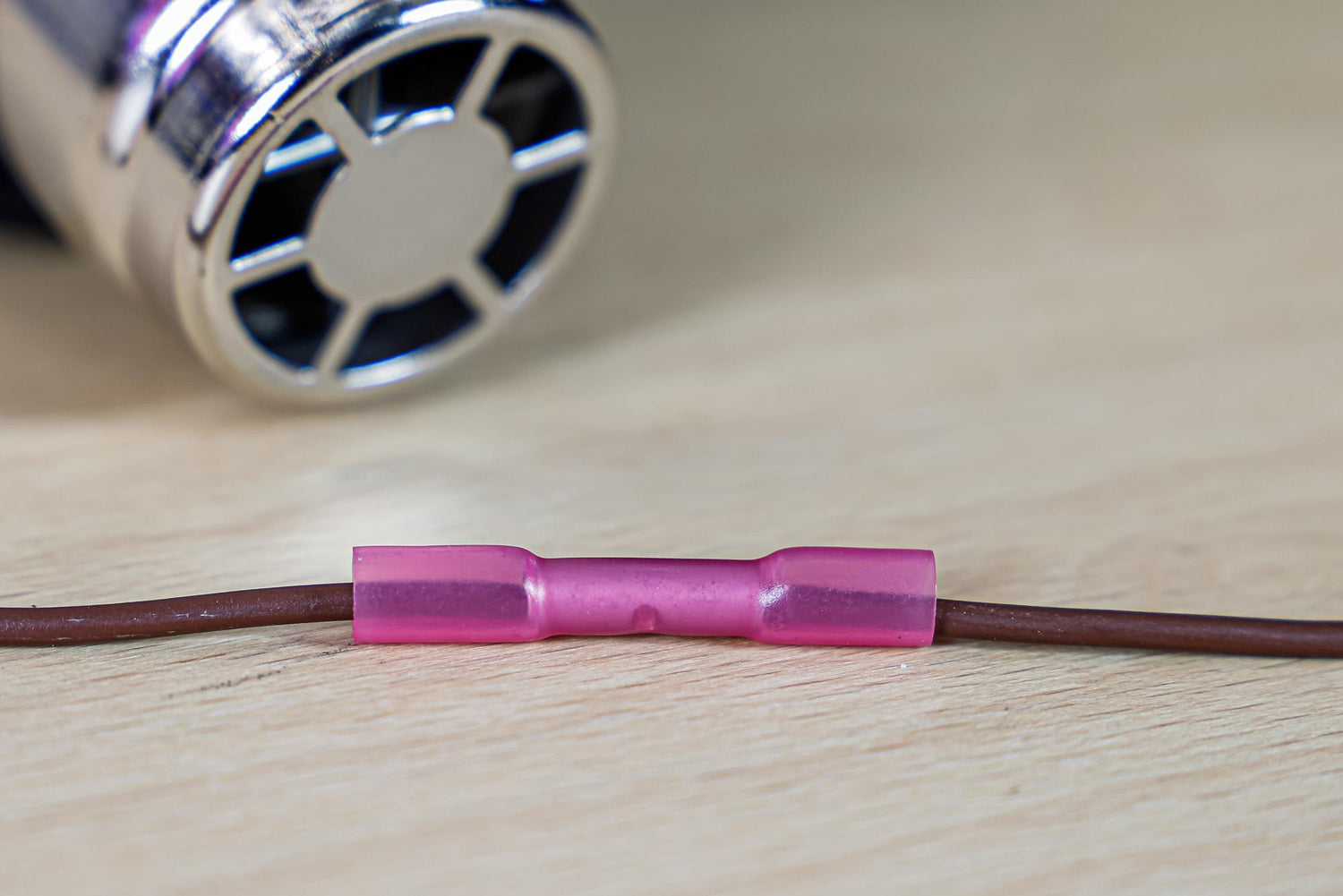

by heating with a hot air device, the solder inside these insulating connectors connects the cable ends
high tensile strength and elongation resistance

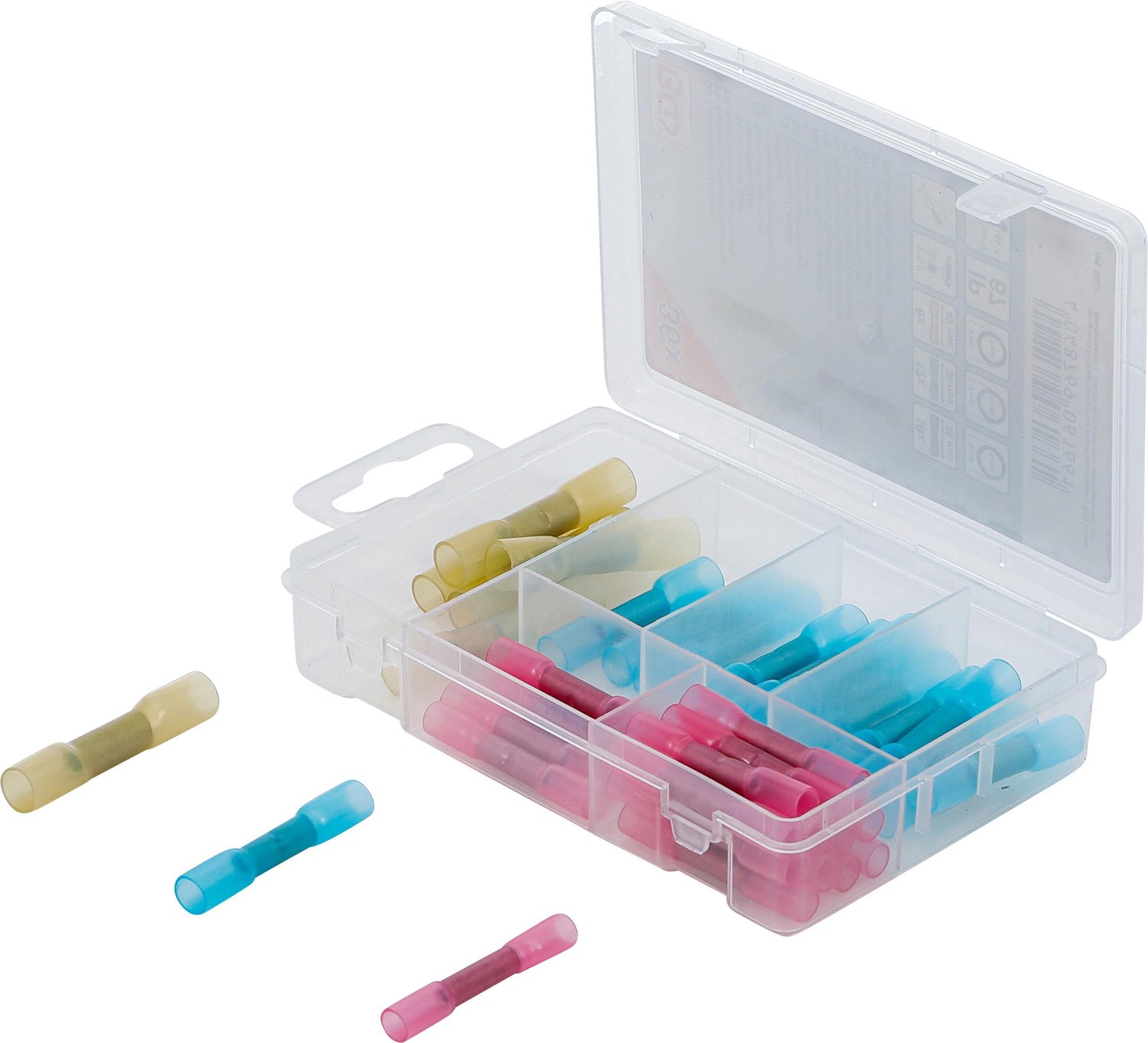

in a practical assortment box
temperature range: -55 to +125 C
protection class: IP67

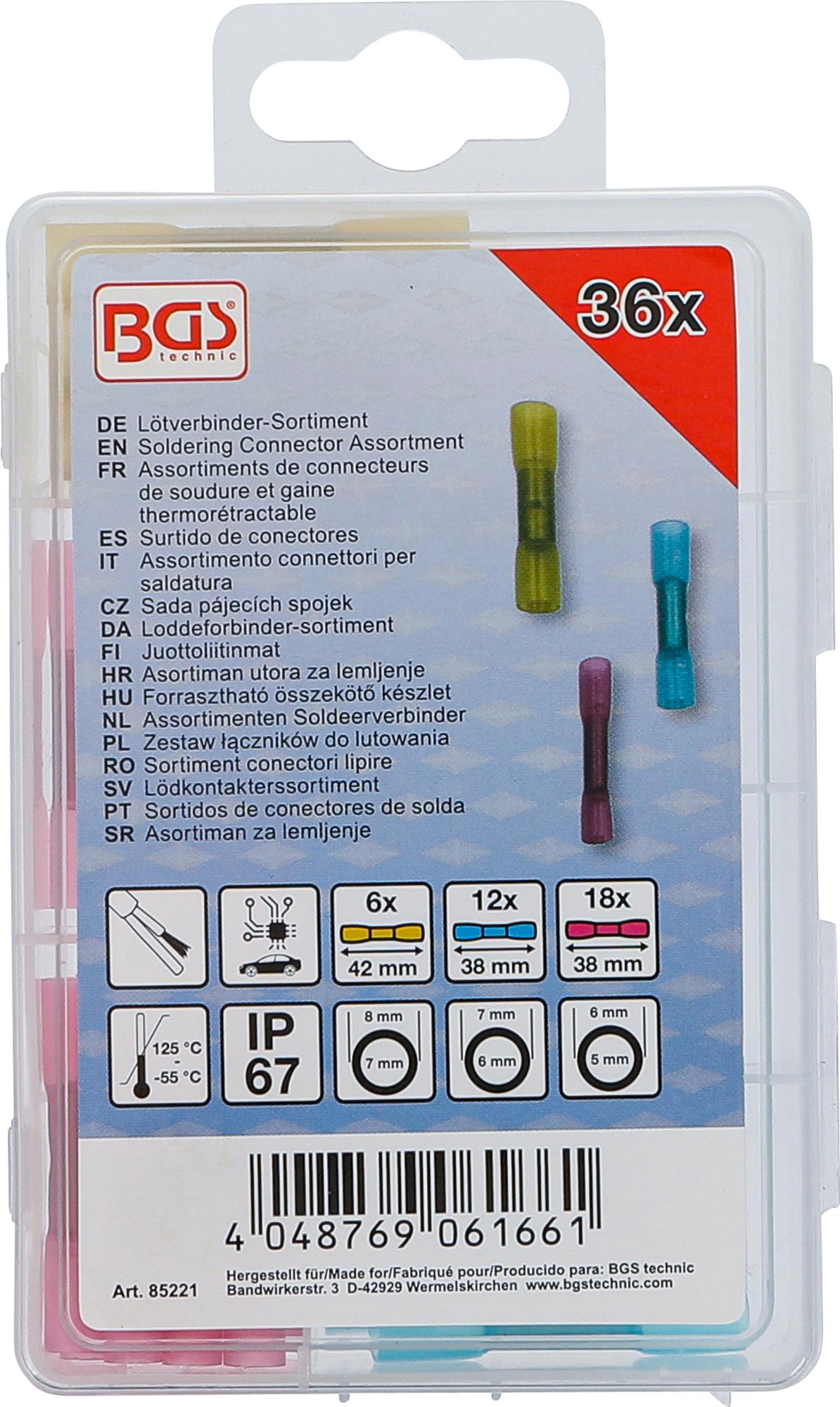

scope of delivery:

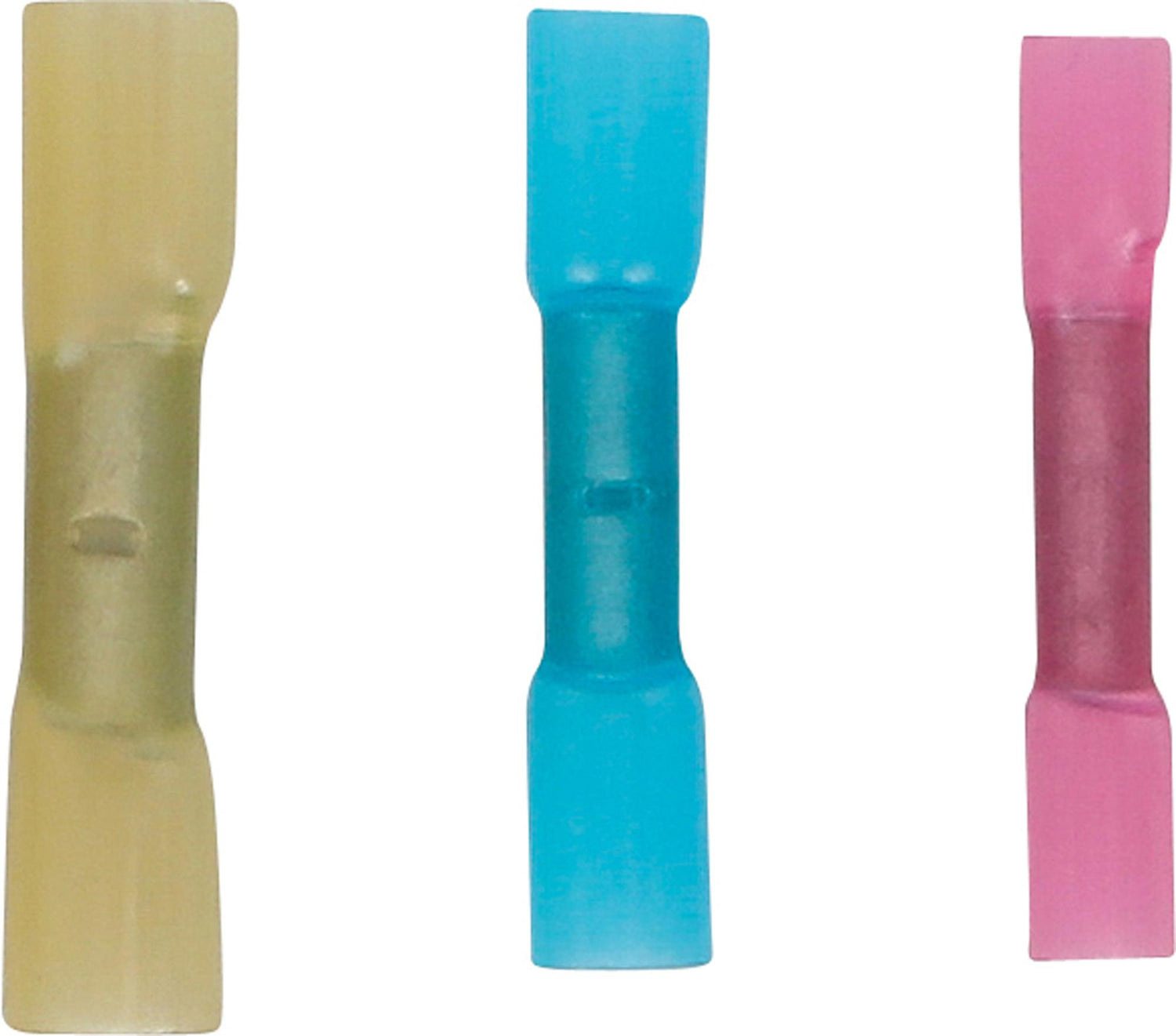

18 red soldering connectors, internal diameter 5.0 mm, external diameter 6.0 mm, length 38 mm
12 blue soldering connectors, internal diameter 6.0 mm, external diameter 7.0 mm, length 38 mm
6 yellow soldering connectors, internal diameter 7.0 mm, external diameter 8.0 mm, length 42
mm
Technical data
Gross weight80 g
