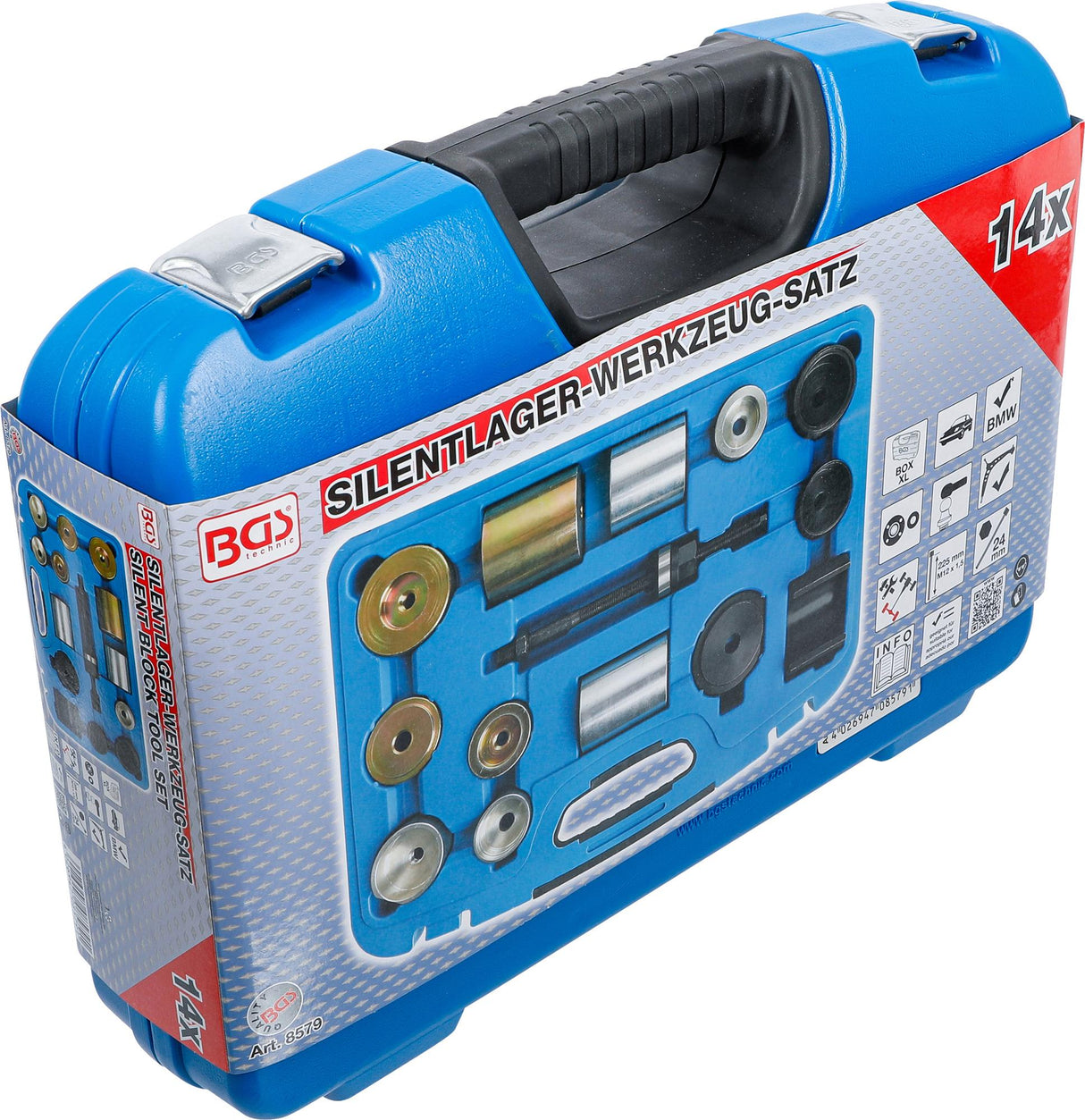

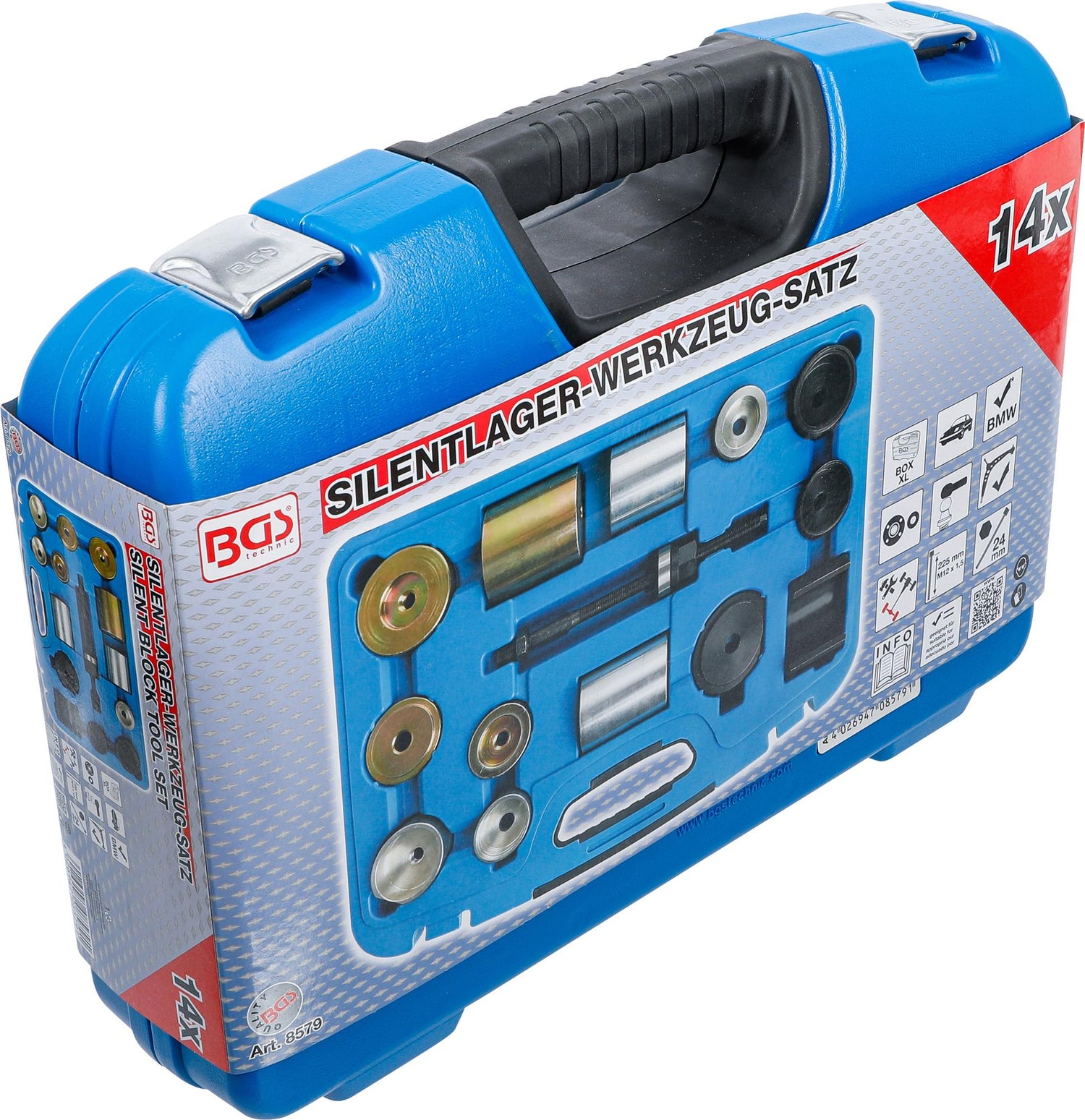

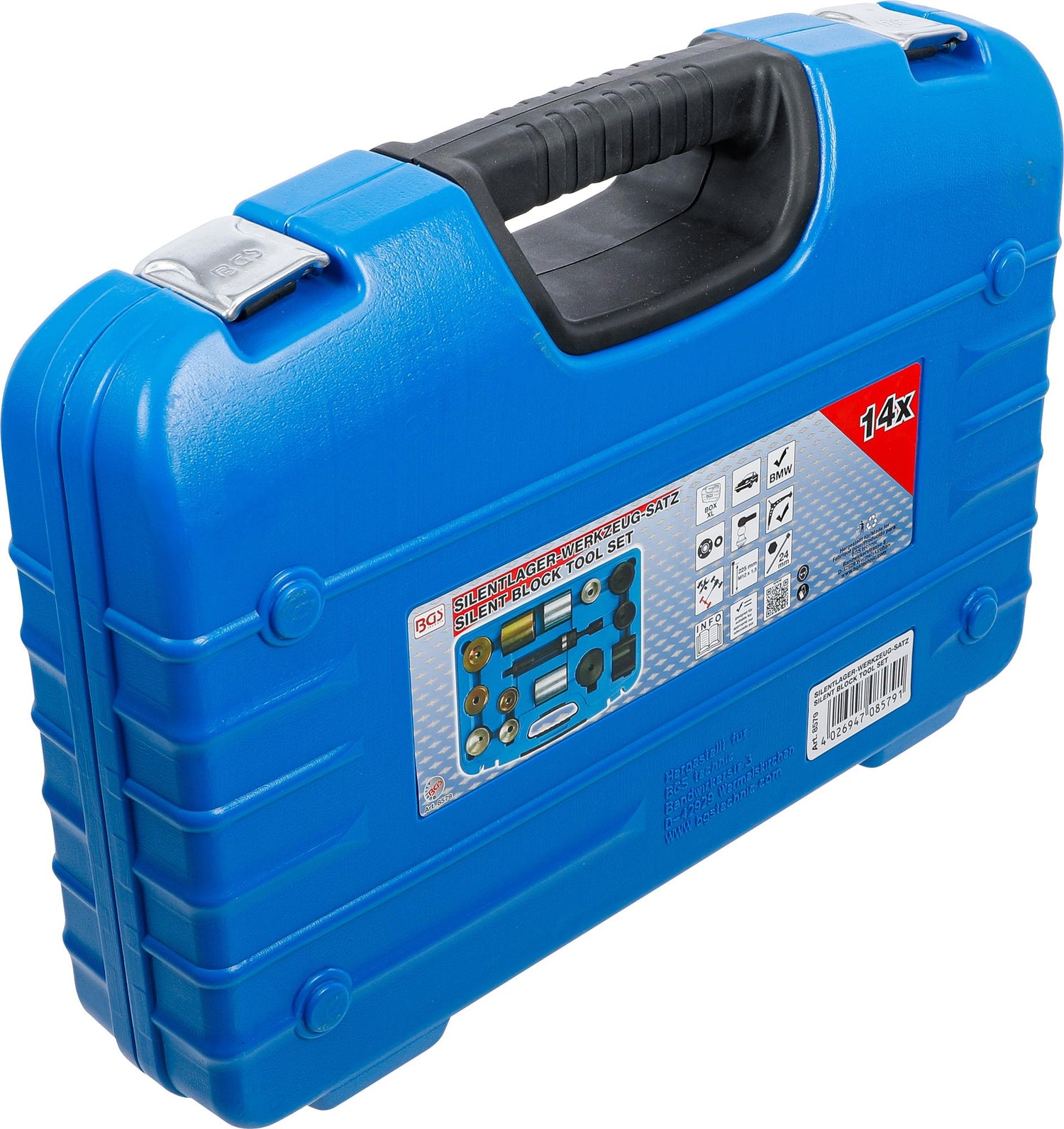

SILENT BLOCK TOOL SET | FOR BMW (8579)

disassembly / assembly of the ball joints in rear wheel carrier, suitable for the following BMW models:
5-series E39 / E60 / E61 / E70
6-series E63 / E64
7-series E38 / E65 / E66 / E67
8-series E52

disassembly / assembly of the ball joints and rubber bearings in the trailing arm, suitable for the following BMW models:
3-series E36 / E46 / E83
5-series E39 / E60 / E61 / E70
6-series E63 / E64
7-series E38 / E65 / E66 / E67
8-series E31 / E52
Z4-models E85 / E86

disassembly / assembly of the rubber bush in rear axle carrier (bottom), rear transmission screw, suitable for the following BMW models:
3-series E36 / E46 / E83
8-series E31
Z4-models E85 / E86

disassembly / assembly of the rubber bearings in the rear transmission suspension front and rear, suitable for the following BMW models:
1-series E81 / E87
3-series E36 / E46 / E83 / E90 / E91 / E92 / E93
5-series E60 / E61
6-series E63 / E64
7-series E38 / E65 / E66 / E67
8-series E31
Z4-models E85 / E86
MINI Cooper S R53

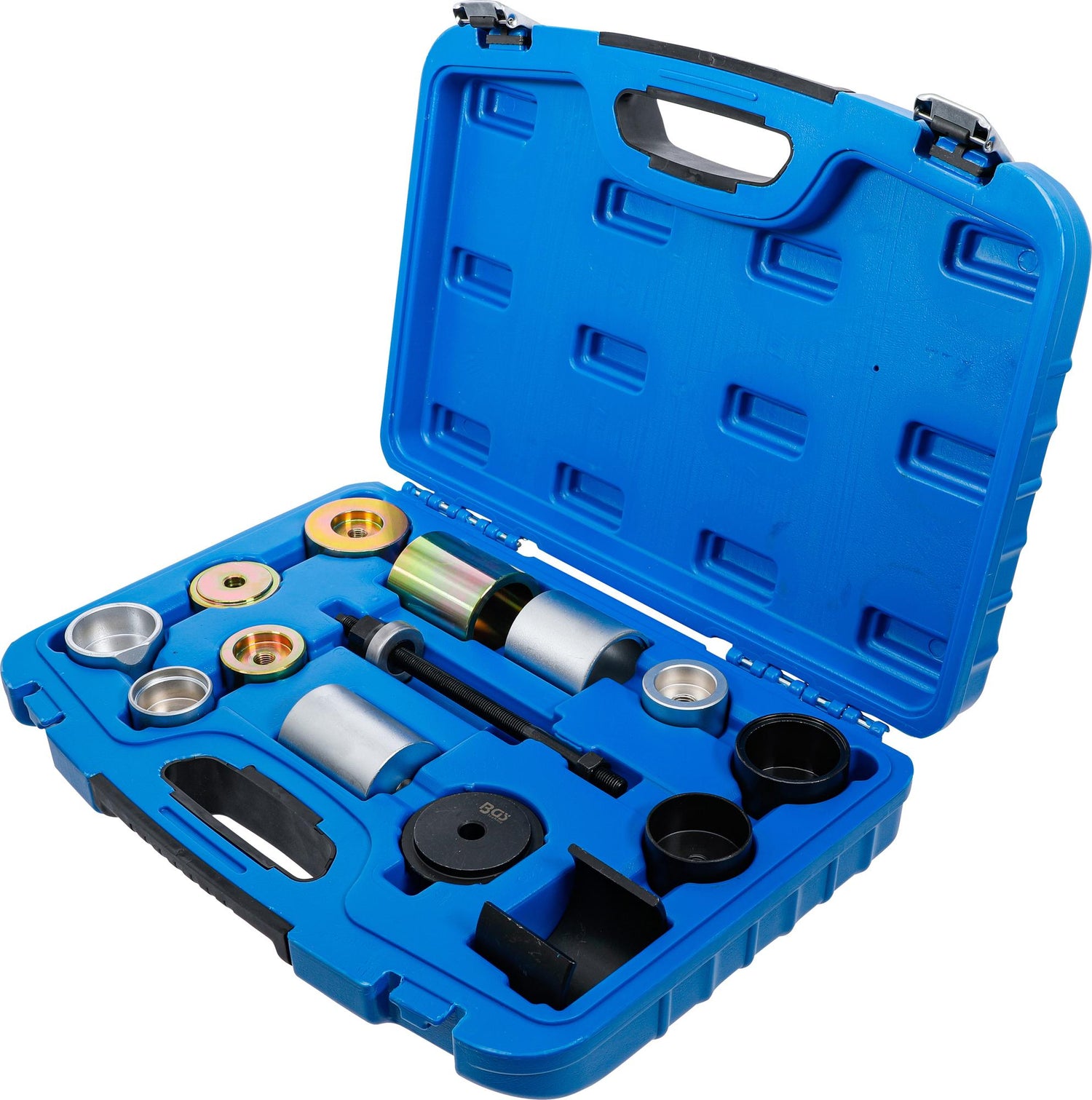

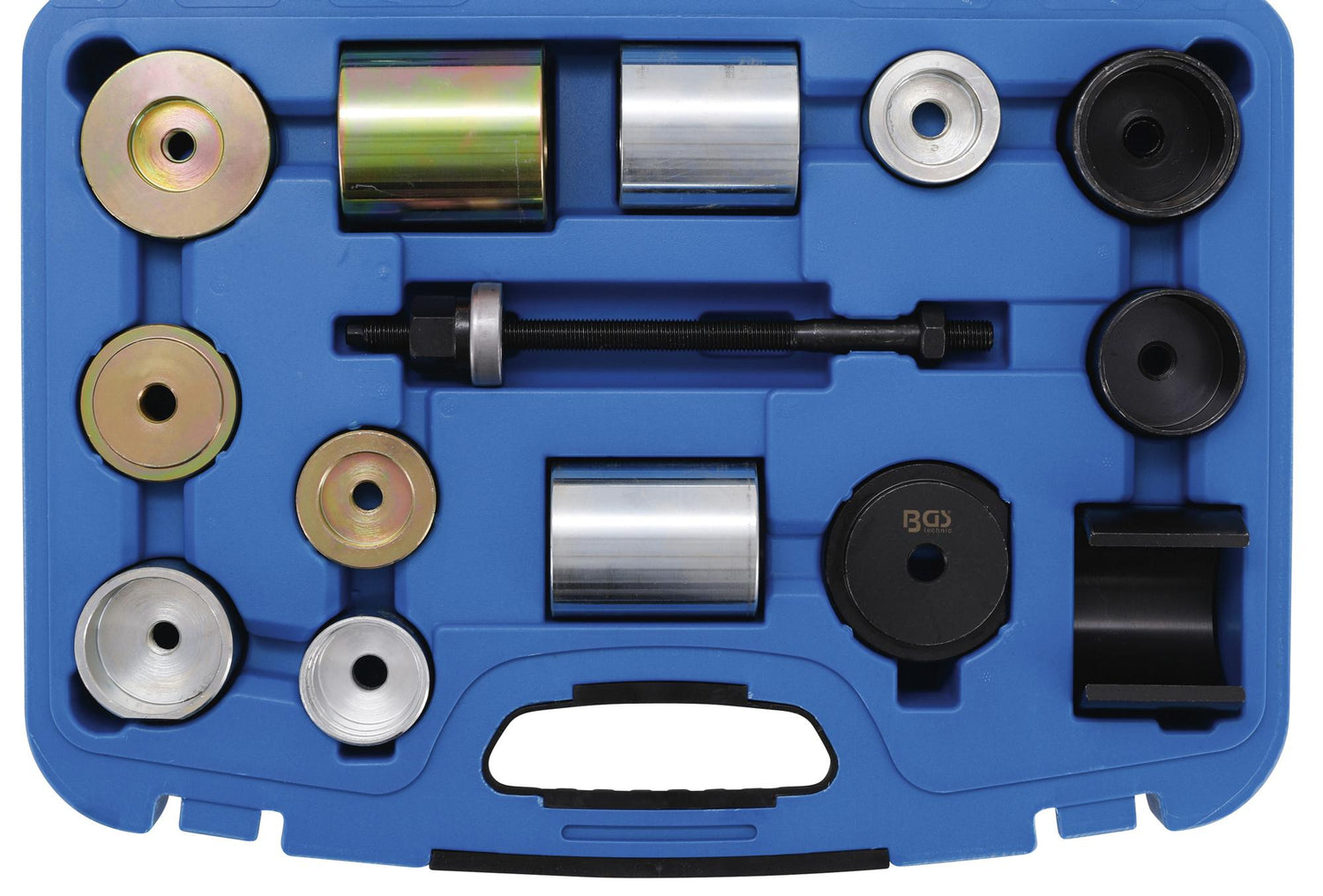

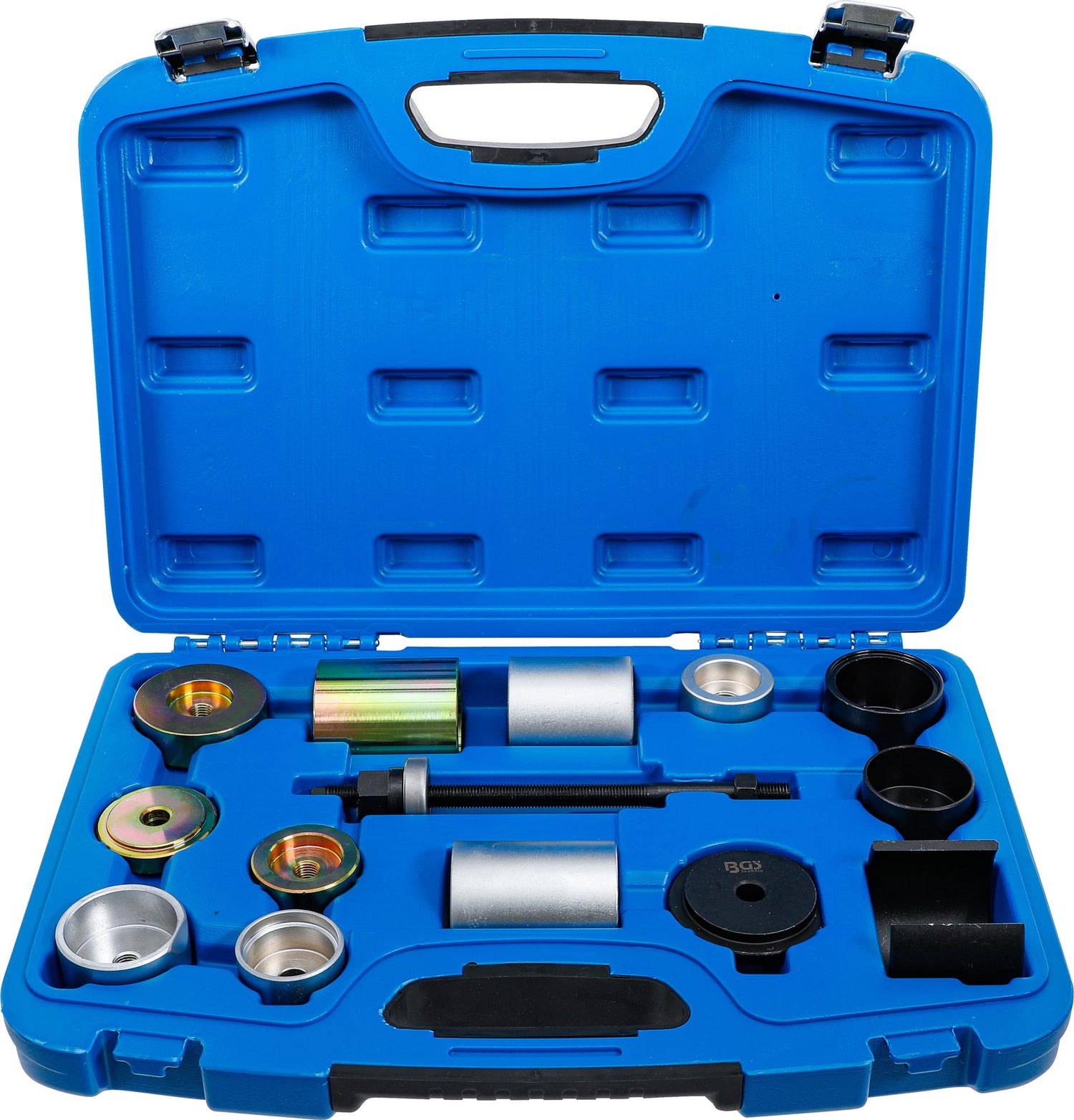

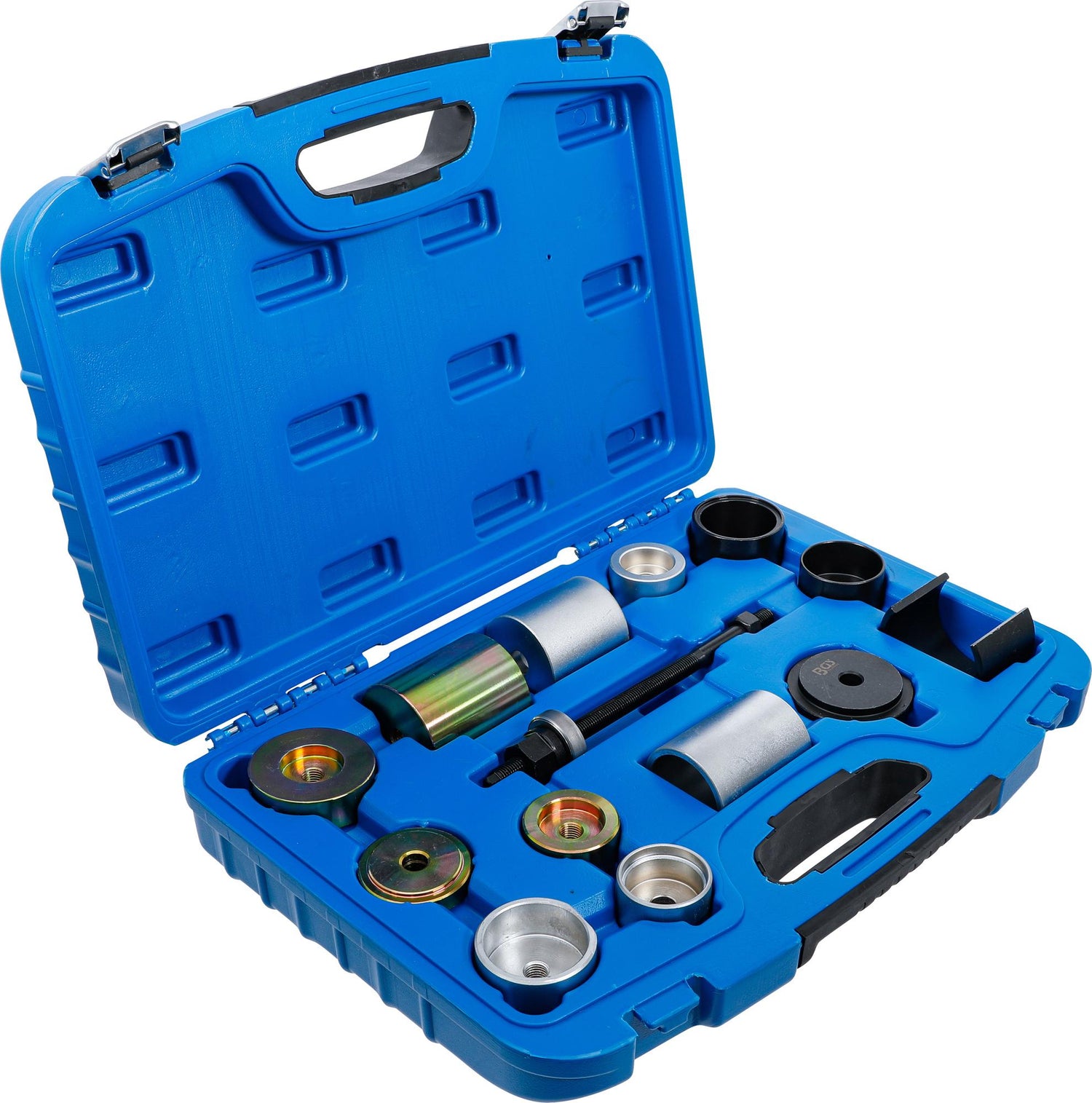

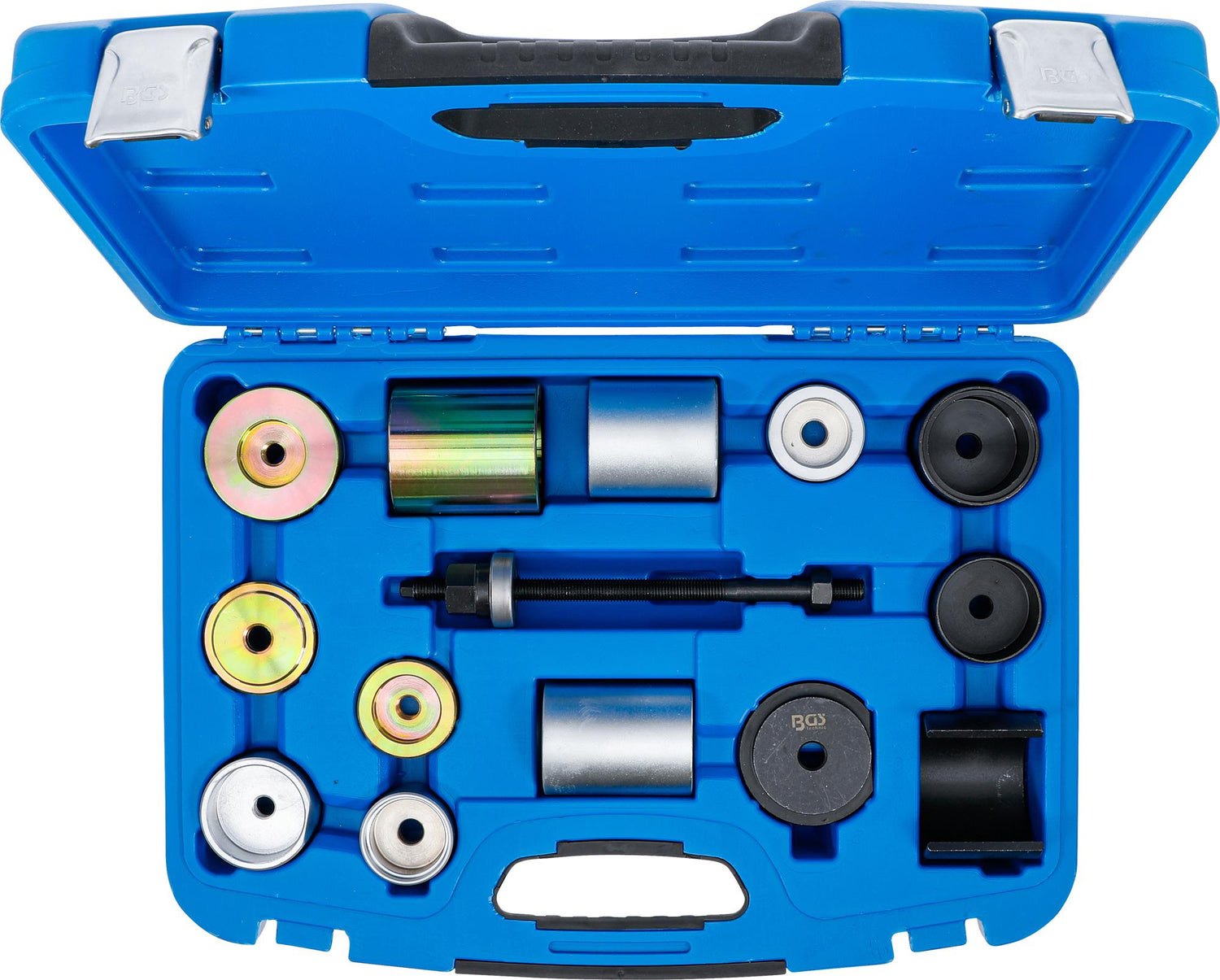

scope of delivery:

spindle M12 x 1.5 with bearing nut, length: 225 mm
24 mm hexagon drive socket
disc, 48, 55, 65 mm
bell, inner : 47 mm, outer : 55 mm, length: 72 mm
bell, inner : 50 mm, outer : 64 mm, length: 70 mm
bell, stepped, inner : 36, 40 mm, outer : 45 mm, length: 30 mm
bell, stepped, inner : 47, 53 mm, outer : 58 mm, length: 43 mm
bell, stepped, inner : 47, 53 mm, outer : 58 mm, length: 61 mm
bell, inner : 32 mm, outer : 46 mm, length: 26 mm
bell, inner : 46 mm, outer : 55 mm, length: 32 mm
bell, inner : 47 mm, outer : 51 mm, length: 35 mm
bell, flattened, inner : 47 mm, outer : 55 mm, length: 32 mm
disc, stepped, flattened, inner : 57 mm, outer : 70 mm, thickness: 13 mm
sleeve, 1/3 open, inner : 59 mm, outer : 70 mm, length: 55 mm
Technical data
Gross weight6820 g
