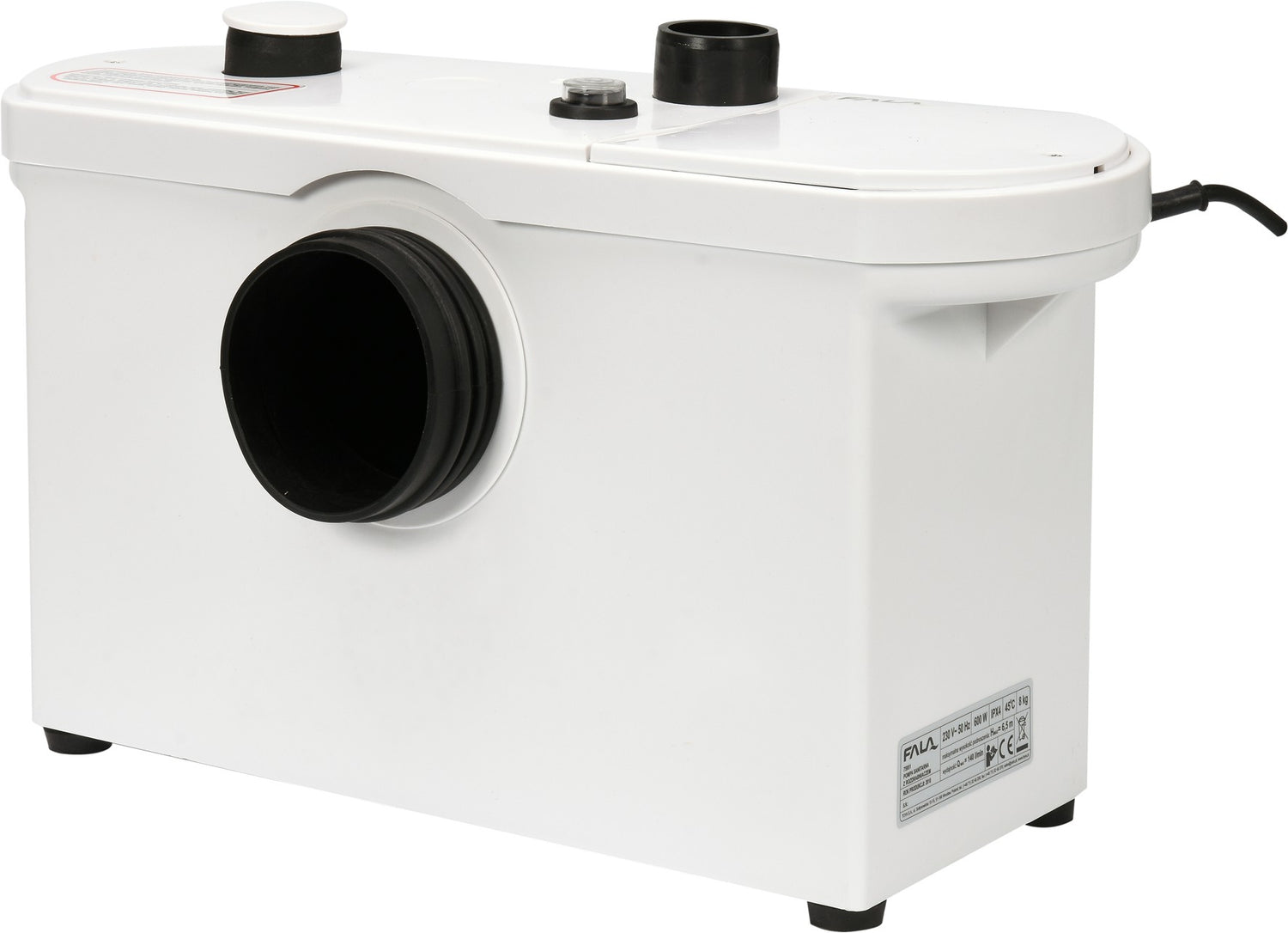

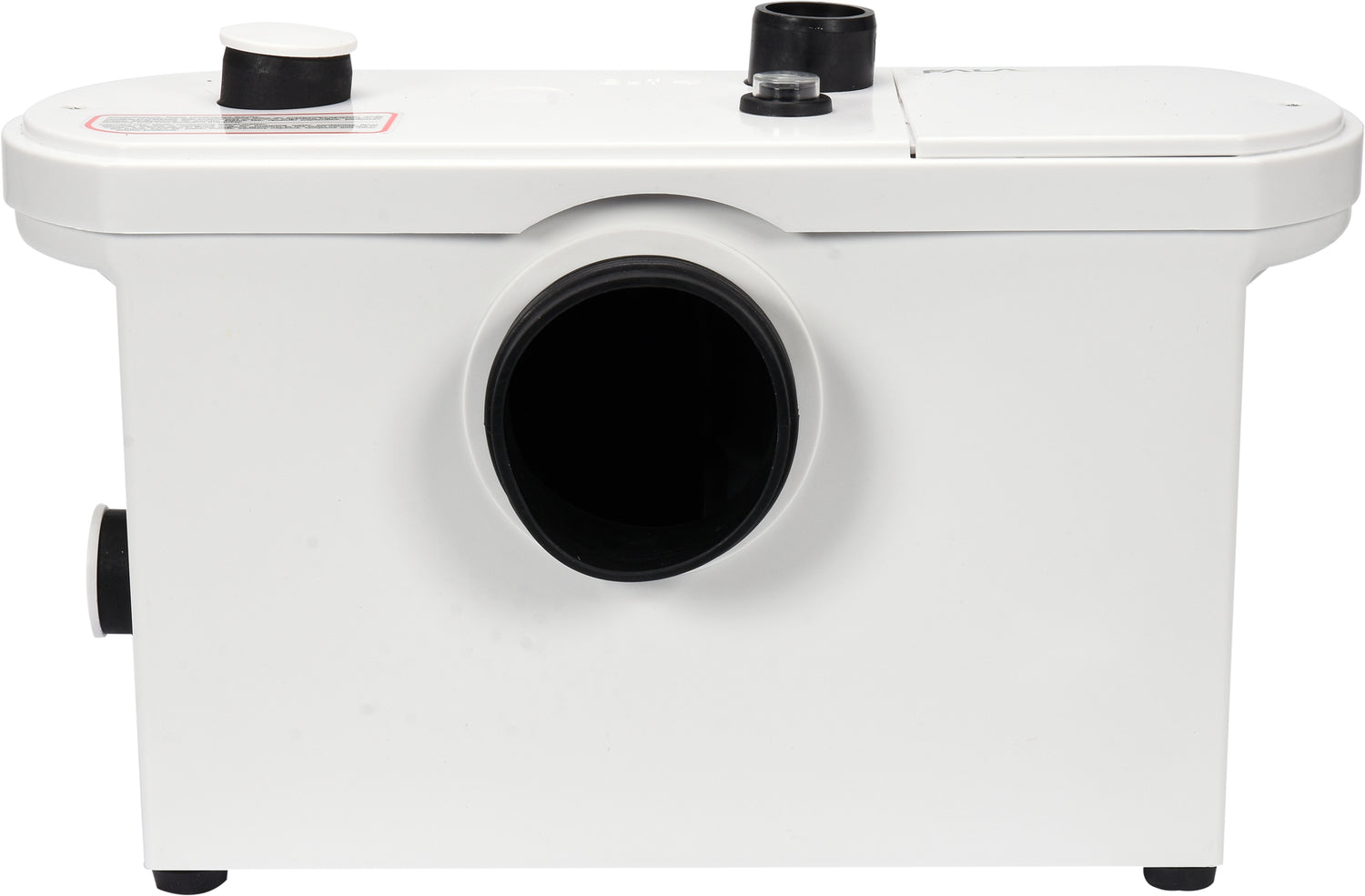

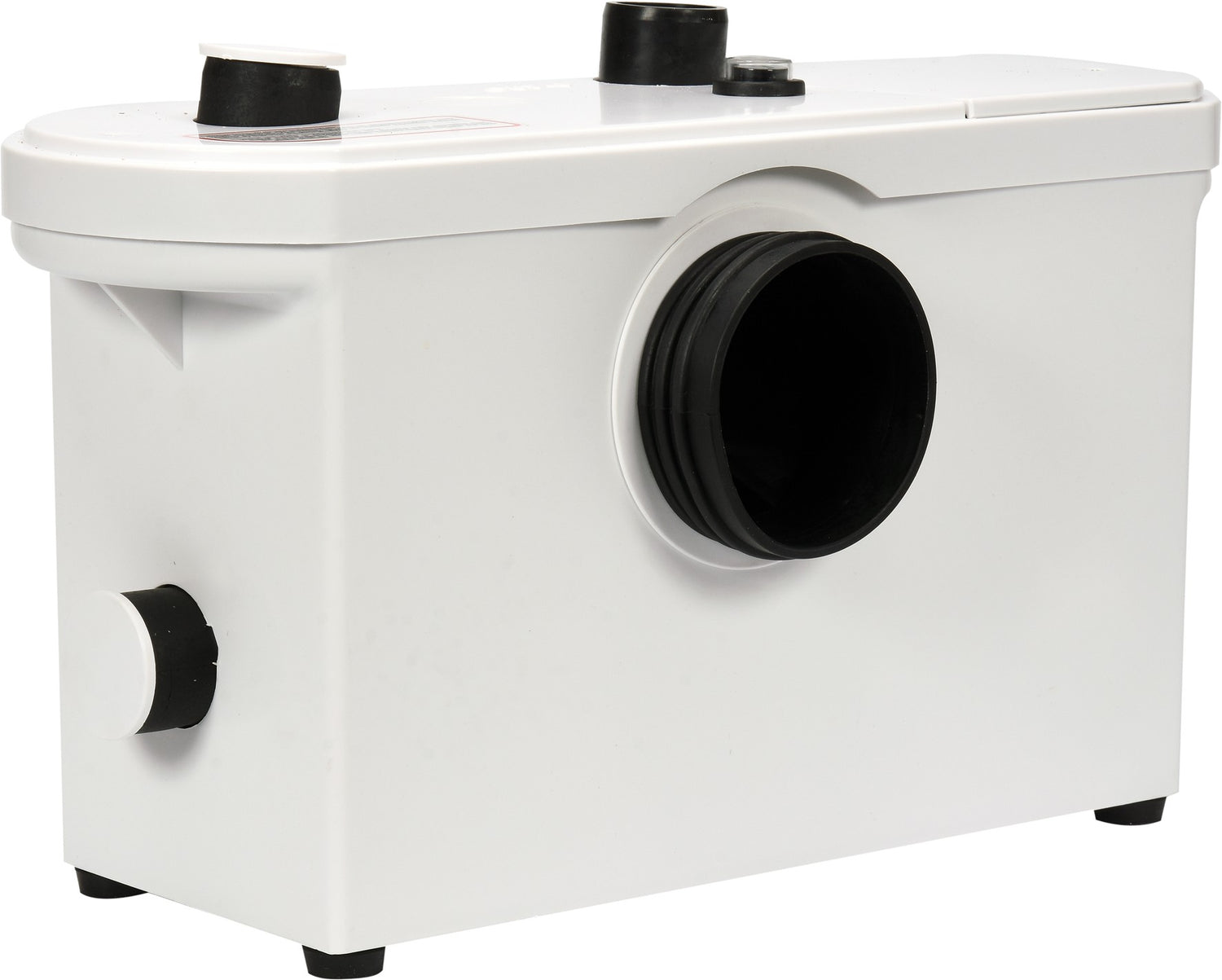

SEWAGE PUMP 600W (75951)

An efficient sanitary pump with a shredder equipped with a silent 600 W motor.

reliable pneumatic switch, which guarantees precise control of the device's operation for many years
built-in flap check valve
possibility of connecting the inlet from the side and from the top
fully automatic pump operation
small dimensions make the pump fit behind every traditional WC compact
the possibility of connecting two additional devices, e.g. a dishwasher, sink, bidet, washing machine and even a low shower tray or bathtub

Technical parameters:
Power: 600 W
Rotational speed: 3000 RPM
Max. flow: 140 l / min
Max. lifting height: 6.5 m
Max. water temperature: 45oC
Voltage: 230 V ~ 50 Hz
Degree of protection: IPX4
Number of inputs: 3 (100 mm and 2 x 40 mm)

Purpose / use
Rooms in the household without the technical possibility of connecting sanitary facilities to the gravitational sanitary sewer - cellars, attics, wardrobes and other rooms processed for sanitary purposes.

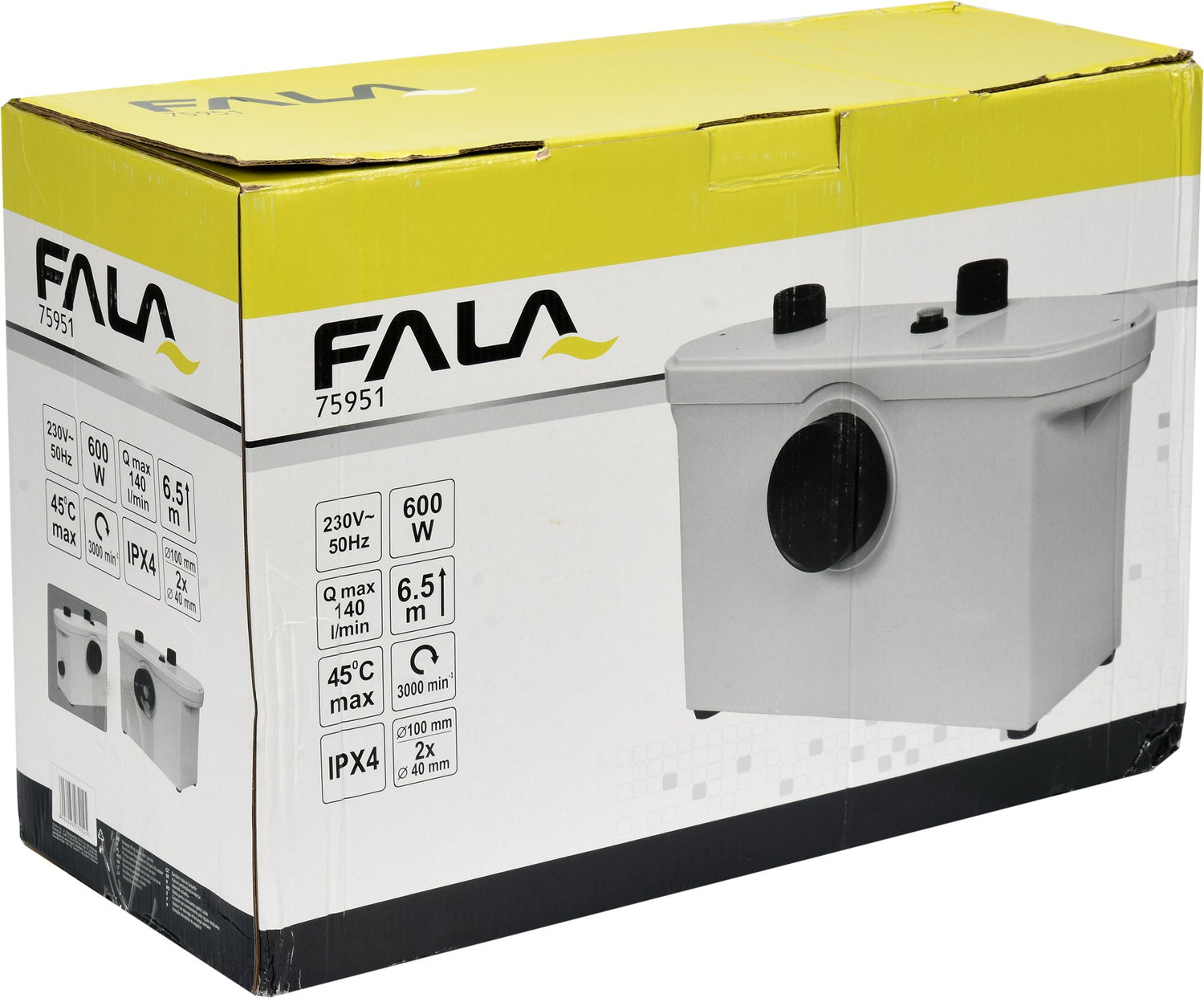

Contents of the package
* pump with built-in check valve
* 4 clamp clamps
* 3 end caps
* electric wire ended with a plug
* Warranty Card
* instruction
Technical data
Index number 75951
EAN 5906083034145
Brand wave
Maximum Lifting height [m] 6.5
Degree of protection [IP] X4
Maximum efficiency [dm3 / h] 8400
Power [W] 600

VOLTAGE: 230V~50HZ; MOTOR POWER: 600W; MAX. CAPACITY: 140L/MIN; VERTICAL PUMPING: MAX. 6.5M; HORIZONTAL PUMPING: MAX. 65M; PIPE CONNECTION: 22-32MM; INLETS: WC +2; MAX.AMBIENT TEMPERATURE: 40 C; CABLE: H05VV-F3G0.75MM2*2; DIMENSIONS: 52*22*35CM; MATERIALS OF MOTOR COVERS: ALUMINUM CASTING, GOOD HEAT DISSIPATION, GOOD CONCENTRICITY; LONG LIFETIME; SEPARATELY NEAT CONNECTING BOX FOR INNER WIRES; SEPARATE SMALL COVER WINDOW FOR EASY REPAIRING
