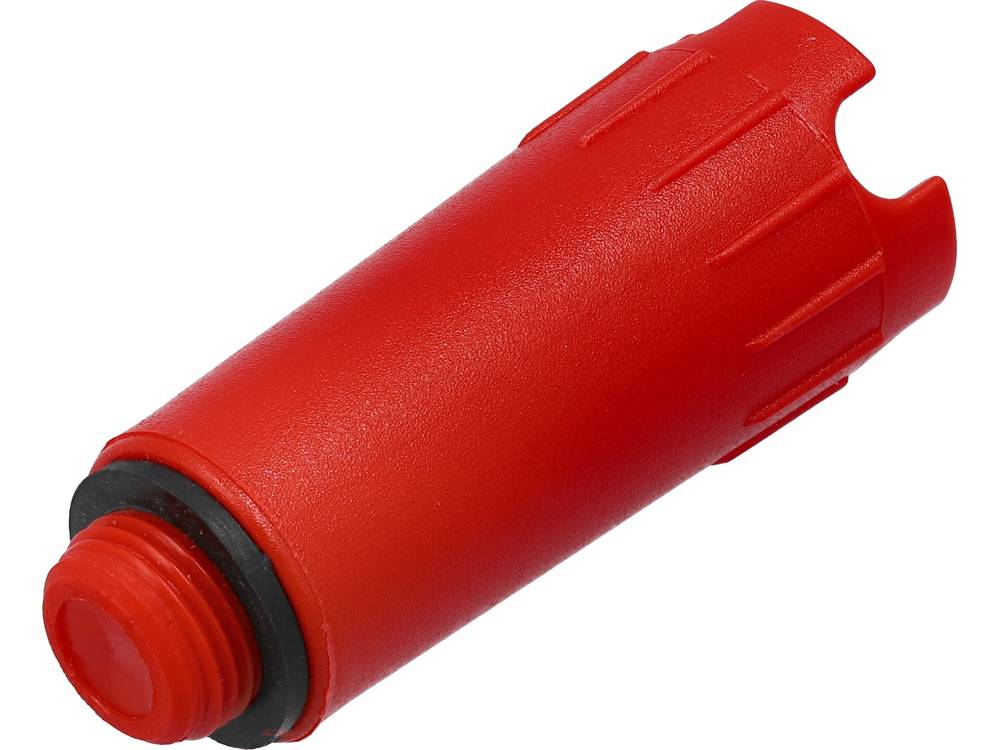

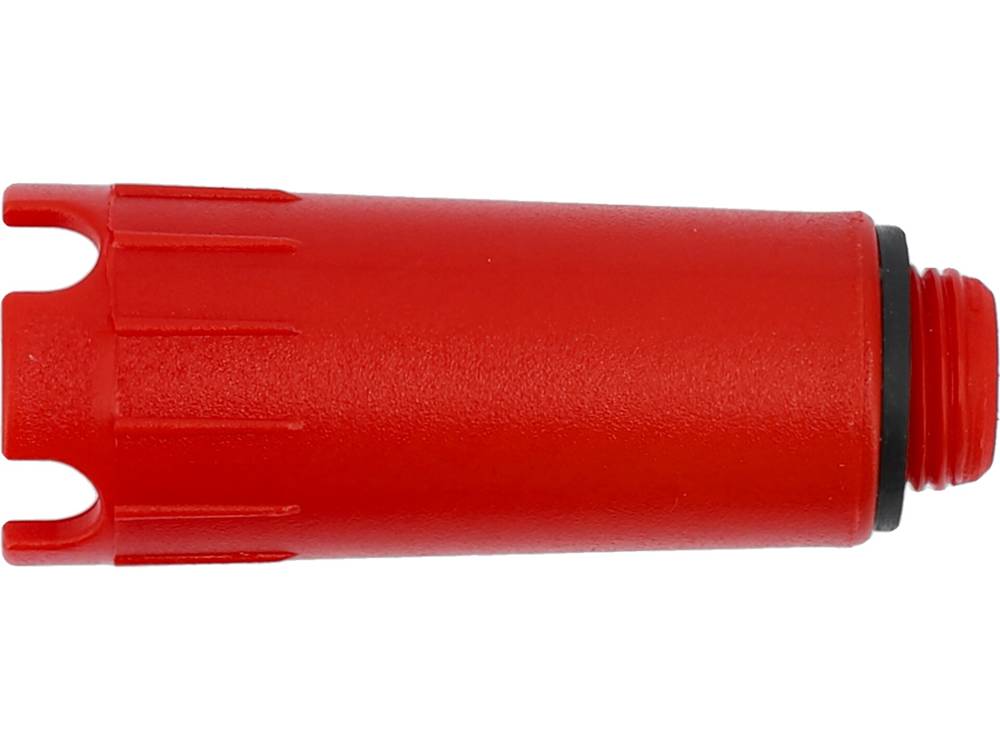

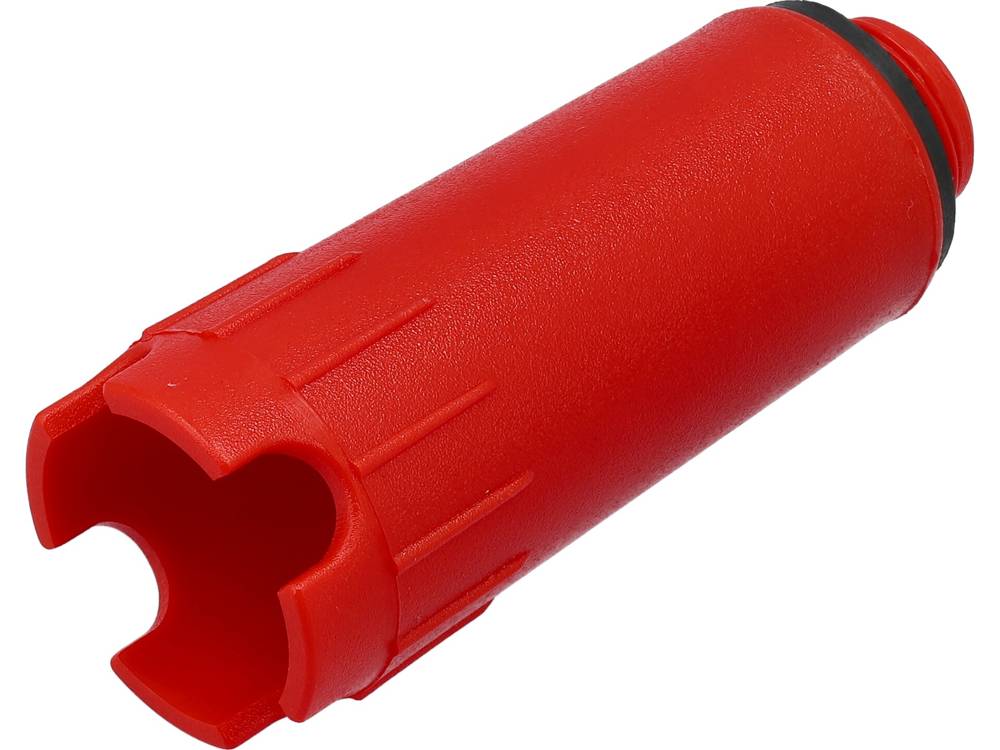

SEALING PLUG RED 1/2" (54901)

HYDRAULIC PLUG, INSTALLER 1/2" WITH GASKET RED
Brand
Vorel
Symbol
54901
Series
GRE
Material
PP
Application
temporary plugging of threaded holes in central heating (CH) and domestic water (DH) installations,
Operating temperature range
-45 ~ +120 C
Length
88mm
Thread size
G1/2
Color
red (for hot water)
Weight
20 5% g
Working pressure
12 bar
Diameter
35 5% mm
Thread type
cylindrical, inch
Application continued
used, for example, when performing a leak test, necessary before commissioning the above installations
Min diameter
305% mm
The plug is used for temporary sealing of threaded holes in central heating (CH) and domestic water (DH) installations. Used, for example, when performing a leak test, which is necessary before starting the installation. The appropriate length and corrugated surface that limits hand slippage allow for convenient sealing of pipes and fittings, as well as easy assembly and disassembly without the use of any tools. Equipped with a rubber gasket.

thread diameter: 1/2"
thread type: cylindrical, inch
material: PP (polypropylene)
length: 88mm
maximum diameter: 35 mm +/-5%
minimum diameter: 30mm +/-5%
color: red (for hot water)
maximum working pressure: 12 bar
temperature range from -45 to 120oC
