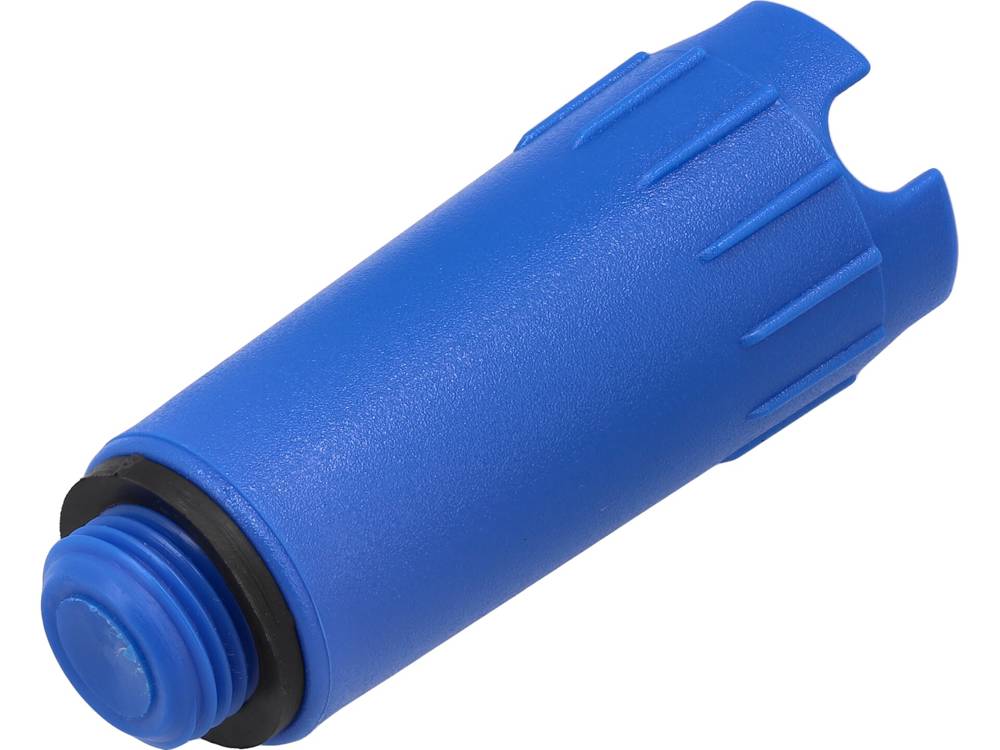

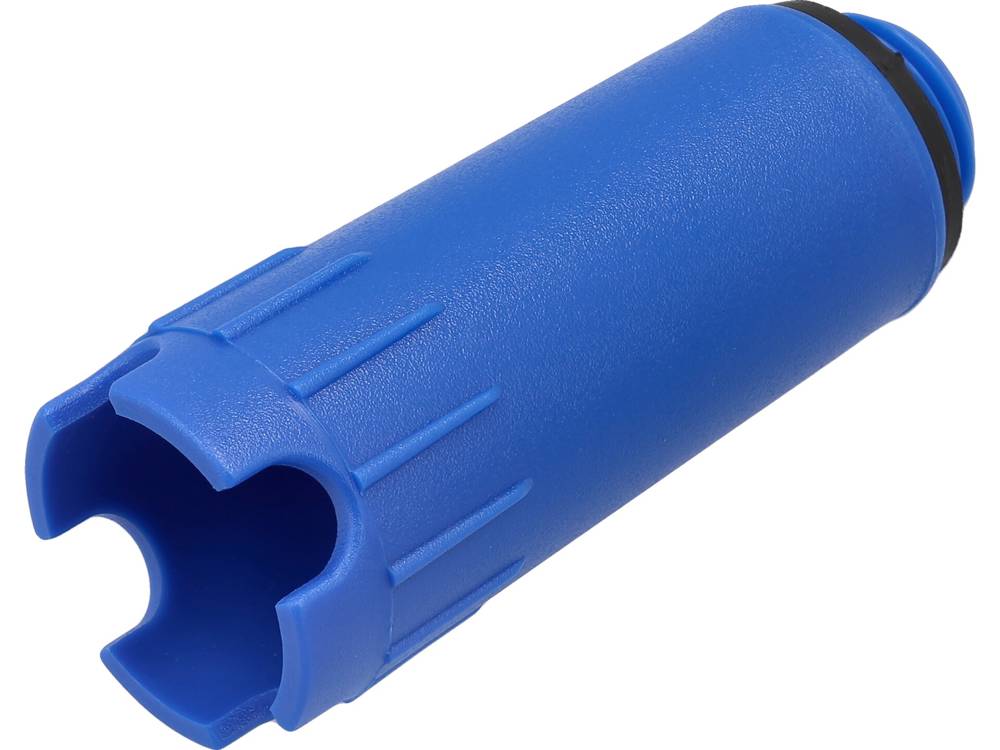

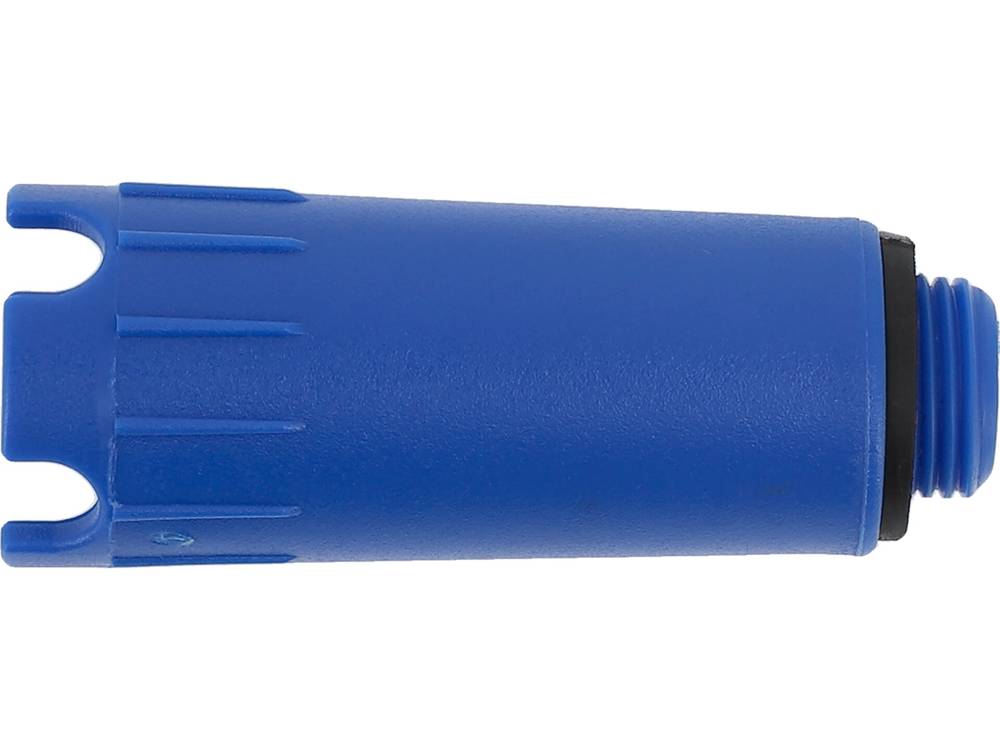

SEALING PLUG BLUE 1/2" (54900)

HYDRAULIC PLUG, INSTALLER 1/2" WITH GASKET BLUE
Mark
Vorel
Symbol
54900
Series
GRE
Material
PP
Application
temporary plugging of threaded holes in central heating (C.O.) and domestic water (W.U.) installations,
Operating temperature range
-45 ~ +120 C
Length
88mm
Thread size
G1/2
Color
blue (for cold water)
Mass
20 5% g
working pressure
12 bar
diameter
35 5% mm
Thread type
cylindrical, inch
Application continued
used, for example, when carrying out a leak test, necessary before commissioning the above installations
min diameter
305% mm
The plug is used for temporary plugging of threaded holes in central heating (C.O.) and domestic water (W.U.) installations. Used, for example, when carrying out a leak test, necessary before starting the installation. The appropriate length and corrugations limiting the slip of the hand enable convenient plugging of pipes and fittings as well as easy assembly and disassembly without the use of any tools. Equipped with a rubber gasket.

thread diameter: 1/2"
thread type: cylindrical, inch
material: PP (polypropylene)
length: 88mm
maximum diameter: 35 mm +/-5%
minimum diameter: 30mm +/-5%
color: blue (for cold water)
maximum working pressure: 12 bar
temperature range from -45 to 120oC
