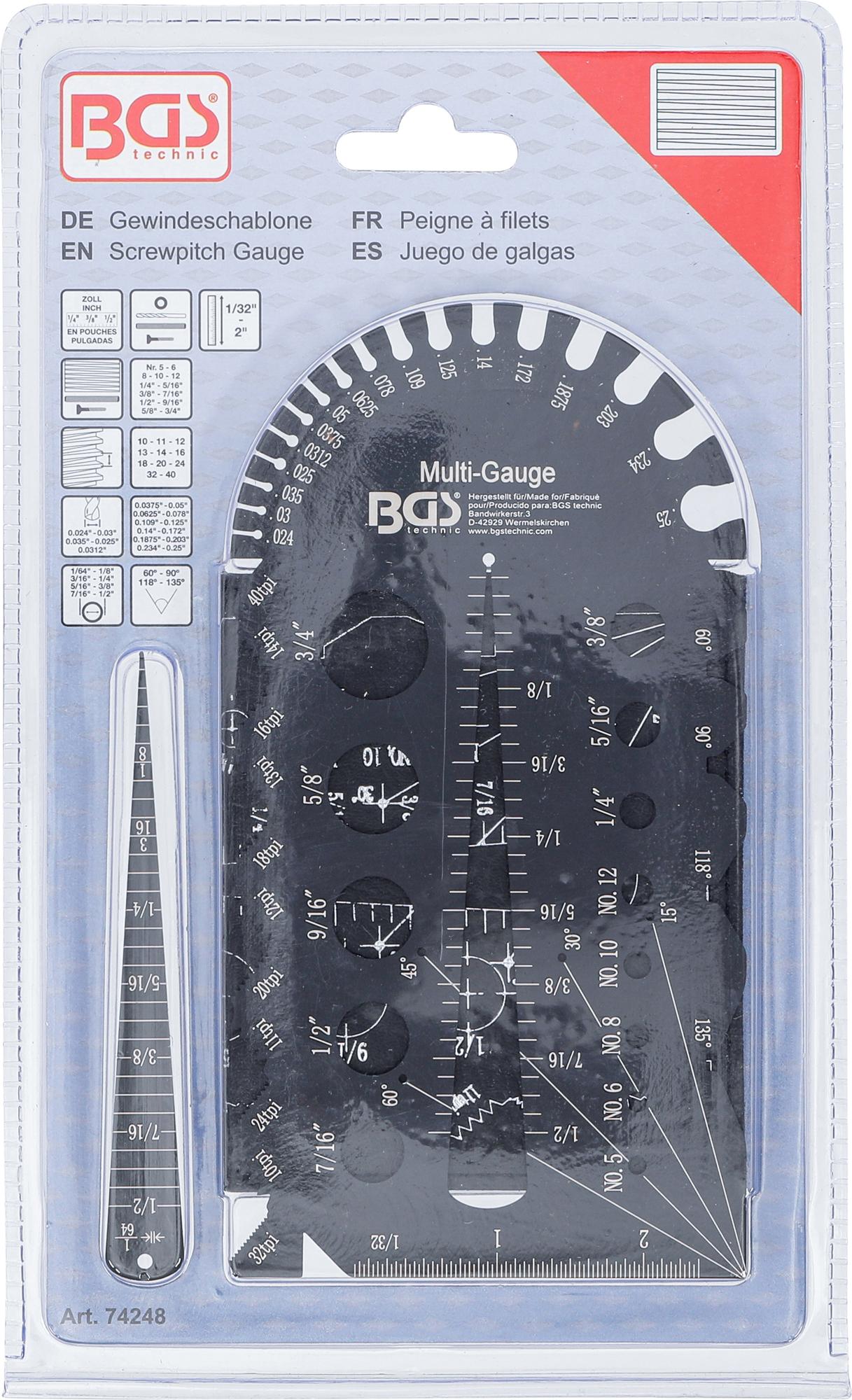

SCREWPITCH GAUGE AND THREAD TEMPLATE | INCH SIZES | 1/4 - 2" (74248)

useful helper that should not be missing in any toolbox
for fast and accurate determination of dimensions of screws, bolts, drills, washers and other round materials

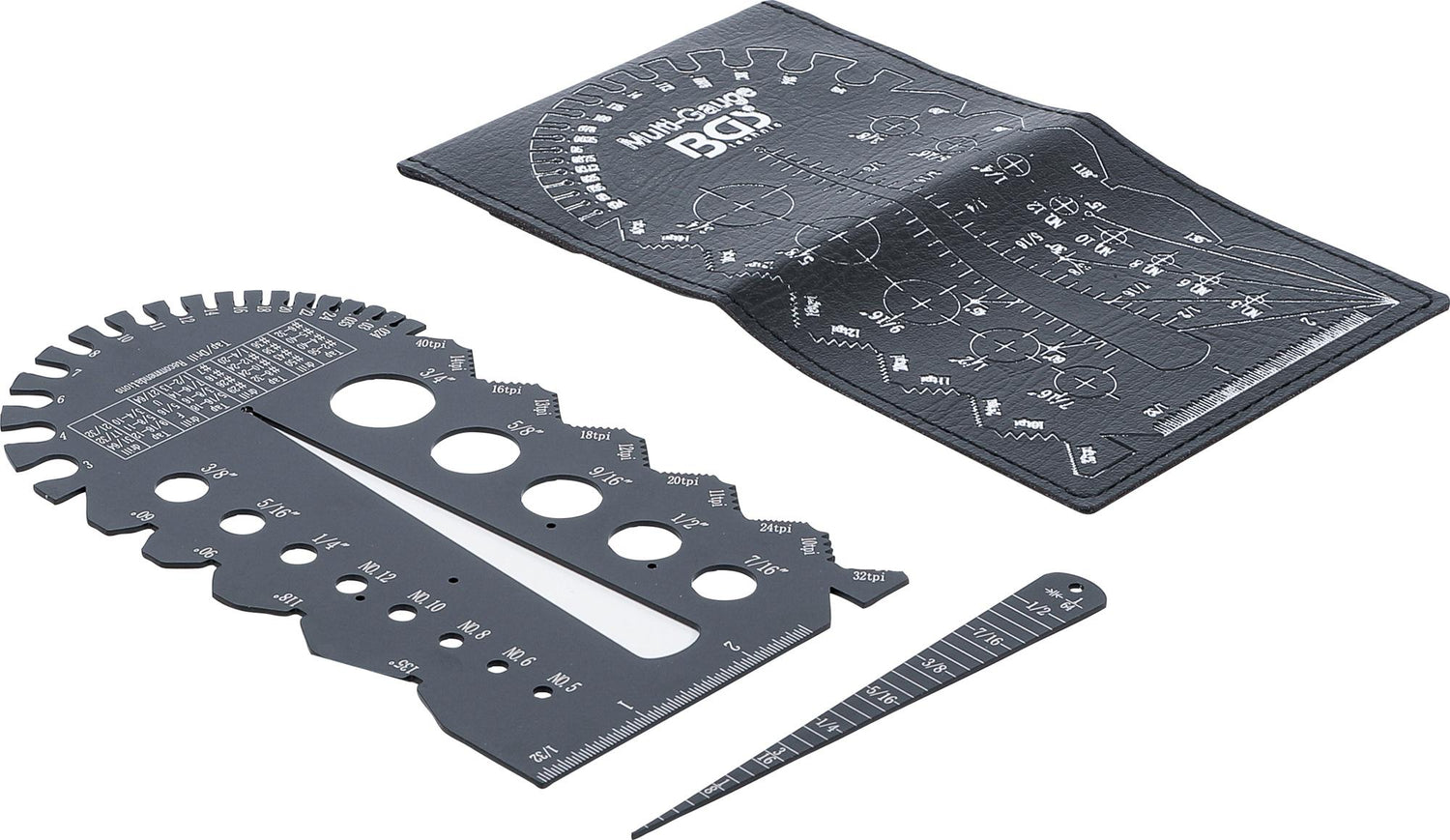

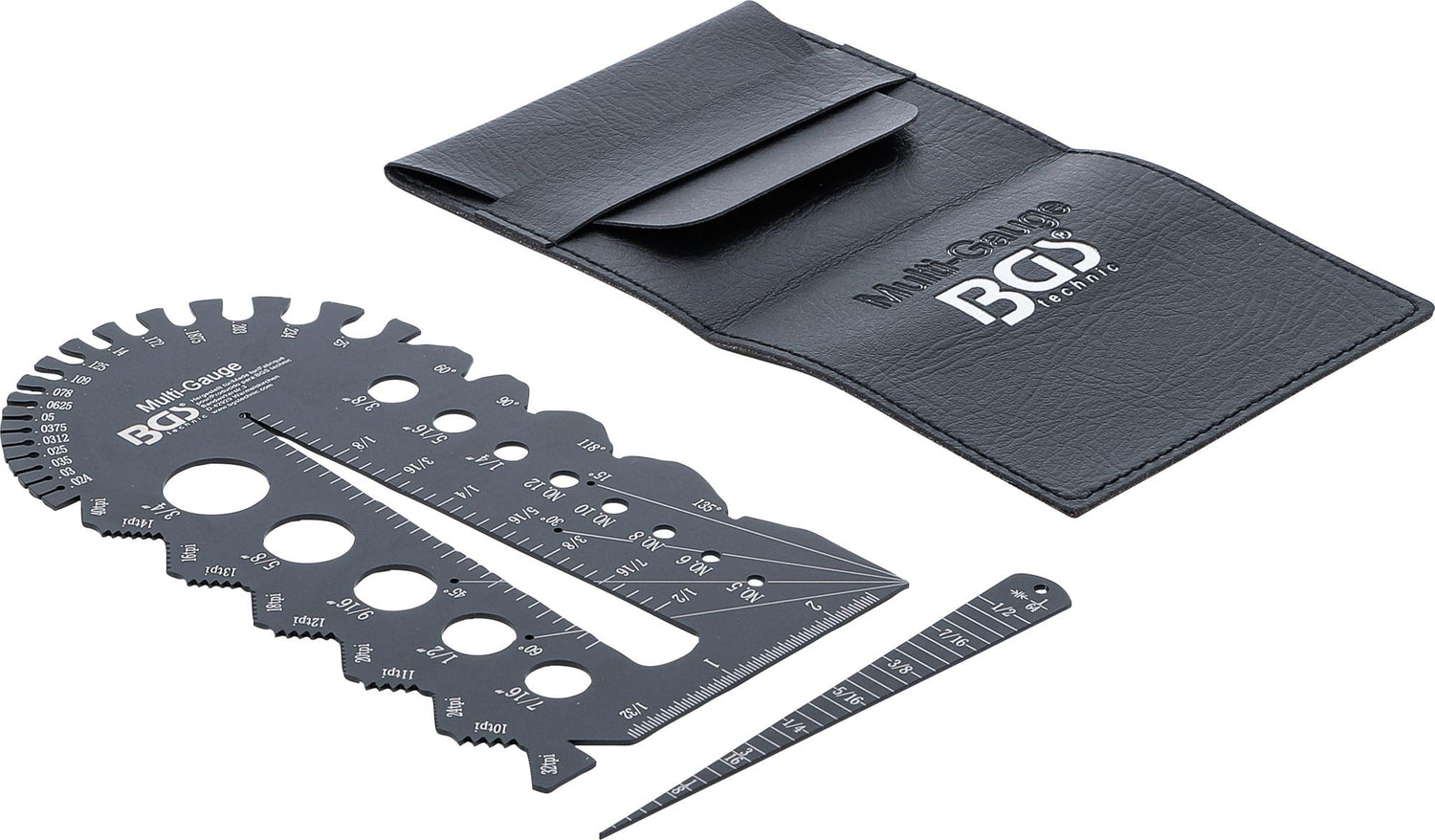

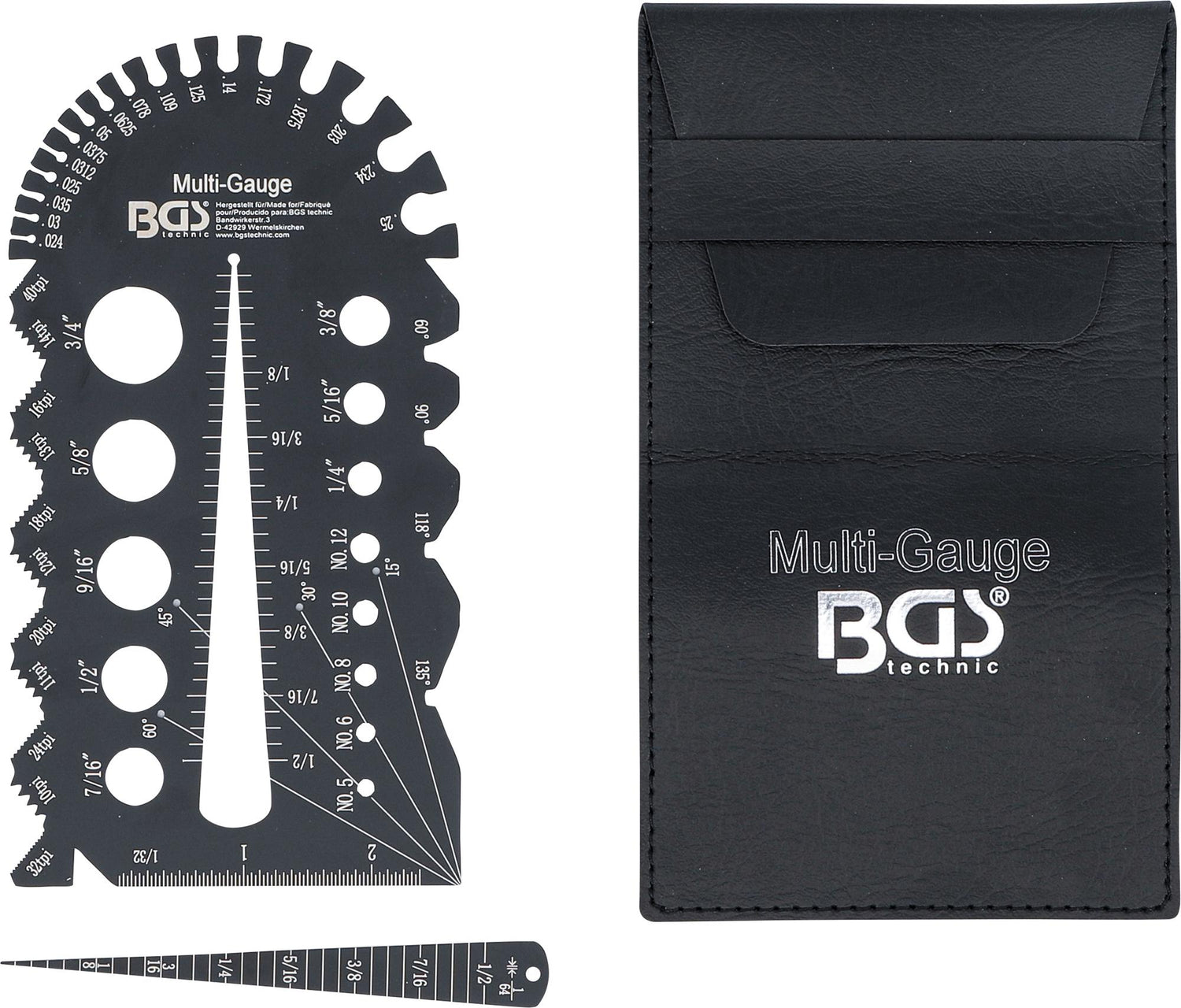

multifunctional tool in manageable size and flat card format
for use in the workshop for vehicle repairs where corresponding sizes must be determined exactly

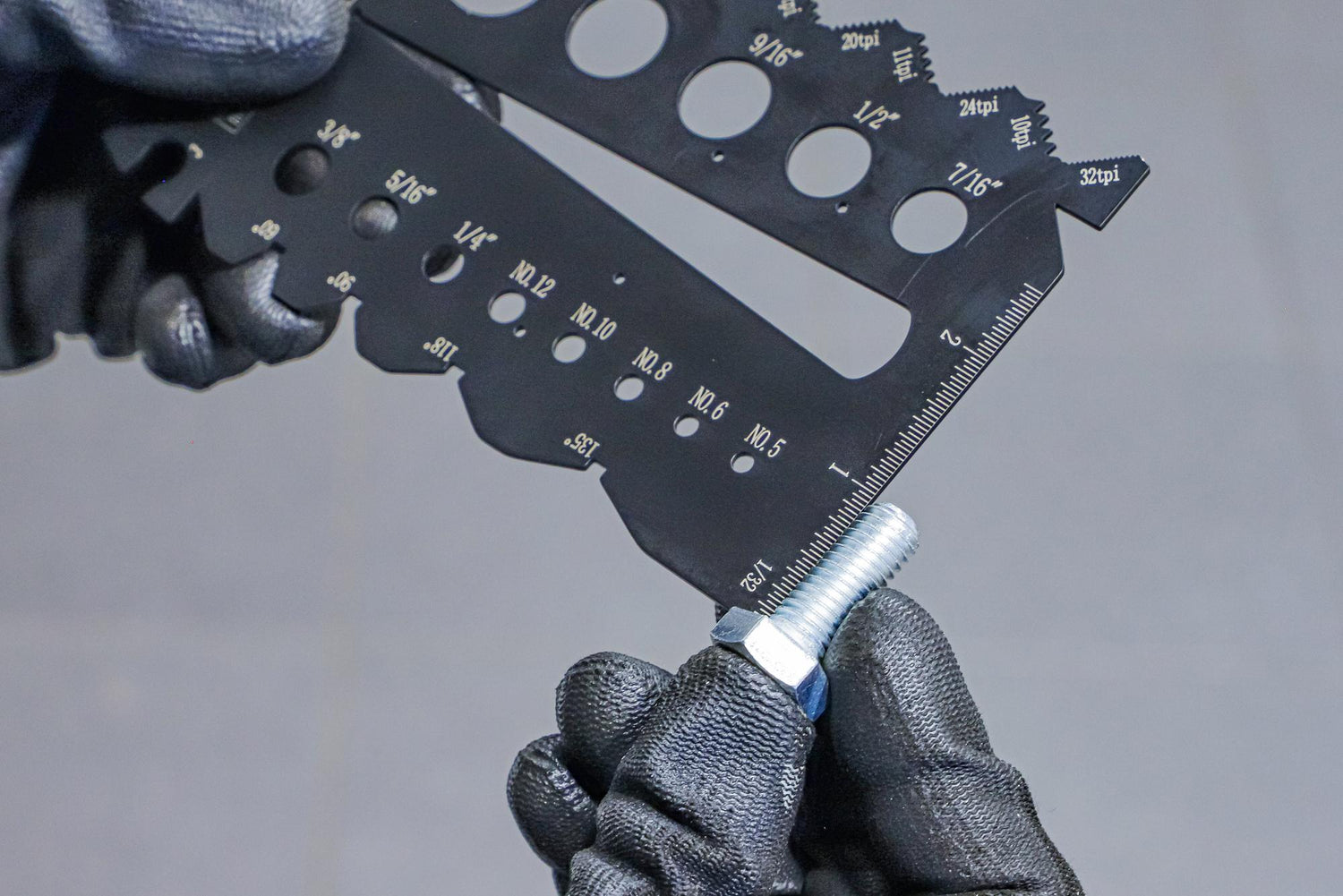

thread size on screws and bolts: no. 5 - 6 - 8 - 10 - 12 and 1/4 - 5/16 - 3/8 - 7/16 - 1/2 - 9/16 - 5/8 - 3/4"

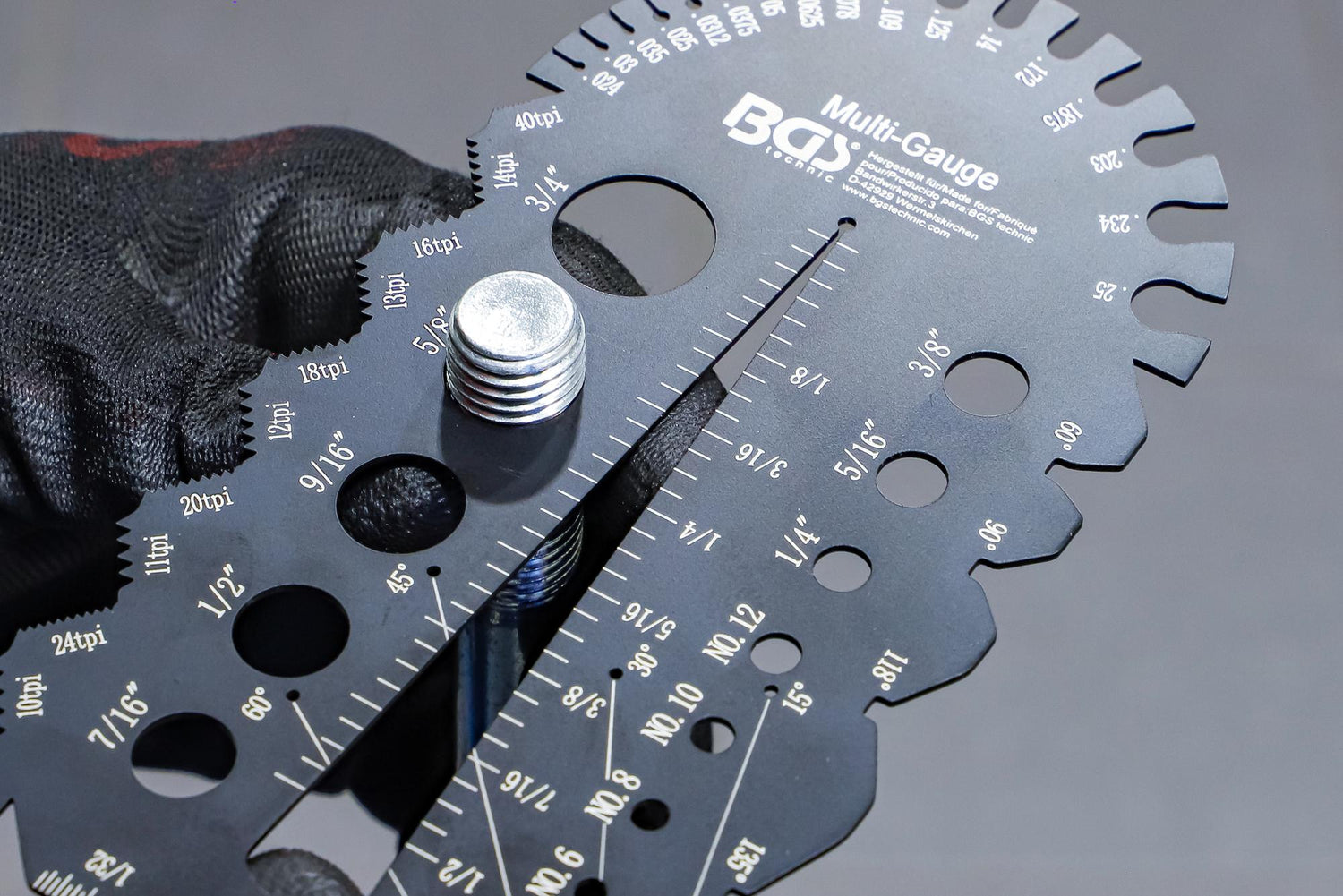

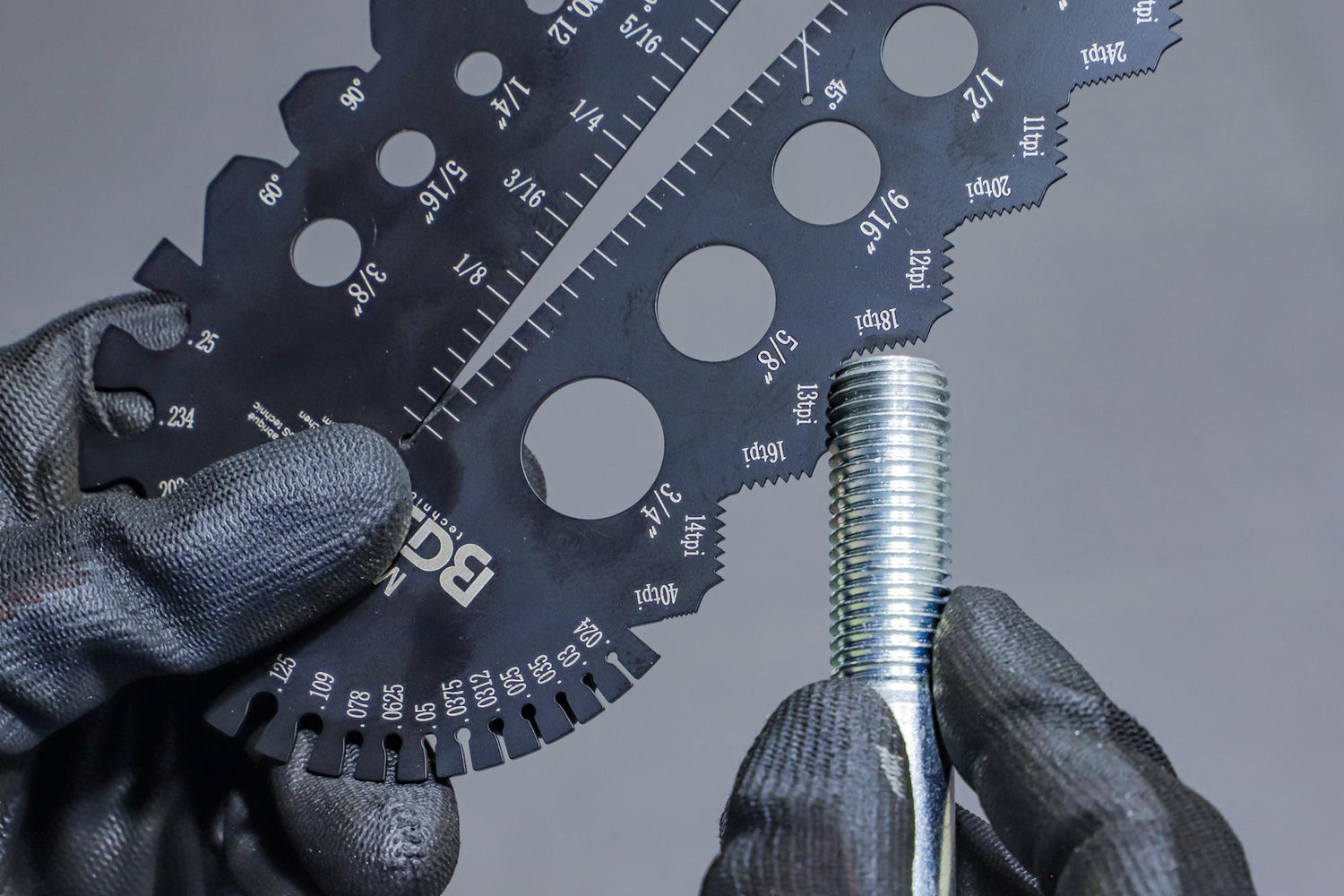

thread pitches on screws and bolts: 10 - 11 - 12 - 13 - 14 - 16 - 18 - 20 - 24 - 32 - 40
diameter of drills: 0.024 - 0.03 - 0.035 - 0.025 - 0.0312 - 0.0375 - 0.05 - 0.0625 - 0.078 - 0.109 - 0.125 - 0.14 - 0.172 - 0.1875 - 0.203 - 0.234 - 0.25"

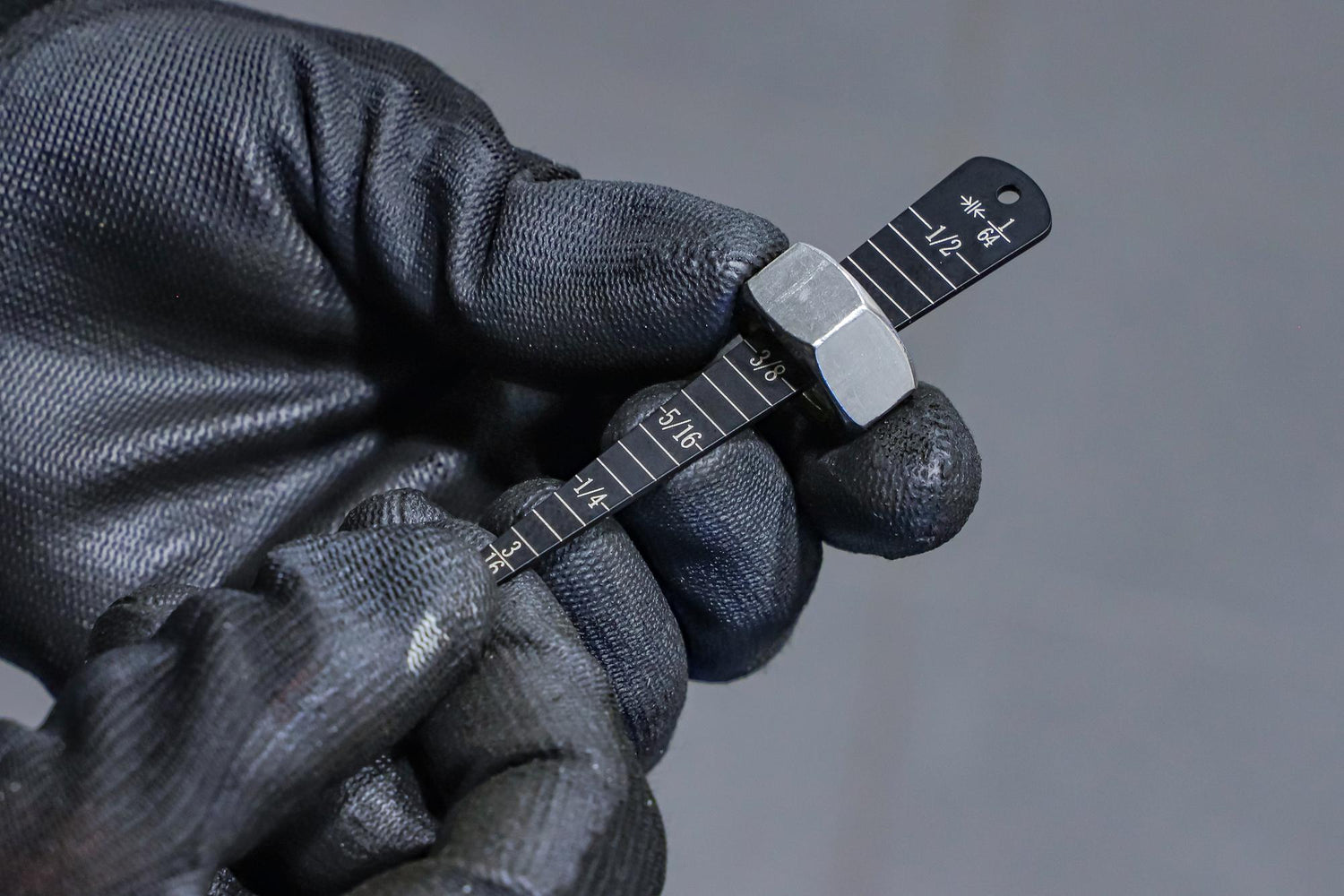

inner diameter of holes and outer diameter of round materials: 1/64 - 1/8-3/16 - 1/4 - 5/16 - 3/8 - 7/16 - 1/2" (1/64" subdivision)
measurement of lengths: 1/32" - 2"
angle measurement: 60 - 90 - 118 - 135
Technical data
Packaging suitable for wall hangingYes
Gross weight186 g
