ROLLER CABINET W. TOOLS 211PCS (YT-55290)

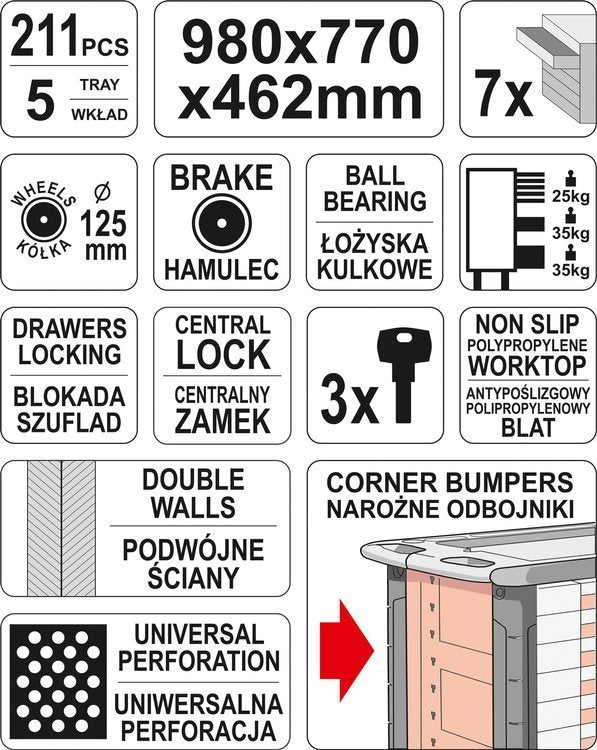

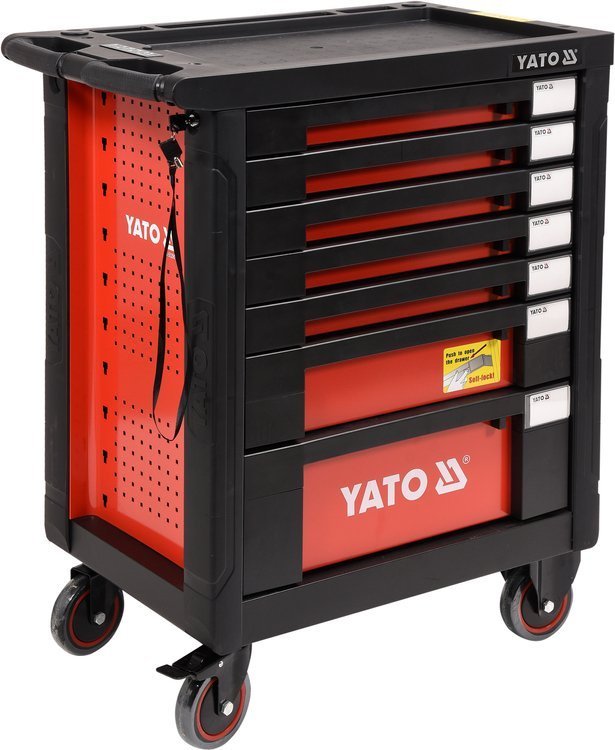

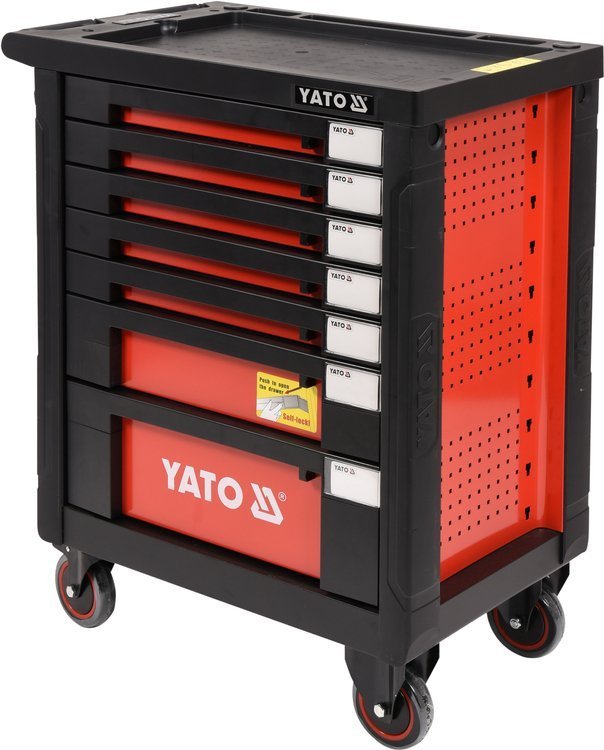

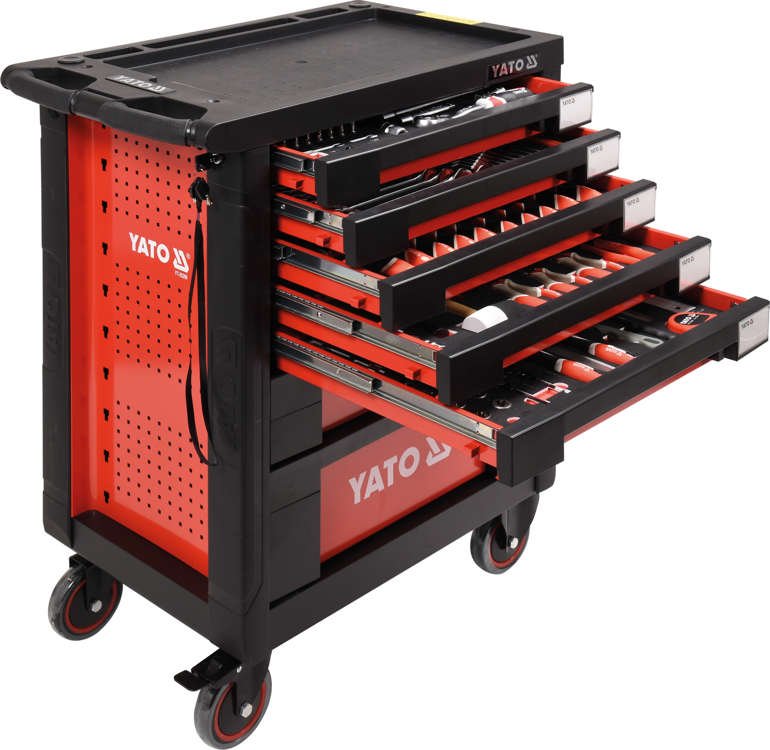

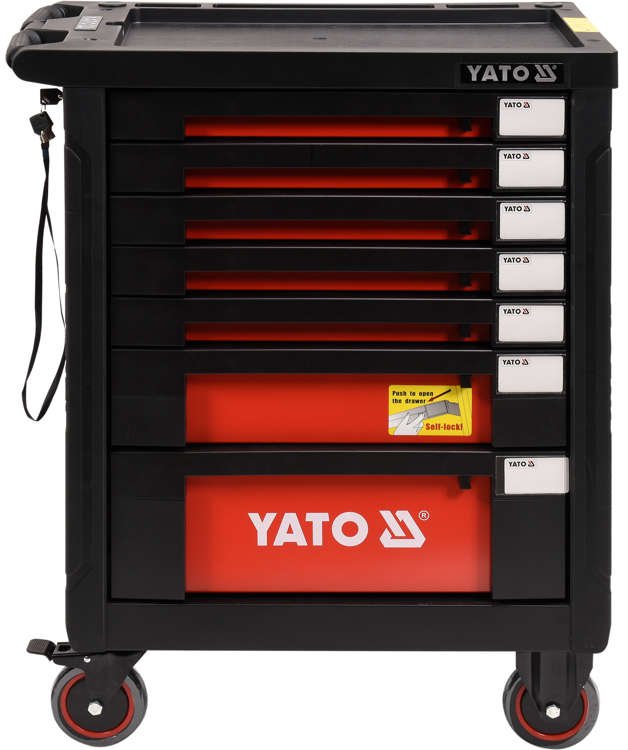

The YATO YT-55290 professional tool cabinet with a non-slip polypropylene top has external dimensions of 980x770x462mm and is made of double sheet steel. The maximum load capacity of the top is 420kg. The cabinet has 7 drawers mounted on ball-bearing slides. The 5 upper drawers have a maximum load capacity of 25kg each, and the 2 lower drawers have a maximum load capacity of 35kg. The cabinet is secured by a central lock, and each drawer is also individually lockable. The set includes 3 keys. It features a comfortable side handle. It is mounted on 4 rubber (PVC) 125mm wheels, 2 of which are swiveling and equipped with brakes. The perforated cabinet walls allow for the attachment of other desired elements. Protective corners on the cabinet prevent accidental scratches to vehicles.

The cabinet comes with 5 YATO tool trays made of EVA foam. In total, the set includes 211 tools and their parts. The tools are precisely calibrated, made of durable chrome vanadium and chrome molybdenum steel (CrV50 | CrV50BV30 | CrV6140 | CrV6150 | AISI S2 | CrMo), suitable for high-intensity use. The set includes a combination wrench set, plier and screwdriver sets, 1/2", 1/4" hexagonal HEX and TORX socket sets, extensions, 72-tooth reversible ratchets with ergonomic non-slip handles, universal (cardan) joints, a tap and die set, and other components. The AS-Drive system sockets increase the maximum torque by 25% and do not damage nut heads. This configuration of professional tools is suitable for assembly work, car repair, and other tasks at home or in a workshop.

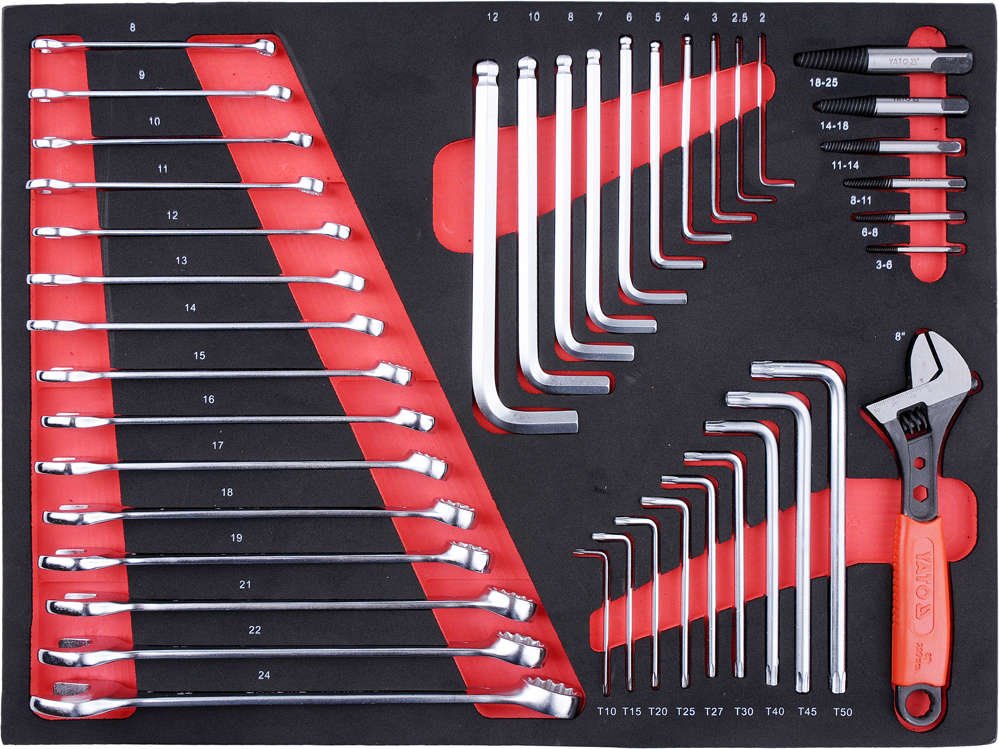

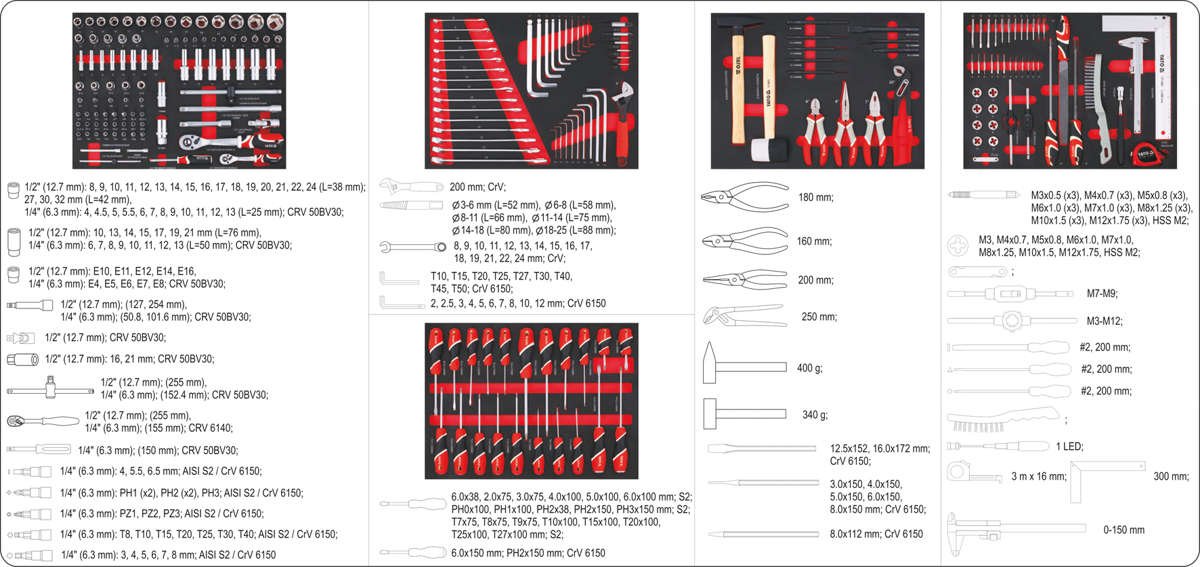

1 x YATO tool tray No. 1 | wrench and spanner set | CrV | 41PCS.

- 15 x combination wrenches: 8mm | 9mm | 10mm | 11mm | 12mm | 13mm | 14mm | 15mm | 16mm | 17mm | 18mm | 19mm | 21mm | 22mm | 24mm | CrV

- 10 x hexagonal articulated bent HEX wrenches: 2mm | 2.5mm | 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | 10mm | 12mm | CrV6150

- 9 x TORX (star) type bent wrenches: T10 | T15 | T20 | T25 | T27 | T30 | T40 | T45 | T50 | CrV6150

- 6 x screw extractors for damaged screws: Ø3-6mm x 52mm | Ø6-8mm x 58mm | Ø8-11mm x 66mm | Ø11-14mm x 75mm | Ø14-18mm x 80mm | Ø18-25mm x 88mm

- 1 x adjustable wrench | 200mm

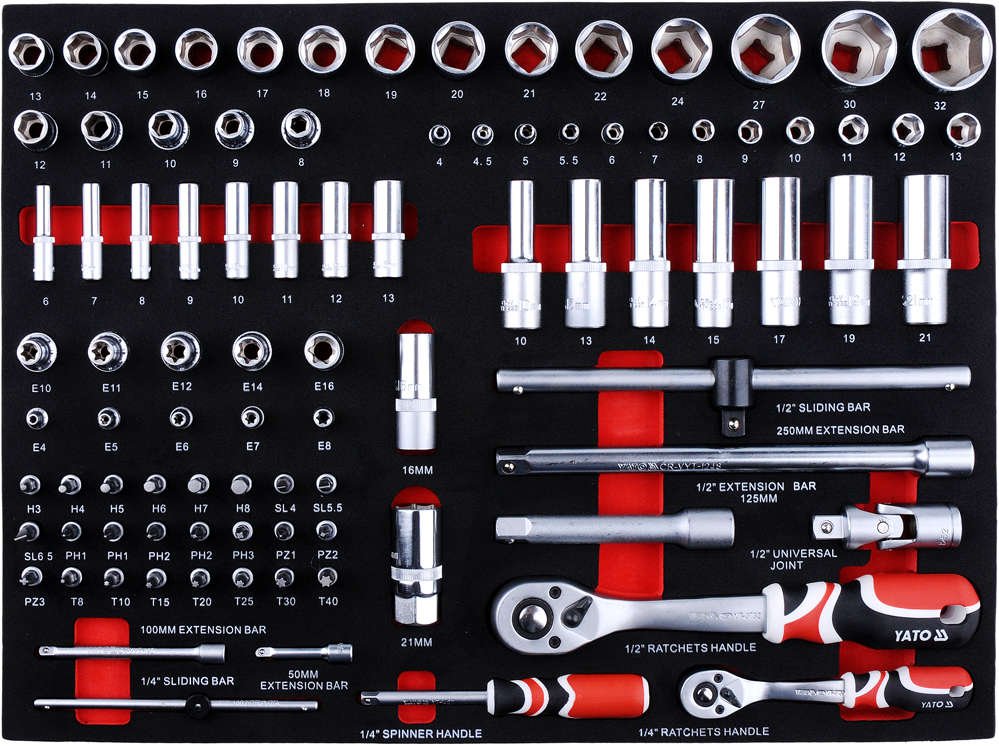

1 x YATO tool tray No. 2 | socket and wrench set | CrV | CrMo | AS Drive | 1/4" | 1/2" | 92PCS.

- 1 x 1/4" curved reversible ratchet with Quick Release function: 155mm | 72T | CrV6140

- 2 x 1/4" extensions: 50.8mm | 101.6mm | CrV50BV30

- 1 x 1/4" sliding T-bar: 152.4mm | CrV50BV30

- 1 x 1/4" bit driver | 150mm | CrV50BV30

- 12 x 1/4" 25mm hexagonal HEX AS-Drive sockets: 4mm | 4.5mm | 5mm | 5.5mm | 6mm | 7mm | 8mm | 9mm | 10mm | 11mm | 12mm | 13mm | CrV50BV30

- 8 x 1/4" 50mm long hexagonal HEX AS-Drive sockets: 6mm | 7mm | 8mm | 9mm | 10mm | 11mm | 12mm | 13mm | CrV50BV30

- 5 x 1/4" 25mm TORX type sockets: E4 | E5 | E6 | E7 | E8 | CrV50BV30

- 1 x 1/2" curved reversible ratchet with Quick Release function: 255mm | 72T | CrV6140

- 2 x 1/2" extensions: 127mm | 254mm | CrV50BV30

- 1 x 1/2" sliding T-bar: 255mm | CrV50BV30

- 1 x 1/2" universal joint (Universal Joint) | CrV50BV30 |

- 16 x 1/2" 38mm hexagonal HEX AS-Drive sockets: 8mm | 9mm | 10mm | 11mm | 12mm | 13mm | 14mm | 15mm | 16mm | 17mm | 18mm | 19mm | 20mm | 21mm | 22mm | 24mm | CrV50BV30

- 3 x 1/2" 42mm hexagonal HEX AS-Drive sockets: 27mm | 30mm | 32mm | CrV50BV30

- 7 x 1/2" 76mm long hexagonal HEX AS-Drive sockets: 10mm | 13mm | 14mm | 15mm | 17mm | 19mm | 21mm | CrV50BV30

- 5 x 1/2" 25mm TORX type sockets: E10 | E11 | E12 | E14 | E16 | CrV50BV30

- 2 x 1/2" spark plug sockets: 16mm | 21mm | CrV50BV30

- 3 x 1/4" flat pressed bits: 4mm | 5.5mm | 6.5mm | AISI S2 | CrV6150

- 5 x 1/4" Phillips type pressed bits: PH1x2 | PH2x2 | PH3 | AISI S2 | CrV6150

- 3 x 1/4" Pozidriv type pressed bits: PZ1 | PZ2 | PZ3 | AISI S2 | CrV6150

- 7 x 1/4" TORX type pressed bits: T8 | T10 | T15 | T20 | T25 | T30 | T40 | AISI S2 | CrV6150

- 6 x 1/4" HEX type pressed bits: 3mm | 4mm | 5mm | 6mm | 7mm | 8mm | AISI S2 | CrV6150

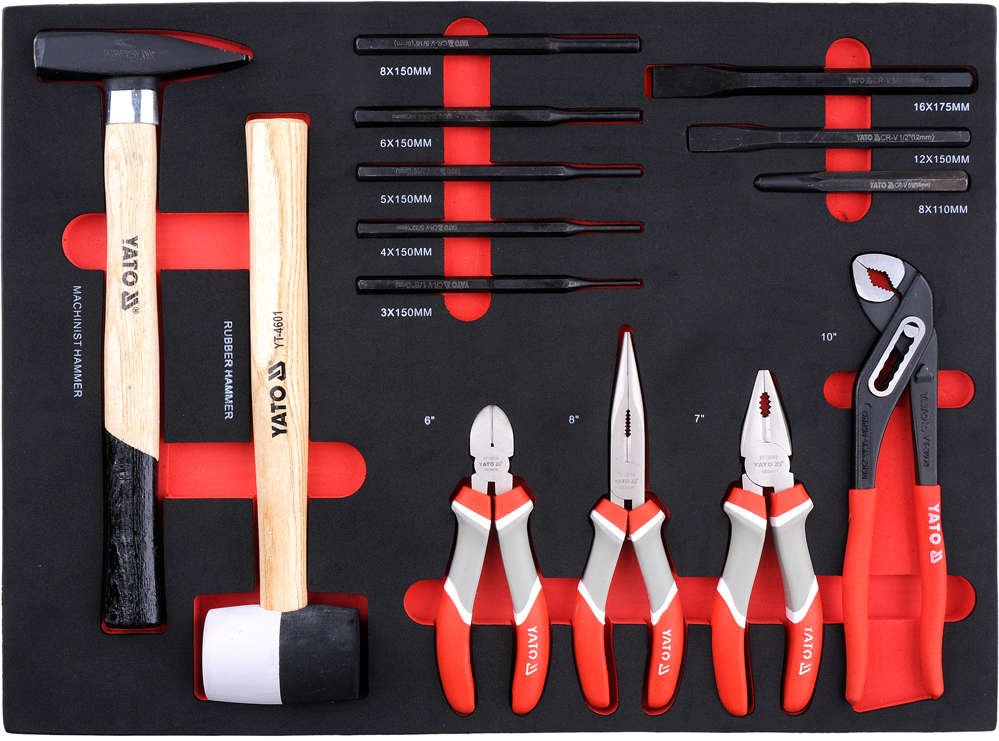

1 x YATO tool tray No. 3 | pliers and striking tools | CrV | 14PCS.

- 1 x combination pliers: 180mm

- 1 x long nose pliers: 200mm

- 1 x diagonal cutting pliers: 160mm

- 1 x water pump pliers: 250mm

- 1 x fitter's hammer: 400g

- 1 x universal rubber hammer: 340g

- 2 x cold chisels: 12.5x152mm | 16x172mm | CrV6150

- 5 x punch sets: 3.0x150mm | 4.0x150mm | 5.0x150mm | 6.0x150mm | 8.0x150mm | CrV6150

- 1 x center punch: 8.0x150mm | CrV6150

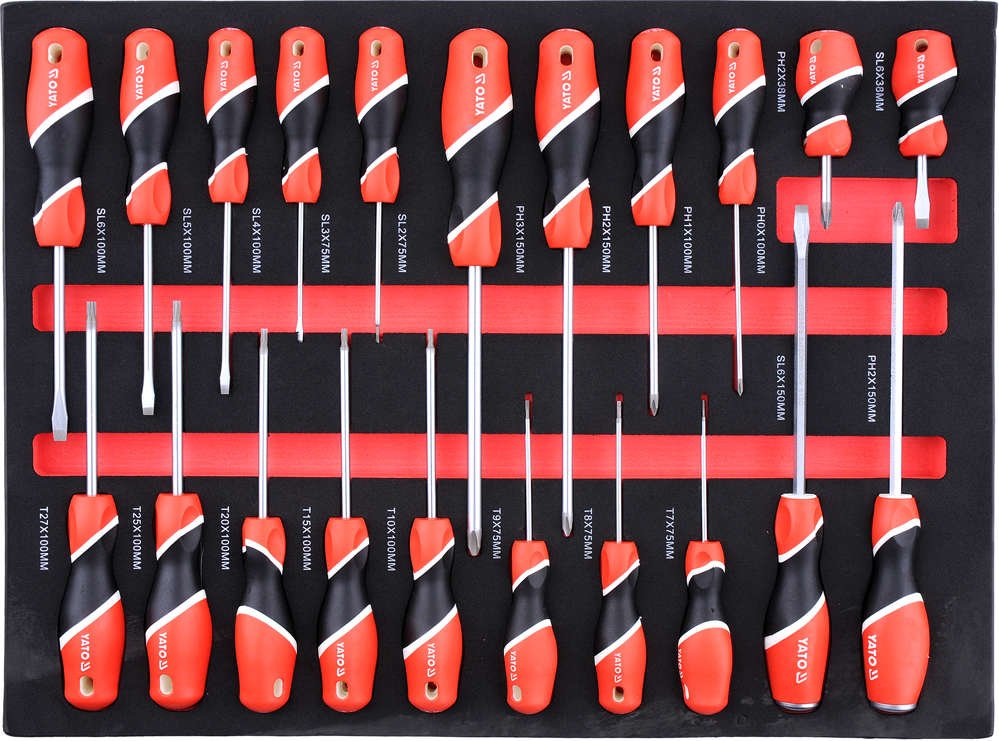

1 x YATO tool tray No. 4 | screwdriver set | CrV | AISI S2 | 21PCS.

- 5 x flat SL type screwdrivers: 2.0x75mm | 3.0x75mm | 4.0x100mm | 5.0x100mm | 6.0x100mm | AISI S2

- 1 x striking flat SL type screwdriver: 6.0x150mm | CrV6150

- 1 x stubby flat SL type screwdriver: 6.0x38mm | AISI S2

- 4 x Phillips cross-head screwdrivers: PH0x100mm | PH1x100mm | PH2x150mm | PH3x150mm | AISI S2

- 1 x striking Phillips cross-head screwdriver: PH2x150mm | CrV6150

- 1 x stubby Phillips cross-head screwdriver: PH2x38mm | AISI S2

- 8 x TORX type (star) screwdrivers: T7x75mm | T8x75mm | T9x75mm | T10x100mmm | T15x100mm | T20x100mm | T25x100mm | T27x100mm | AISI S2

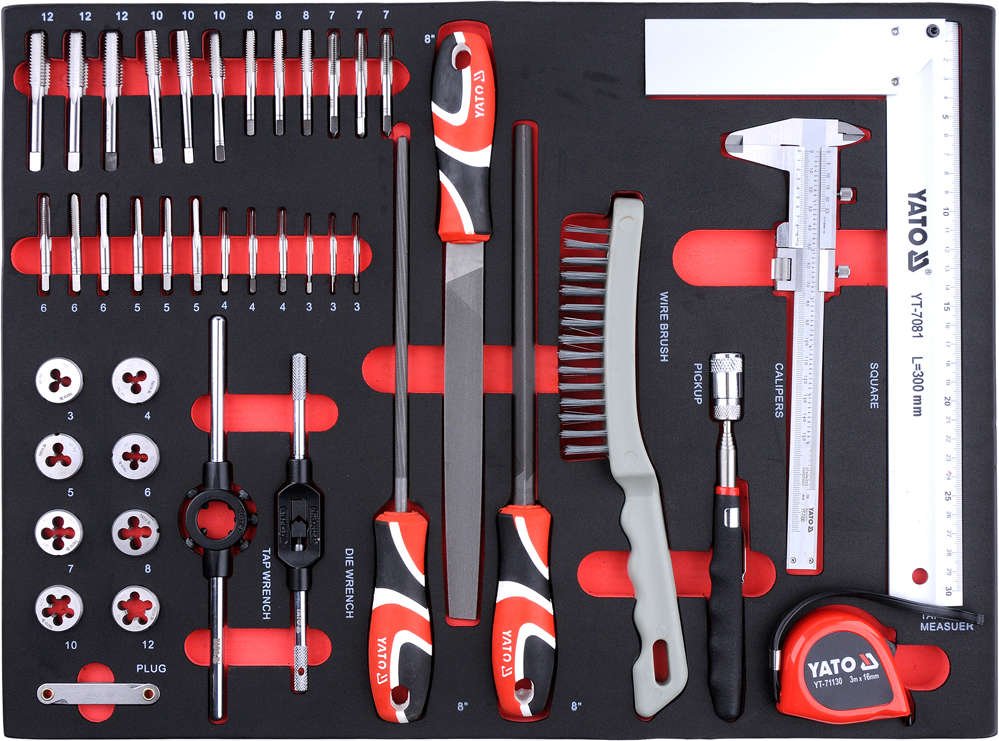

1 x YATO tool tray No. 5 | metalworking tools | HSS M2 | 43PCS.

- 24 x taps: 3xM3x0.5mm | 3xM4x0.7mm | 3xM5x0.8mm | 3xM6x1.0mm | 3xM7x1.0mm | 3xM8x1.25mm | 3xM10x1.5mm | 3xM12x1.75mm | HSS M2

- 8 x dies: M3 | M4x0.7mm | M5x0.8mm | M6x1.0mm | M7x1.0mm | M8x1.25mm | M10x1.5mm | M12x1.75mm | HSS M2

- 1 x feeler gauge

- 1 x tap wrench: M7-M9

- 1 x die stock: M3-M12

- 1 x flat file for metal: #2 | 200mm

- 1 x triangular file for metal: #2 | 200mm

- 1 x round file for metal: #2 | 200mm

- 1 x hand wire brush

- 1 x telescopic magnetic pick-up tool | LED

- 1 x tape measure: 3mx16mm

- 1 x try square: 300mm

- 1 x caliper: 0-150mm

Total weight [kg]: 70.319
