REPAIR KIT FOR GLOW PLUG THREADS | M8 - M9 - M10 - M12 (8653)

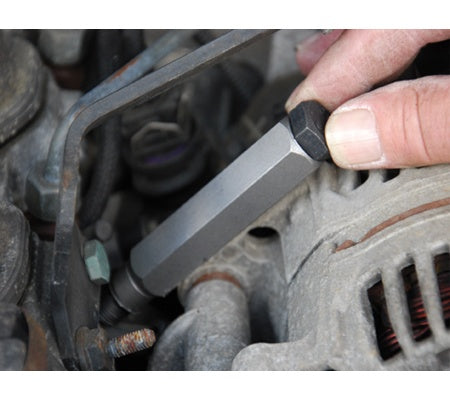

for repairing the glow plug mounting thread in the cylinder head

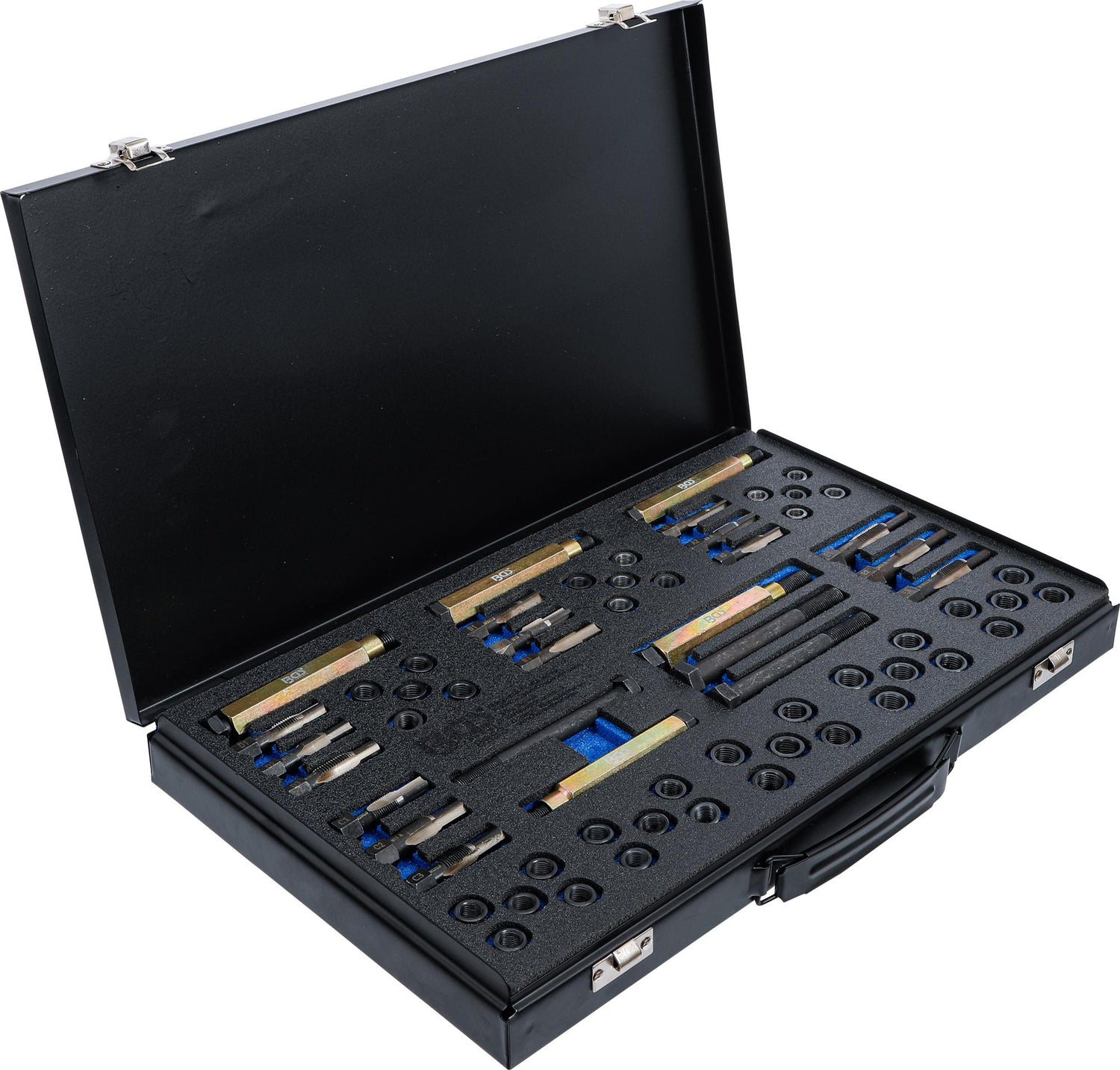

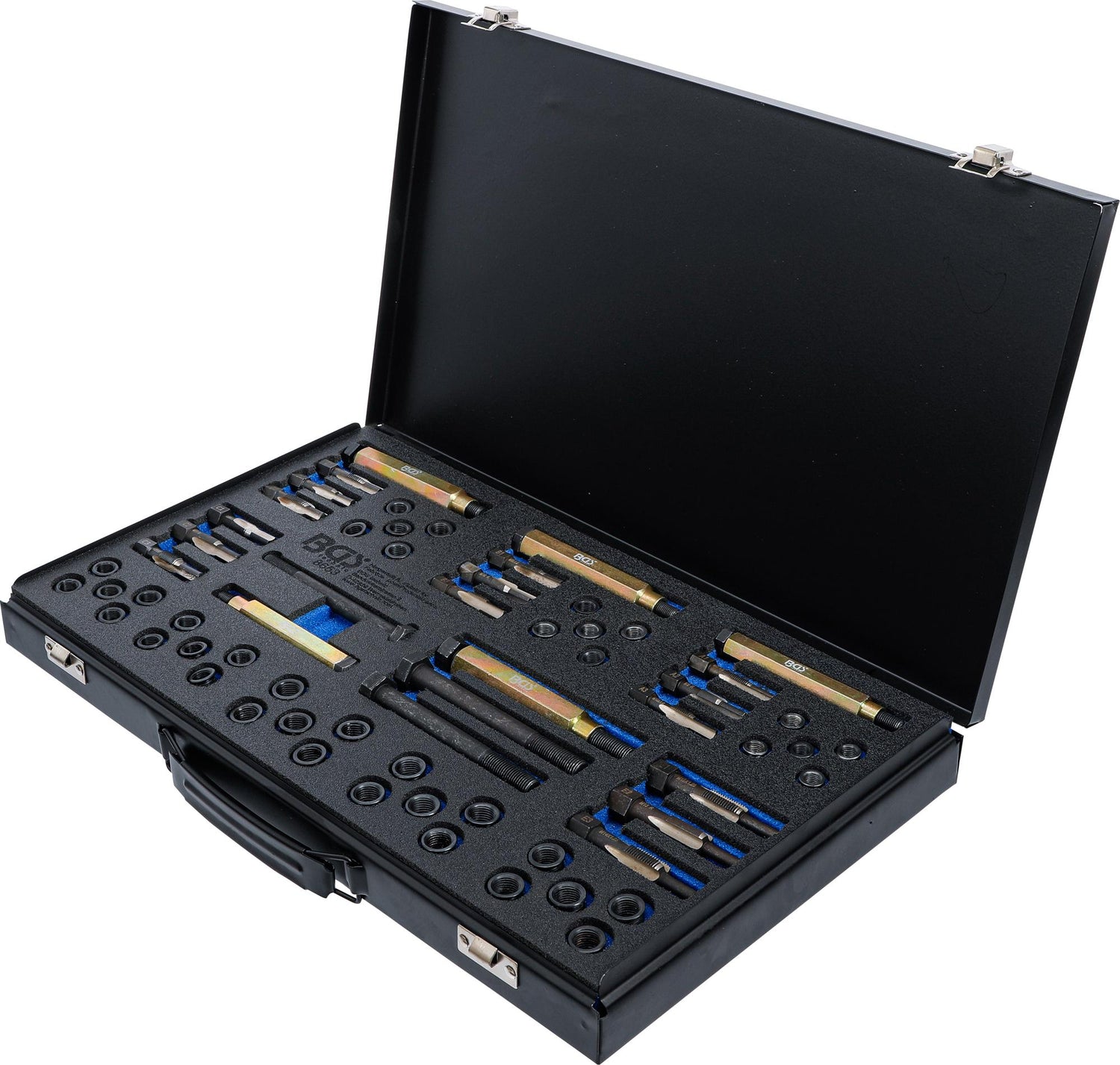

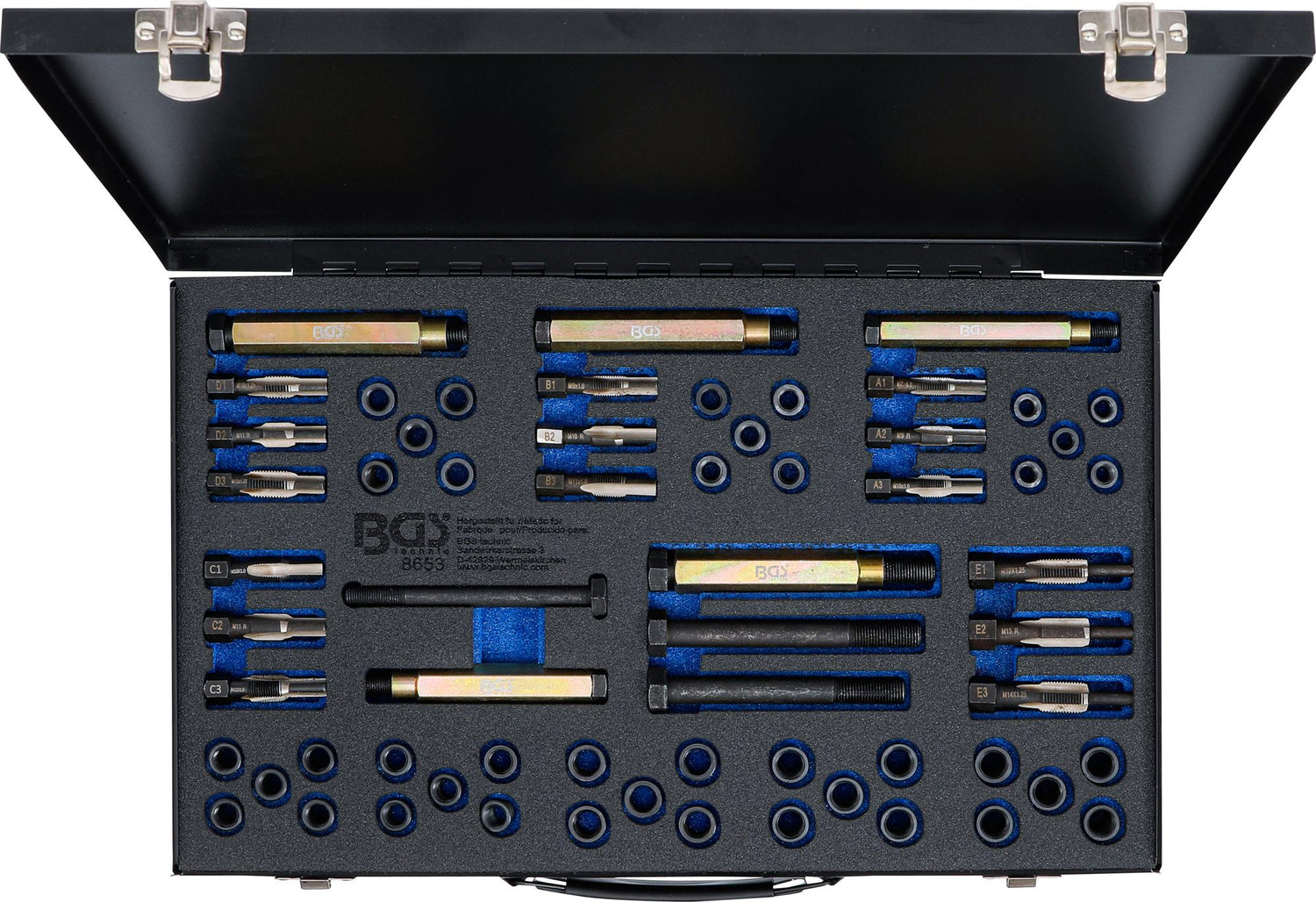

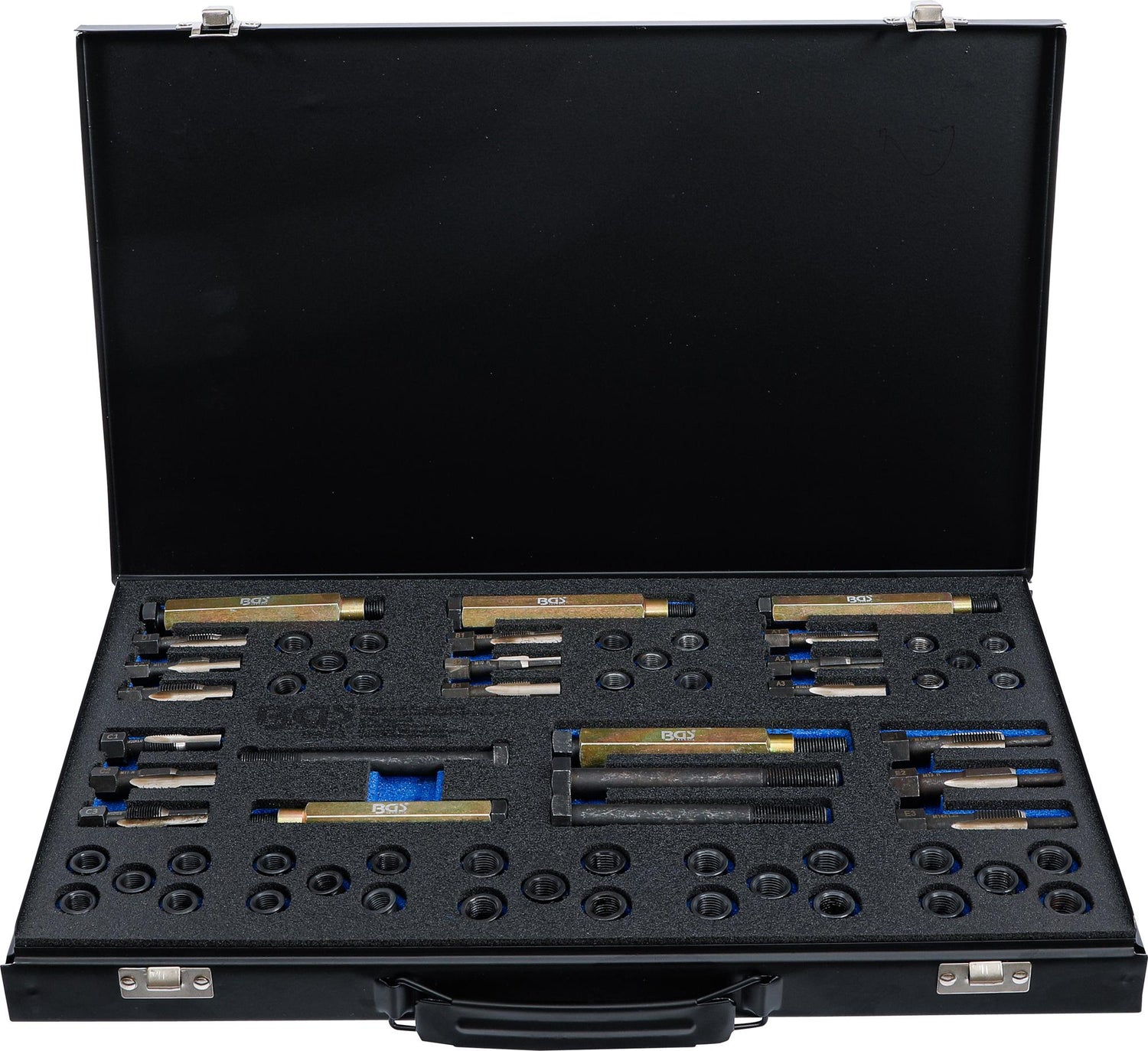

scope of delivery:

5 reamers for reaming the original thread M8 x 1.0 mm - M9 x 1.0 mm - M10 x 1.0 mm - M10 x 1.25 mm - M12 x 1.25 mm
5 taps for threaded sleeves M8 x 1.0 mm - M9 x 1.0 mm - M10 x 1.0 mm - M10 x 1.25 mm - M12 x 1.25 mm
5 taps for trimming the original thread M8 x 1.0 mm - M9 x 1.0 mm - M10 x 1.0 mm - M10 x 1.25 mm - M12 x 1.25 mm
5 assembly tools for inserting the threaded sleeves
5 threaded sleeves M8 x 1.0 mm (11 mm long)
5 threaded sleeves M9 x 1.0 mm (11 mm long)
5 threaded sleeves M10 x 1.25 mm (12 mm long)
5 threaded sleeves M10 x 1.0 mm (12 mm long)
5 threaded sleeves M10 x 1.0 mm (19 mm long)
5 threaded sleeves M12 x 1.25 mm (12 mm long)
5 threaded sleeves M12 x 1.25 mm (19 mm long)
5 threaded sleeves M12 x 1.25 mm (26 mm long)
Technical data
Gross weight2900 g
