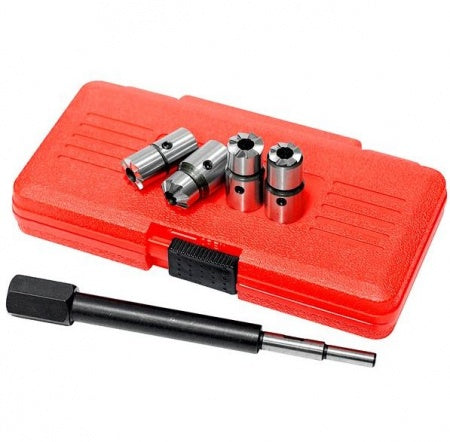

REAMERS FOR DIESEL ENGINES "STAHLBERG" (HK2315A)

IDENTIFY INJECTOR "BLOW-BY" EXISTS
GAIN ACCESS TO THE INJECTORS AND
REMOVE THEM.
SELECT REQUIRED REAMER ONTO PILOT
POST AND TIGHTEN INTERNAL HEX SCREW.
PLACE ASSEMBLED CUTTER INTO INJECTOR
RECESS.
USING THE T BAR AND SOCKET ONLY A
SMALL AMOUNT OF PRESSURE WHILST
TURNING THE CUTTER IN A CLOCKWISE
DIRECTION ONLY. USE A SMALL AMOUNT
OF LIGHT LUBRICANT WHILST PERFORMING
THE CUT TO REDUCE CHATTERING AND HELP
GIVE A FLAT CUT. DO NOT OVER CUT THE
SEAT ONLY REMOVE ENOUGH METAL TO FORM
A GOOD SEAT.
THOROUGHLY CLEAN THE SEAT AND REMOVE
ALL SWARF.
FIT INJECTORS AS PER MANUFACTURERS
INSTRUCTIONS.
KIT CONTENTS:
15MM x 19MM FLAT REAMER FOR UNIVERSAL
INJECTOR.
17MM x 17MM FLAT REAMER FOR DELPHI/BOSCH
INJECTORS (BMW/PSA/RENAULT/FORD).
17MM x 19MM FLAT REAMER FOR BOSCH INJECTORS
(MERCEDES CRD).
17MM x 21MM ANGLE REAMER FOR FIAT/IVECO.
PILOT POST*1.
