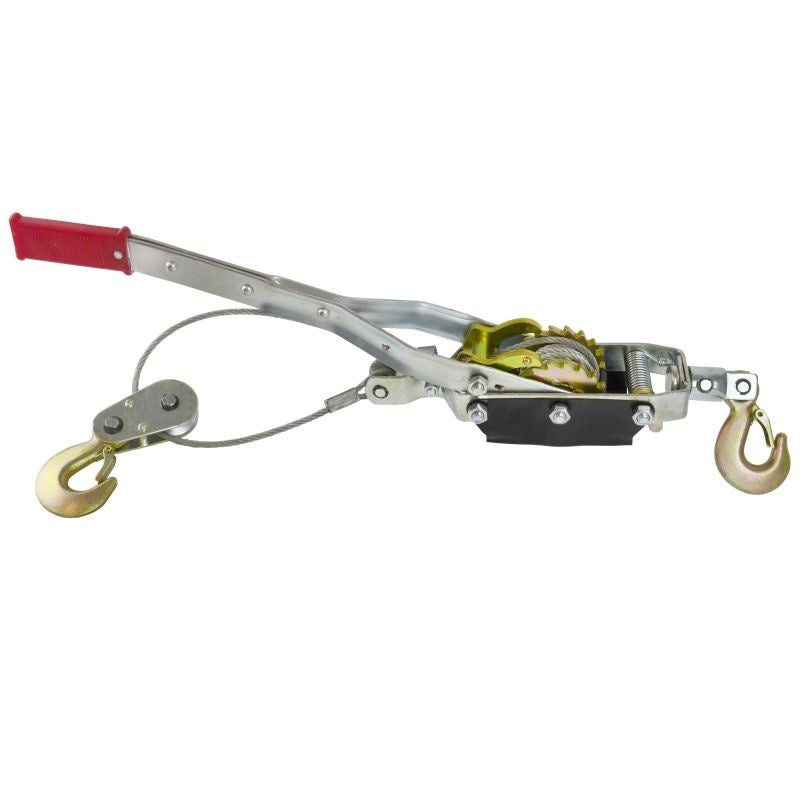

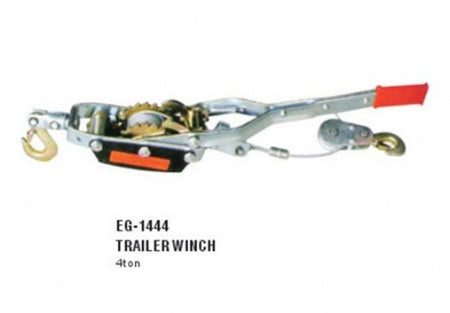

PULLING / TRACTION WINCH | 2 HOOKS | 4 T (EG-1444)

4 ton hand puller
2 Hooks for Lifting, lowering, Pulling or Stretching
Hardened and Galvanized Heavy Gauge Steel
One piece frame construction with heavy duty frame bolts

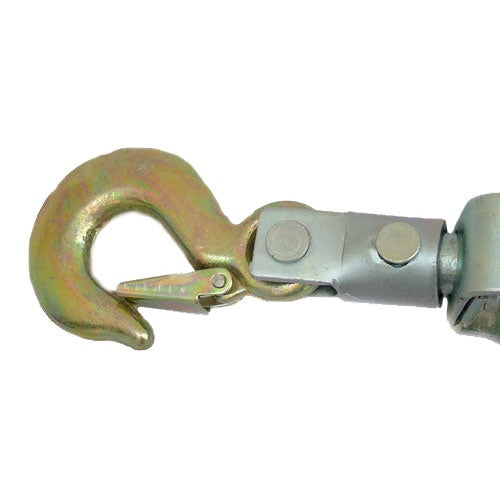

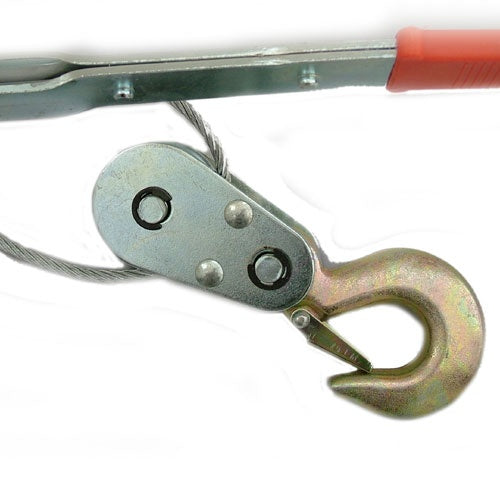

2 Drop forged safety catch hooks for heavy loads
Trouble free thumb control Release for maximum safety

The manual rope hoist is used to transport loads on a horizontal plane. It is made of steel rope and a lever driving the ratchet with a ratchet mechanism. Its construction does not allow the load to be lifted; it has been optimized for dragging purposes along the horizontal plane.

CHARACTERISTICS:

Very strong construction, solid workmanship.
The winch can be mounted, for example, on a tow hook or another stable item.
Note that the maximum pull of the winch is influenced by various factors, such as whether the weight is on wheels, on skids, on water, flat on the ground, whether uphill or above, whether buried or sunk, or standing on asphalt, a dirt road, and many other combinations.
The basic pulling force given by the manufacturer is the maximal force - they refer to a horizontal position and without any other obstacle.

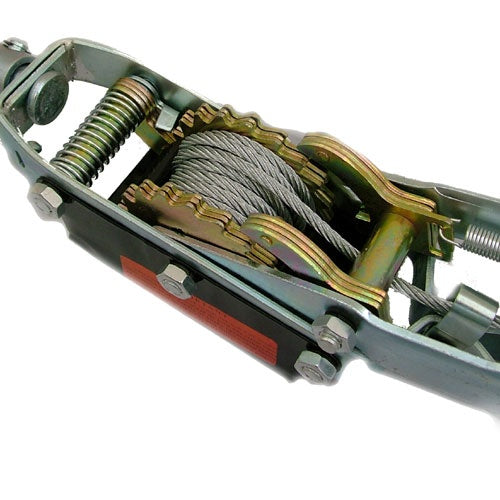

Double ratchet mechanism
TECHNICAL DATA:

pulling 4000kg
rope length approx. 2.5m
rope diameter 6.0 mm
winch made of durable materials - structural steel,
cast hooks with return springs
APPLICATION

lifting and dragging of heavy machinery
Grid tension
trailers
pulling engines from cars
car body repair and chassis
Lifting and pulling cars in difficult terrain
shifting heavy objects, debris, trees
