PORTA POWER REPAIR KIT 10T (YT-55503)

Brand
Yato
Symbol
YT-55503
Series
GRE
Set contents
hydraulic pump | actuator | x4 extensions (140, 240, 340, 590 mm) | spreading jaws | round cap | flat cap | cylinder attachment | piston attachment | slotted cap |
Load
10 t
Connection thread size
13 / 16-20 UNEF
Working pressure
620 bar
Actuator piston stroke
135 mm
Number of pieces in the set
15
Set contents cont.
V-type cap | rubber cap | male connector
Actuator operating range
355-495 mm
Jaw force
0.5 t
The 10-ton spreader is intended for workshop, assembly, and sheet metal work requiring significant static forces. The device is used for lifting, pulling, spreading, bending, straightening, and stretching.

piston stroke: 135 mm
pressure: 620 bar
working range: 355-495 mm

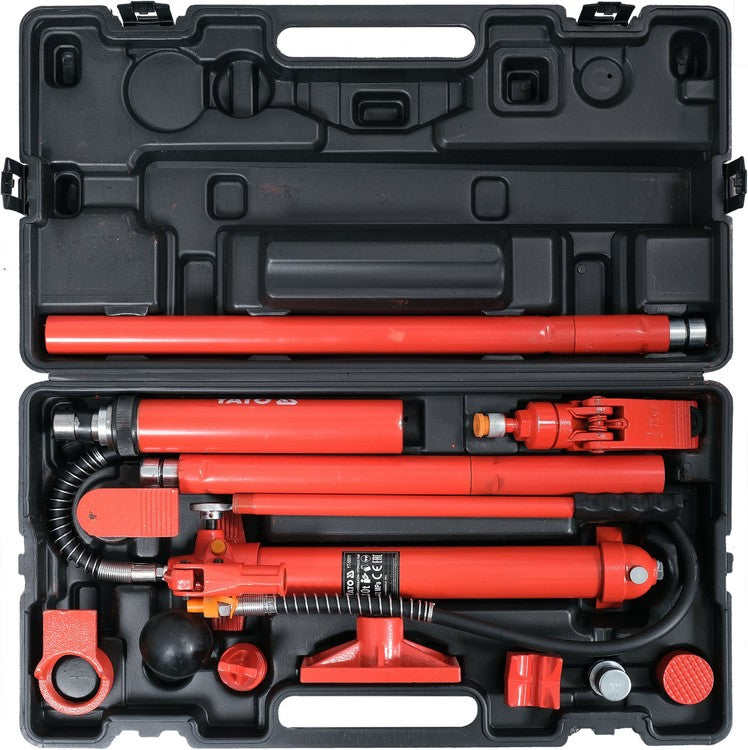

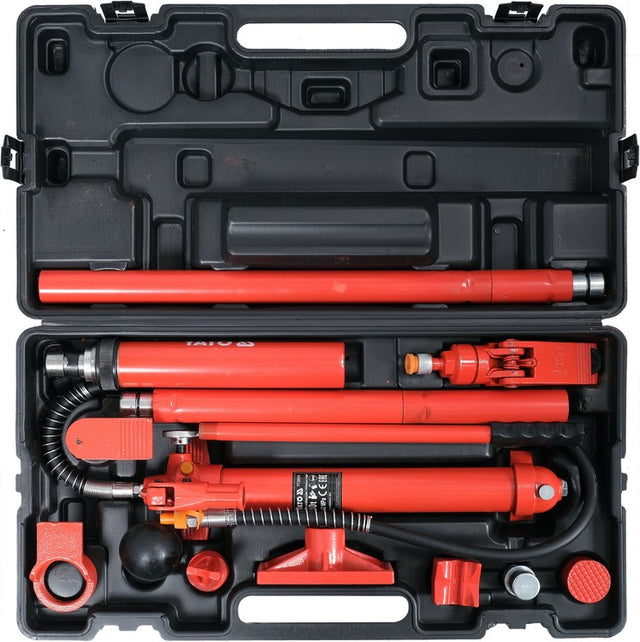

Included:
spreader pump
4 extensions: 140, 240, 340, 590 mm
0.5 t spreading jaws
8 accessories: round, flat, slotted, V-type and rubber cap, cylinder and piston attachment, male connector
