PNEUMATIC OILING MACHINE 20L (YT-07195)

Brand
Yato
Symbol
YT-07195
Series
GRF
Weight
7kg
Hose length
2.1 m
Sound pressure
101.2 3.0 dB(A)
Acoustic power
119.8 3.0 dB(A)
Max pressure
0.3 MPa
Castors
YES
Number of wheels
2
Tank capacity
20 L
Required air flow
150 l/min
Air connection diameter (PT)
standard
Recommended working pressure
0.1-0.3 MPa
Max. oil temperature
35 C

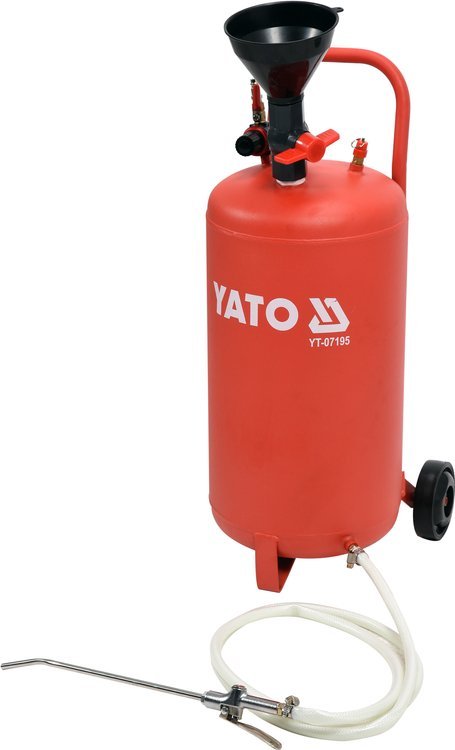

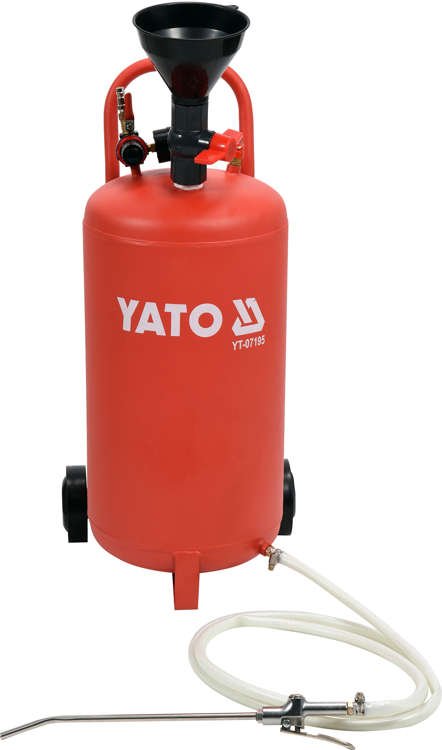

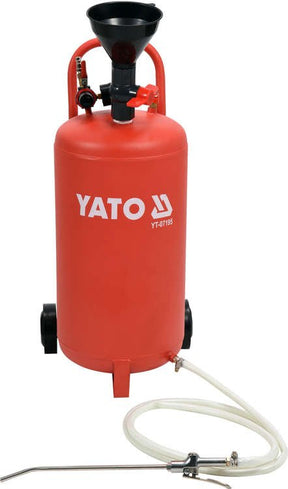

The pneumatic oil filler allows for quick, efficient, and safe filling of machines or their components with oil. The tank is connected to the lance with a flexible hose, which allows easy work even in places with difficult access.

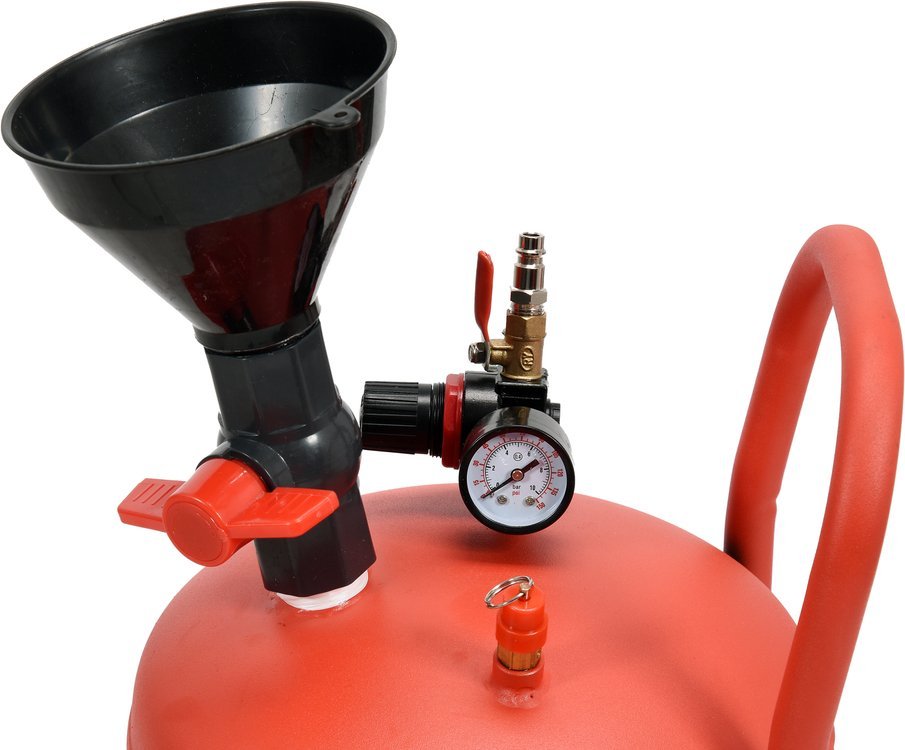

The tank is equipped with wheels and a handle. This allows you to easily move the device even when filled with oil. The large inlet opening equipped with a funnel allows easy and quick filling of the tank with oil.

Parameters:

Maximum pressure [MPa]: 0.3
Recommended working pressure [MPa]: 0.1 0.3
Required air flow [l/min]: 150
Tank capacity [l]: 20
Max. oil temperature [degrees C]: 35
Weight [kg]: 7
