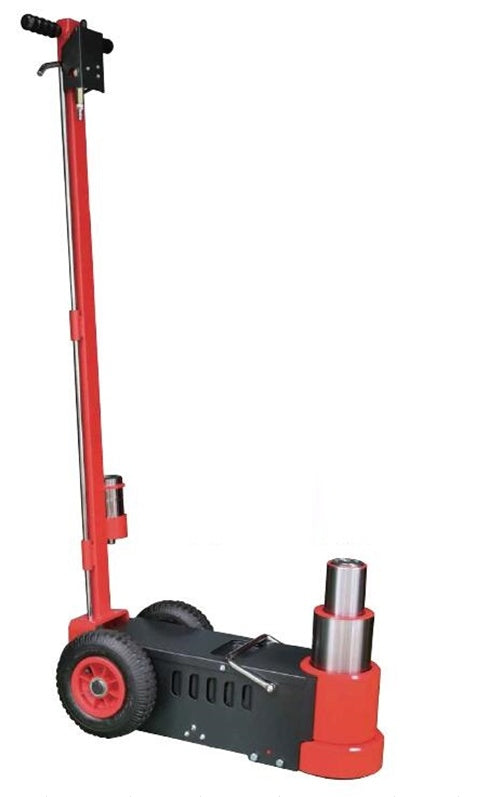

PNEUMATIC LIFT | MOBILE | 20 / 40 T (E2240)

The E2240 pneumatic telescopic two-stage car jack is a robust, versatile, and compact, quiet-operating DIY+ class device designed for lifting vehicles, trucks, agricultural machinery, cars, trailers, campers, and other heavy loads. It features a quick lift function and is suitable for intensive use. The pneumatic drive raises and lowers the cylinder by simply turning the control handle. The device is constructed without springs, which in other designs wear out, rust, and are often damaged during operation. The cylinder is chrome-plated, which protects against atmospheric effects and thus ensures smooth operation of the device. It has a 120 cm T-shaped stable handle with 3-position locking. Two additional adapters are included for increasing the lifting height. A protective overload pressure valve is also present. The device is suitable for use in car services, tire repair shops, technical service stations, or garages.

Lifting range [mm]: 150-295

Lifting capacity Max. [first stage | second stage, kg]: 16 000 | 32 000

Lever length [mm]: 1200

Working pressure [BAR]: 7-10

The product includes an integrated lifting lever and an accessory kit for setting the lifting height: 35mm | 65mm

Total weight [kg]: 41.500
