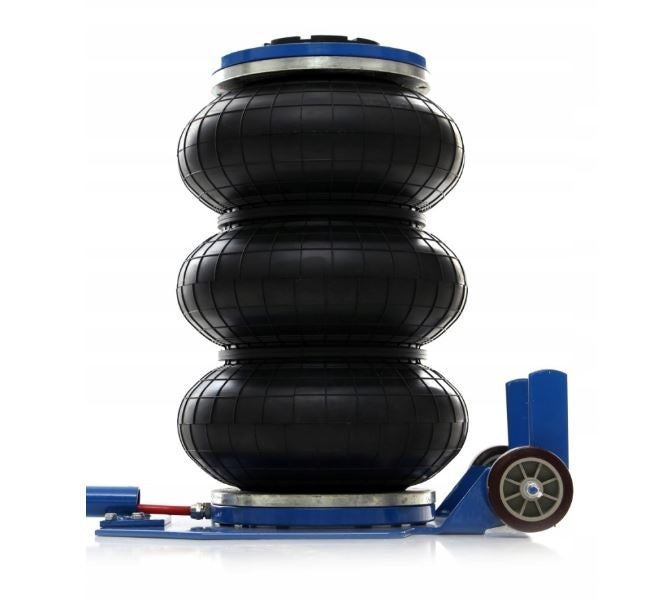

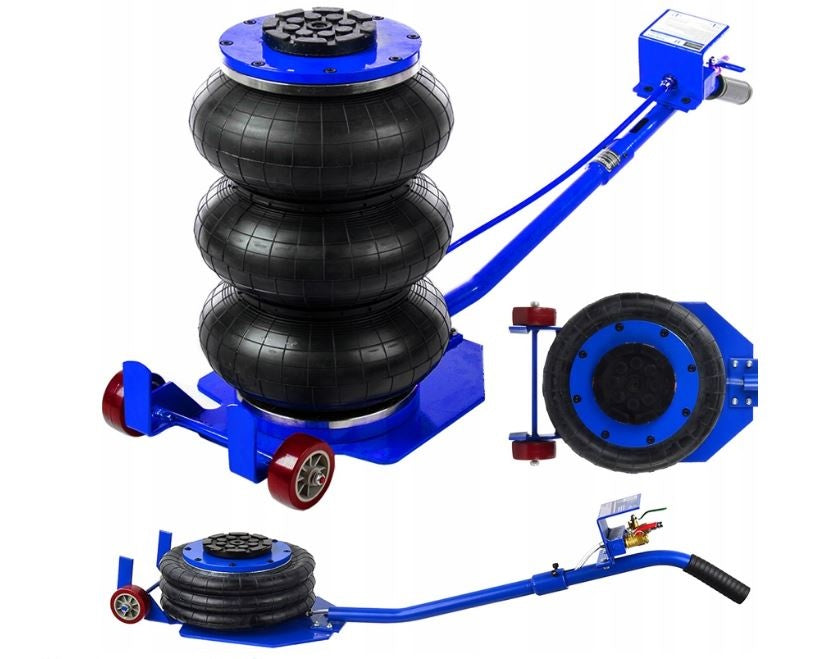

PNEUMATIC JACK | WITH 3 AIR BAGS | 5.0 T (BT600)

The pneumatic Snowman type jack BT600 is a robust, high-quality, and stable PRO-class device designed for quickly lifting heavy loads using compressed air. This type of jack operates by filling a rubber airbag with compressed air, which expands and thus lifts the load. Using a pneumatic jack, you can lift a car in approximately 3-5 seconds. The vertical position of the jack is set without additional supports.

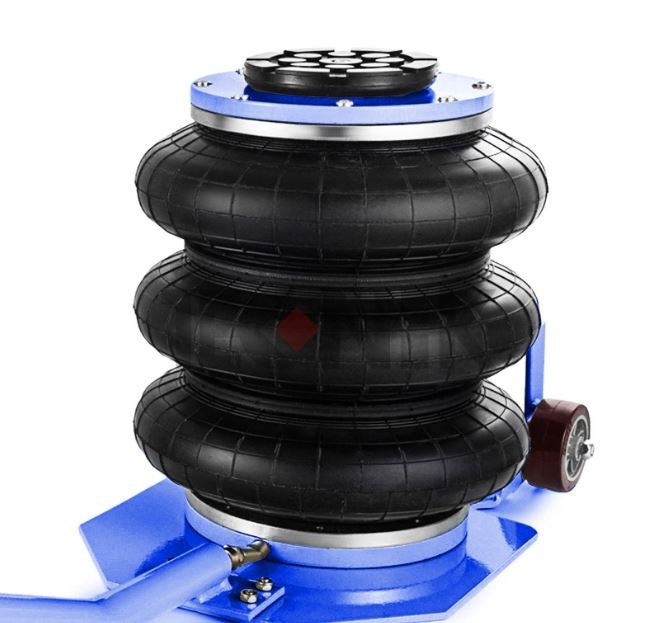

The BT600 jack is made of high-quality, corrosion-resistant steel, powder-coated. It features sealed 3-level rubber airbags. Integrated steel telescopic tubes inside ensure exceptional stability even when lifting heavy vehicles.

3/8" ball valves with convenient levers, marked with different colors: supply - green, release - red, and an integrated safety valve to prevent the airbag from bursting if the permissible compressed air pressure is exceeded.

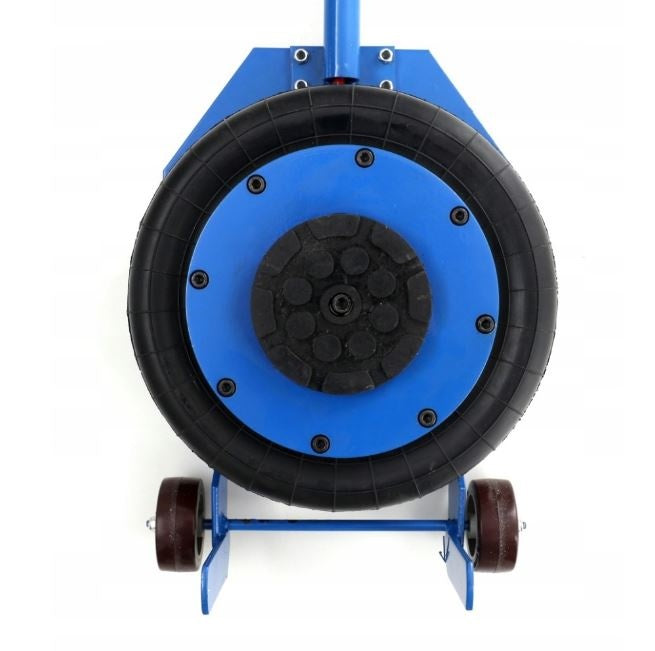

A thick non-slip rubber pad ensures a larger contact surface for more even weight distribution and protects the body of the lifted vehicle from damage.

The pneumatic jack has a sturdy screw-on steel handle covered with corrugated rubber and is mounted on large wheels made of durable plastic, facilitating maneuverability both inside and outside the workshop.

The pneumatic 3-bag jack is designed for lifting tractors, heavy agricultural machinery, trucks, commercial vehicles, passenger cars, motorcycles, and other vehicles, suitable for use in car repair shops, tire repair shops, agriculture, construction, industry, households, and wherever heavy parts, vehicles, or equipment need to be lifted.

Technical specifications:

lifting range [mm]: 150-400

max lifting capacity [kg]: 5000

handle length [mm]: 710

air inlet: G1/4

working pressure [BAR]: 6-12

operating temperature [℃ ]: -60 ~ 50

wheel diameter [mm]: 60

Total weight [kg]: 21.900
