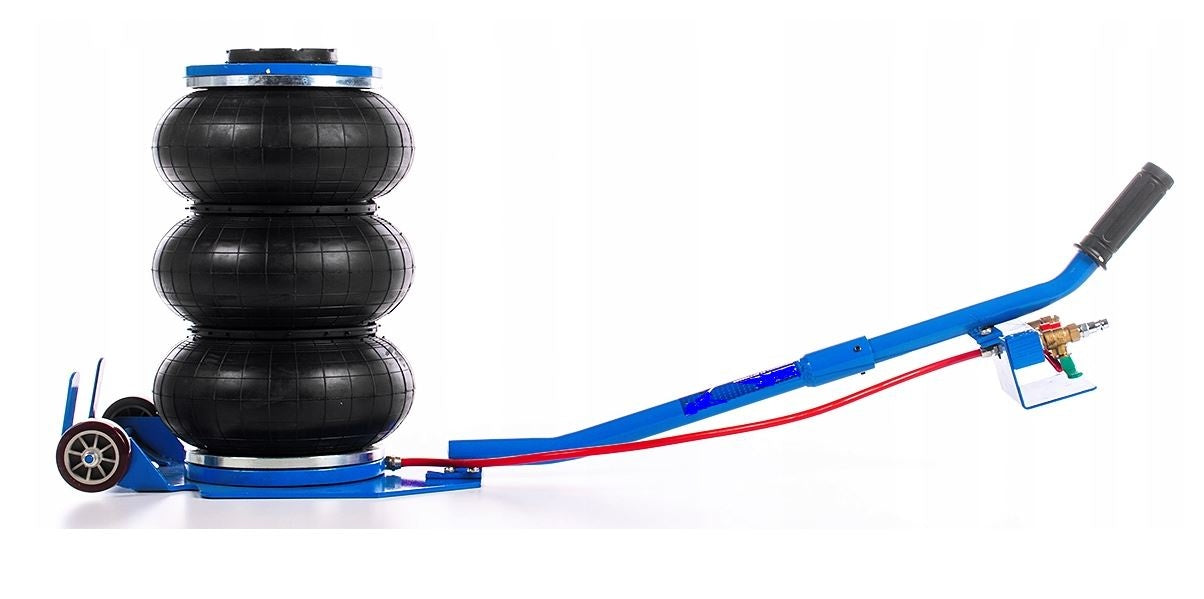

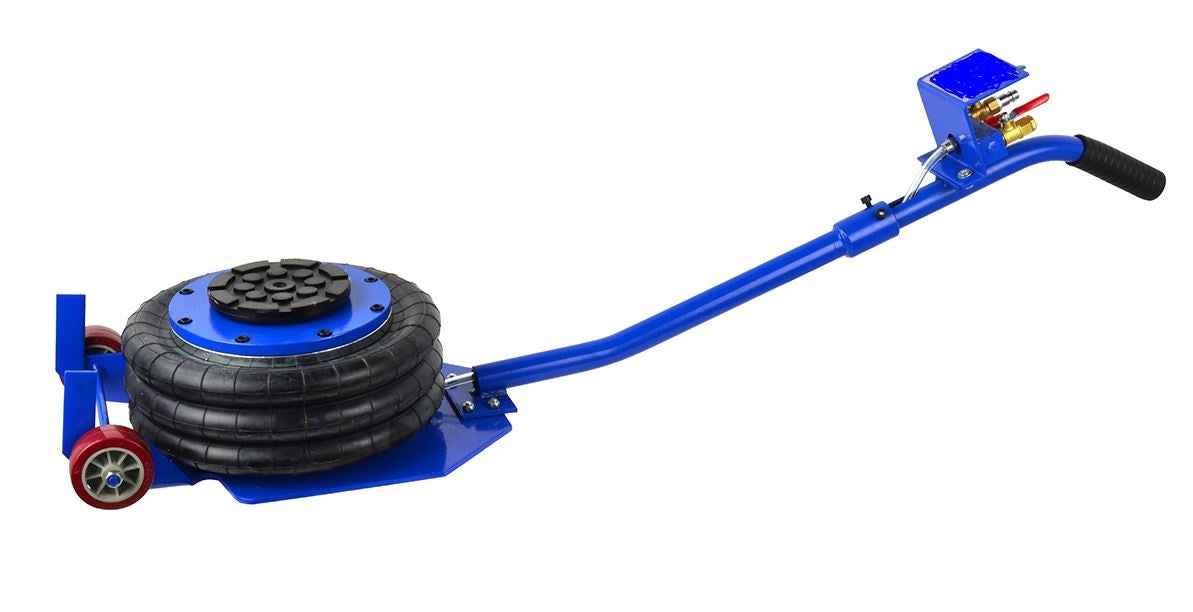

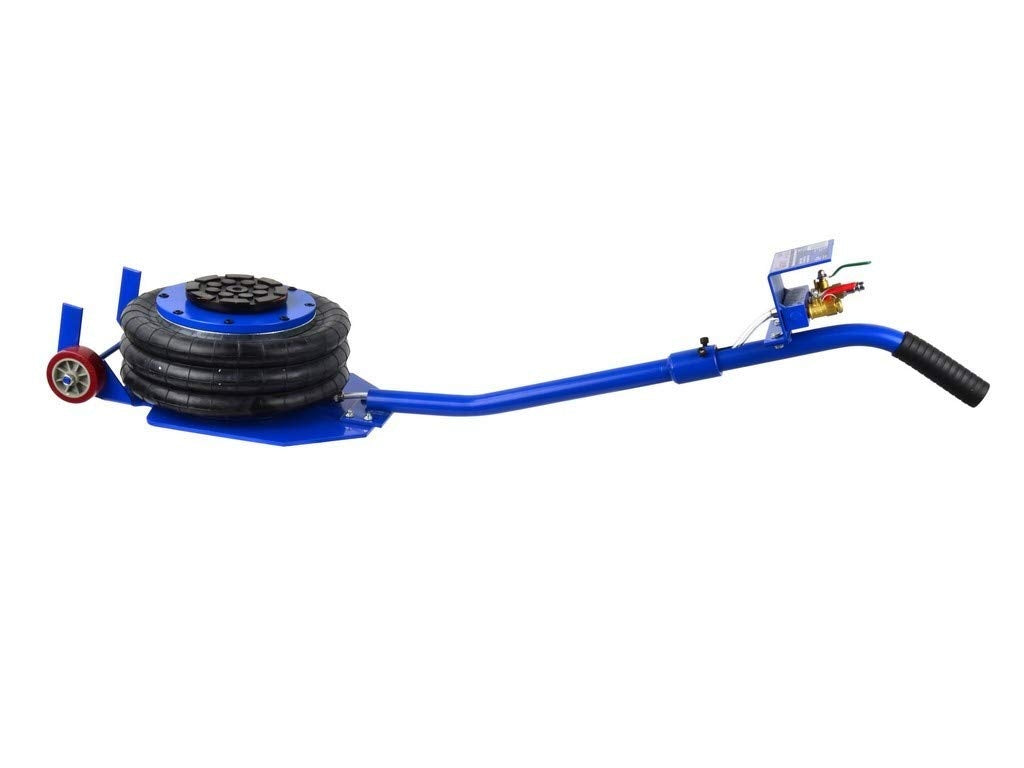

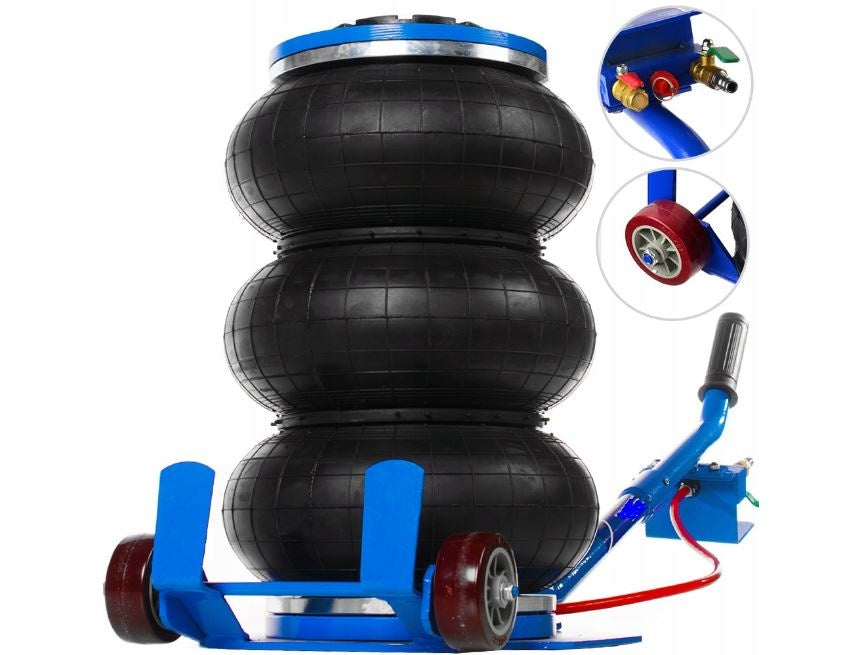

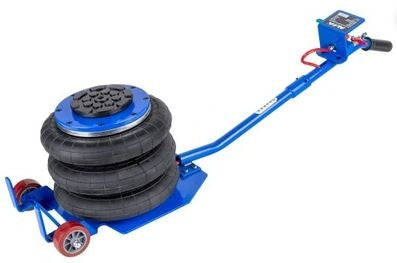

PNEUMATIC JACK | WITH 3 AIR BAGS | 3.0 T (BT350)

The pneumatic Snowman type jack BT350 is a robust, high-quality, and stable PRO-class device designed for quickly lifting heavy loads using compressed air. This type of jack operates by filling a rubber air bladder with compressed air, which then expands and lifts the load. Using a pneumatic jack, you can lift a car in approximately 3-5 seconds. The vertical position of the lift is set without additional supports.

The BT350 jack is made of high-quality, corrosion-resistant steel, powder-coated. It features sealed 3-level rubber bladders. Integrated internal steel telescopic tubes ensure exceptional stability even when lifting heavy vehicles.

3/8" ball valves with convenient levers, marked in different colors: green for supply, red for release, and an integrated safety valve preventing the bladder from bursting if the permissible compressed air pressure is exceeded.

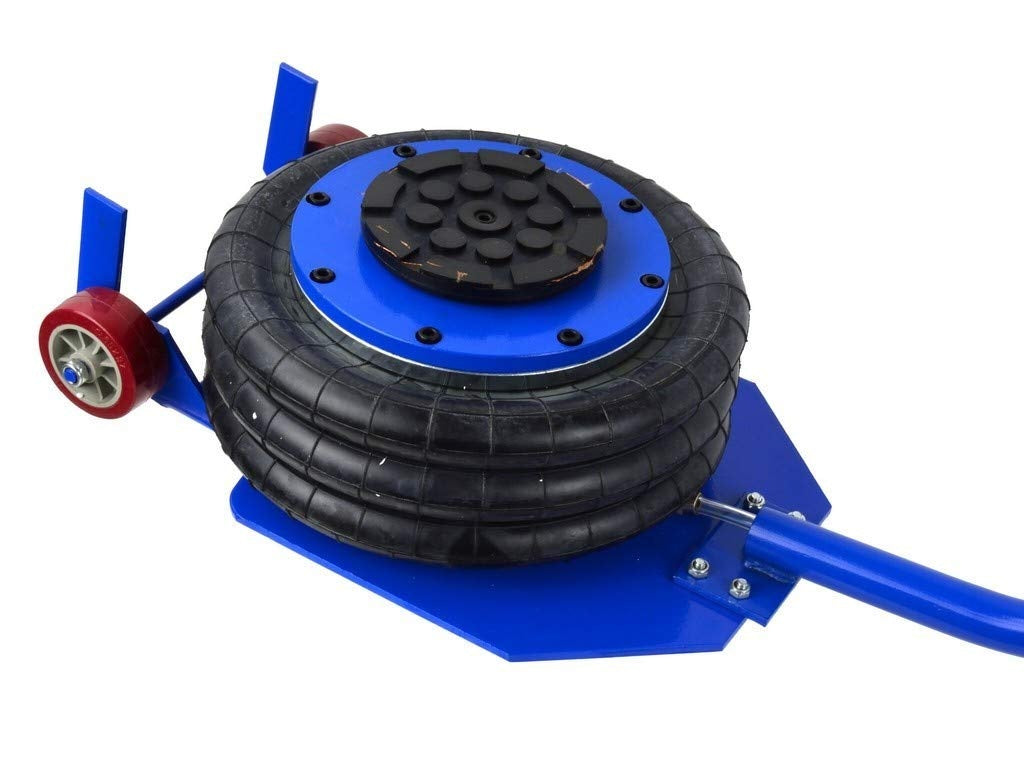

A thick non-slip rubber pad ensures a larger contact surface for more even weight distribution and protects the body of the lifted vehicle from damage.

The pneumatic jack has a sturdy screw-on steel handle covered with corrugated rubber and is mounted on large wheels made of durable plastic, facilitating maneuverability of the device both inside and outside the workshop.

The pneumatic 3-bladder jack is designed for lifting cars, motorcycles, and other vehicles, suitable for use in car services, tire repair shops, agriculture, construction, industry, households, and wherever heavy parts, vehicles, or equipment need to be lifted.

Technical specifications:

lifting range [mm]: 135-450

lifting capacity max. [kg]: 3000

handle length [mm]: 710

air inlet: G1/4

working pressure [BAR]: 5-10

operating temperature [℃ ]: -60 ~ 50

wheel diameter [mm]: 60

Gross weight [kg]: 16.000
