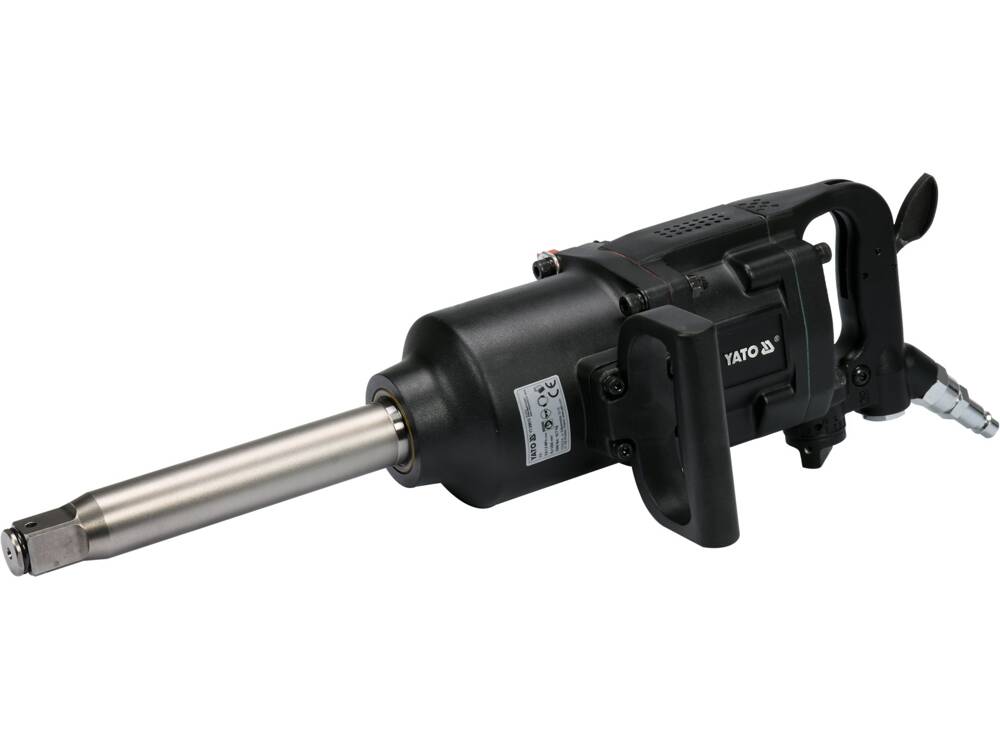

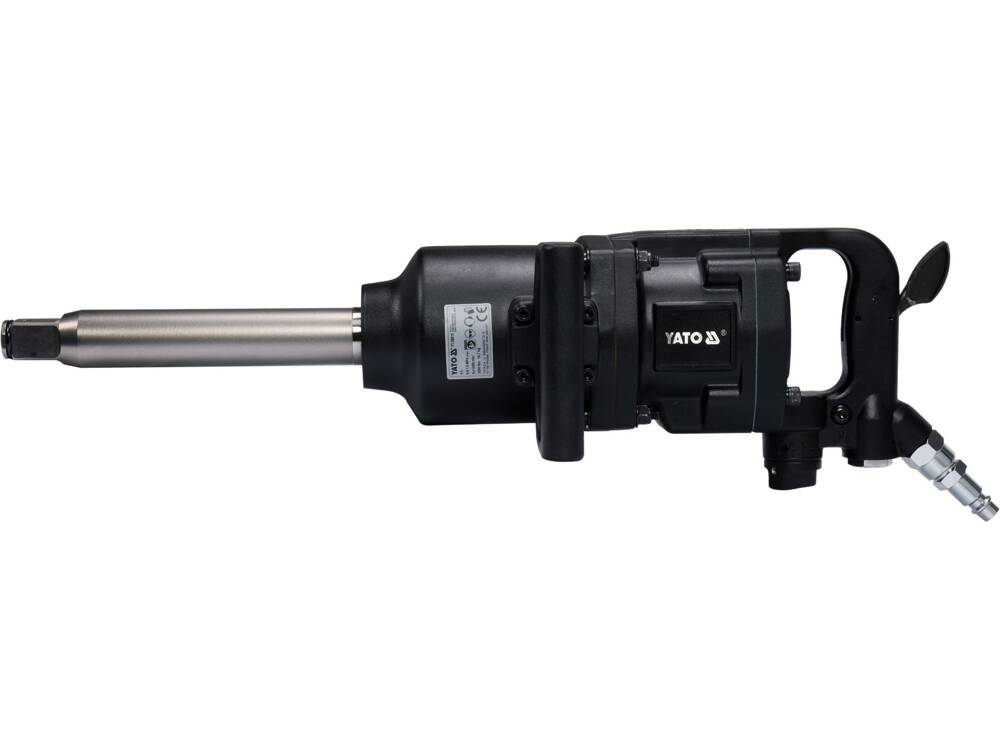

PNEUMATIC IMPACT WRENCH 1" 3200 NM (YT-09615)

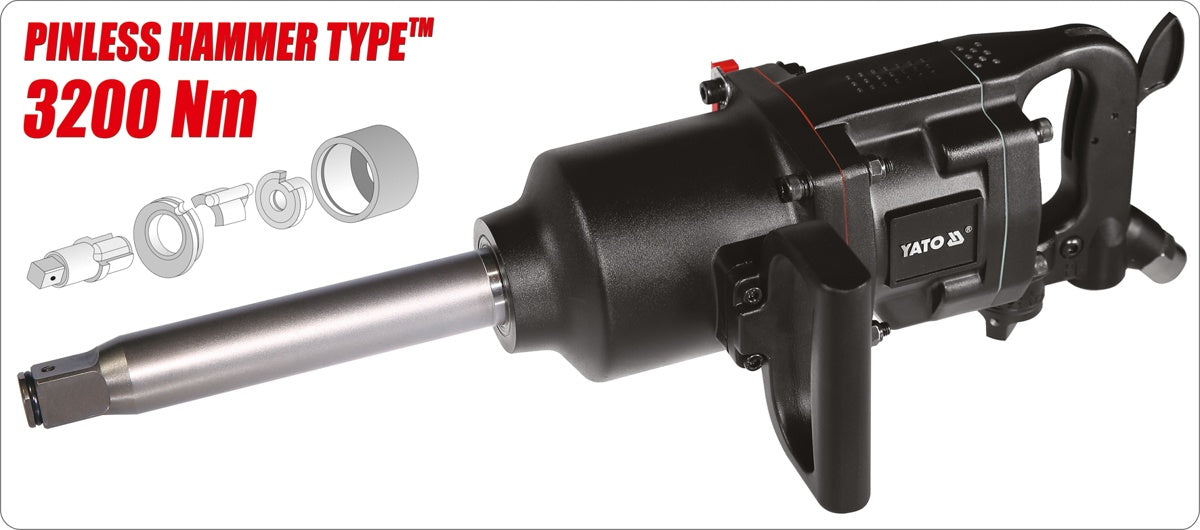

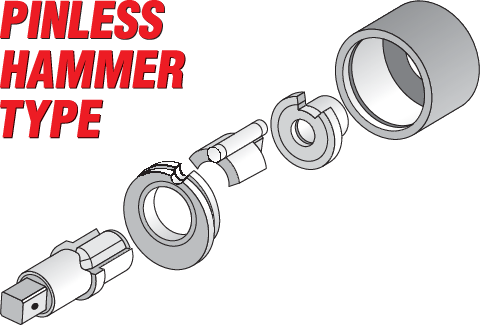

The powerful 1" pneumatic impact wrench YATO YT-09615 is a universal PRO class tool designed for use in car services, industry, and for servicing heavy commercial or agricultural machinery. The device's body is made of aluminum, featuring high durability. The Pinless Hammer system means that one hammer strikes once per revolution. The impact force is directly transmitted to the anvil because the hammer and its pin are connected. Wrenches with such a system are characterized by high power and lower vibration, relatively low compressed air requirement; parts are easy to change and repair.

The pneumatic impact wrench YATO YT-09615 complies with the following standards: EN ISO 11148-6:2012 and is manufactured in accordance with the requirements of European Union directives: 2006/42/EC Machinery and Safety Elements.

drive ["]: 1

air connection ["]: 1/2

air hose inner diameter ["]: 1/2

length [mm]: 670

torque [Nm]: 3200

rated speed [min-1]: 3500

operating pressure [MPa]: 0.6-1.0

air consumption [l/min]: 355

Model year: 2022

Gross weight [kg]: 19.165

YATO YT-09615 user manual PDF
