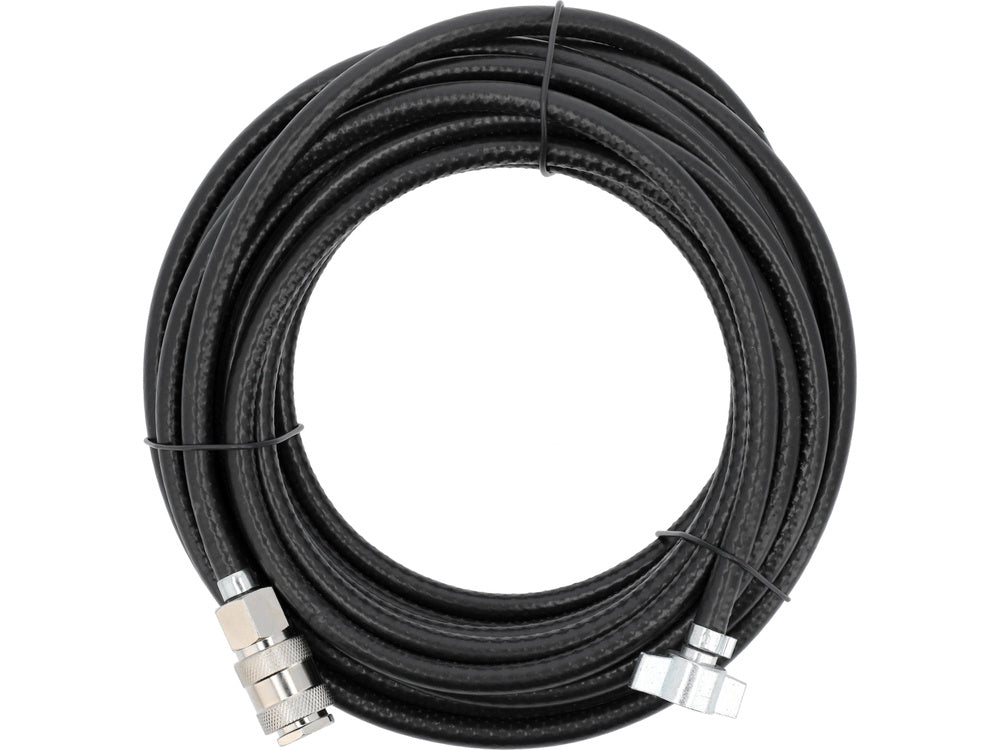

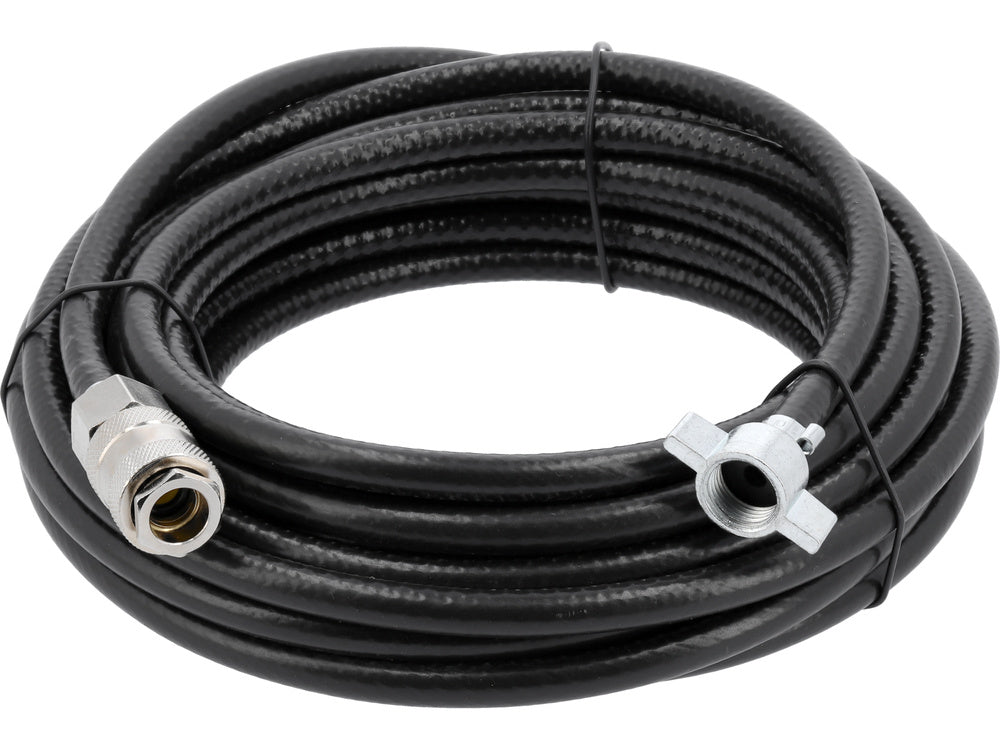

PNEUMATIC HOSE FOR THE CAR (YT-24270)

8M PNEUMATIC HOSE WITH QUICK CONNECTOR FOR CARS
YT-24270
Mark
Yato
Symbol
YT-24270
Series
GRE
Material
PVC, polyester
Application
for pumping and blowing in buses, trucks, semi-trailers, agricultural tractors, etc.
Operating temperature range
-20 ~ +60 C
Length
8 m
Thread size
M16x1.5mm
Mass
0.5kg
Outer diameter
10mm
Bursting pressure
3.5 MPa
Inner diameter
6mm
Working pressure
1 MPa

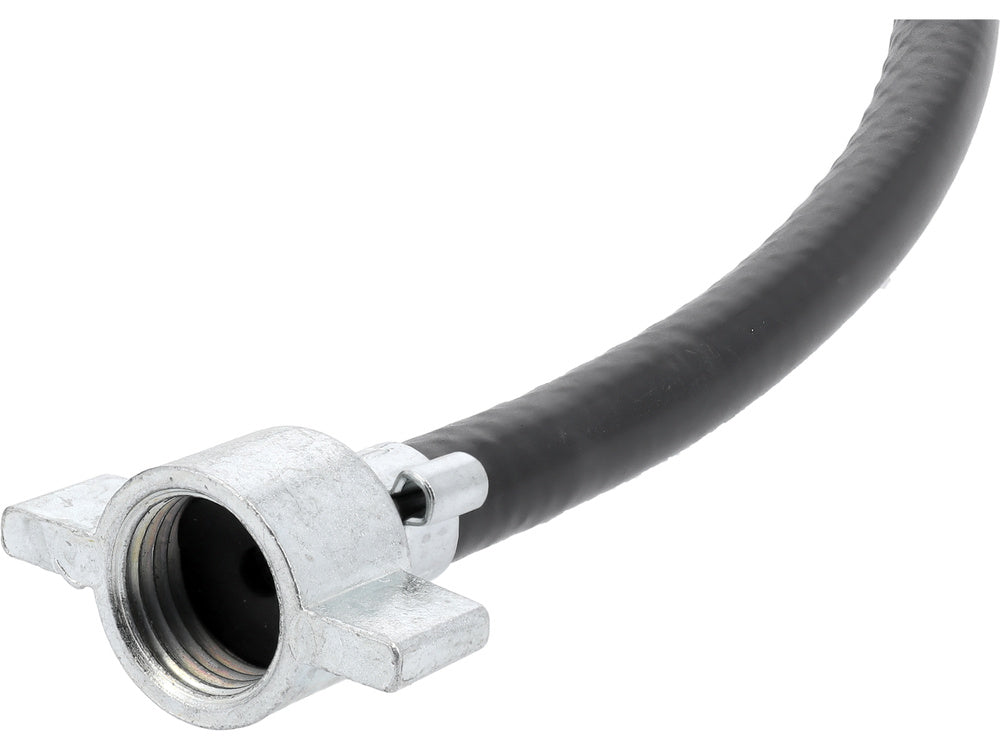

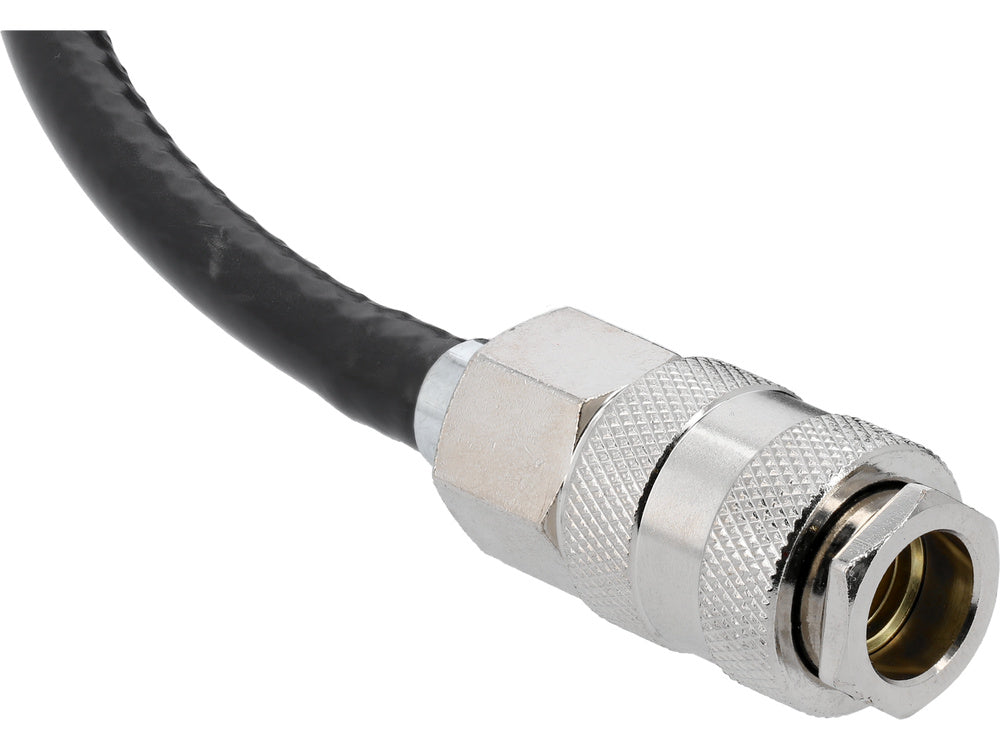

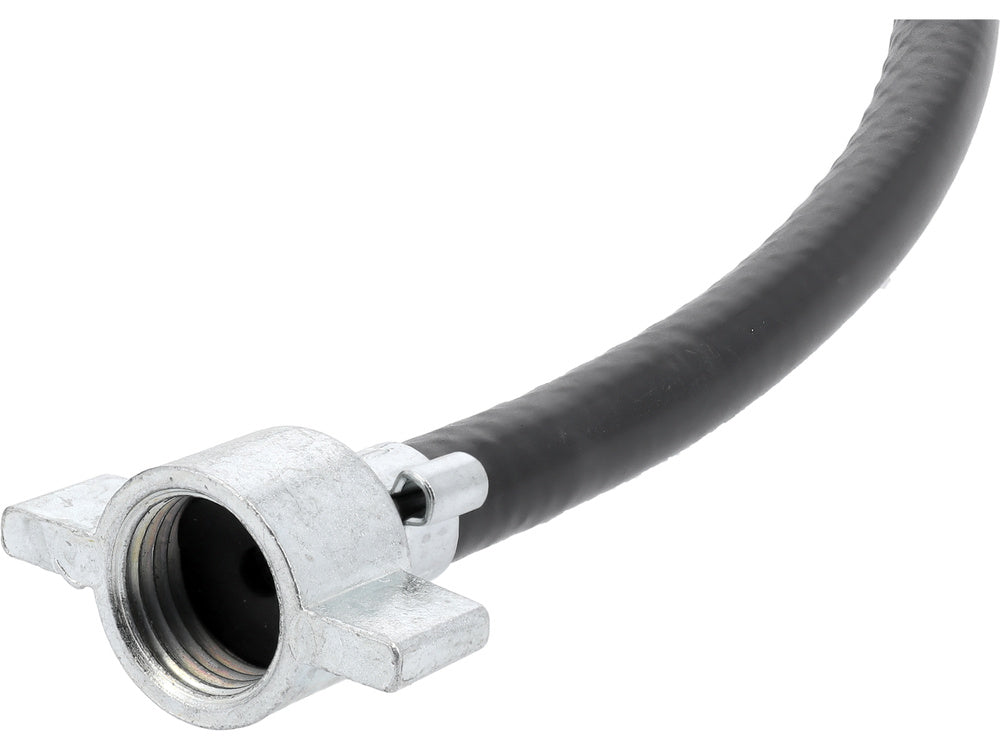

Professional, flexible compressed air hose. Adapted to vehicles with an air compressor. Used for pumping and blowing in buses, trucks, semi-trailers, agricultural tractors, etc. Cable terminated with connectors on both sides. On one side, it ends with a butterfly tip with an M16x1.5 mm internal thread adapted to car compressors. On the other hand, a universal metal quick connector enabling the connection of various pneumatic devices and tools, e.g. pumping or blowing guns. The hose is made of three layers. The inner part is made of soft PVC and a dense, textile reinforcing polyester braid. Outer layer made of weather-resistant PVC.

outer diameter: 10 mm
inner diameter: 6 mm
working pressure: 1.0 MPa (10 atm) at an ambient temperature of 23 C
burst pressure: 3.5 MPA (35 atm) at an ambient temperature of 23 C
safe operating temperature range: -20 C to 60 C
weight: 0.5 kg
